Sheet Metal Processing
1983 1/4" X 12' CINCINNATI 2H12 CENTURY SHEARItem Location - Spring Hill, FL
1989 90 TON X 12' CINCINNATI 90CBX10 HYDRAULIC PRESS BRAKECAPACITY: 90 TONOVERALL LENGTH OF BED & RAM: 12’DISTANCE BETWEEN HOUSINGS: 10’-6”OPEN HEIGHT: 15”CLOSED HEIGHT: 7”THROAT CLEARANCE: 7”MAX STROKE: 8″EQUIPPED WITH:MANUALLY SET BACKGAUGEFOOT PEDAL***NOTE: LASER GUARDING NOT INCLUDEDAll specifications are assumed to be correct but must be confirmed by the purchasing entity.Item Location - Spring Hill, FL

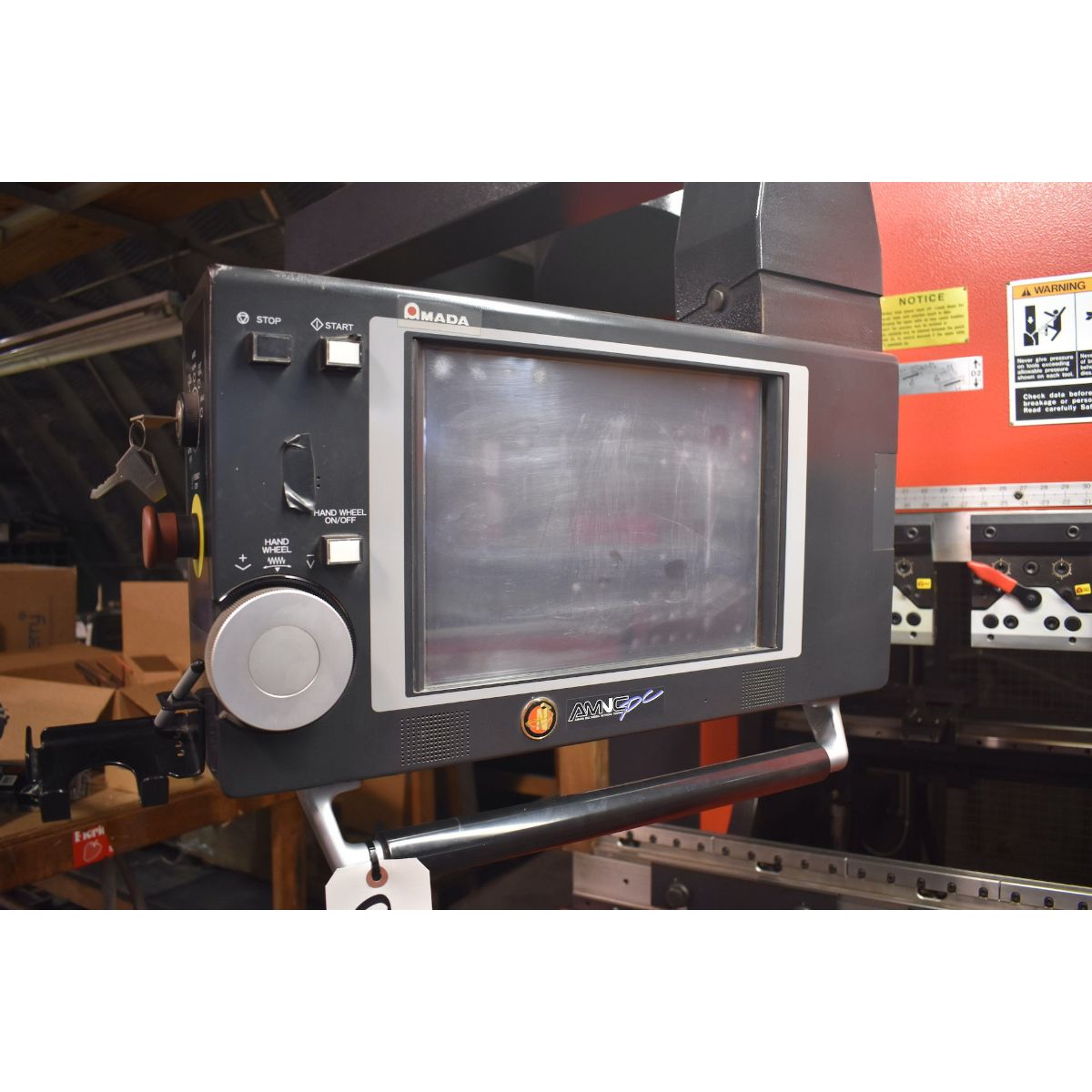

1996 138 TON X 13' AMADA HFB 125-40 CNC PRESS BRAKECAPACITY: 138 TONSSTROKE: 7”BED LENGTH: 13′THROAT: 16.1”OPEN HEIGHT: 17.7″BETWEEN COLUMNS: 12′ 4”AUTOMATIC BACKGAUGE CAPACITY: 28”8-AXIS: PASSIVE & ACTIVENUMBER OF FINGERS: 8APPROACH SPEED: 236 IPMBENDING SPEED: 19 IPMRETURN SPEED: 189 IPMMACHINE DIMENSIONS (APPROX.): 138” X 92” X 105”MACHINE WEIGHT (APPROX): 22,000 LBSEQUIPPED WITH:14 AMADA ONE TOUCH TOOL HOLDERSOPERATUER CNC CONTROLOPERATIONAL- BUT HAS AN INTERMITTENT LINEAR SCALE ON THE RIGHT SIDE AND WILL NOT HOLD BEND DEPTH CONTINUOUSLY; BACK GAUGE FULLY OPERATIONAL.All specifications are assumed to be correct but must be confirmed by the purchasing entity.Item Location - Rockford, ILLoading Fee: $1,250.00

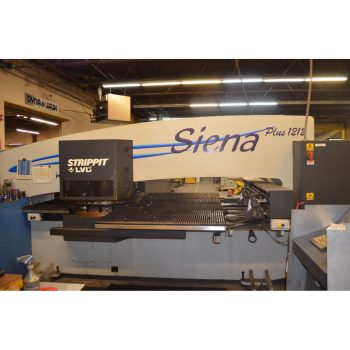

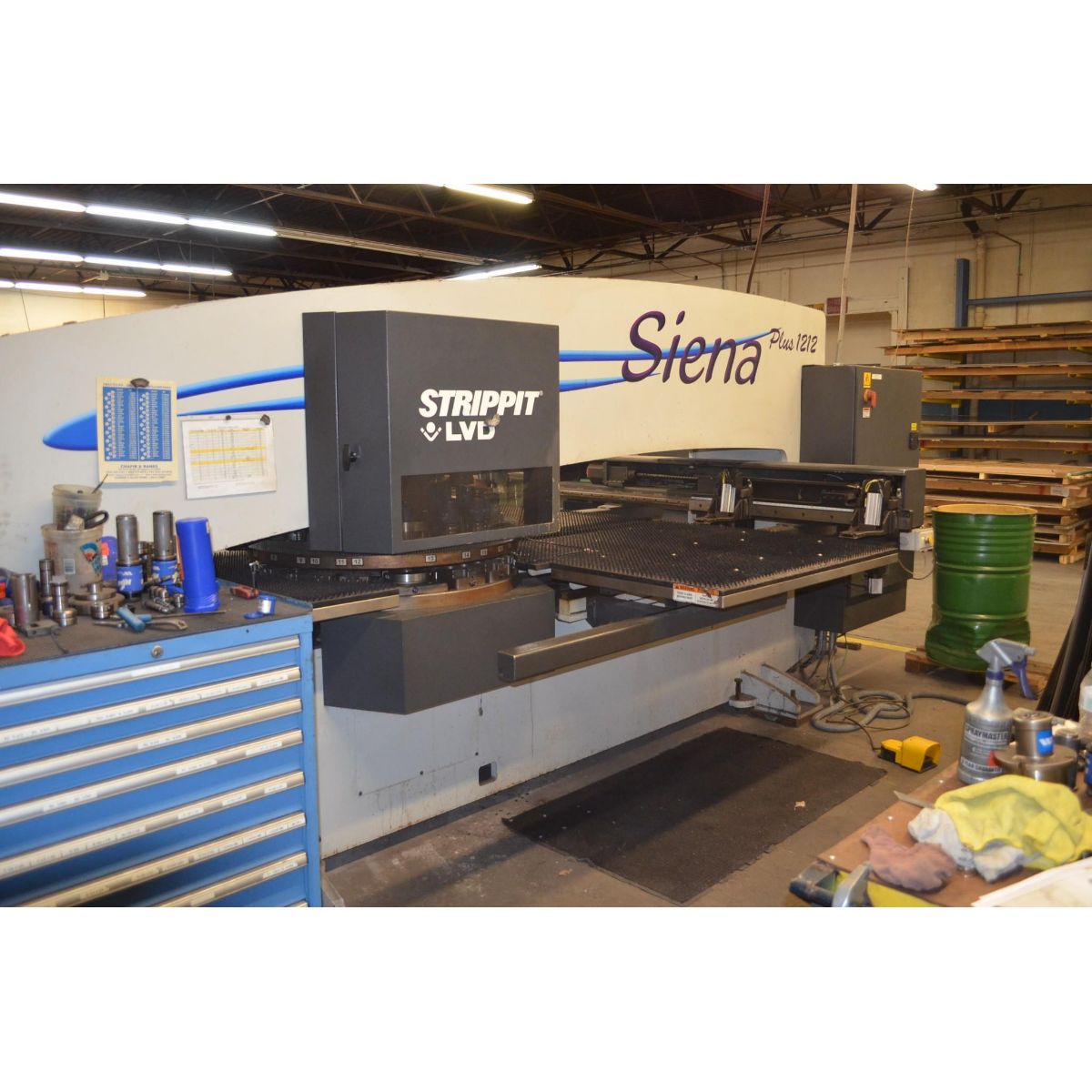

20 TON LVD STRIPPIT SIENA PLUS 1212 MULTI-TURRET PUNCHMAX. PUNCHING CAPACITY: 20 METRIC TONMAX. MATERIAL THICKNESS: 0.250” (6.35 MM)TABLE TYPE: BRUSH TABLETABLE CAPACITY: 160 LBS. (73 KG)CLAMPING STYLE: FLOATING CLAMPSNUMBER OF CLAMPS: 2 MANUAL LOCKMAXIMUM CLAMP SPREAD: 74.80” (1900 MM)FEED CLEARANCE UNDER RAM: 0.984” (25 MM)AXIS TRAVERSE SPEED: UP TO 3385 IPMCOMBINED AXIS TRAVIS SPEED: (86 M/MIN.) COMBINEDMAXIMUM HIT RATE AT 2 MM: UP TO 650 HPMAll specifications are assumed to be correct but must be confirmed by the purchasing entity.Item Location - East Berlin, CT

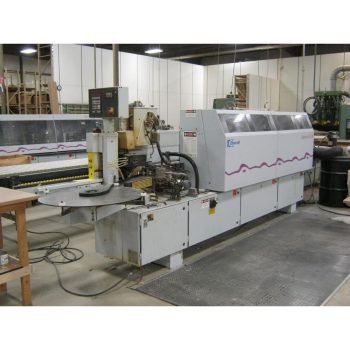

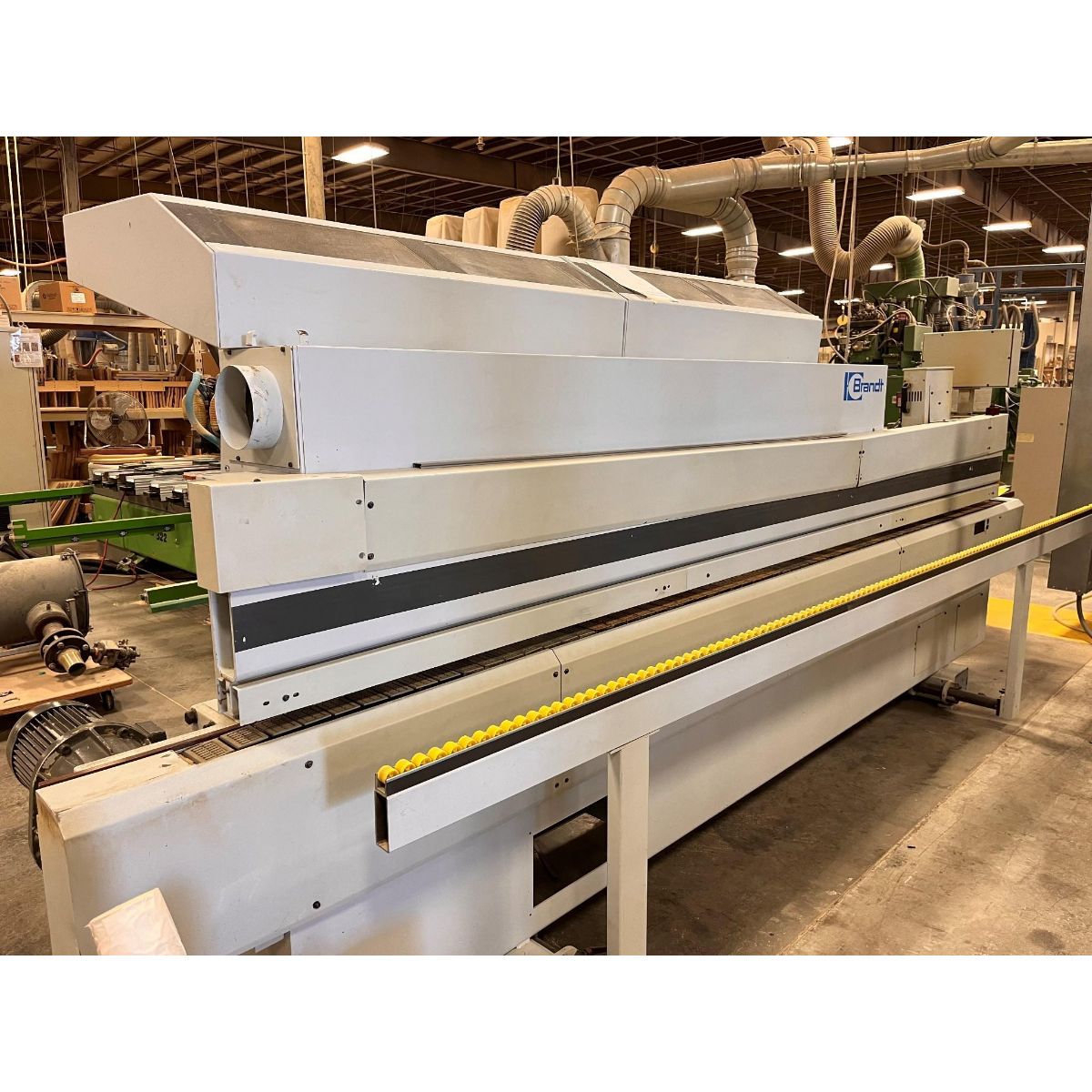

2000 BRANDT KD-94 EDGE BANDEREDGE THICKNESS CAPACITY (STRIP): 0.4MM – 20MMEDGE THICKNESS CAPACITY (COIL): 0.4MM – 3MMPANEL THICKNESS: 3/8″ – 2-3/8″MINIMUM PANEL LENGTH: 6-3/8″MINIMUM PANEL WIDTH: 2-1/2″PANEL HEIGHT: 10MM – 55MMEQUIPPED WITH:– SWIVEL OPERATOR CONTROL PANELAll specifications are assumed to be correct but must be confirmed by the purchasing entity.Item Location - Two Rivers, WI

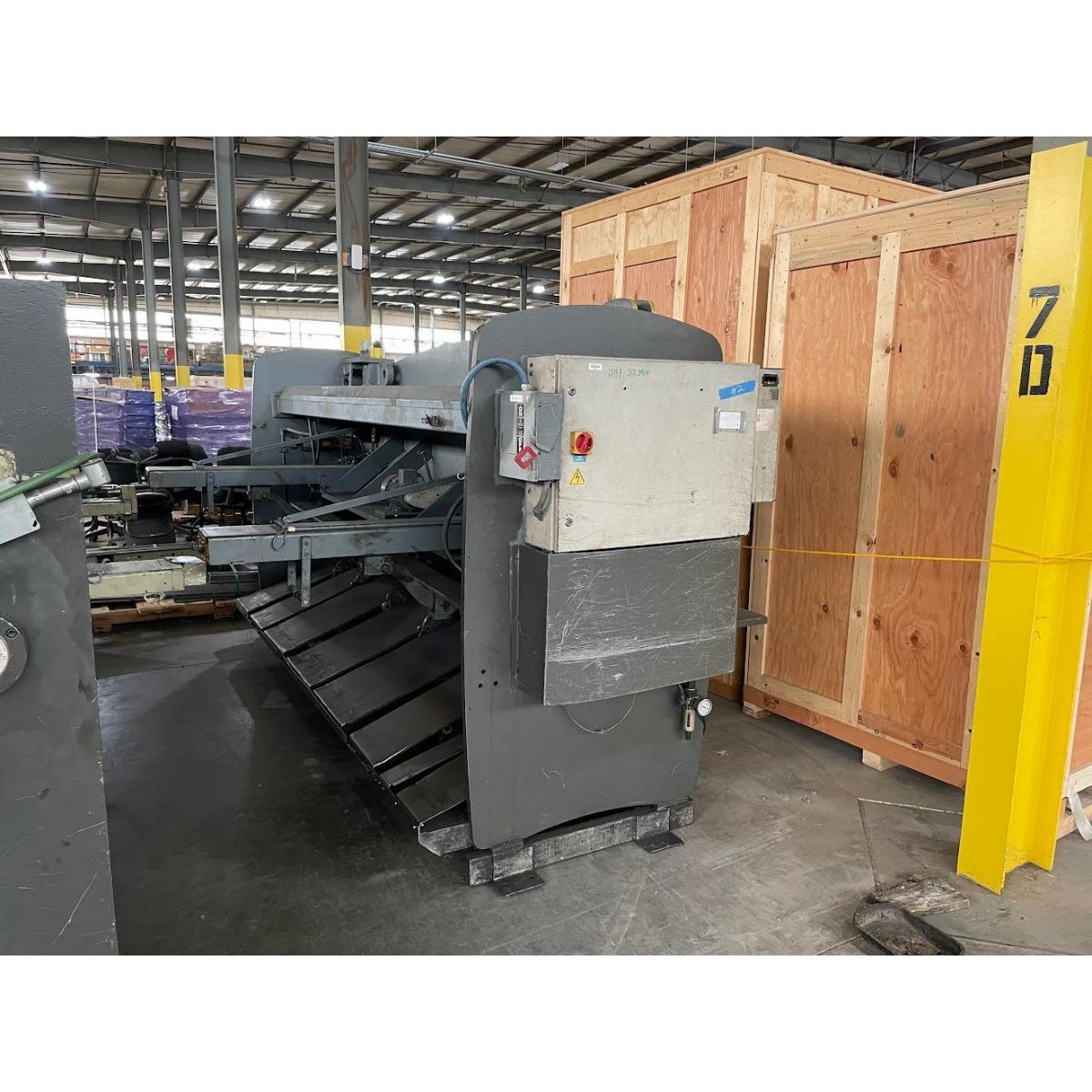

2001 1/4" X 10' HSLX3006 HACO SHEARMANUFACTURER: HACOMODEL: HSLX3006YEAR: 2001CONDITION: USED – GOOD CONDITIONMAXIMUM CUTTING CAPACITY:– MILD STEEL: 1/4″ (6MM)– STAINLESS STEEL: ~3/16″ (4MM) (VERIFY IF APPLICABLE)– MAXIMUM CUTTING LENGTH: 122″BACKGAUGE RANGE: 39.3″ (1000 MM)HOLD DOWNS: HYDRAULIC HOLD-DOWNS WITH MULTIPLE CYLINDERS FOR CLAMPINGLENGTH: 122″VOLTAGE: 220V / 440V, 3 PHASETABLE:– SQUARING ARM– FRONT SUPPORT ARMS– BALL TRANSFERS FOR SHEET HANDLINGMACHINE FOOTPRINT (L X W X H):– 152″ X 72″ X 70″– APPROX. WEIGHT: 14,000 LBSAll specifications are assumed to be correct but must be confirmed by the purchasing entity.Item Location - Portland, TNNO OUT OF STATE MANUFACTURING SALES TAX EXEMPTION

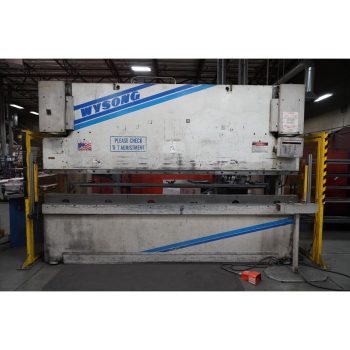

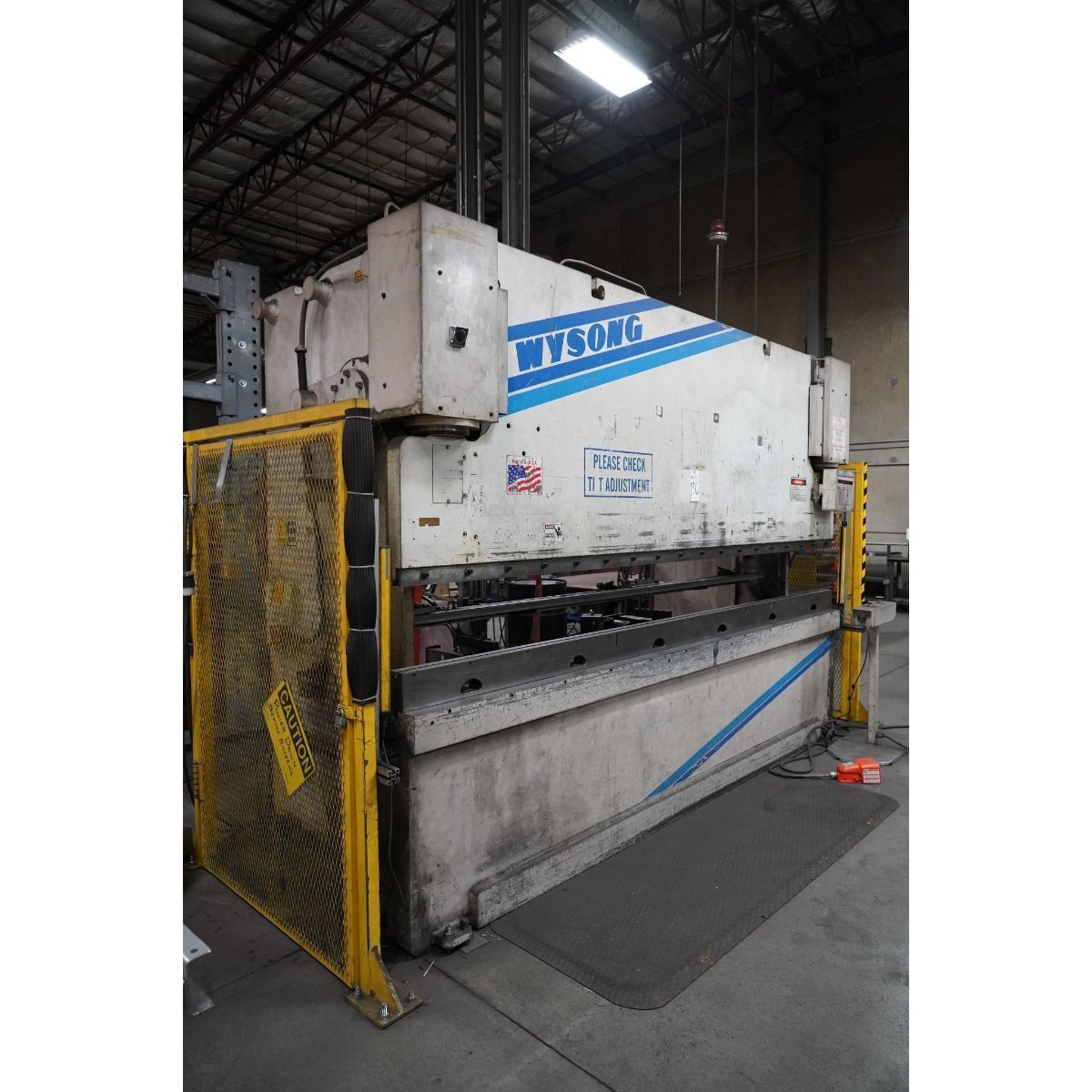

2002 175 TON X 12' WYSONG MTH175-144 HYDRAULIC PRESS BRAKE8” STROKE, 9” ADJUSTMENT, 17” MAX DIE SPACE, 575 VOLTS, 60 HZ, 25 FULL LOAD AMPS, 14.7 MAIN MOTOR AMPS, 30 MAIN DISCONNECT AMPS, 500 – 3200 PSI MAX, MICRO GUARD, FOOT PEDAL, 2 BUTTON SAFETY START CONTROL, WITH CNC 150 AUTO GAUGE CONTROLLERAll specifications are assumed to be correct but must be confirmed by the purchasing entity.Item Location - Sparks, NVNO MANUFACTURING SALES TAX EXEMPTION

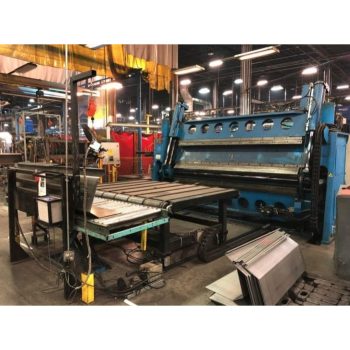

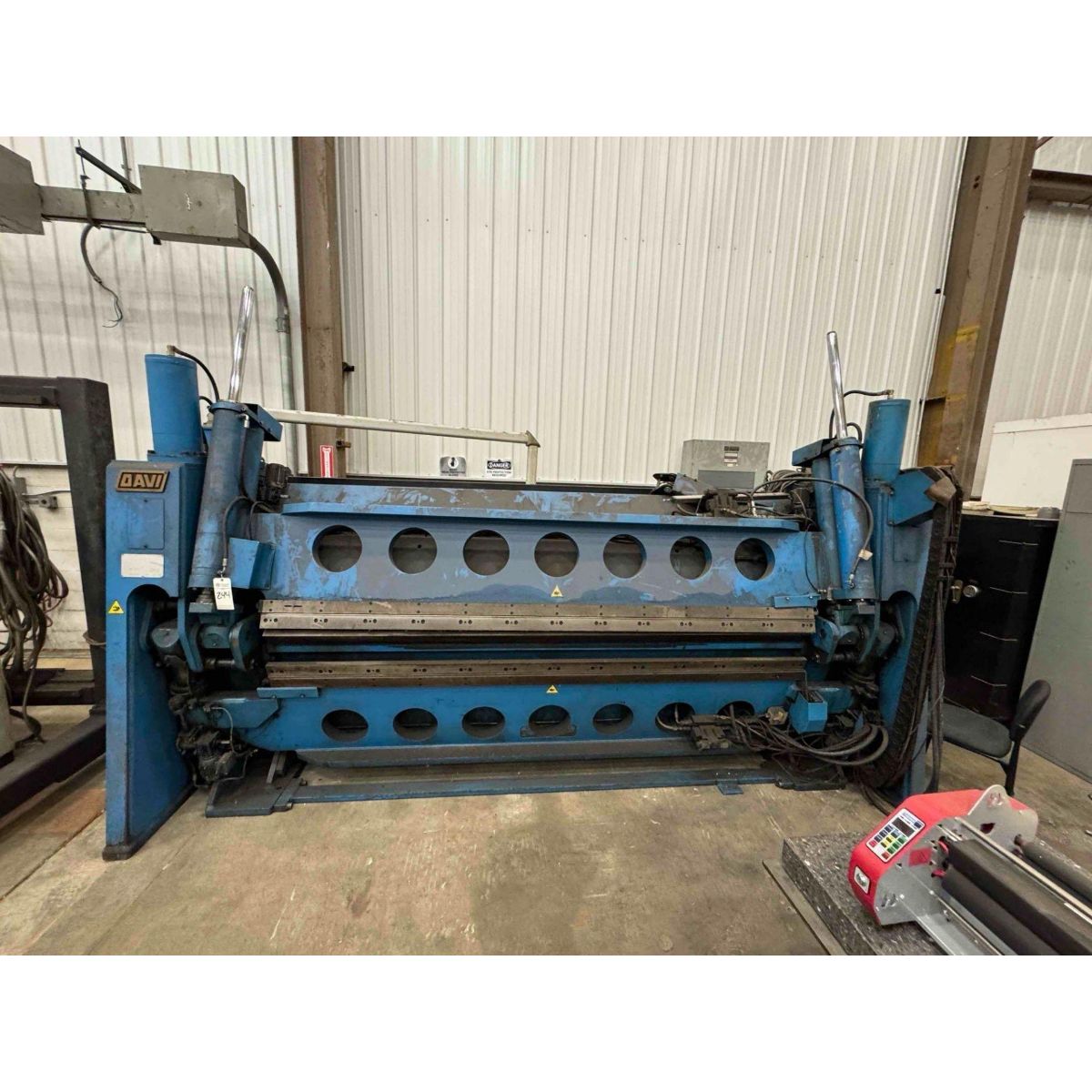

2005 DAVI YSTAD 1/4″ X 10′ BIDIRECTIONAL CNC FOLDING SYSTEM - W/ AUTOLOAD UNLOADBEND WIDTH: 10′BEND THICKNESS: 1/4″MAX BEND ANGLE: 135 DEGREESBACK GAUGE TABLE SIZE: 10′ X 10′STROKE OF UPPER BENDING BEAM: 28″ OF TRAVELELECTRICAL: 460 V / 3 PHEQUIPPED WITH:MITSUBISHI CONTROLLER, 10 AXIS SYSTEM, CNC CROWNING ON TOP AND BOTTOM, 10′ X 10′ BACK GAUGE TABLE, FLAT BLANK LOAD AND PARTS UNLOAD SYSTEM, DATA M LASER BEND ANGLE CONTROLAll specifications are assumed to be correct but must be confirmed by the purchasing entity.Item Location - Rockford, IL

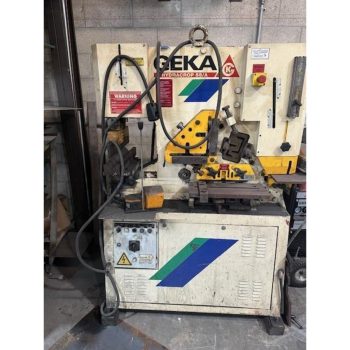

2009 55 TON GEKA HYDRACROP 55A IRONWORKERPUNCHING POWER: 55 TONMAXIMUM CAPACITY: 1-1/2″ HOLE X 3/8″ THICKNESSSHEARING OF ANGLES AT 90º: 4.5″ X 4.5″ X 3/8″SHEARING OF FLAT BARS: 12″ X 5/8″SHEARING OF ROUND BARS: 1-9/16″SHEARING OF SQUARE BARS: 1-9/16″RECTANGULAR NOTCHING: 1-1/2″ X 3/8″5 DIFFERENT WORKSTATIONS:PUNCHING STATIONANGLE SHEARINGFLAT BARS SHEARINGBARS CUTTINGNOTCHINGHYDRACROP 55 IS AN IRONWORKER MACHINE WITH 2 CYLINDERS. THIS MEANS THAT IT CAN BE USED BY TWO WORKERS AT THE SAME TIME TO COMPLETE TWO DIFFERENT IRONWORKING TASKS SUCH AS PUNCHING AND SHEARING AT ONCE.POWER: 460 V / 3-PHAll specifications are assumed to be correct but must be confirmed by the purchasing entity.Item Location - West Palm Beach, FL

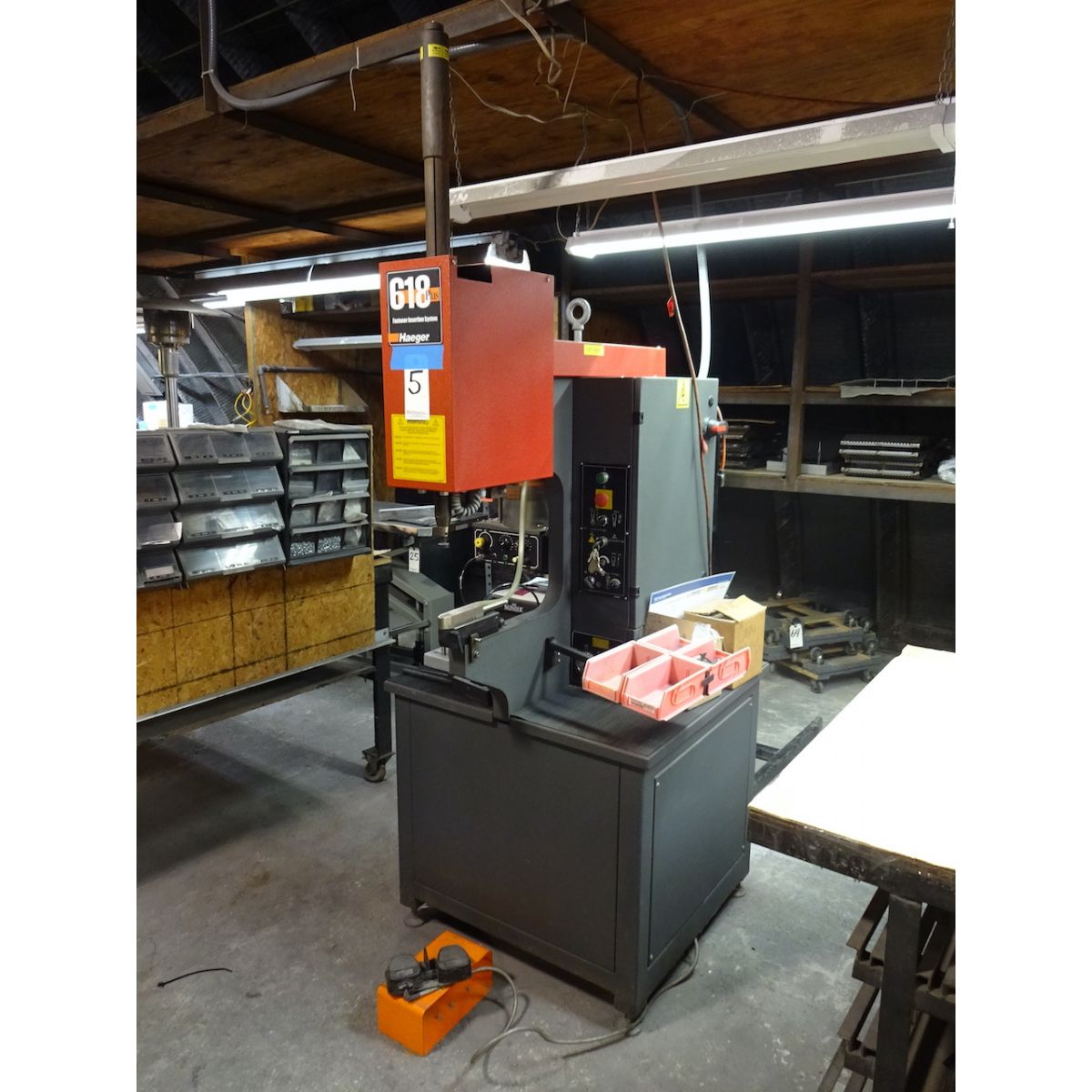

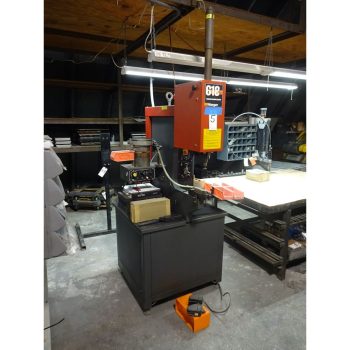

2010 HAEGER 6 TON MODEL 618 PLUS-L HARDWARE INSERTION SYSTEM S/N 6PL21425, AUTO FEEDER, VACUUM PUMP

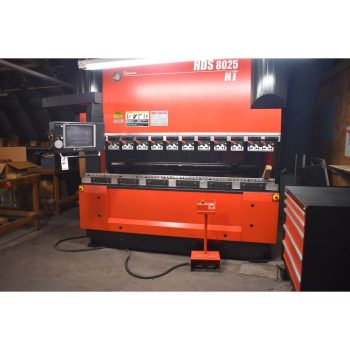

2013 AMADA 80 TON X 102 IN. MODEL HDS-8025NT HYDRAULIC PRESS BRAKE S/N 82504604, 16.3 IN. THROAT, 87
2013 AMADA 80 TON X 102 IN. MODEL HDS-8025NT HYDRAULIC PRESS BRAKE S/N 82504604, 16.3 IN. THROAT, 87 IN. BETWEEN UPRIGHTS, 7.9 IN. STROKE, 19.7 IN. OPEN HEIGHT

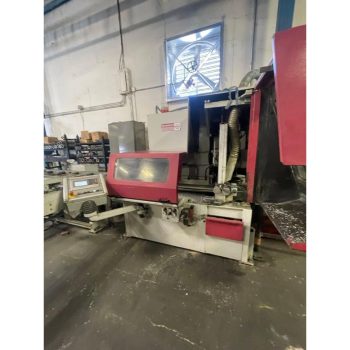

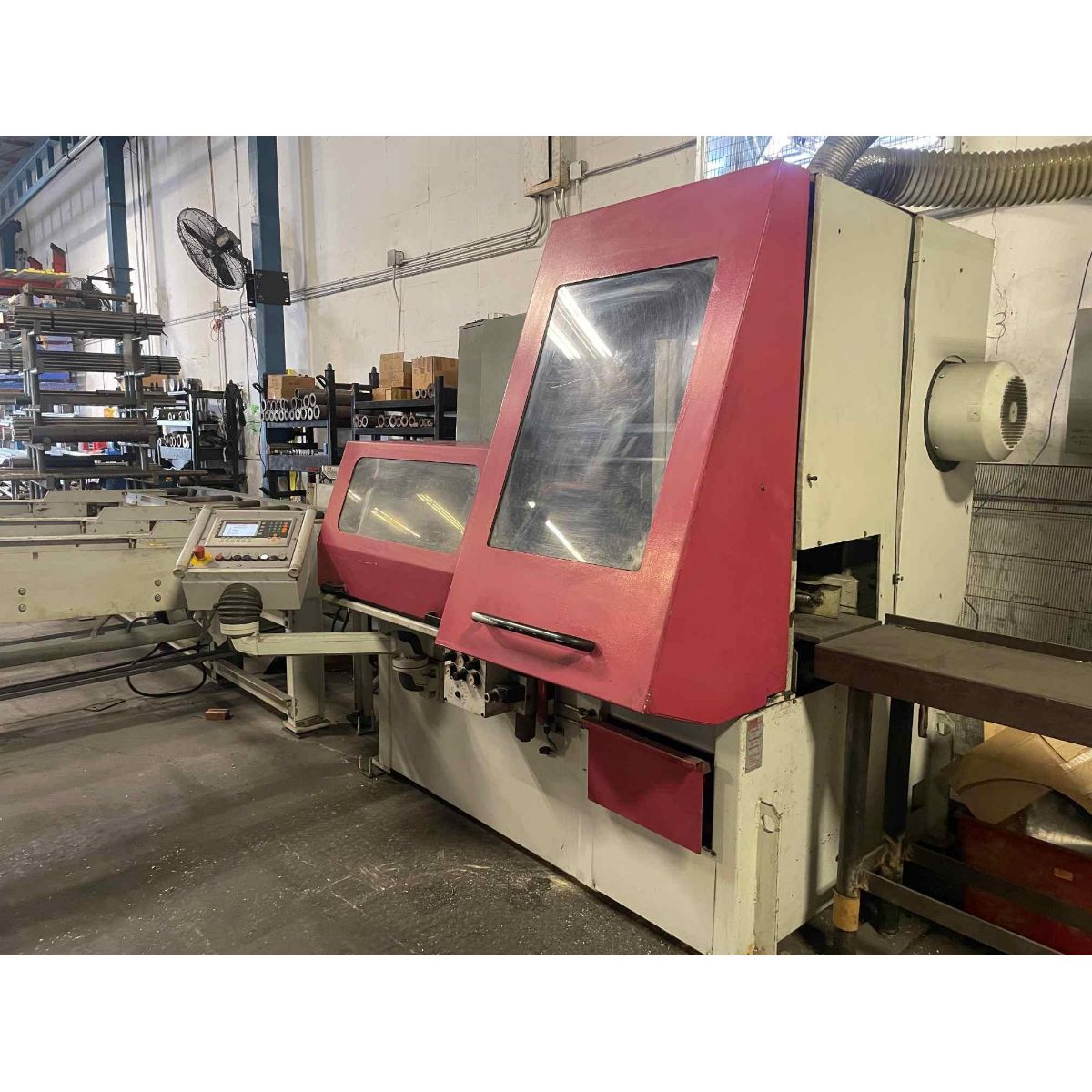

2014 7.9" BEHRINGER VAL-560 NC1 AUTOMATIC COLD SAWBLADE SIZE: 22″CUTTING RANGE 90° ROUND: 0.4 – 7.9 INCUTTING RANGE 90° FLAT: CUTTING RANGE 90° FLATCUTTING RANGE 90° SQUARE: 6.7 IN X 6.7 INSMALLEST DIMENSION TO BE SAWN ROUND: 0.4 INSMALLEST DIMENSION TO BE SAWN FLAT: 0.4 IN X 0.4 INDRIVE POWER: 34.9 HPRPM: 800 – 3,400 MIN-1SAW BLADE DIAMETER: 19.7 IN – 22.0 INFEEDING LENGTH SINGLE STROKE: 39.4 INFEED RATE: 0 – 78.7 IN/SSAW FEED: SERVO-DRIVENMATERIAL CLAMPING: SERVO-DRIVENEQUIPPED WITH:BAR LOADING MAGAZINECONVEYOR OUT FEED SYSTEMAll specifications are assumed to be correct but must be confirmed by the purchasing entity.Item Location - San Antonio, TX
