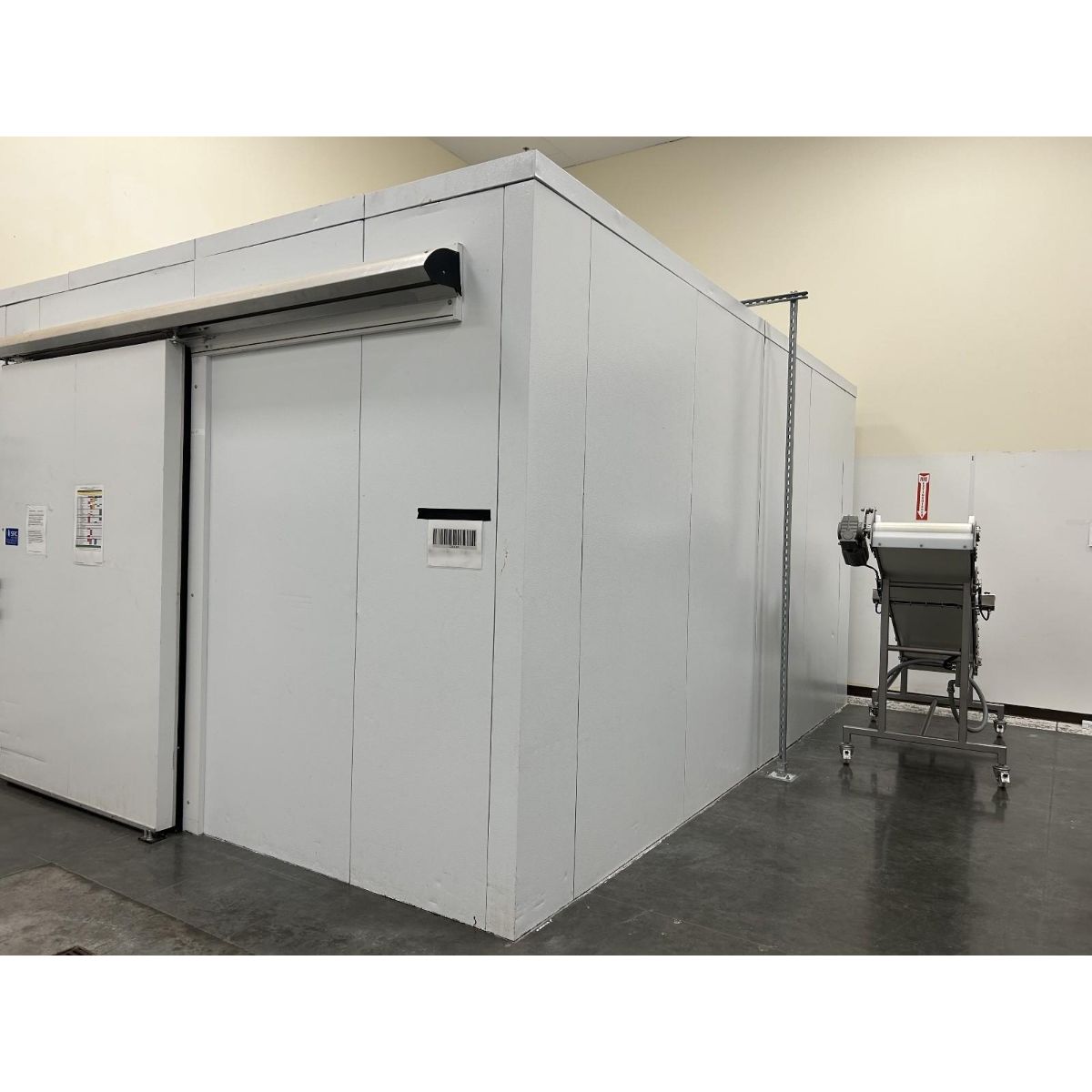

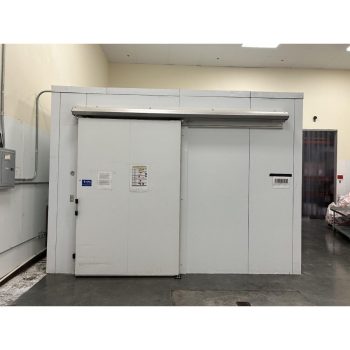

WSC-SRC SERIES IV WALK-IN STORAGE COOLERSRC CABINET FEATURES INCLUDE: 4” THICK PPC© (PREMIUM PANEL CONSTRUCTION) HIGH-DENSITY EXTRUDED INSULATION COOLER PANELS; EXCEEDS EISA ENERGY STANDARDS. PPC© ELIMINATES NEED FOR PERIMETER WOOD FRAMING PROVIDING HIGHER R-VALUE PANELS INCLUDE NATIONAL APPROVALS - UL-NSF APPROVED / SMOKE & FLAME SPREAD PER ASTM E84 TESTING PREMIUM "WHITE" METAL FINISH IN/OUT (NO EXTRA CHARGE) INTERNAL CAM LOCKING CEILING TO WALL SYSTEM FOR A MOISTURE PROOF TIGHT SEAL - HELPFUL WITH TIGHT OVERHEAD INSTALLATIONS FLOORLESS CONSTRUCTION IN COOLER (FLAT BOTTOM); FLOOR INSULATION IF REQUIRED BY OTHERS. 5'W X 7'H HEAVY-DUTY "BOLT-ON" STYLE HORIZONTAL MANUAL SLIDING DOOR (NORMAL TEMP COOLER) DOOR IS PRE-MOUNTED TO A FLAT NON-HEATED THREE OR FOUR SIDED CASING (SPECIFY). 58"W NET OPENING EASY GLIDE ALUMINUM TRACK IS FACTORY MOUNTED ON HEADER, DROP & IN DESIGN TRACK SEAL LEADING EDGE HOOK AND TRAILING EDGE GUIDE TRACK MOUNTED PVC COMPRESSION GASKETS VINYL STRIP 6" CURTAIN KIT 60" X 78" - HEAVY-WEIGHT PVC FREEZER GRADE MATERIAL WITH NYLON STRING REINFORCEMENT - "EASIMOUNT" BAR HANGER - MADE IN THE U.S.A. MULTI-SPAN CEILING REQUIRES OVERHEAD SUPPORT. INTEGRATED SRC CEILING HANGER CLIPS INCLUDED. MEANS OF CONNECTION TO OVERHEAD NOT SUPPLIED. SUPPORT POINTS ARE SPECIFIED ON FINAL BUILD DRAWINGS. 4' LONG 7500 LUMEN LED CEILING LIGHT FIXTURE IN SEALED WATERTIGHT POLY-CARBONATE HOUSING. UL APPROVED FOR WET LOCATIONS. LOW PROFILE DESIGN IS IDEAL FOR WALK-IN COOLERS & FREEZERS. BULB LIFE RATED 50,000 + HOURS. 5 YEAR WARRANTY ON COMPLETE FIXTURE.SRC REFRIGERATION SYSTEM INCLUDES: RM300 3.0HP REFRIGERATION SYSTEM, MEDIUM TEMP 35°F OPERATION, BALANCED FOR BOTTLE & KEG STORAGE REMOTE AIR-COOLED INDOOR CONDENSING UNIT, NITROGEN CHARGED, R404A COMPATIBLE LIQUID LINE FILTER-DRIER, RECEIVER, SIGHT GLASS AND LOW PRESSURE CONTROL SUPPLIED LOOSE (1) LOW-PROFILE EVAPORATOR COIL WITH 115V HIGH-EFFICIENCY (EC STYLE) FAN MOTORS ROOM TEMP CONTROL, DEFROST TIMER, EXPANSION & SOLENOID VALVES ARE INCLUDED WITH EQUIPMENT PACKAGE EQUIPMENT IS UL APPROVED AND FULLY COMPLIANT WITH FEDERAL EISA ENERGY STANDARDS ALL CONTROL COMPONENTS, FILTER DRIERS AND /OR VALVES PROVIDED AS PART OF SYSTEM SELECT ELECTRICAL VOLTAGE AND PHASE OF CONDENSING UNIT: (208-230V, 1 OR 3 PHASE)INSTALLATION INSTRUCTIONS PDF AVAILABLE BY REQUESTAll specifications are assumed to be correct but must be confirmed by the purchasing entity.Item Location - Salt Lake City, UTNO OUT OF STATE MANUFACTURING SALES TAX EXEMPTION
