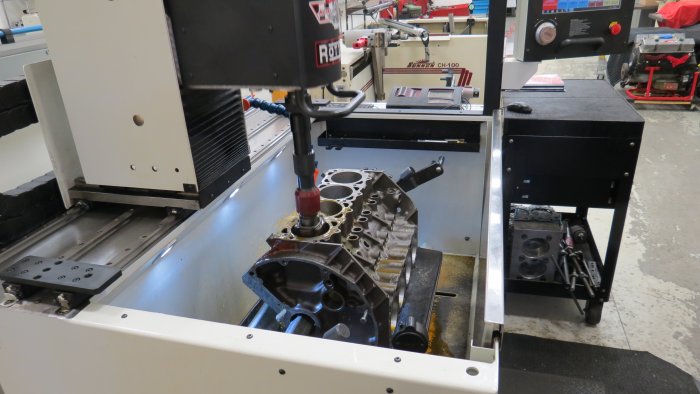

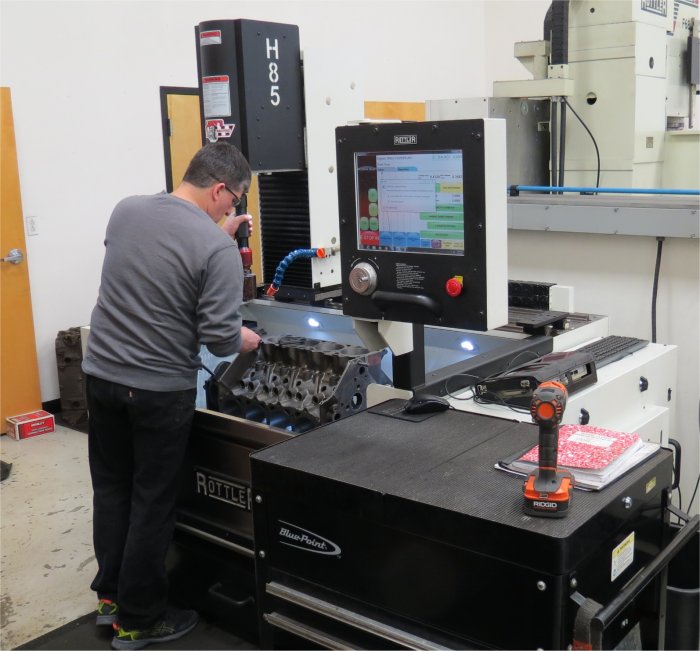

Rottler H85A CNC Diamond Hone

Control and programming through 15″ (400mm) CNC Touch Screen Control
Precision Display in .0001″ (.002mm) resolution
Industrial PC with Windows Operating System
USB Flash Drive and port for file transfer
Horizontal Movement (X Axis) – Left and Right Direction – 38″ (965mm) – movement is manually on linear slideways
Horizontal Movement (Y Axis) – Front and Back Direction – 3″ (75mm) – movement is manually on linear slideways
Vertical Movement (Z Axis) – Up and Down – 19″ (483mm)
Stroking System – CNC SERVO Controlled High Pitch Ball Screw System
Infinitely Variable Stroke Speed Control – Variable from 0 to 1500IPM (38m/min)
Rapid Stroke System Acceleration – 250in/sec (6.35m/sec)
Spindle Rotation System – CNC SERVO Controlled High Torque Spindle Rotation System – 44 ft.lbs (60NM)
Infinitely Variable Spindle RPM Control – Variable from 0 to 400RPM
(2) Stone Trays for up to 6 stone holder sets with built-in Dial Bore Gage Holder
Hone Head Storage Rack for up to 5 Hone Heads
Coolant System – Large Capacity coolant tank 70 Gal (265 Liter) – tank is located under the machine on wheels and is removable for servicing from front or rear of machine
Magnetic system for primary filtering inside coolant tank. Magnets are removable for easy tank cleaning once tank is removed from under the machine
Replacable Cartridge Canister Filter System. Dual Gradient 50-5 Micron replacement filter cartridge keeps coolant and cabinet clean. Filter Cartridge 514-2-42C
