Year:
2007
Control unit:
CNC
Control:
Siemens Sinumerik 840 D

==================================

Technical Specifications

Beam size: 2.95 – 43.31 x 62.01 – 511.81 inches (75 – 1100 x 1575 – 13,000 mm)
Bore diameter: 0.31 – 1.57 inches (8 – 40 mm)
Number of drilling aggregates: 3 pcs
Toolpiece height min.: 0.76 inches (19.3 mm)
Workpiece height max.: 18.11 inches (460 mm)
Bore spindle turning speed range: 200 – 800 RPM
Max. workpiece weight: 18.08 lbs (8.2 kg)
Total power requirement drill line: 56 kW
Weight of the machine approx.: 48,502 lbs (22 t)
Cutting speed: 49.21 – 492.13 ft/min (15 – 150 m/min)
Down speed stepless: 0 – 11.81 in/min (0 – 300 mm/min)
Work height max.: 24.8 inches (630 mm)
Dimensions of saw-band: 385.83 x 2.64 x 0.06 inches (9800 x 67 x 1.6 mm)
Total power requirement saw: min. 15 kW

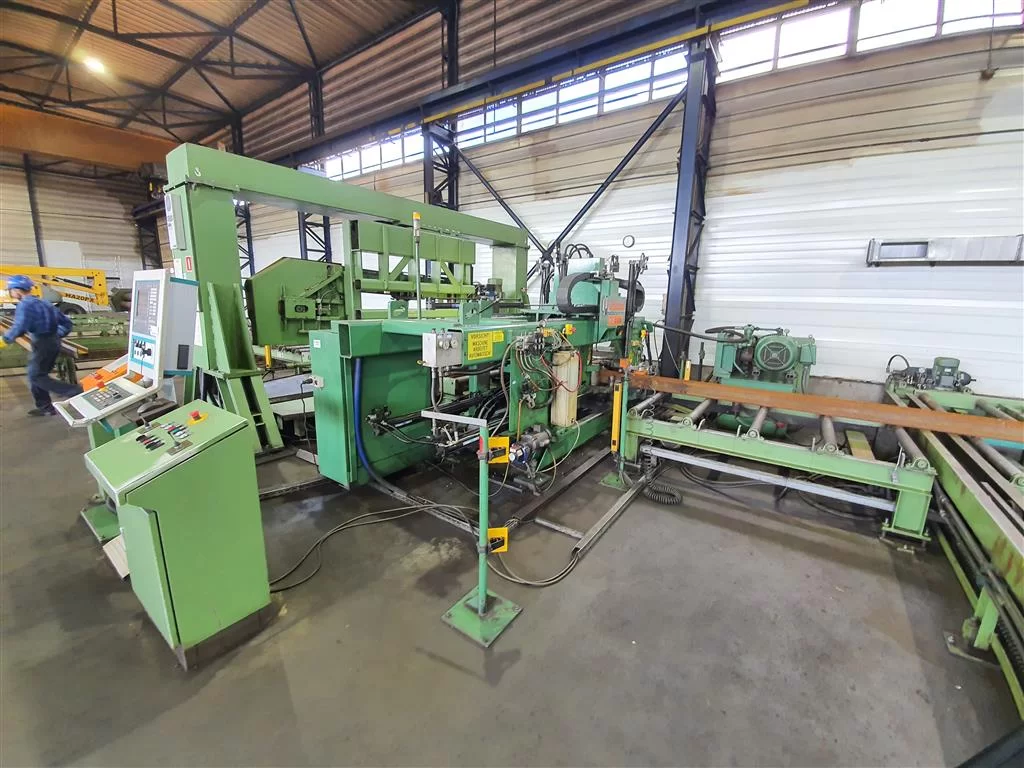

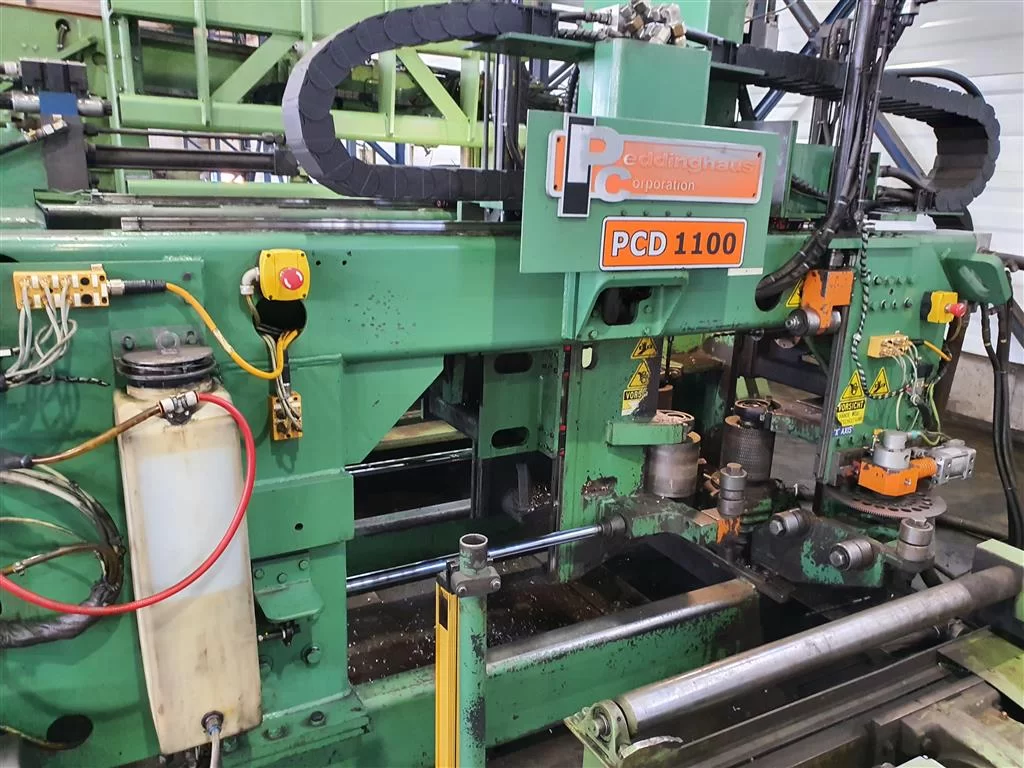

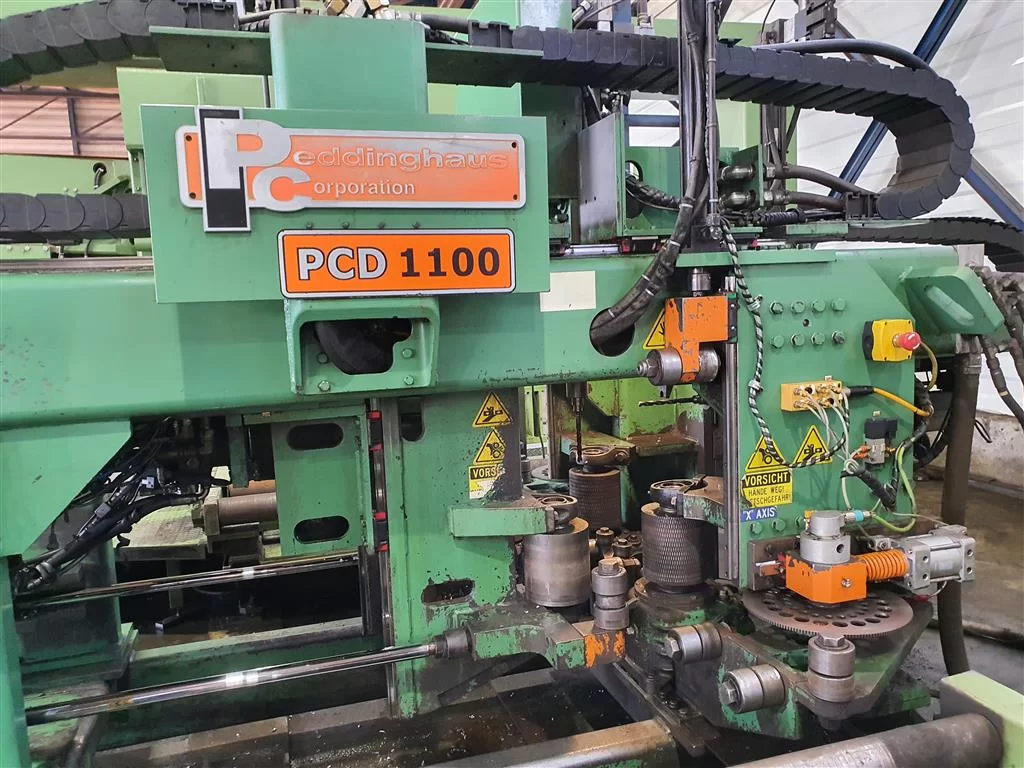

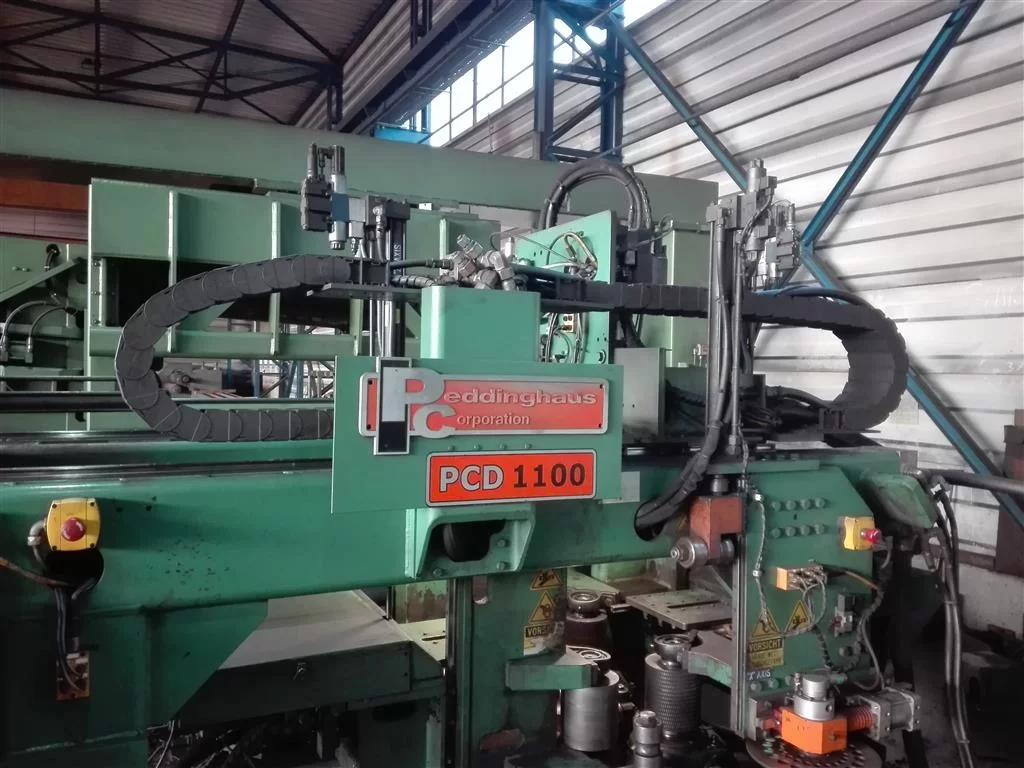

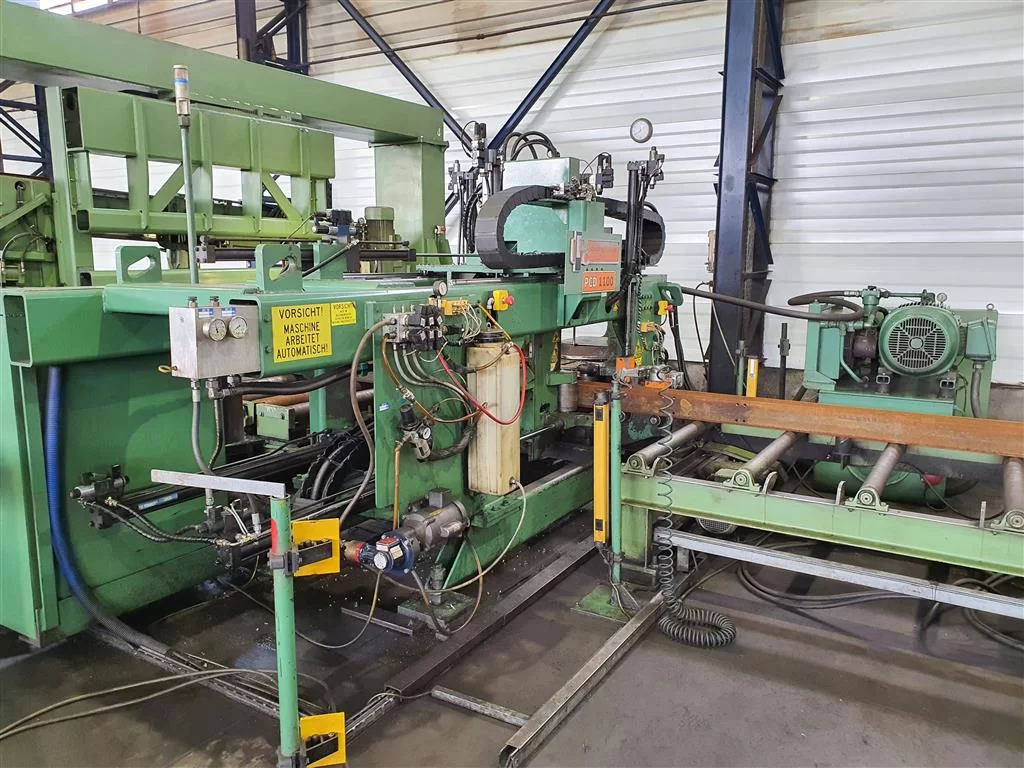

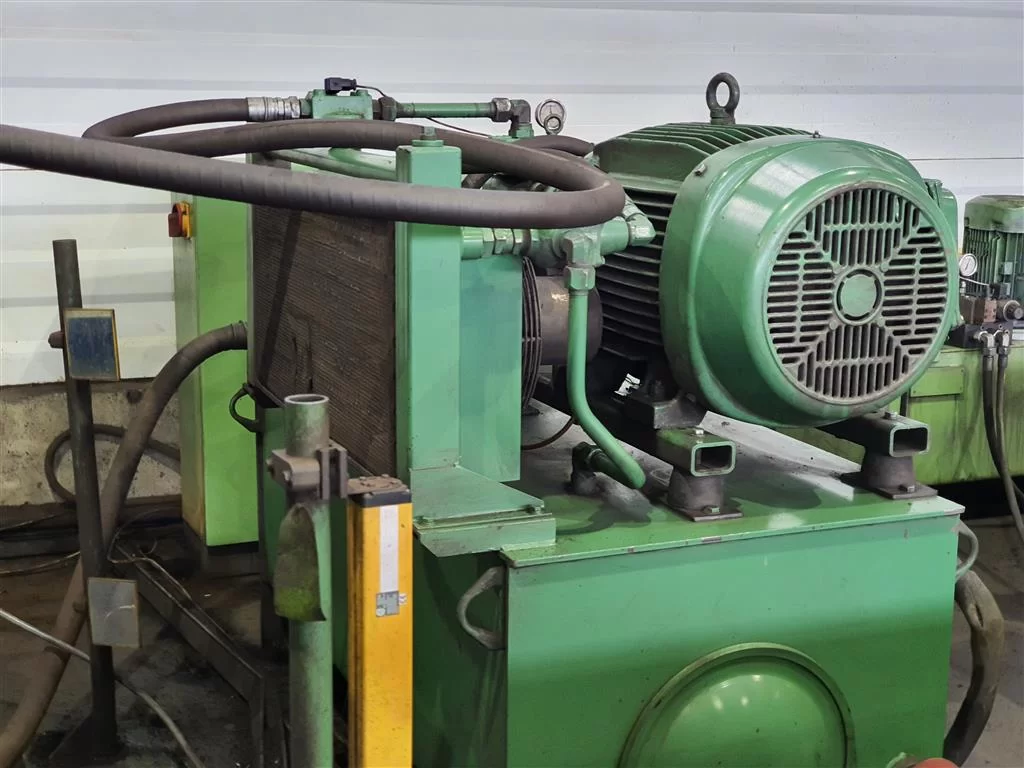

The Peddinghaus PCD 1100 profile drilling rig offers the following:

The maximum beam width is 43.31 inches (1100 mm) but minimum 2.95 inches (75 mm).

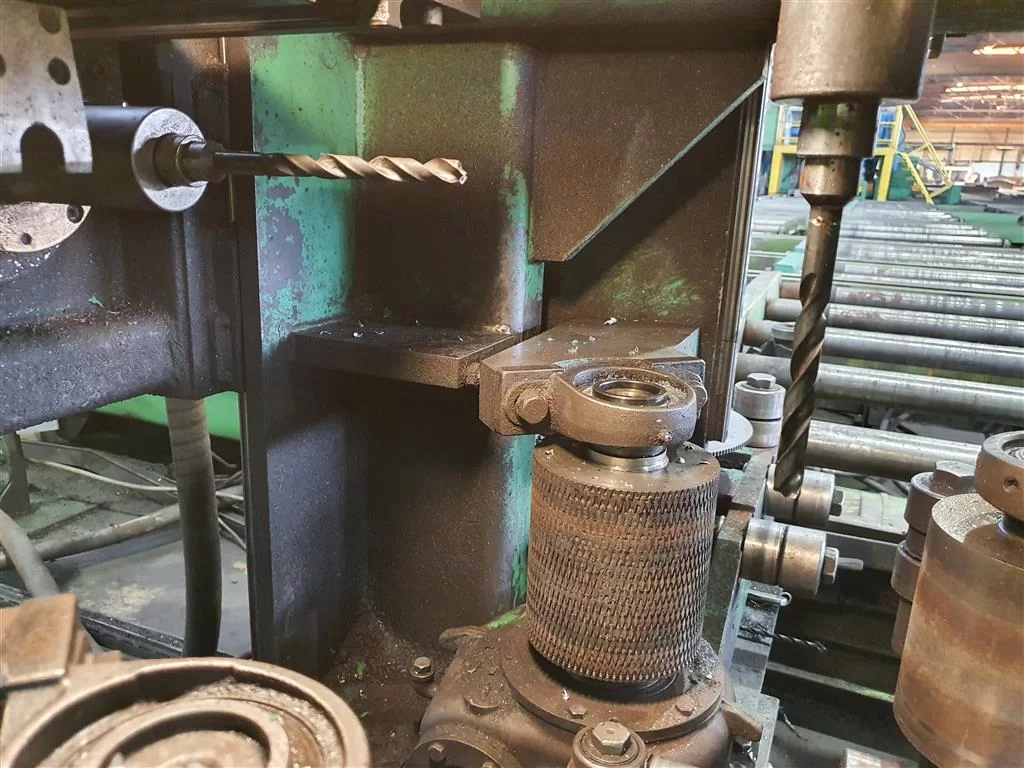

The drilling rig drills with a drilling diameter of 0.31 – 1.57 inches (8 – 40 mm) with HSS coolant channel drills which can be purchased from Nenok.
The drilling rig is equipped with three drilling spindles.
A roller table system for material transport is also part of the plant.
The length of the inlet side and the outlet side is approx. 42.65 feet (13 m) each.

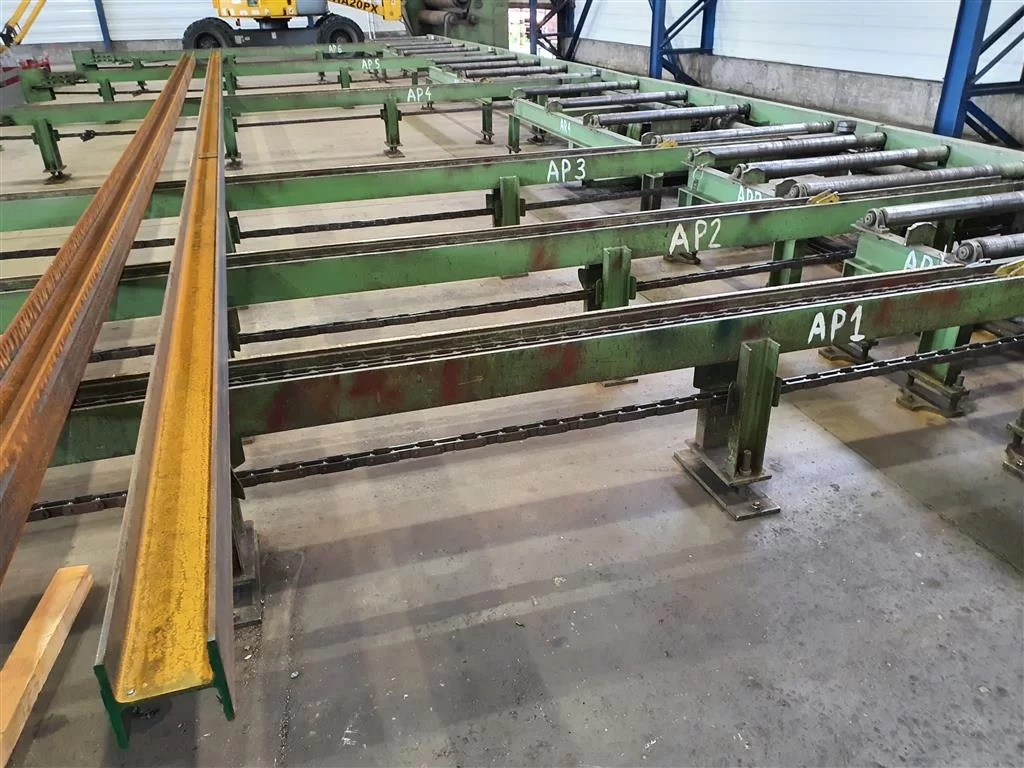

On the inlet side, there are also 5 cross conveyors, each with a length of 19.69 feet (6 m).

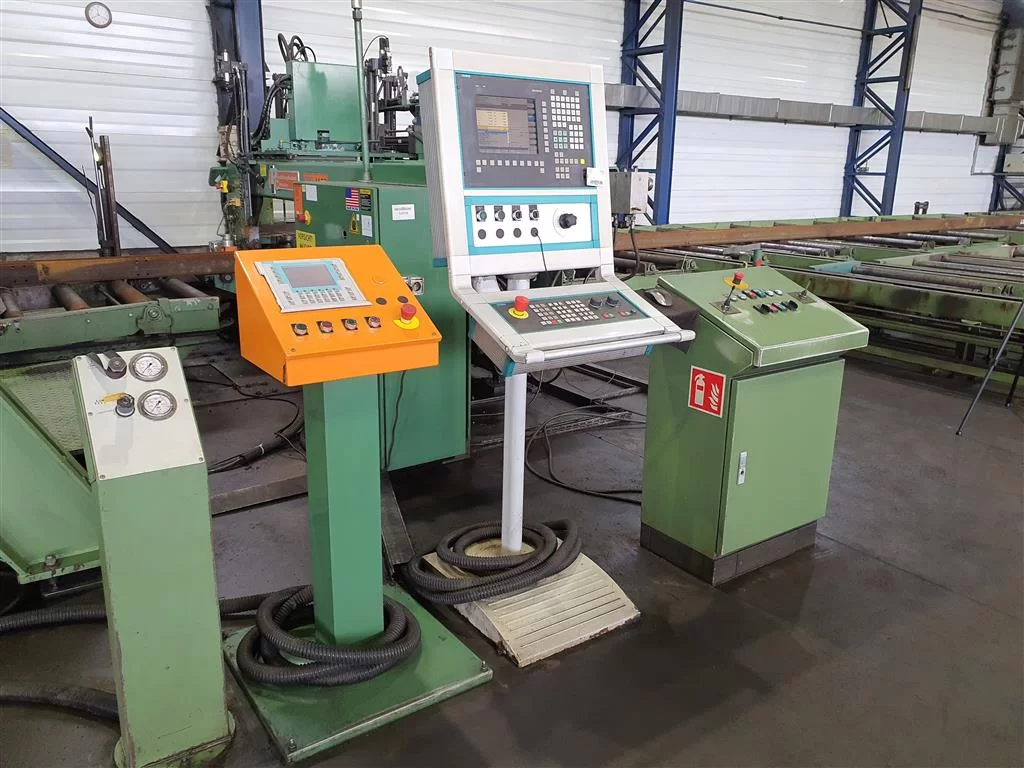

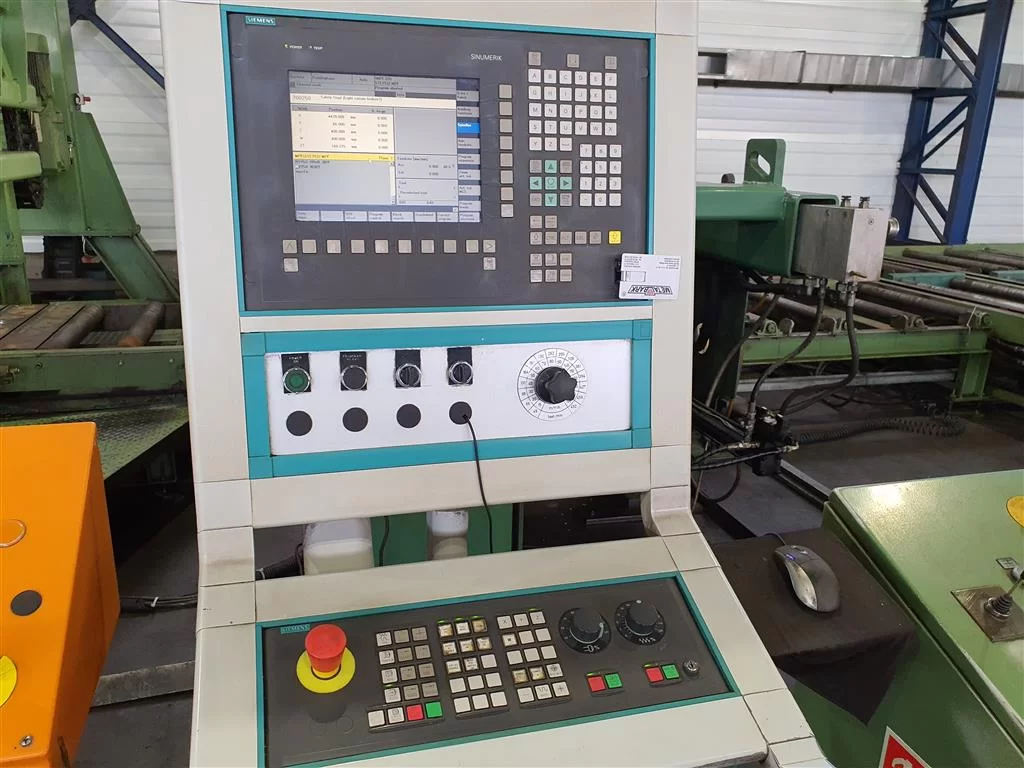

The drilling rig and the band saw are connected to each other as machine units by a common measuring system and a Siemens 840 CNC control.
Software developed by Peddinghaus is used for user-friendly programming of the machining data.
Data transfer from a CAD system is possible with a DSTV and DXF interface.

Peddinghaus drilling saw systems are regarded as robust and reliable in steel construction.
Service and spare parts supply, also for used machines, is guaranteed by the worldwide subsidiaries.

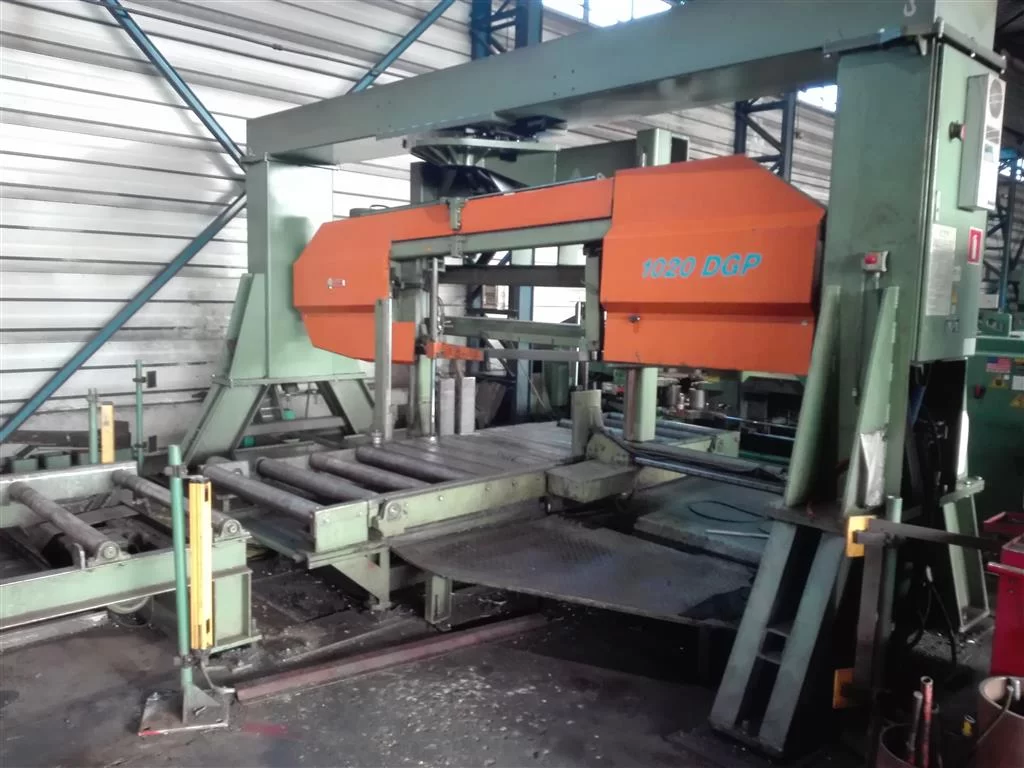

The Meba 1020 DG band saw with mitre adjustment has the following specifications:

The cutting range for round material is clockwise at 30° Ø 19.69 inches (500 mm) and at 90° Ø 20.08 inches (510 mm).
Counterclockwise at 30° Ø 15.75 inches (400 mm), at 90° Ø 20.08 inches (510 mm).

With flat material and 30° clockwise the size is 19.69 x 20.08 inches (500 x 510 mm), at 45° 29.53 x 20.08 inches (750 x 510 mm) and at 90° 40.16 x 20.08 inches (1020 x 510 mm).
Counterclockwise at 30° 15.75 x 20.08 inches (400 x 510 mm), at 45° 26.38 x 20.08 inches (670 x 510 mm).

It is equipped with a minimum quantity lubrication (Micro Sprayer).
The band saw is easy to operate and requires only one operator in the combination of sawing and drilling.

=====================================

The Meba 1020 DG band saw with mitre adjustment has the following specifications:
The cutting range for round material is clockwise at 30° the Ø 500 and at 90° Ø 510. Counterclockwise at 30 ° Ø 400 mm , at 90 ° Ø 510
With flat material and 30° clockwise the size is 500 x 510 mm, at 45° 750 x 510 mm and at 90° 1020 x 510 mm.
Counterclockwise at 30 ° 400 x 510 mm, at 45 ° 670 x 510 mm
It is equipped with a minimum quantity lubrication ( Micro Sprayer)
The band saw is easy to operate and requires only one operator in the combination of sawing and drilling.

The Peddinghaus PCD 1100 profile drilling rig offers the following:
The maximum beam width is 1100 mm but minimum 75 mm. The drilling rig drills with a drilling diameter of 8 – 40 mm with HSS coolant channel drills which can be purchased from Nenok. The drilling rig is equipped with three drilling spindles. A roller table system for material transport is also part of the plant. The length of the inlet side and the outlet side is approx. 13 m each. On the inlet side, there are also 5 cross conveyors, each with a length of 6 m.

The drilling rig and the band saw are connected to each other as machine units by a common measuring system and a Siemens 840 CNC control. Software developed by Peddinghaus is used for user-friendly programming of the machining data. Data transfer from a CAD system is possible with a DSTV and DXF interface.

Peddinghaus drilling saw systems are regarded as robust and reliable in steel construction. Service and spare parts supply, also for used machines, is guaranteed by the worldwide subsidiaries.

Beam size: 75 – 1100 x 1575 – 13000 mm
bore diameter: 8 – 40 mm
Number of drilling agregates: 3 Stk.
toolpiece height min.: 19,3 mm
workpiece height max.: 460 mm
bore spindle turning speed range: 200 – 800 U/min
max. workpiece weight: 8,2 kg
total power requirement drill line: 56 kW
weight of the machine ca.: 22 t
cutting speed: 15 – 150 m/min
down speed stepless: 0 – 300 mm/min.
work height max.: 630 mm
dimensions of saw-band: 9800 x 67 x 1,6 mm
total power requirement Saw: mind. 15 kW
