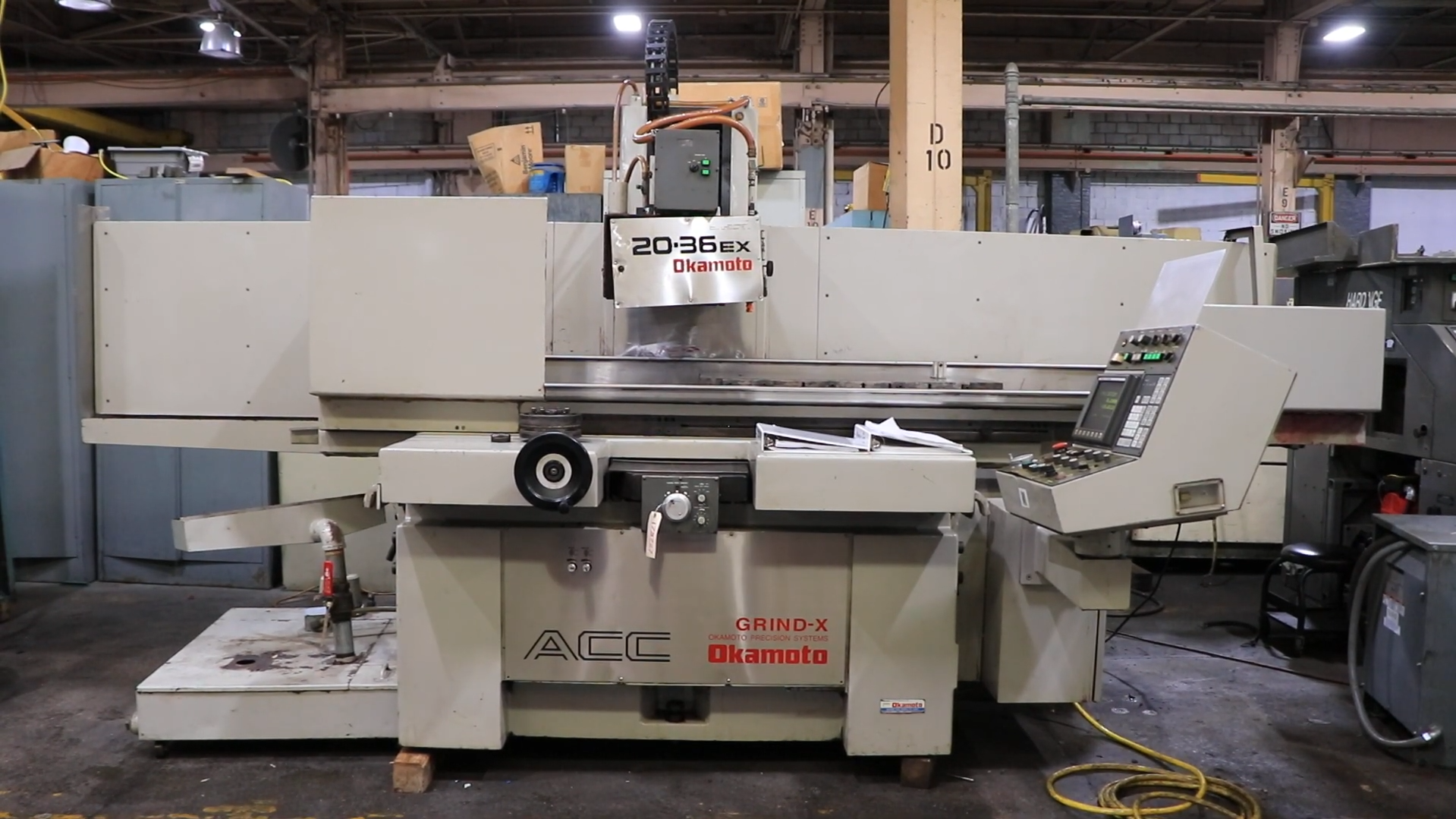

• Manufacturer: Okamoto

• Model: ACC-2036EX (EX Series)

• Year: 2001

• Type: CNC Surface Grinder

• Control: Fanuc MDI/CNC (EX Series)

• Condition: Used

• Grinding Capacity: 20″ x 36″ (508 x 914 mm)

• Max Height Under Wheel: 21.5″ (546 mm)

• Table Speed: 3–82 FPM (0.9–25 m/min)

• Longitudinal Travel (Manual): 41.3″ (1,049 mm)

• Crossfeed (Manual Max): 21.3″ (541 mm)

• Auto Crossfeed Increment: 0.02″–0.80″ (0.5–20 mm)

• Auto Continuous Crossfeed: 0.010–40 FPM (0.003–12.2 m/min)

• Auto Downfeed Increment: 0.00005″–0.0015″ (0.001–0.038 mm)

• Rapid Wheelhead Feed: 40 IPM (1,016 mm/min)

• Spindle Motor: 5 HP (3.7 kW)

• Wheel Size: 12″ x 1.5″ x 5″ (305 x 38 x 127 mm)

• Wheel Speed: 1,800 RPM

• Surface Speed: 6,500 SFPM (33 m/s)

• Machine Dimensions (L x W x H):

130″ x 88″ x 81″ (3,302 x 2,235 x 2,057 mm)

• Weight: 10,580 lbs (4,799 kg)

• Power: 3 Phase, 208V, 60 Hz

✓ Fanuc EX Series CNC Control with 9″ CRT Display

✓ 2-Axis Programmable (Y & Z)

✓ Servo-Driven Ball Screws for high precision

✓ Fully Automatic Grinding Cycles (Rough, Fine, Plunge, Sparkout)

✓ Programmable Automatic Wheel Dresser with wear compensation

✓ Multi-surface grinding in a single setup

✓ Cycle interrupt for dressing with automatic return

✓ 20″ x 36″ Electromagnetic Chuck (508 x 914 mm)

✓ Variable Hold Neutralizer & Demagnetizer

✓ Coolant System with Magnetic Separator

✓ Automatic Lubrication System

✓ Way Protection Design

• High-precision surface grinding

• Tool & die manufacturing

• Mold making

• Production grinding operations
