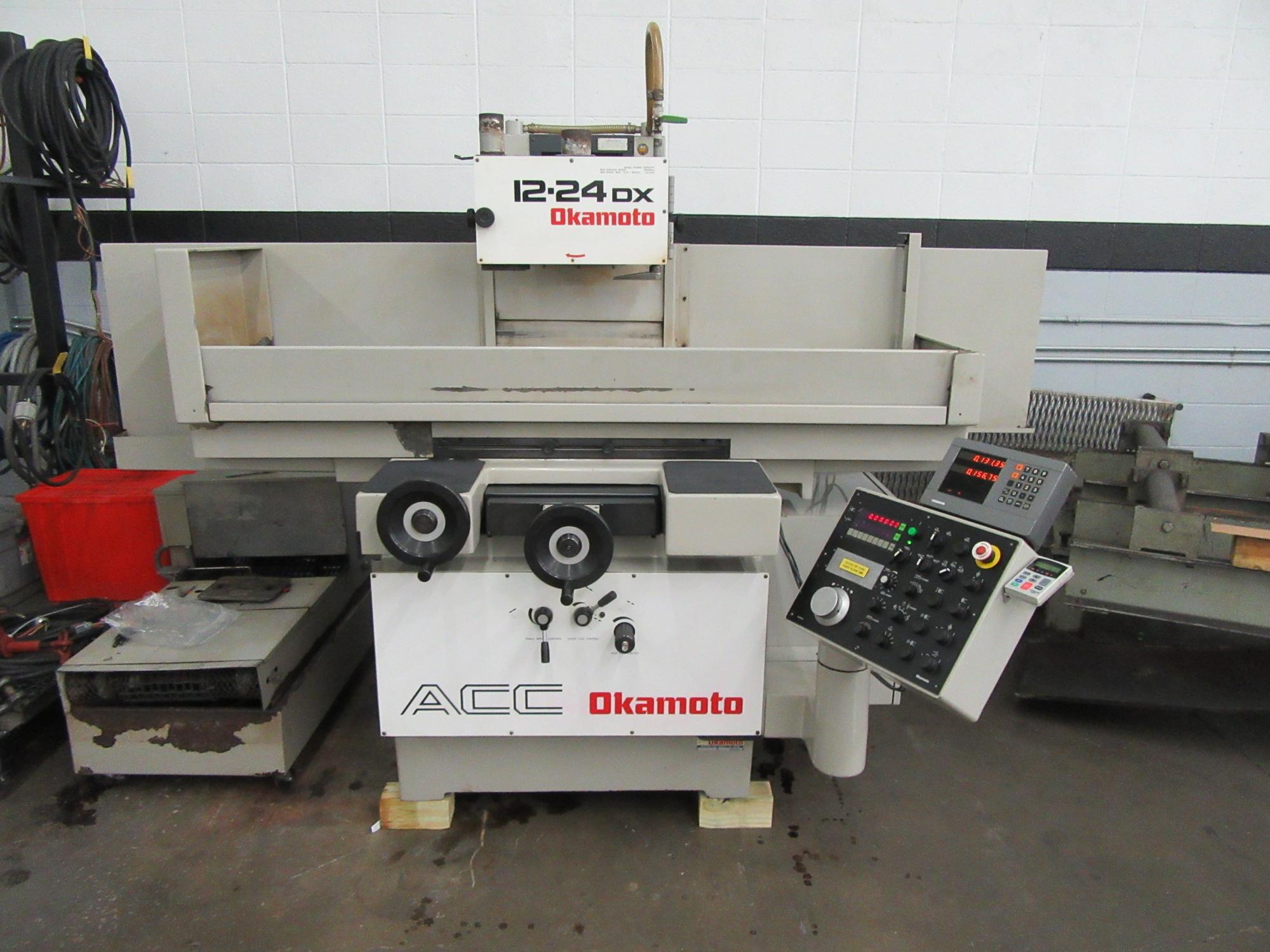

Okamoto ACC-12.24DX 3-Axis Automatic Surface Grinder with Servo Incremental Downfeed, Heidenhain 2-Axis Digital Readout and Variable Speed Spindle Drive
Manufacturer: Okamoto Model: ACC 12.24DXAge: 1998

Table Working Surface: 12″ x 24″

Max Chuck Size: 12″ X 24″

Max Table Movement (Manual): 29.5″

Max Distance Spindle / Wheel to Table: 13.6″

Max Table Load (Including Chuck): 925 Lbs.

Wheel Speed: 1,800 Max RPM (Variable with Controller)

Auto Longitudinal Feed Rate: 3 – 82 FPM

Max Wheel Size : 14″ Diameter (12″ x 1.5″ x 1″ STD)

Hydraulic Motor: .010 – 40 Feet Per Minute

Auto Wheelhead Downfeed Increments: .0005″ – .0015″

Spindle Drive: 5 HP

Rapid Wheelhead Feed Rate: 40 IPM

Description

Equipped With:

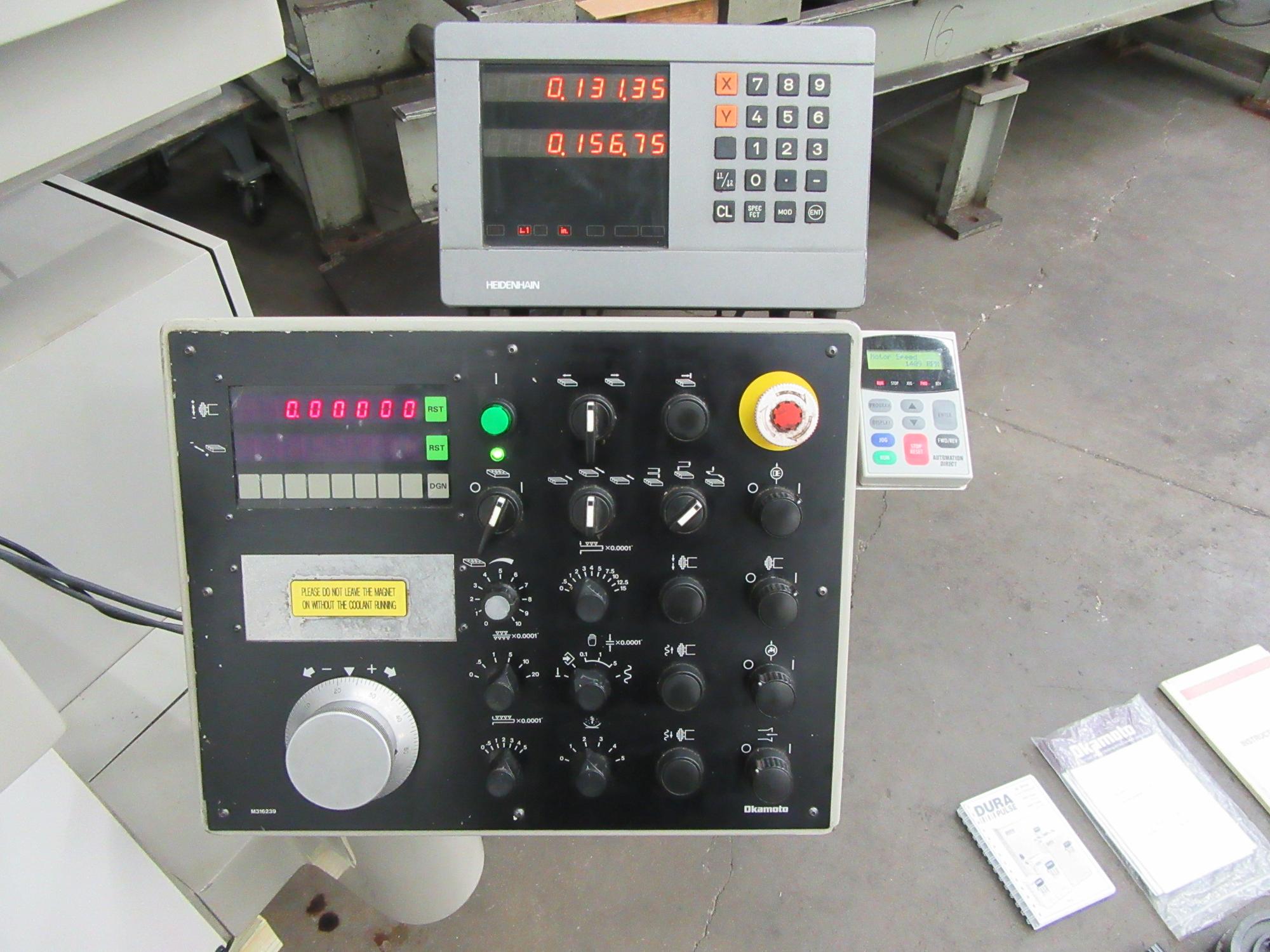

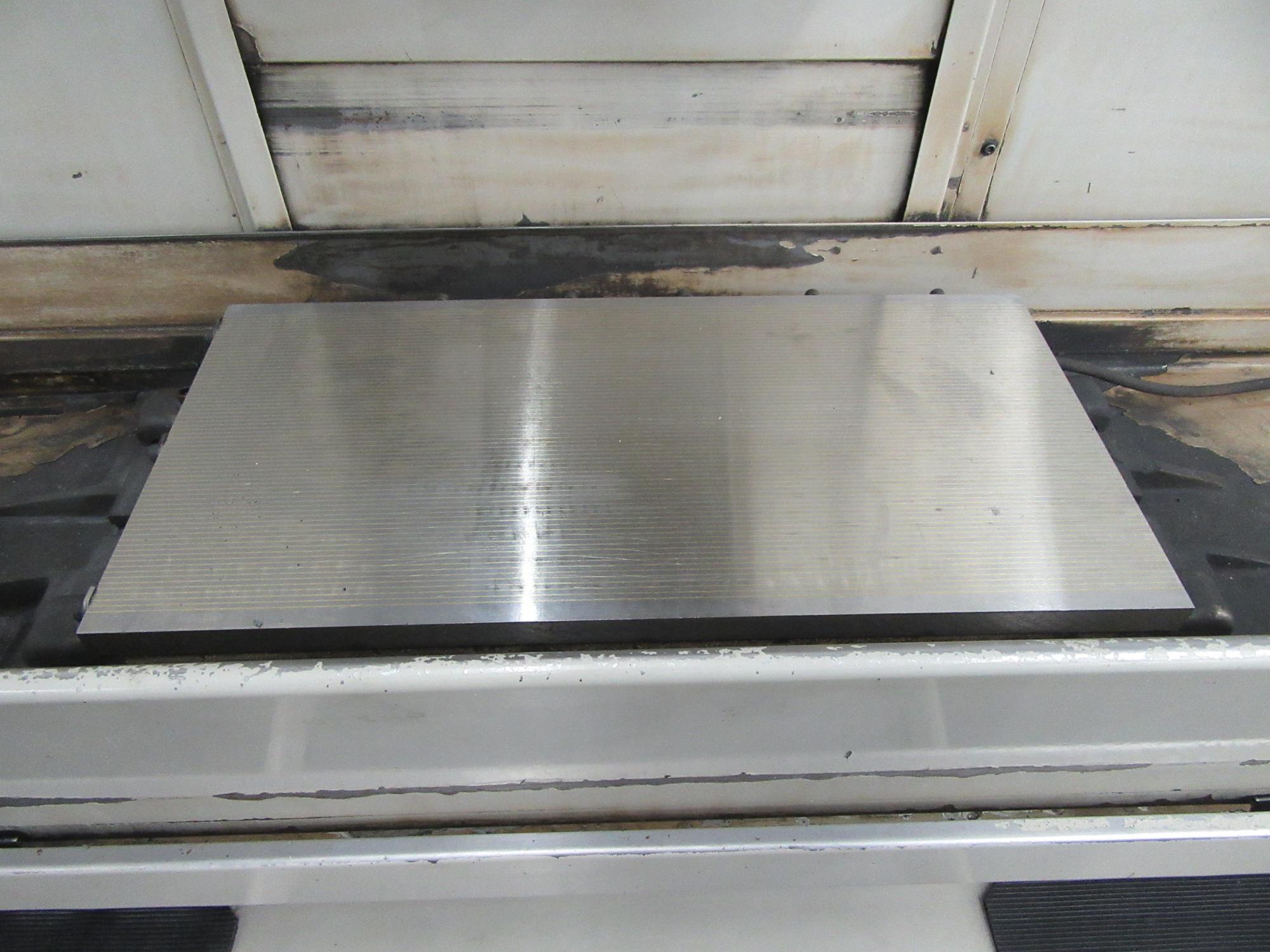

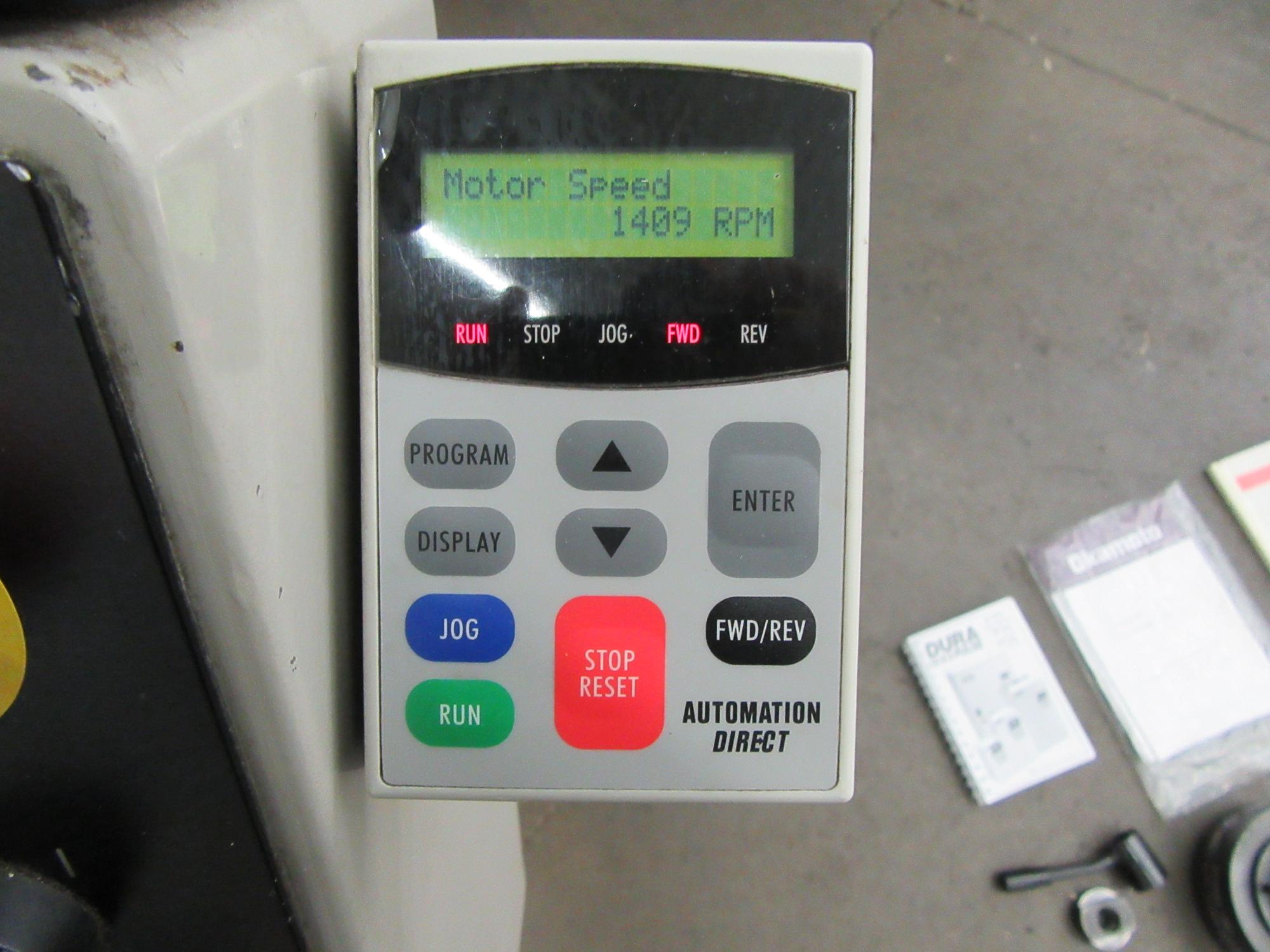

12″ x 24″ Fine Pole Electromagnetic Chuck with Variable Chuck Control, Heidenhain 2-Axis Digitral Readout on Cross and Downfeed, Servo Incremental Downfeed, Dura Pulse Variable Spindle Speed Control, Wheel Hub & Nut, Internal Hydraulic System, Coolant Tank with Paper Filtration System, Machine Manual and Spindle Drive Manual.

Electrics:
208 Volt 3 Phase
