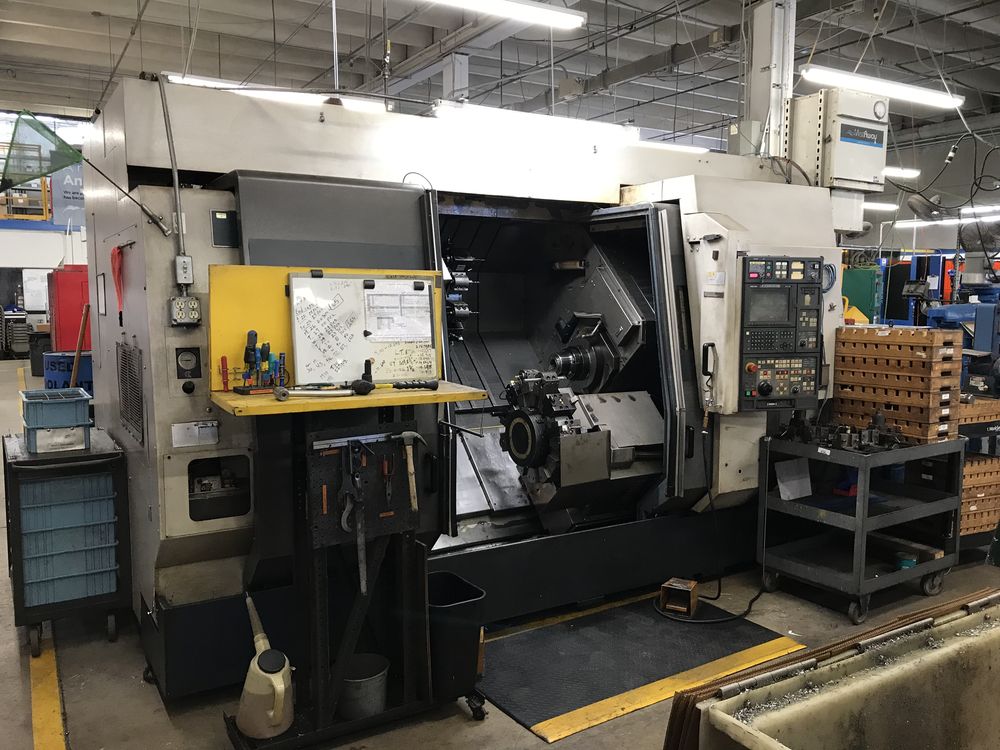

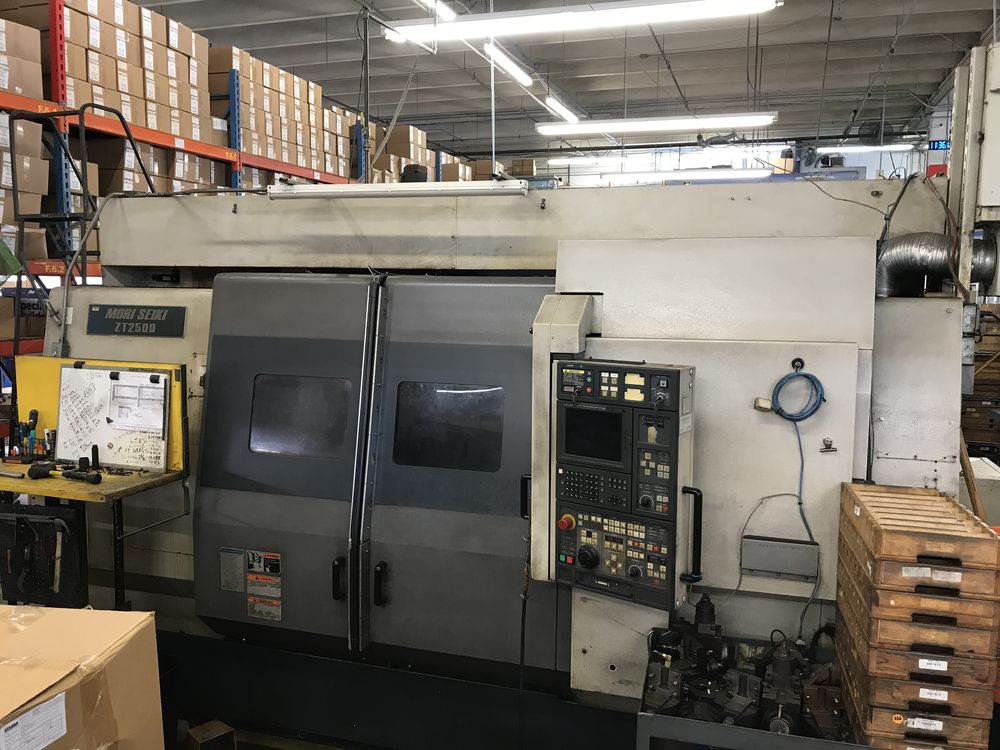

GENERAL INFORMATION

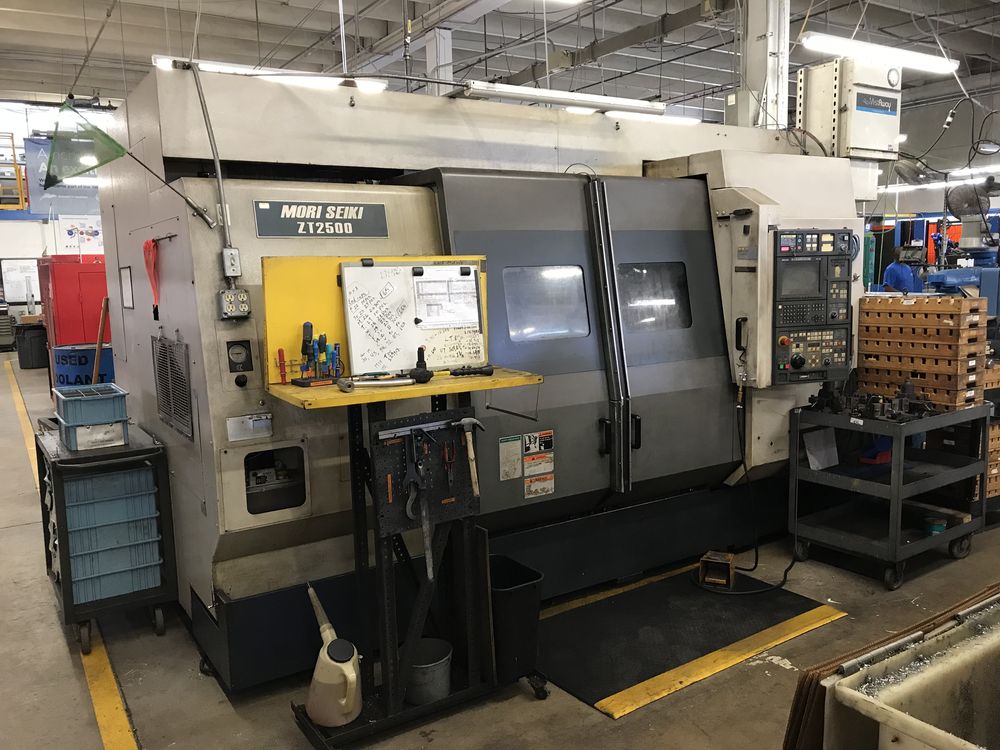

• Manufacturer: Mori Seiki

• Model: ZT2500Y

• Year: 2000

• Type: CNC Twin Turret Turning Center

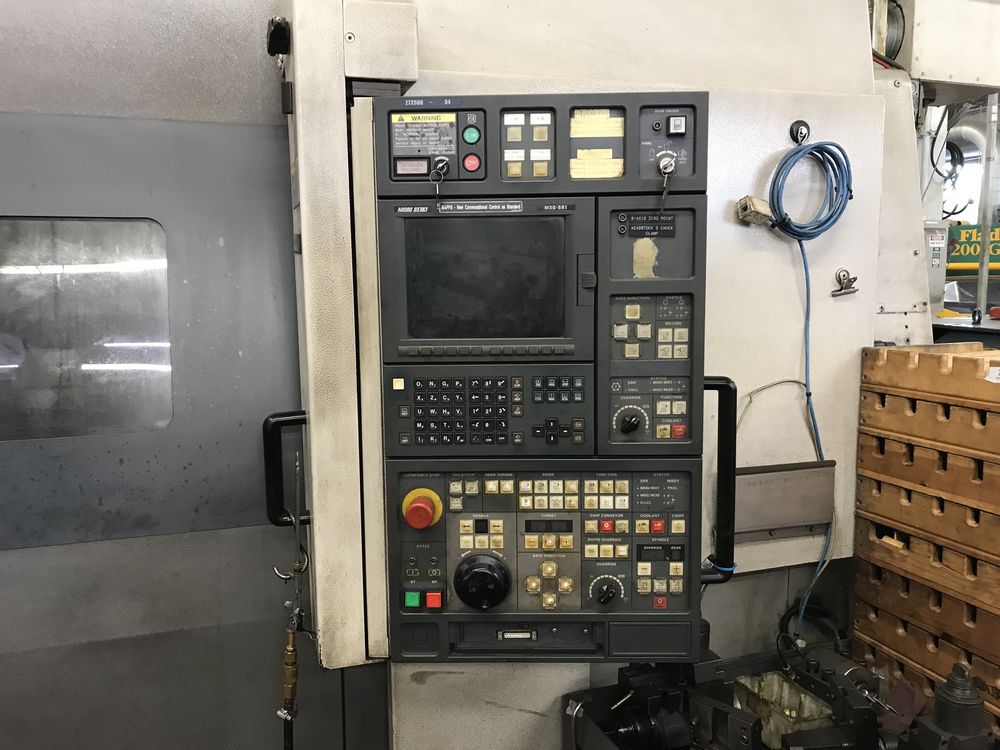

• Control: Mori Seiki MSG-501

• Condition: Used

SPECIFICATIONS

• Swing: 26″

• Swing Over Cross Slide: 29″

• Center Distance: 39″

• Max Turning Diameter: 14″

• Bar Capacity: 3″

• Travels (X / Y / Z): 10″ / ±1.9″ / 40″

• Spindle 1 Speed: Up to 4,000 RPM (2-step)

• Spindle 2 Speed: Up to 6,000 RPM

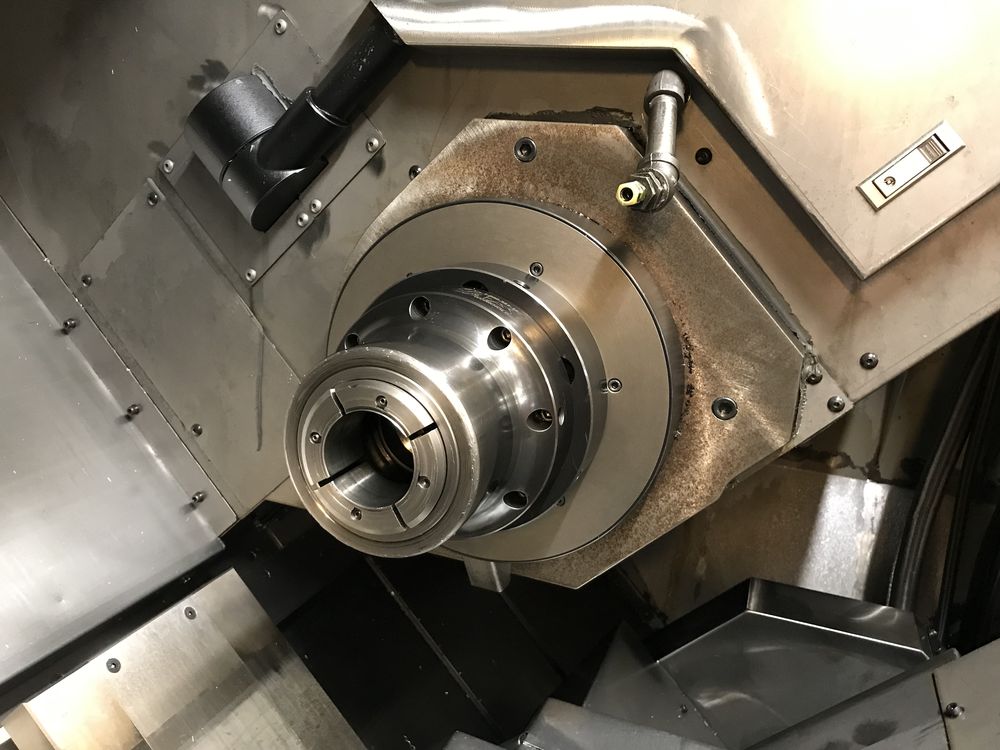

• Spindle 1 Nose: A2-8

• Spindle 2 Nose: A2-5

• Spindle 2 B-Axis Travel: 40″

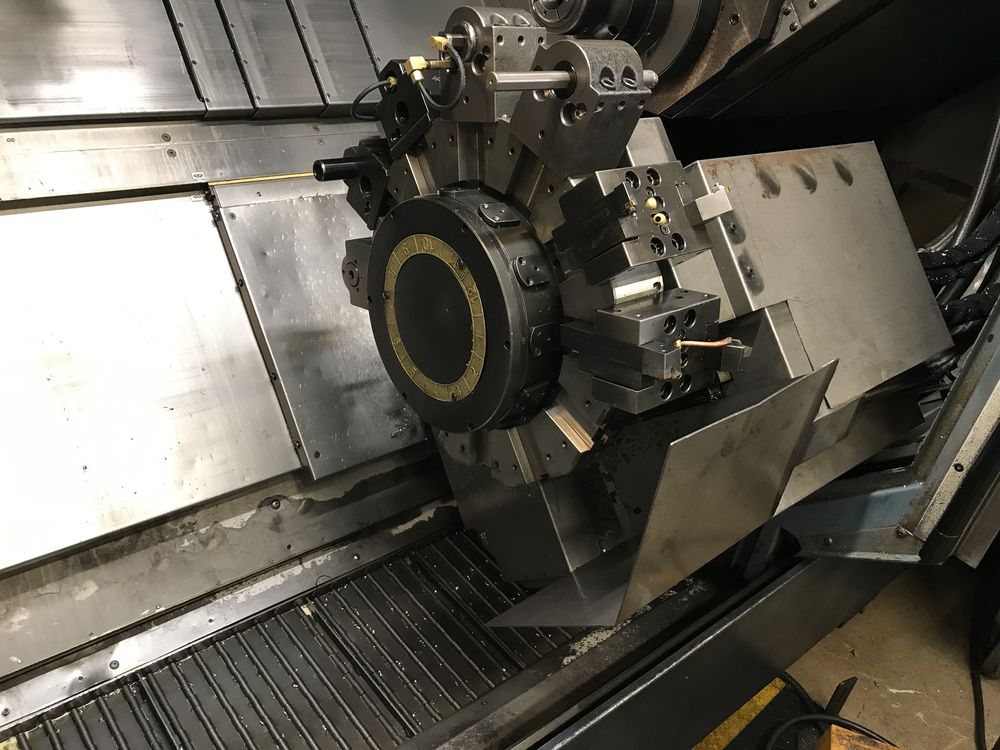

TURRET & TOOLING

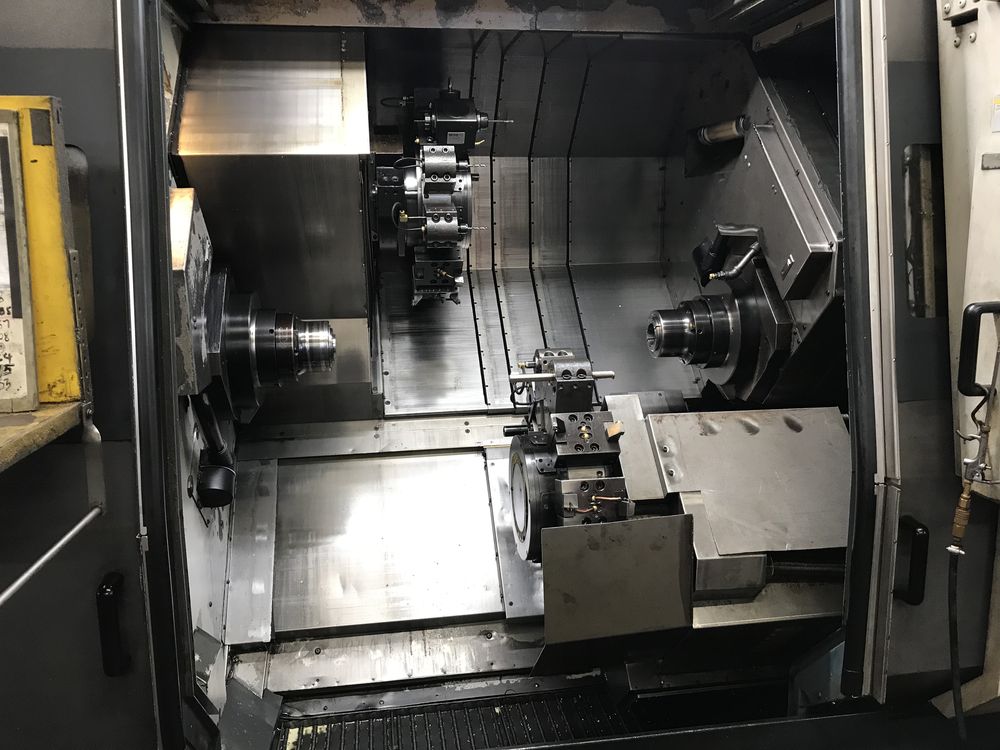

• Turrets: Dual (Upper & Lower)

• Stations per Turret: 12

• Rotary Tool Speed: Up to 6,000 RPM

• Rotary Tool Capacity:

– Drilling: 1″

– Tapping: M20

TAILSTOCK

• Tailstock Taper: MT5

DIMENSIONS & WEIGHT

• Approx. Weight: 30,000 lbs

FEATURES

✓ Twin turret configuration for simultaneous machining

✓ Y-axis capability for off-center milling operations

✓ Dual spindle setup for increased productivity

✓ Live tooling for multi-process machining

✓ Heavy-duty construction for stability and accuracy

✓ Ideal for reducing cycle times in production environments

APPLICATIONS

• High-volume production turning

• Complex multi-operation parts

• Automotive and aerospace components

• Shaft and cylindrical part machining

• Precision manufacturing
