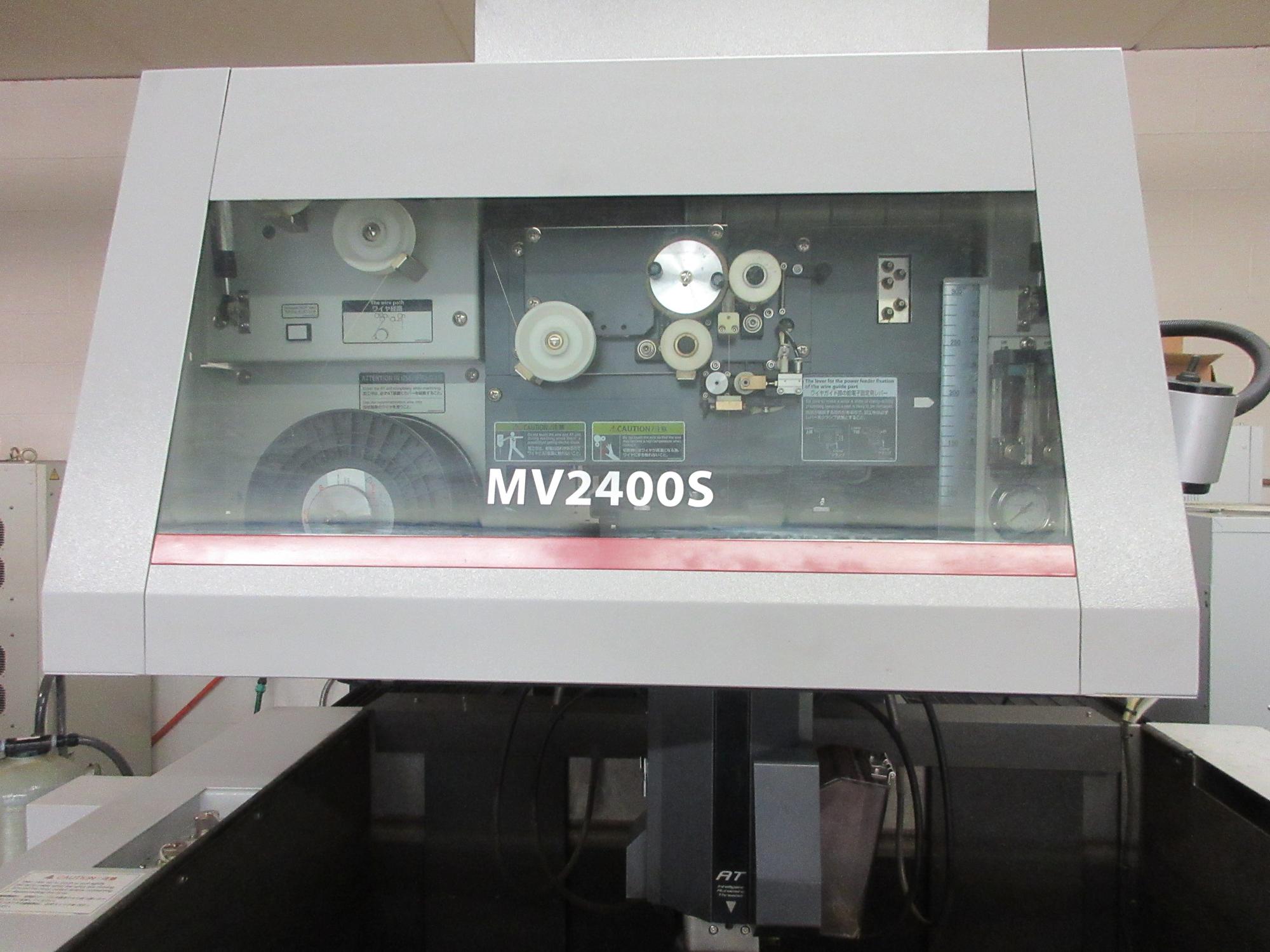

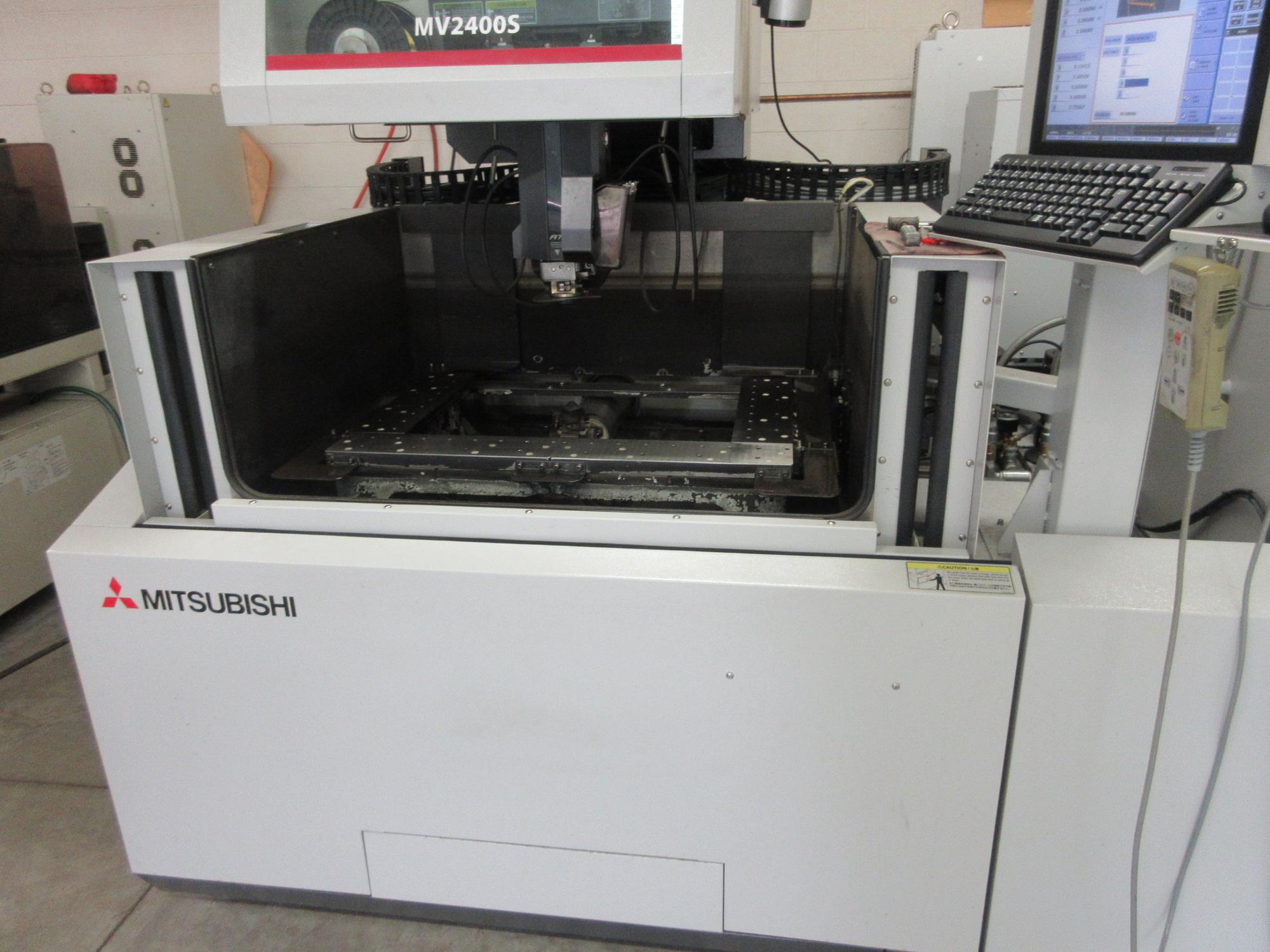

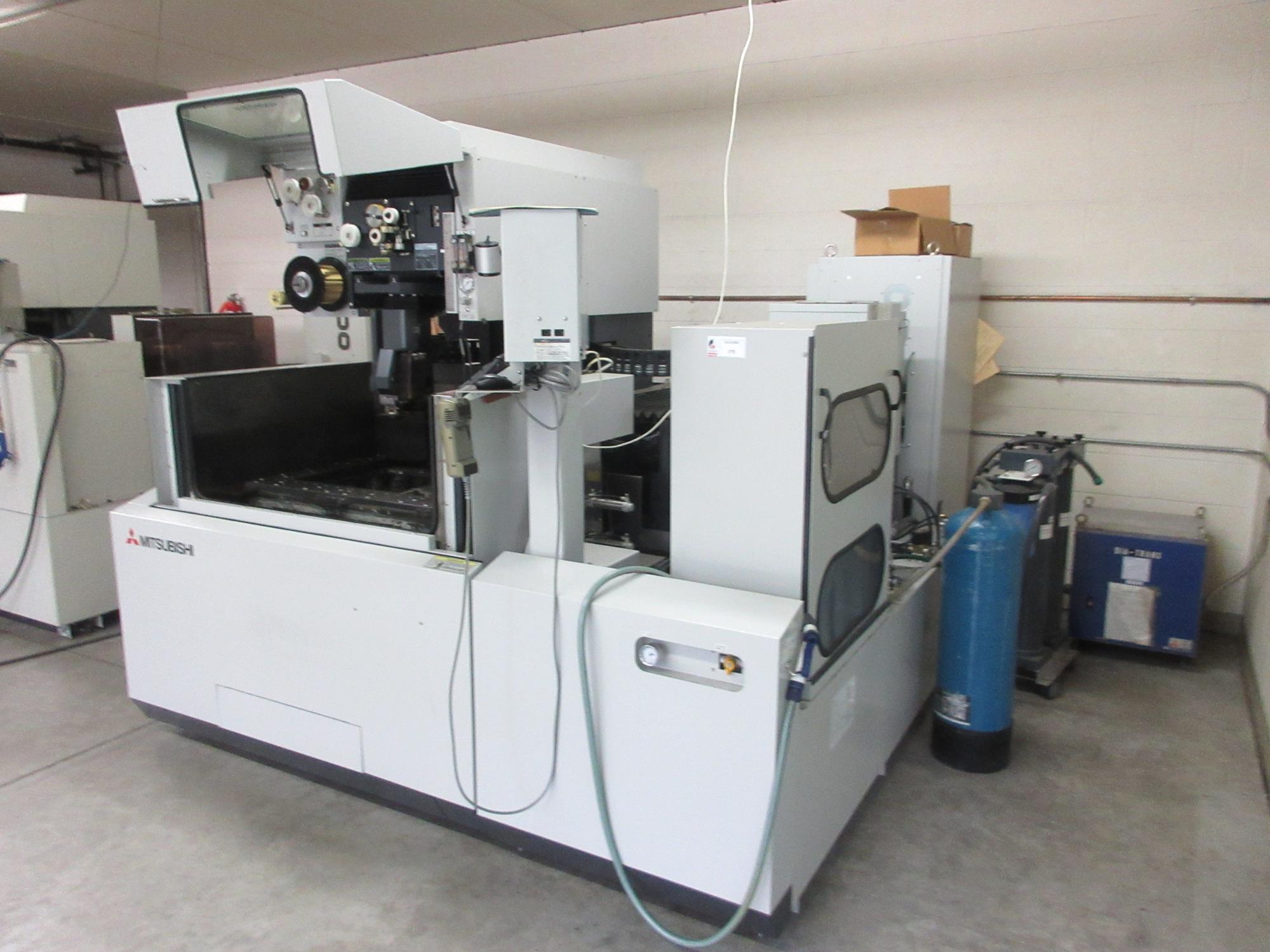

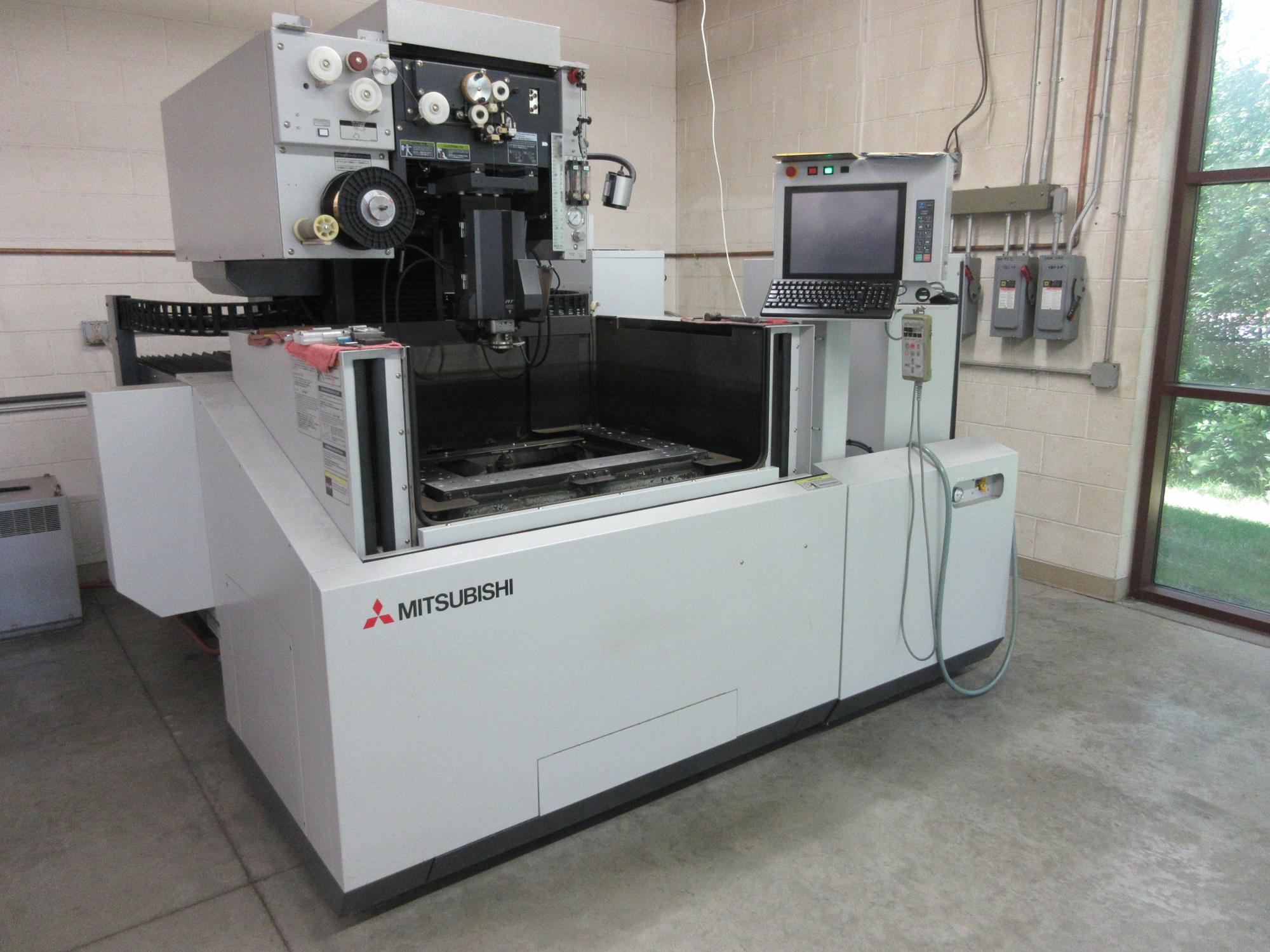

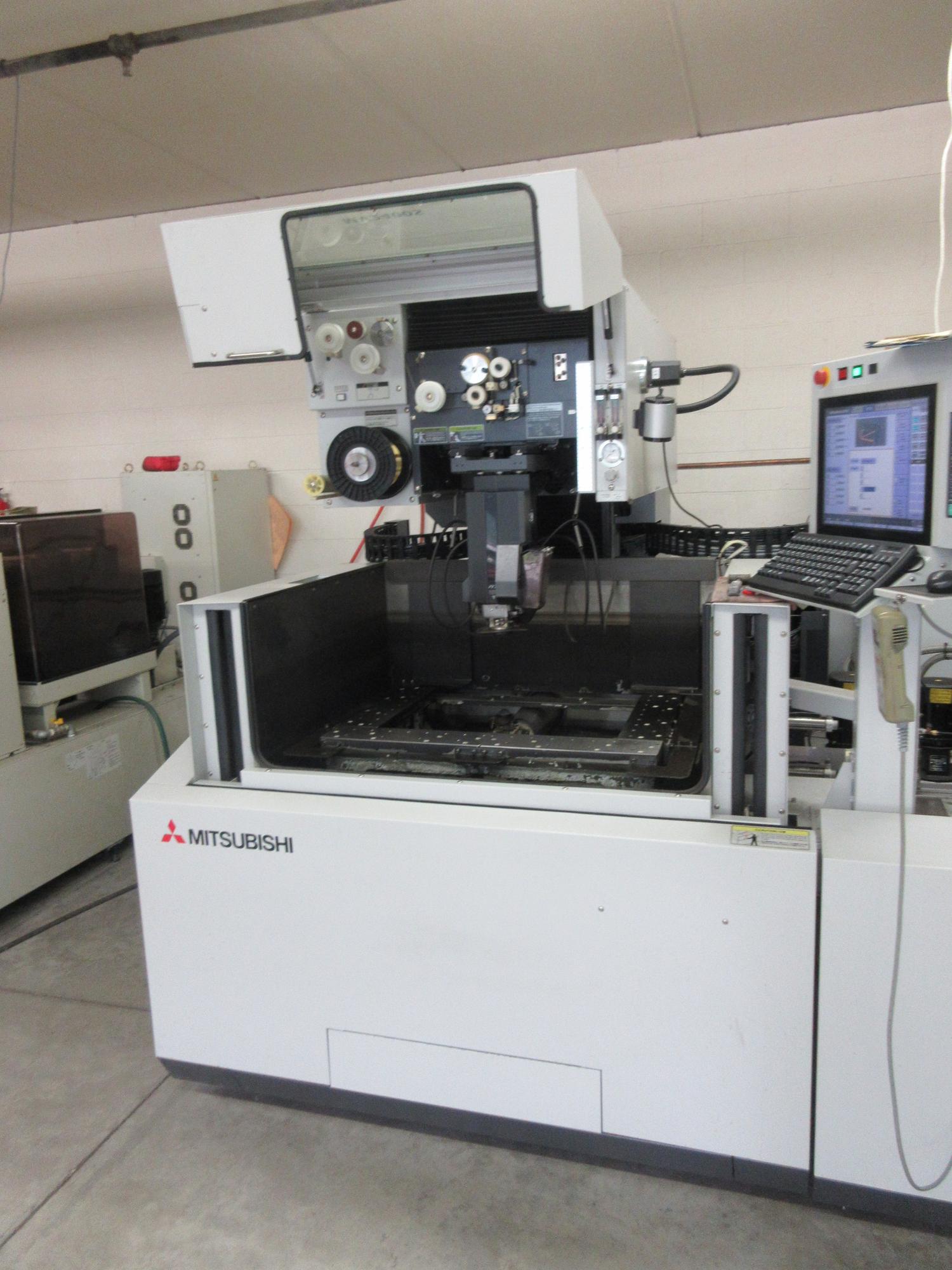

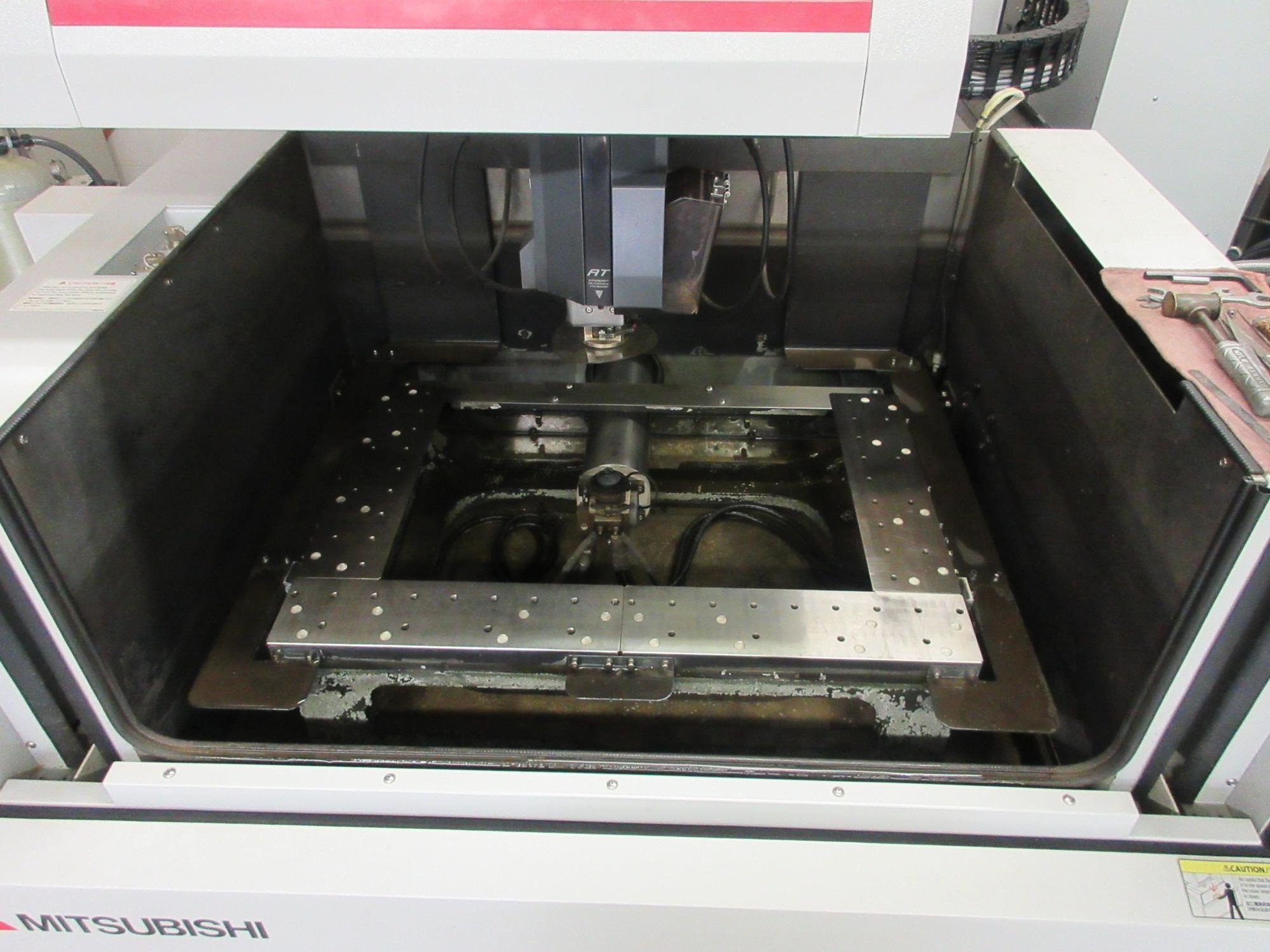

Mitsubishi MV2400S CNC Wire EDM ( Electrical Discharge Machine ) New 2013
Equipped With:

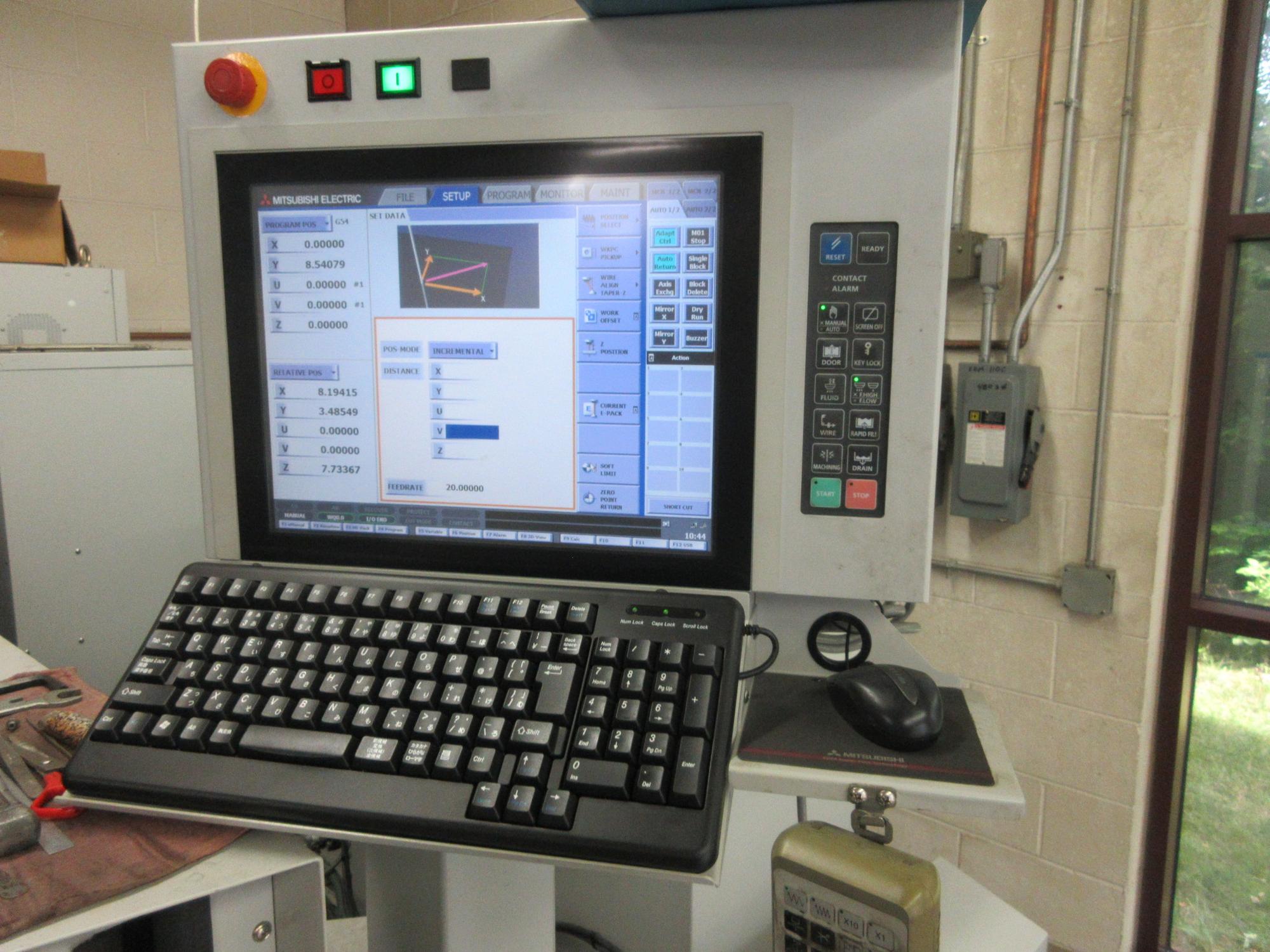

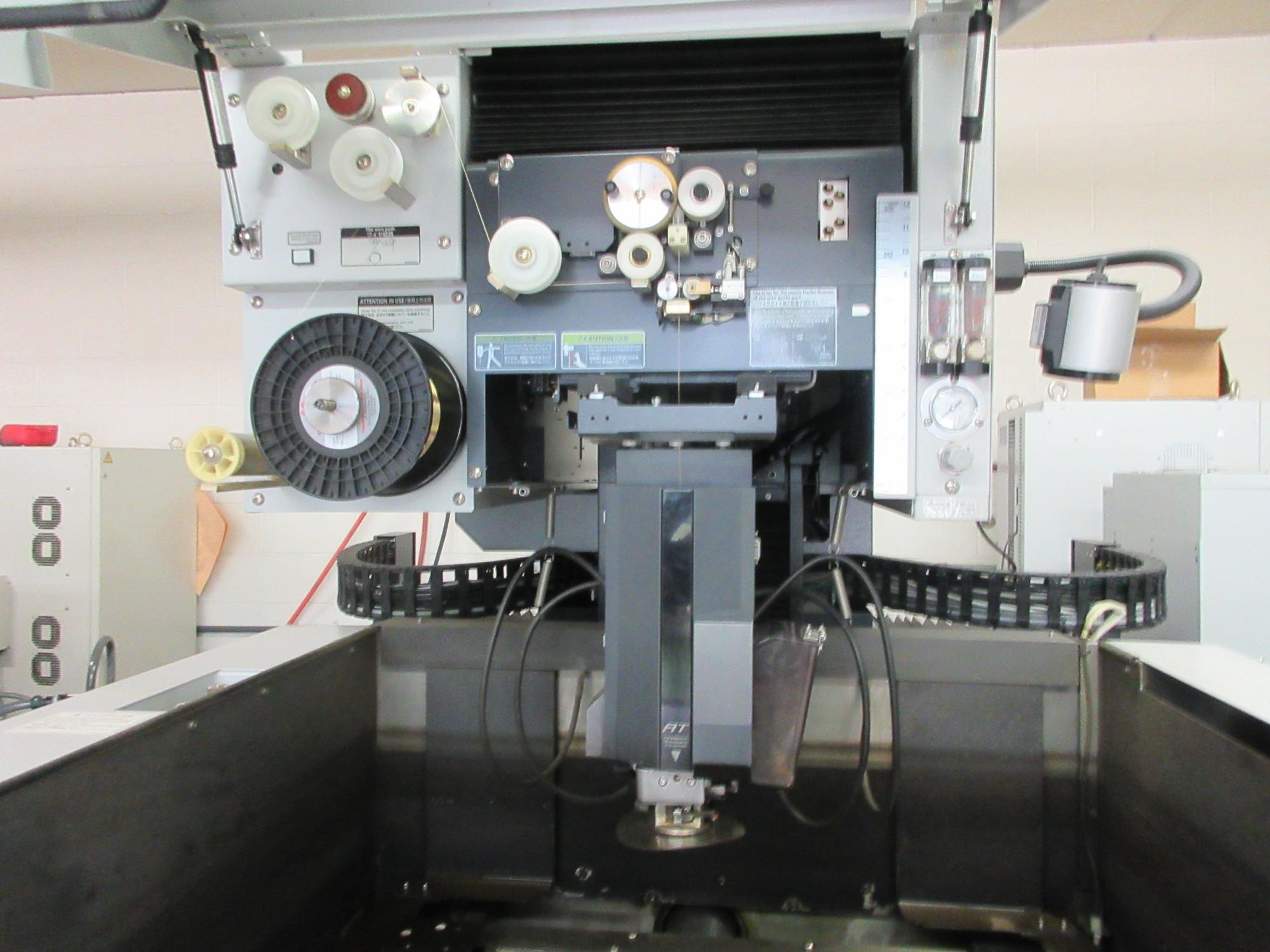

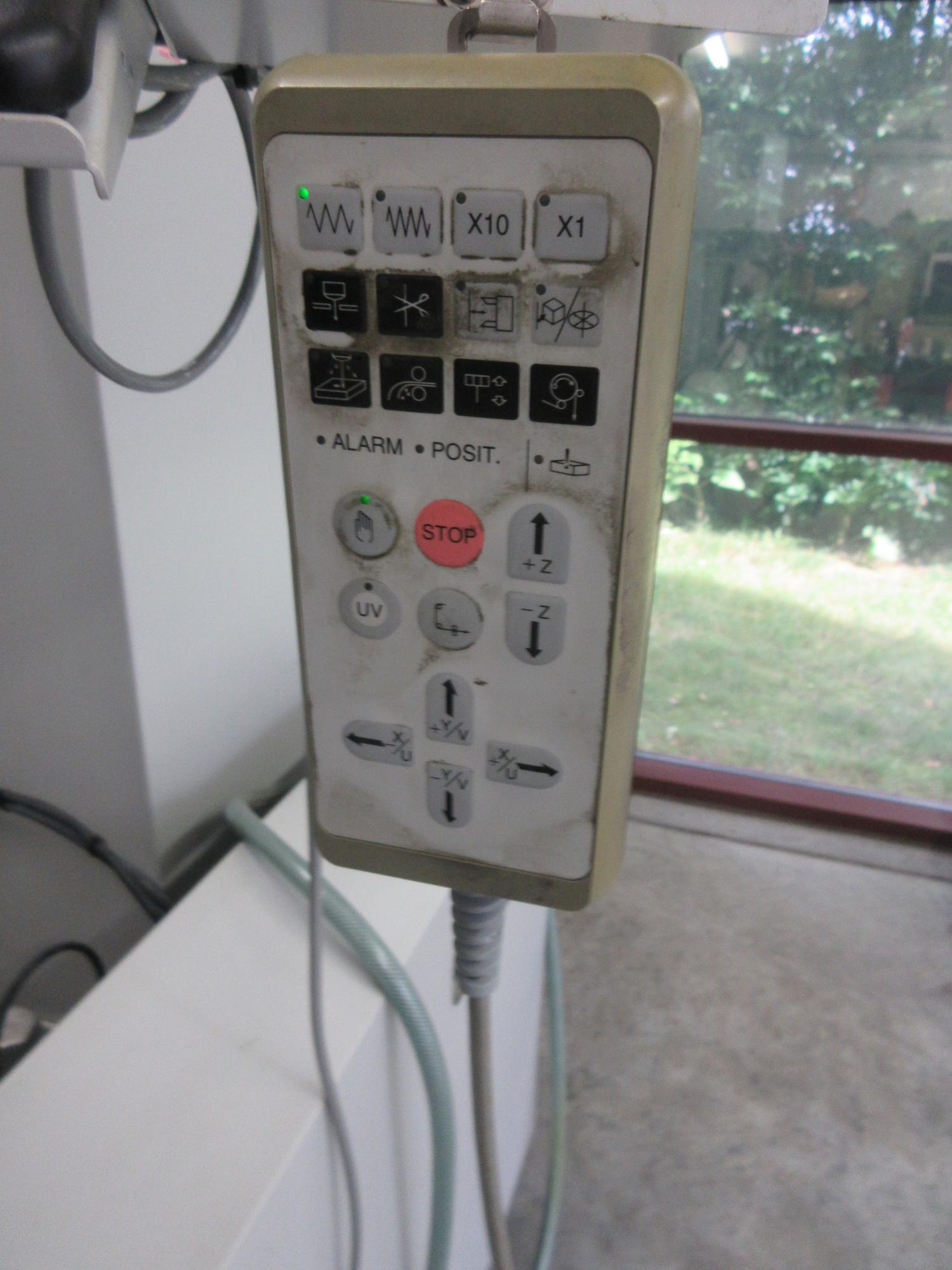

W31MV-2 CNC Control, Remote Control Pendant, Auto Threading, Dielectric System, Chiller, Transformer, Wire Disposal Crimper and Bin
Electrics:

220 Volt, 3 Phase
Manufacturer: Mitsubishi Model: MV2400S Year: 2013 Serial Number: 03DM2295
Main Unit Approx Weight: 7716.00 lbs
Main Unit Dimensions (in inches): Length: 79.00″ Width: 104.00″ Height: 85.00″
Components:
Dielectric Fluid System: Length: 35.00″ Width: 92.00″ Height: 60.00″
Control Cabinet: Length: 28.00″ Width: 26.00″ Height: 72.00″

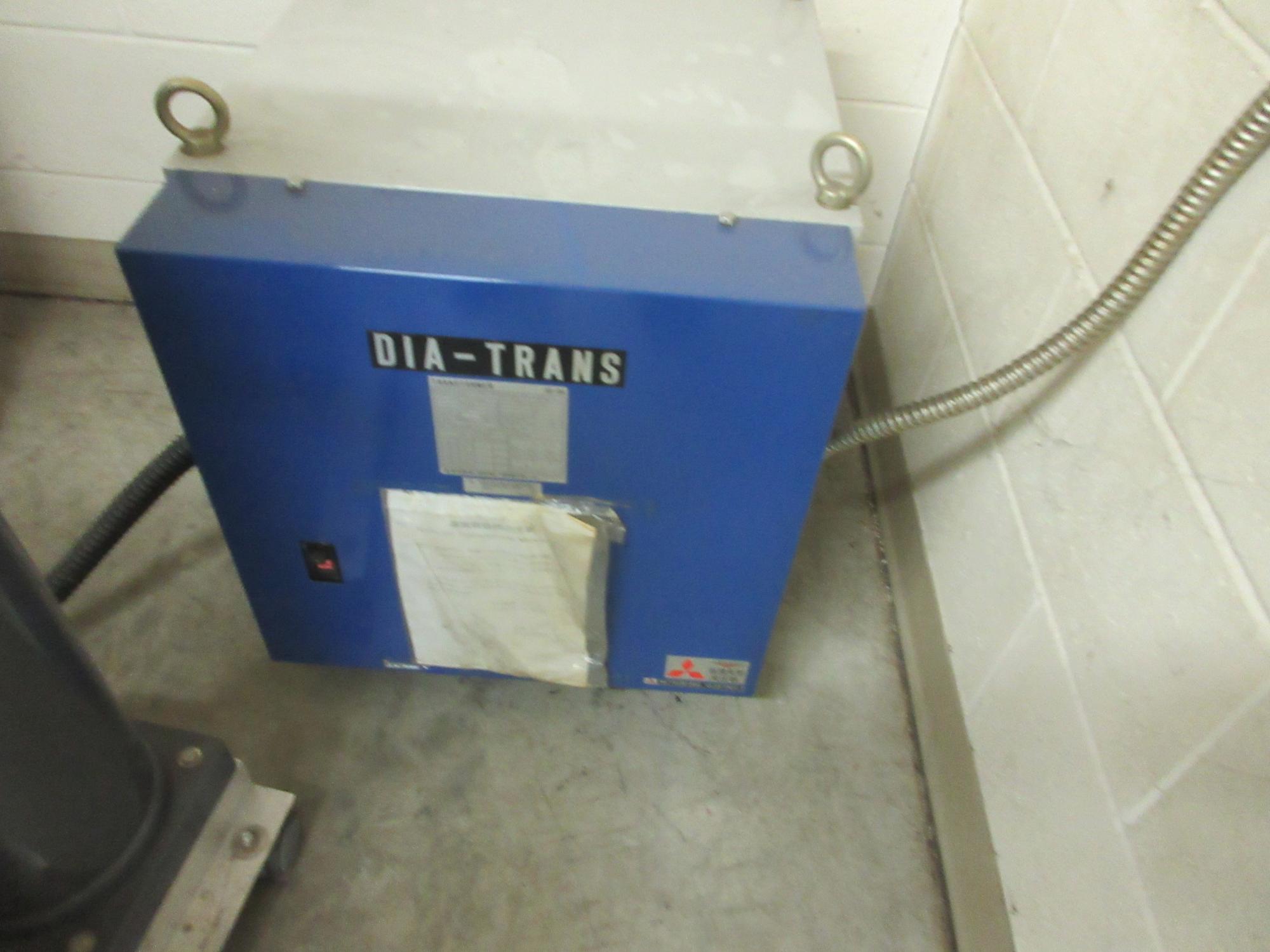

Transformer: Length: 24.00″ Width: 21.00″ Height: 25.00″
Specs:
Control: Mitsubishi
Max Workpiece Size: 41.3″ x 32.3″ x 12″
Travels (X,Y,Z): 23.6″ x 15.7″ x 12.2″
UV Travels: +/- 3″ x +/-3″
Taper Angle: 15 Degrees at 10.2″ Thickness / Max 45 Degree Angle at 2.4″ Thickness (w Optional Guides)
Max Workpiece Weight: 3,307 Lbs.
Wire Diameter: .004 – .012″
Power Supply Amps: V350-V
Dielectric Fluid Capacity: 227 Gallons
Table Rapid Traverse Rate: 51.2 IPM
Minimum Start Hole Diameter: .02″
Table Dimensions: 33″ x 25.2″
Minimum Drive Unit Resolution: .000002″

Ground Level Door: 167″ W x 192″ H
Truck Level Door: 8′ x 8′
