GENERAL INFORMATION

• Manufacturer: Mitsubishi

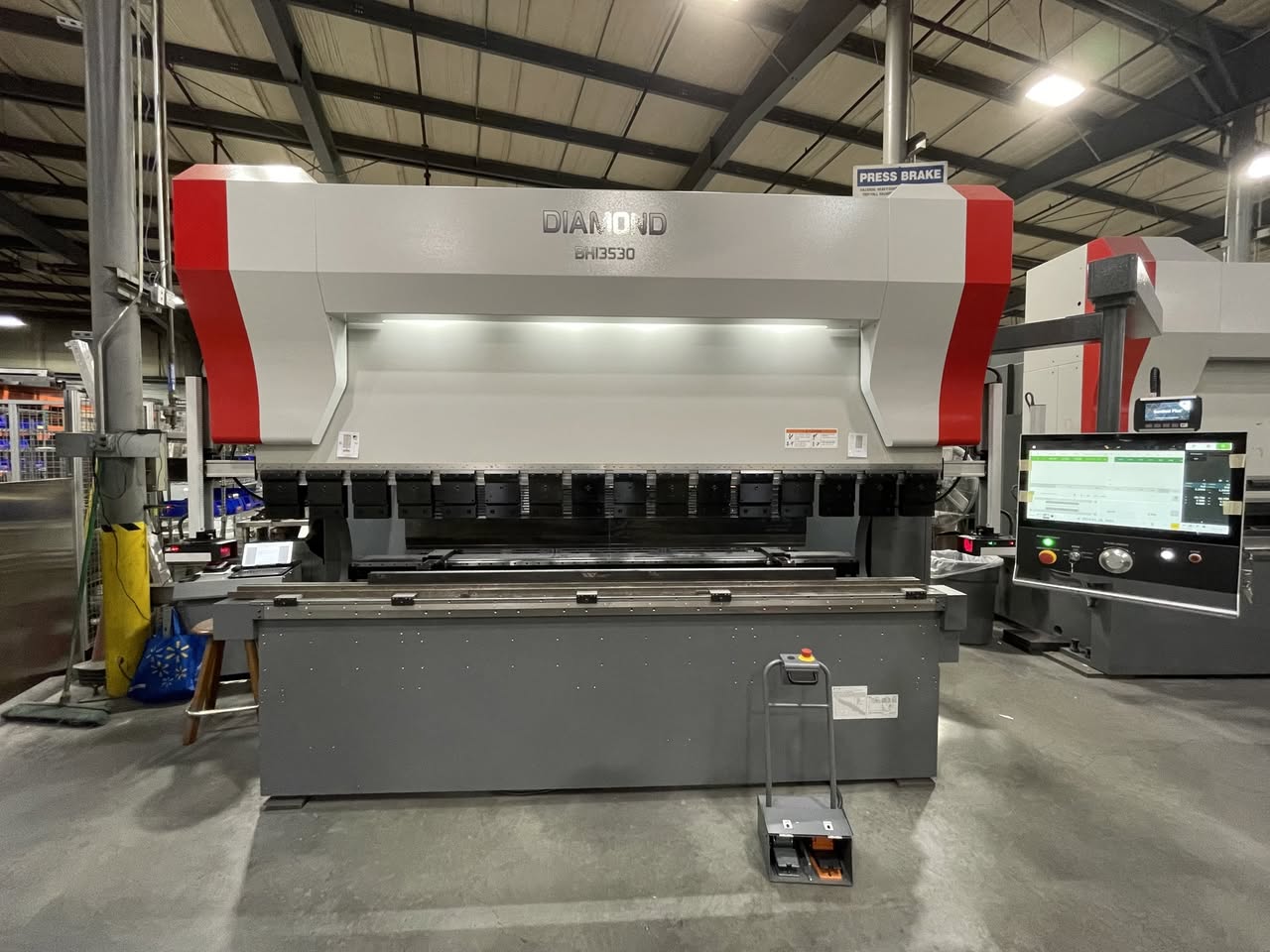

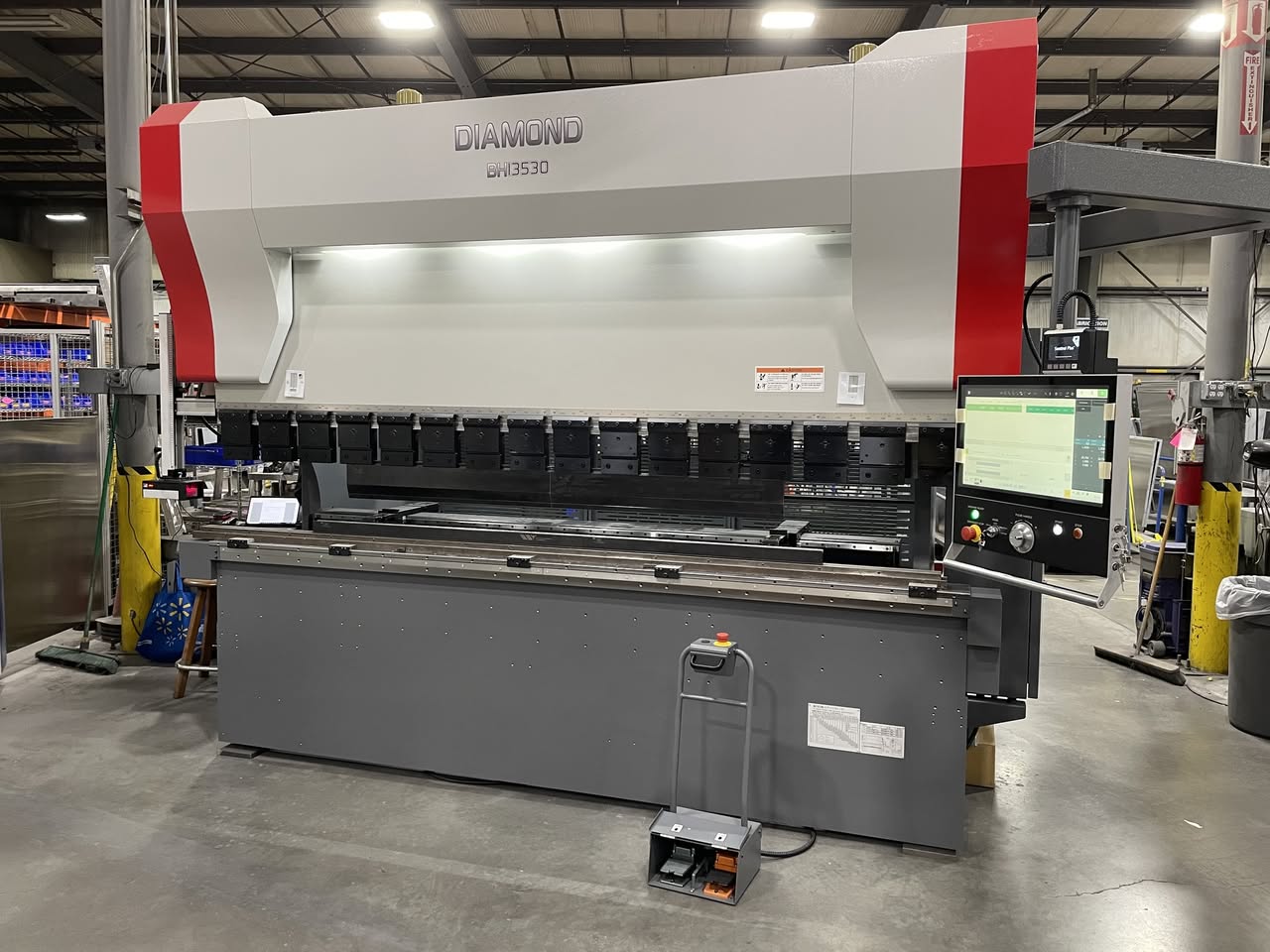

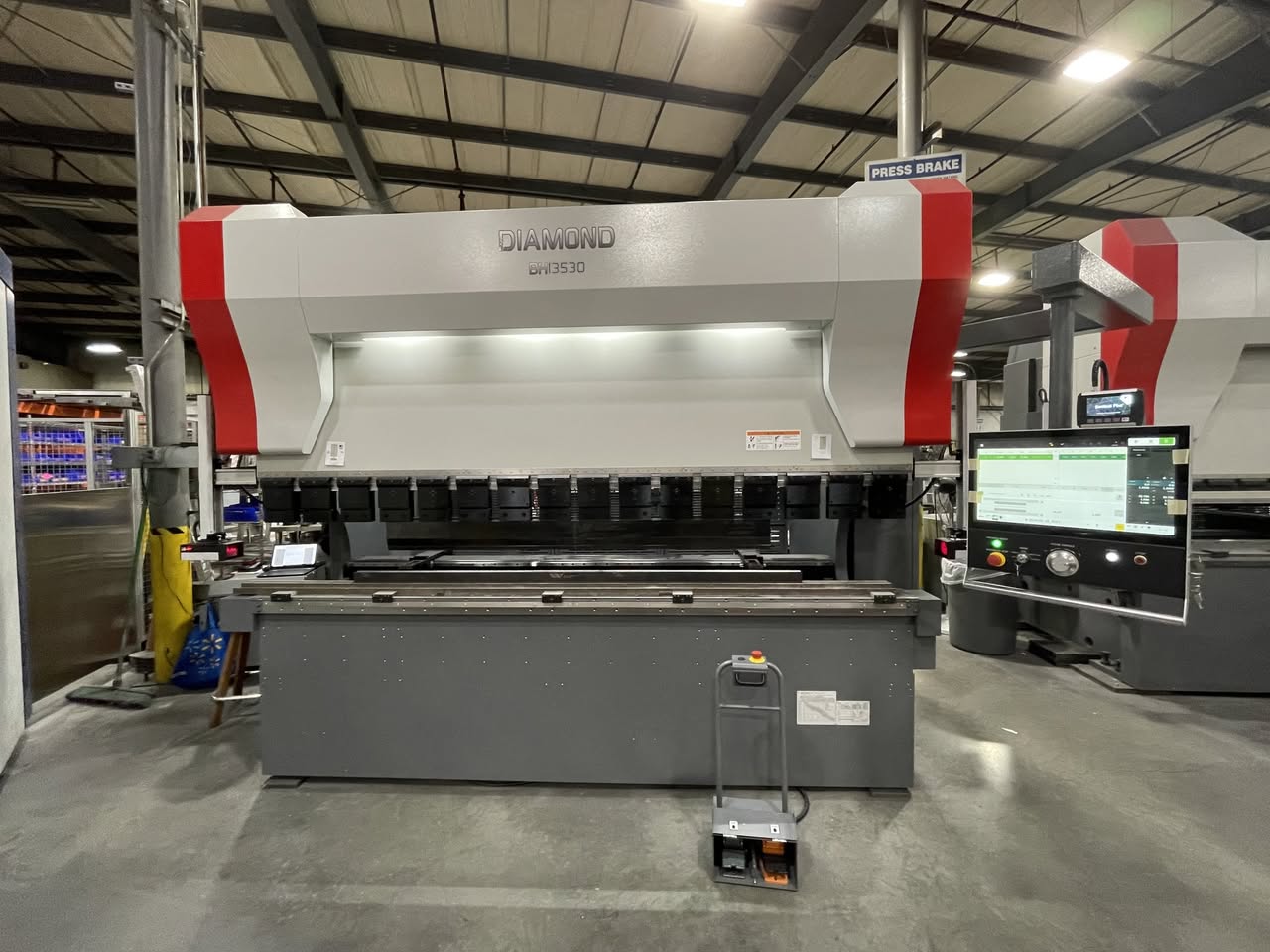

• Model: Diamond BH13530
• Year: 2022
• Type: CNC Press Brake
• Configuration: 4-Axis Hybrid
• Condition: Used

SPECIFICATIONS

• Maximum Tonnage Capacity: 149 Ton
• Maximum Bending Length: 3099 MM
• Distance Between Housings: 2692 MM
• Stroke Length: 250 MM
• Open Height: 530 MM
• Approach Speed: 11,989 MM/Min
• Bending Speed: 599 MM/Min
• Return Speed: 11,989 MM/Min
• Floor Space: 4724 MM L x 2464 MM W x 2997 MM H
• Machine Weight: 9,979 KG

FEATURES

✓ 4-axis CNC control for precise and repeatable bending

✓ Hybrid drive system for energy efficiency and performance

✓ High-speed back gauge for increased productivity

✓ Automatic crowning system for consistent bend accuracy

✓ Large touch screen interface for operator ease of use

✓ Heavy-duty construction for industrial applications

EQUIPPED WITH

• Mitsubishi CNC control with 559 MM touch screen
• 4-axis high-speed back gauge
• Dual drive hybrid system
• Automatic micro-wedge auto crowning system

APPLICATIONS

• Sheet metal fabrication
• Precision bending operations
• Industrial manufacturing
• Custom metal forming
• Production and job shop environments
