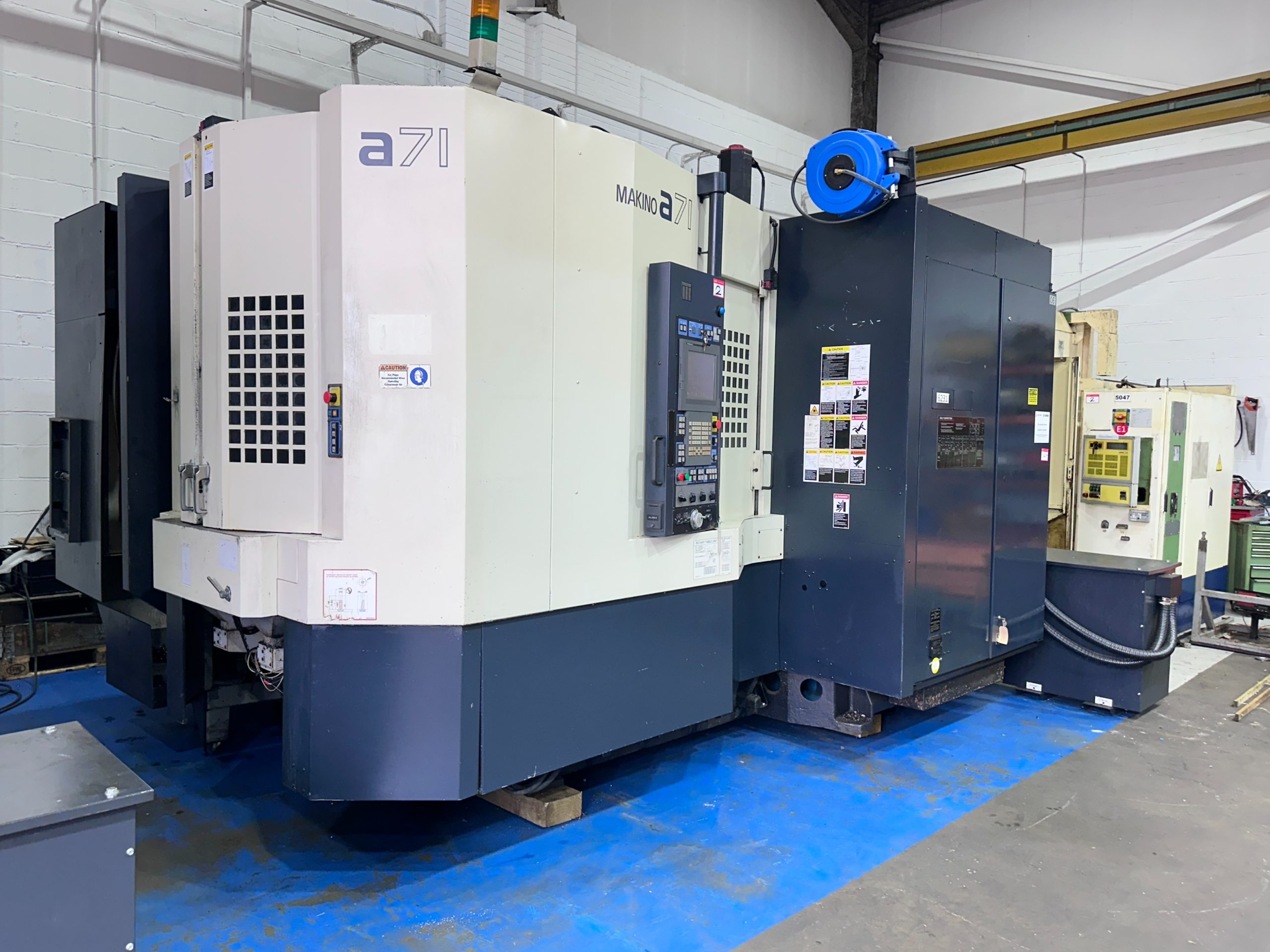

GENERAL INFORMATION

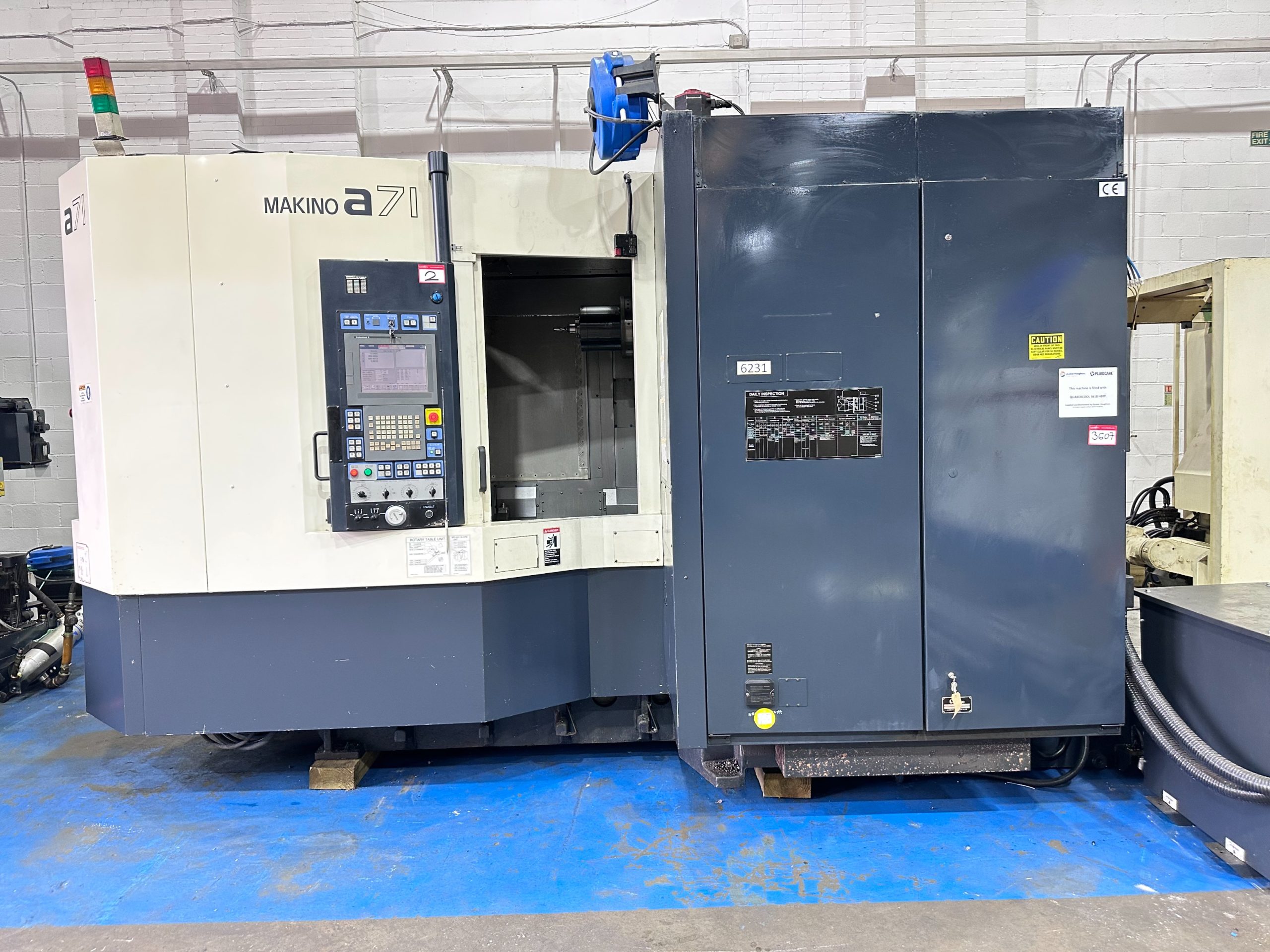

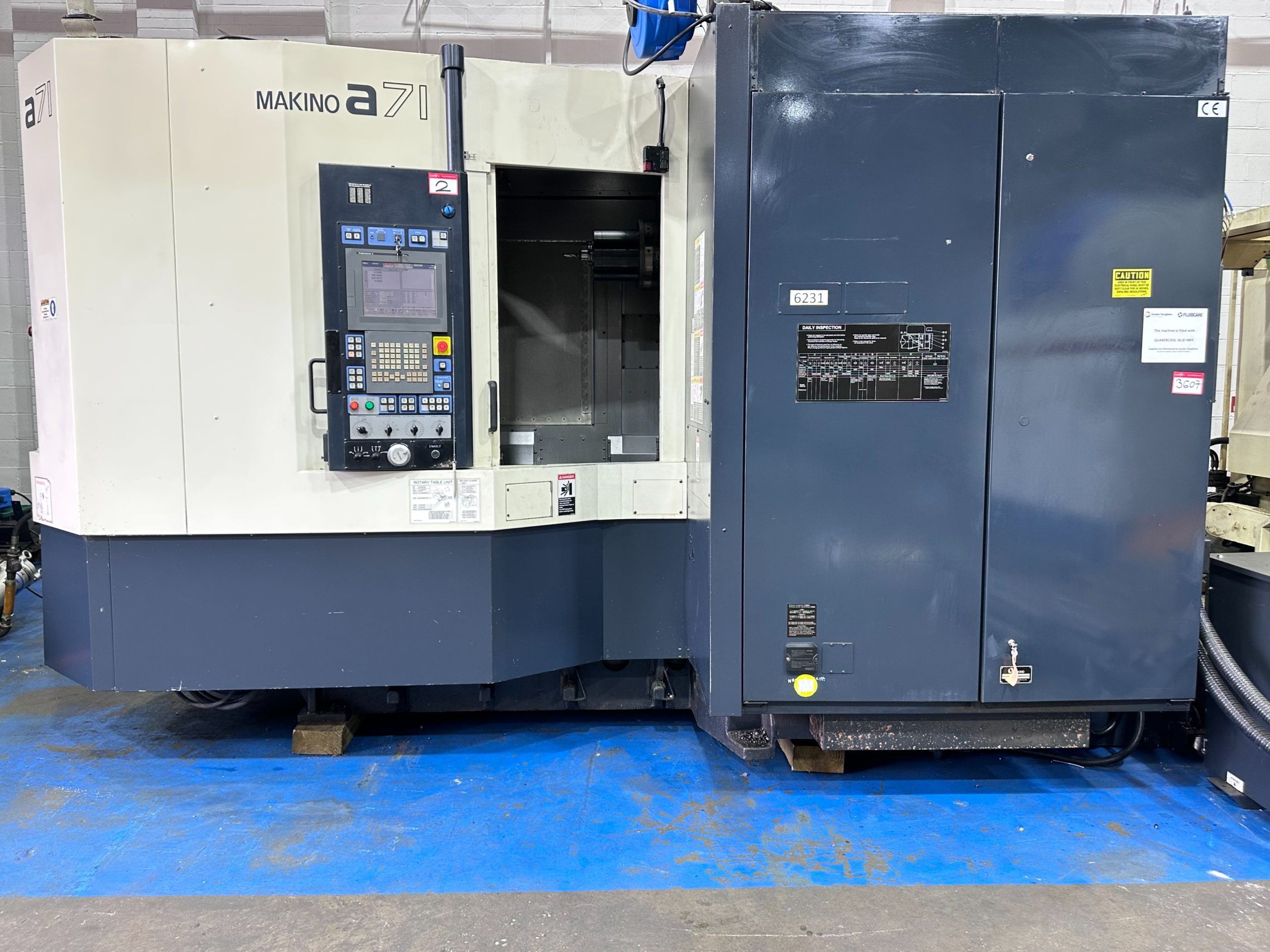

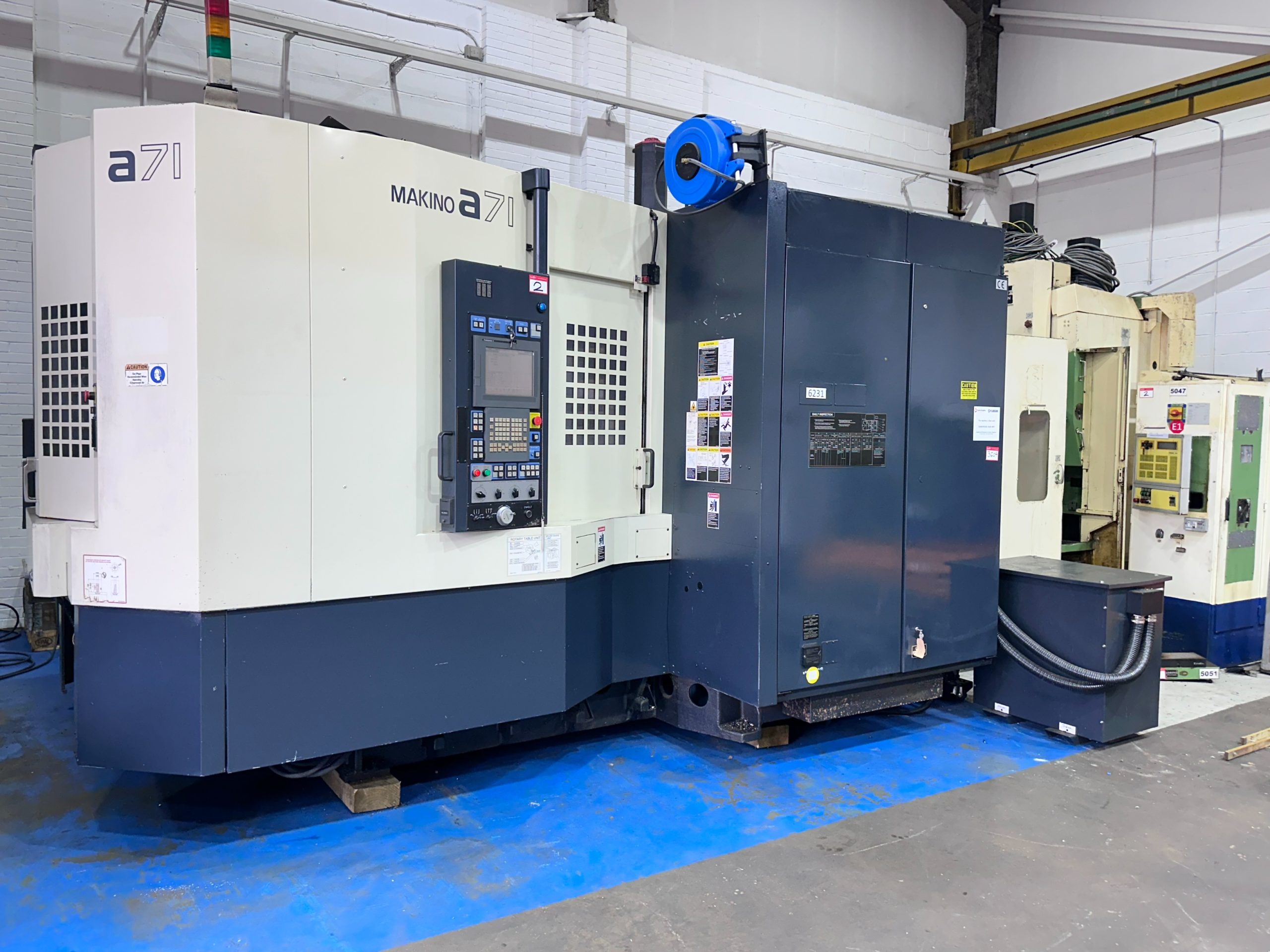

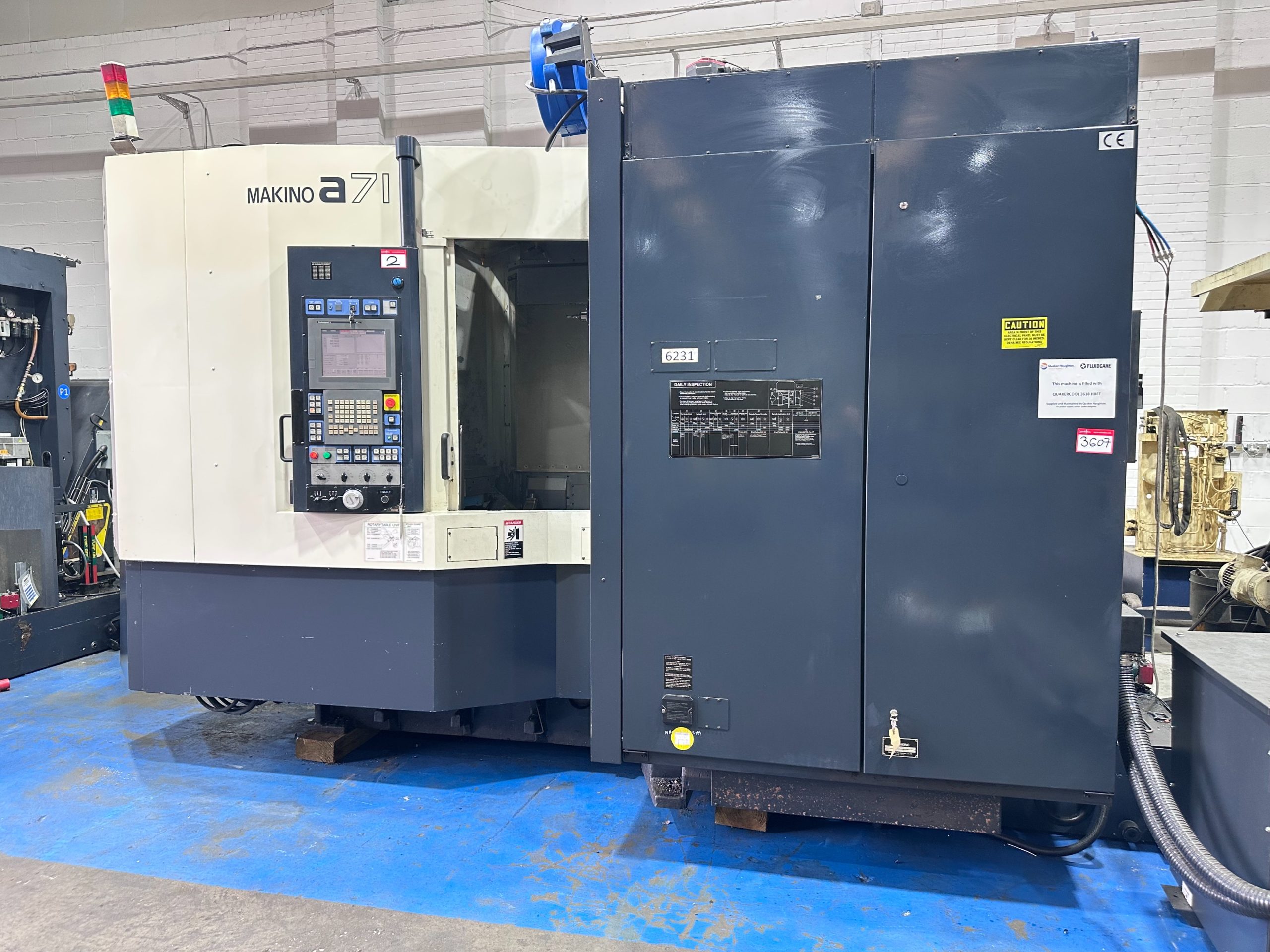

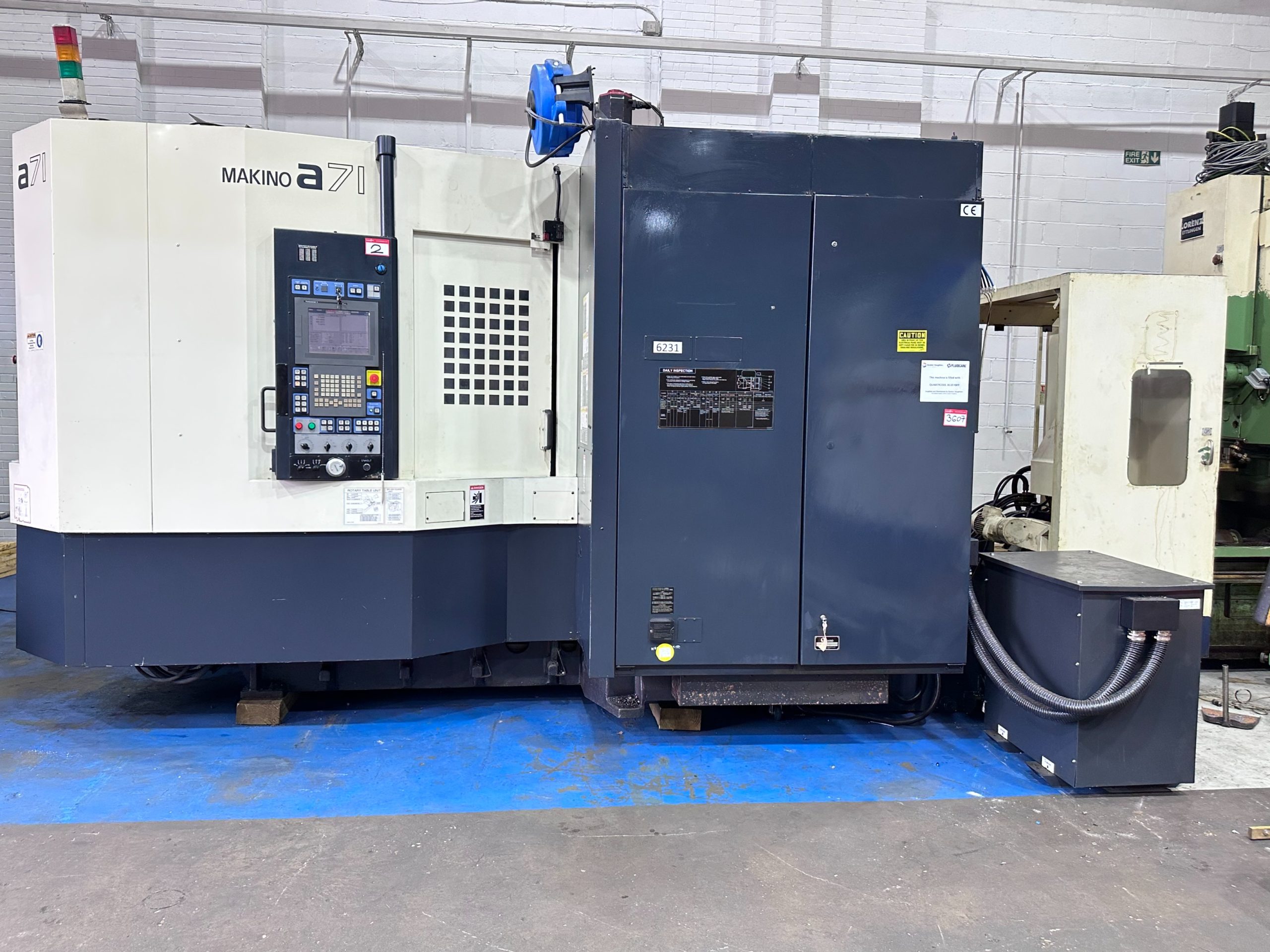

• Manufacturer: Makino Milling Machine Co.

• Model: A71

• Year: 2007

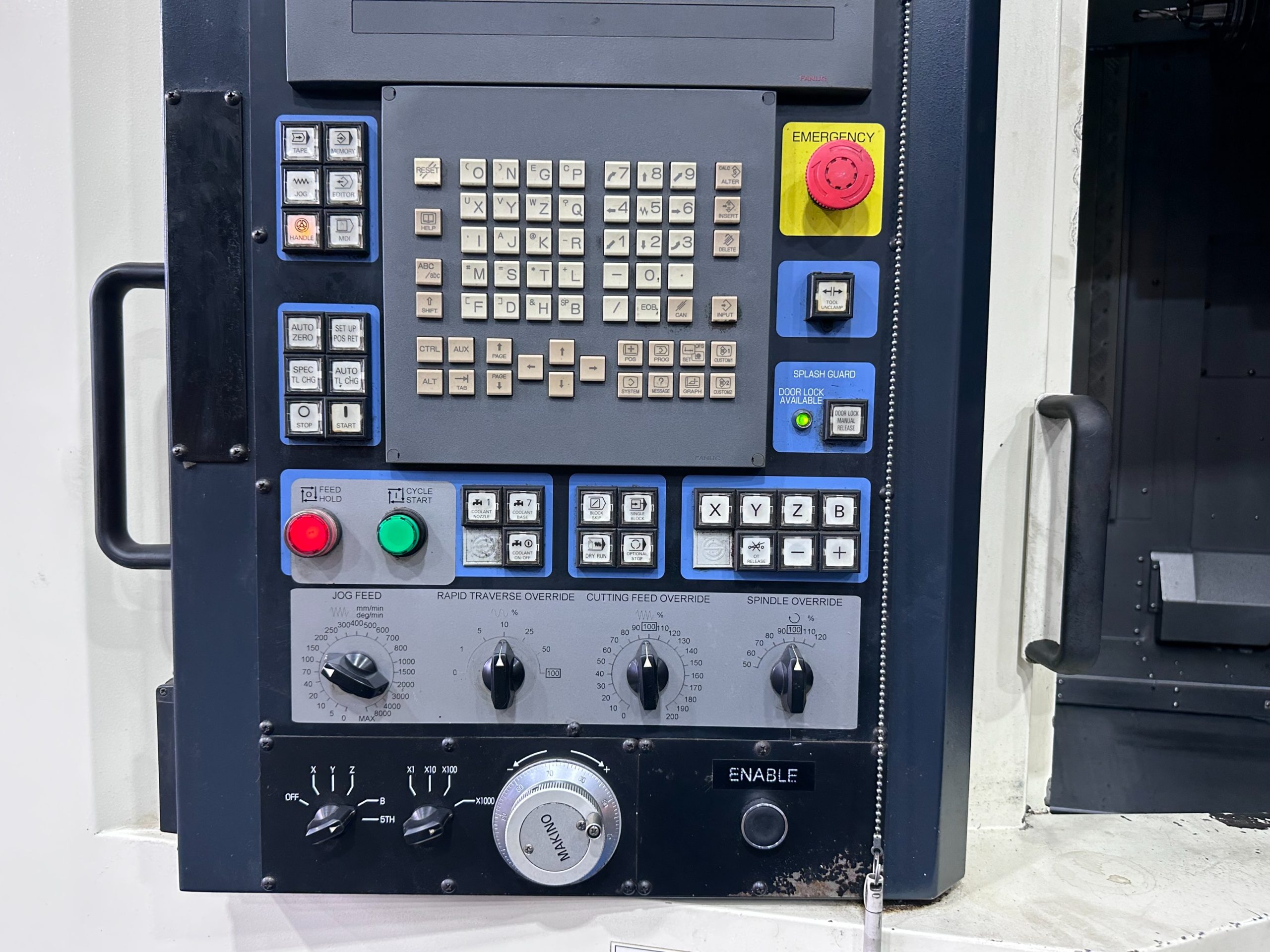

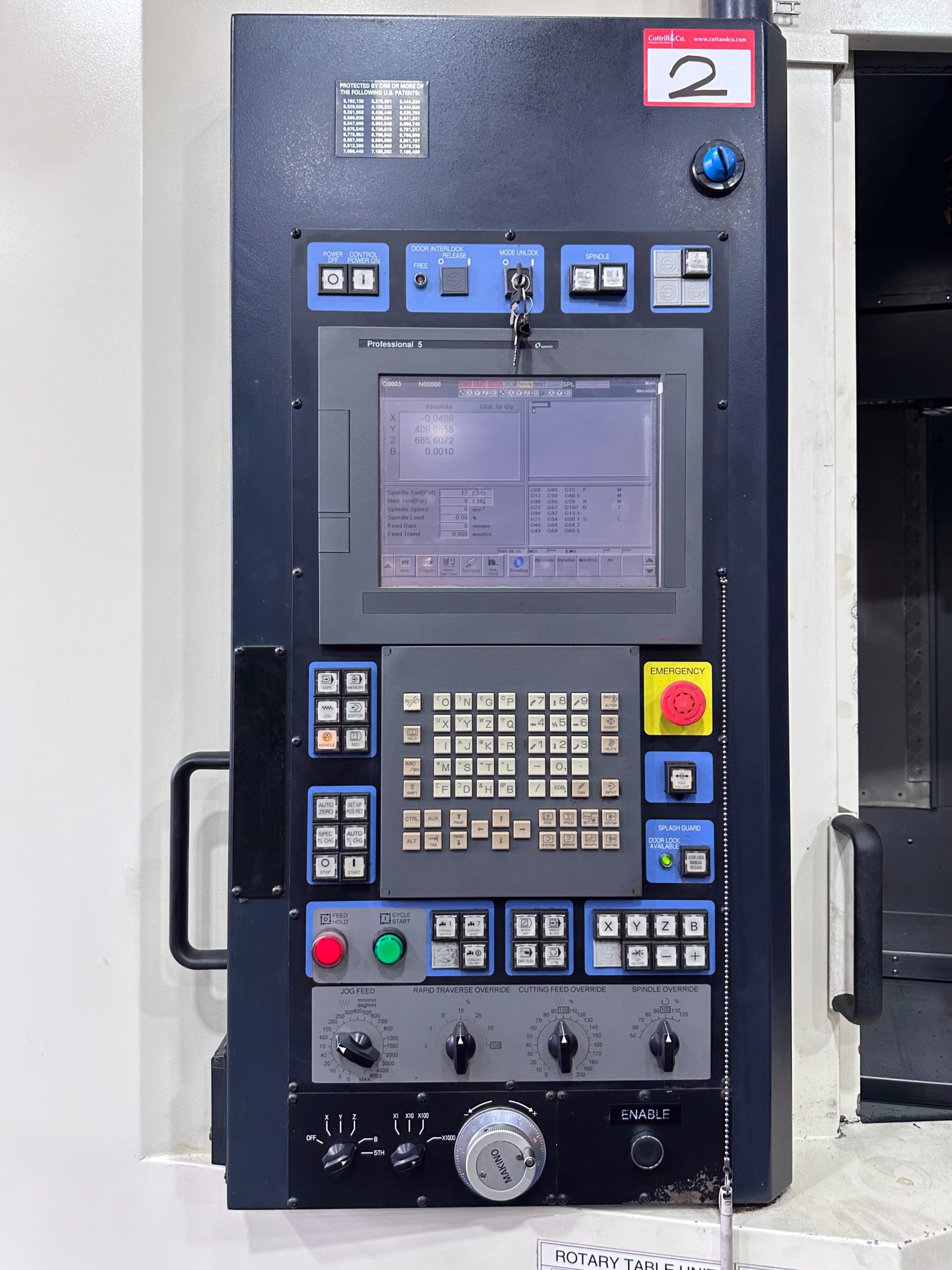

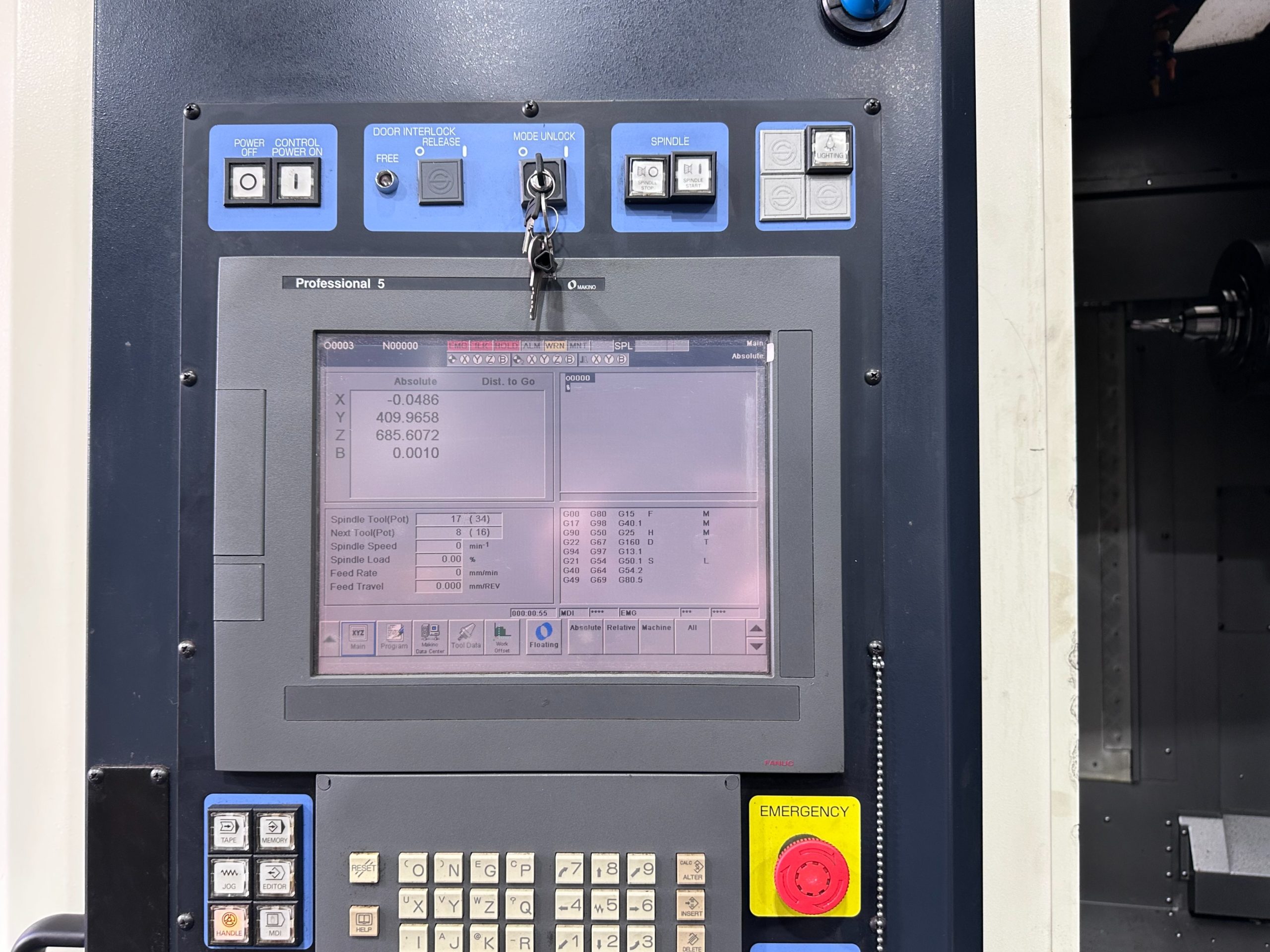

• CNC Control: Makino Professional 5

• Configuration: 4-Axis Horizontal Machining Center

• Country of Origin: Japan

• Operating Hours: 11,619 hours

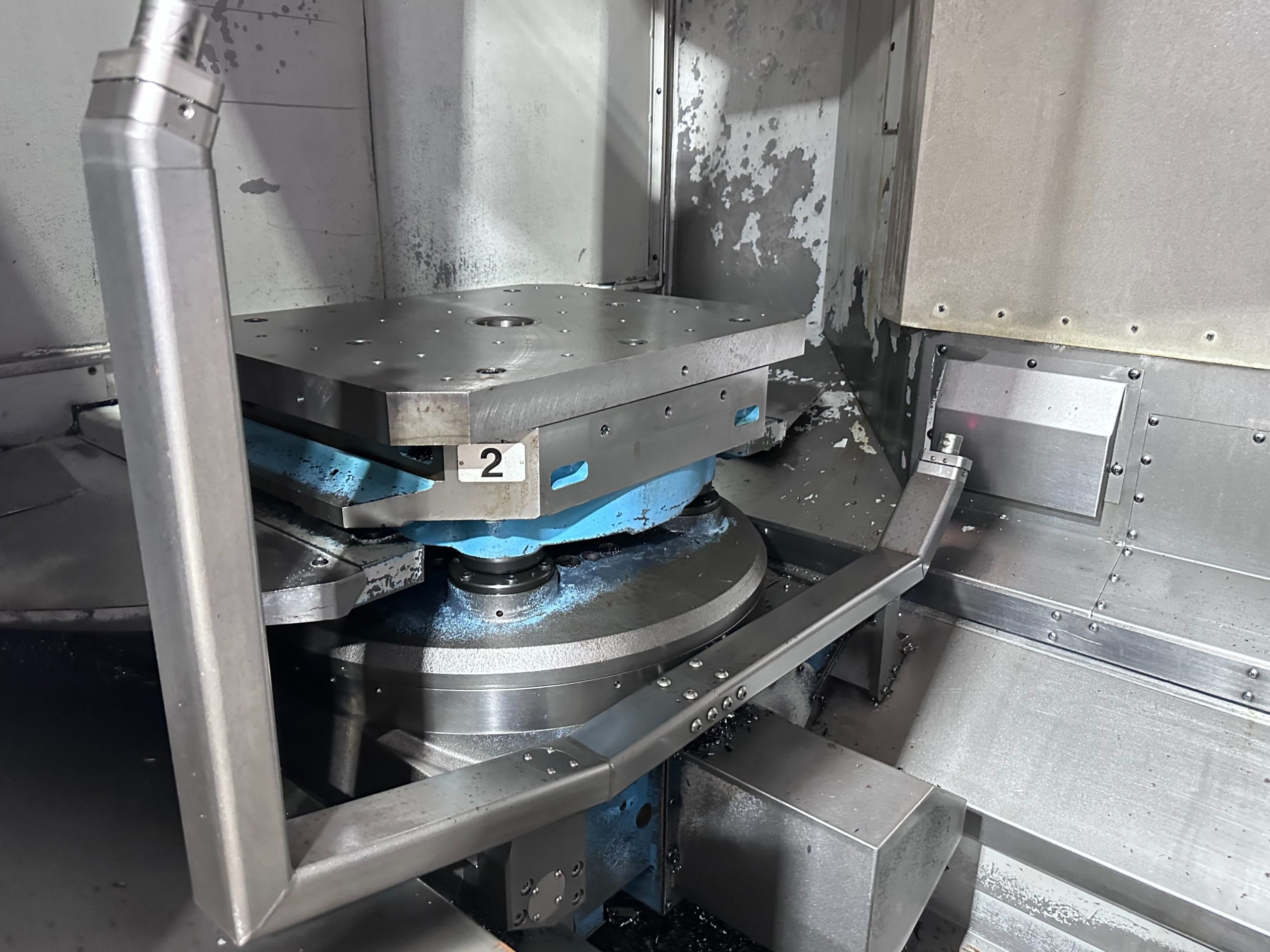

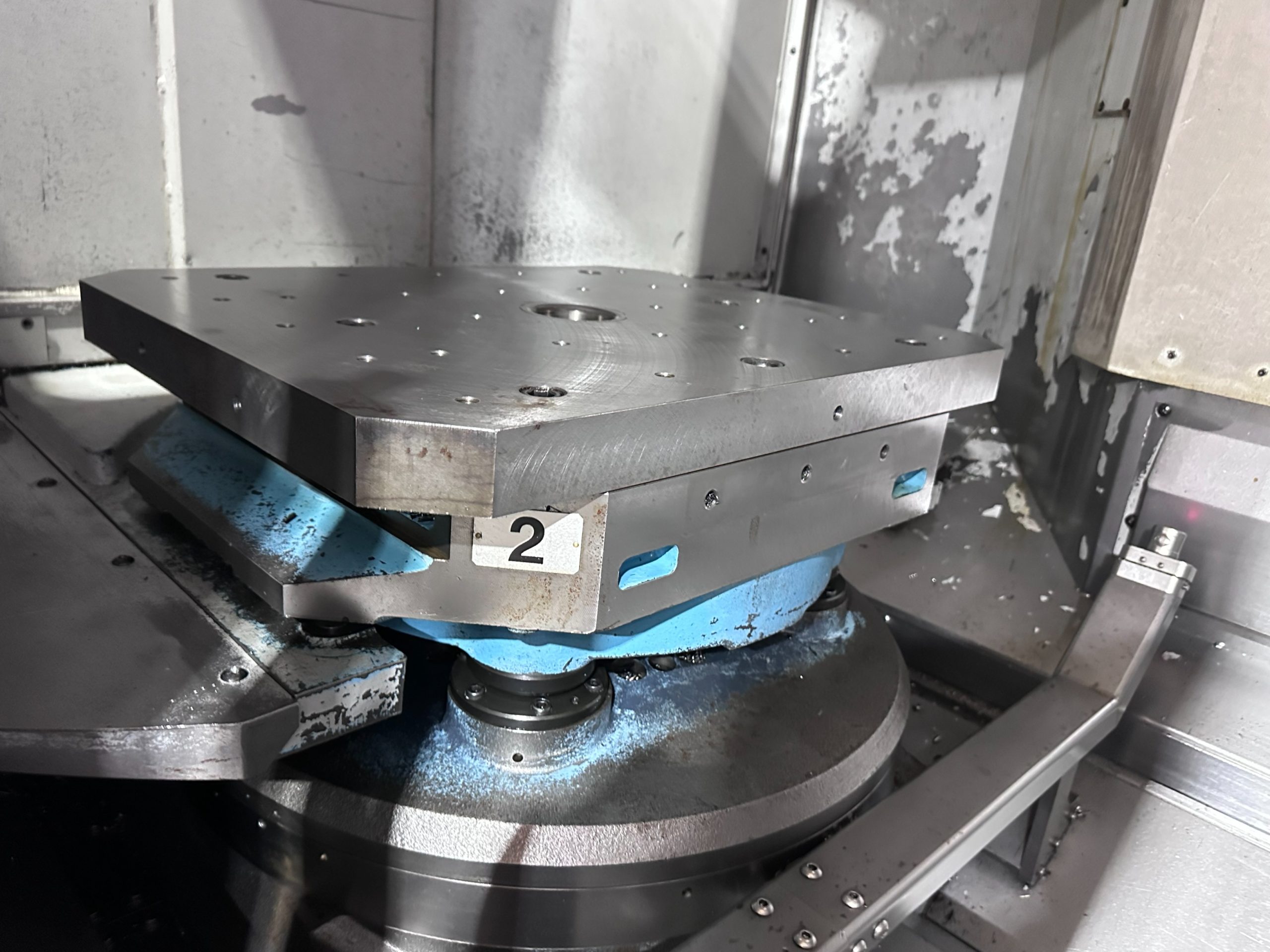

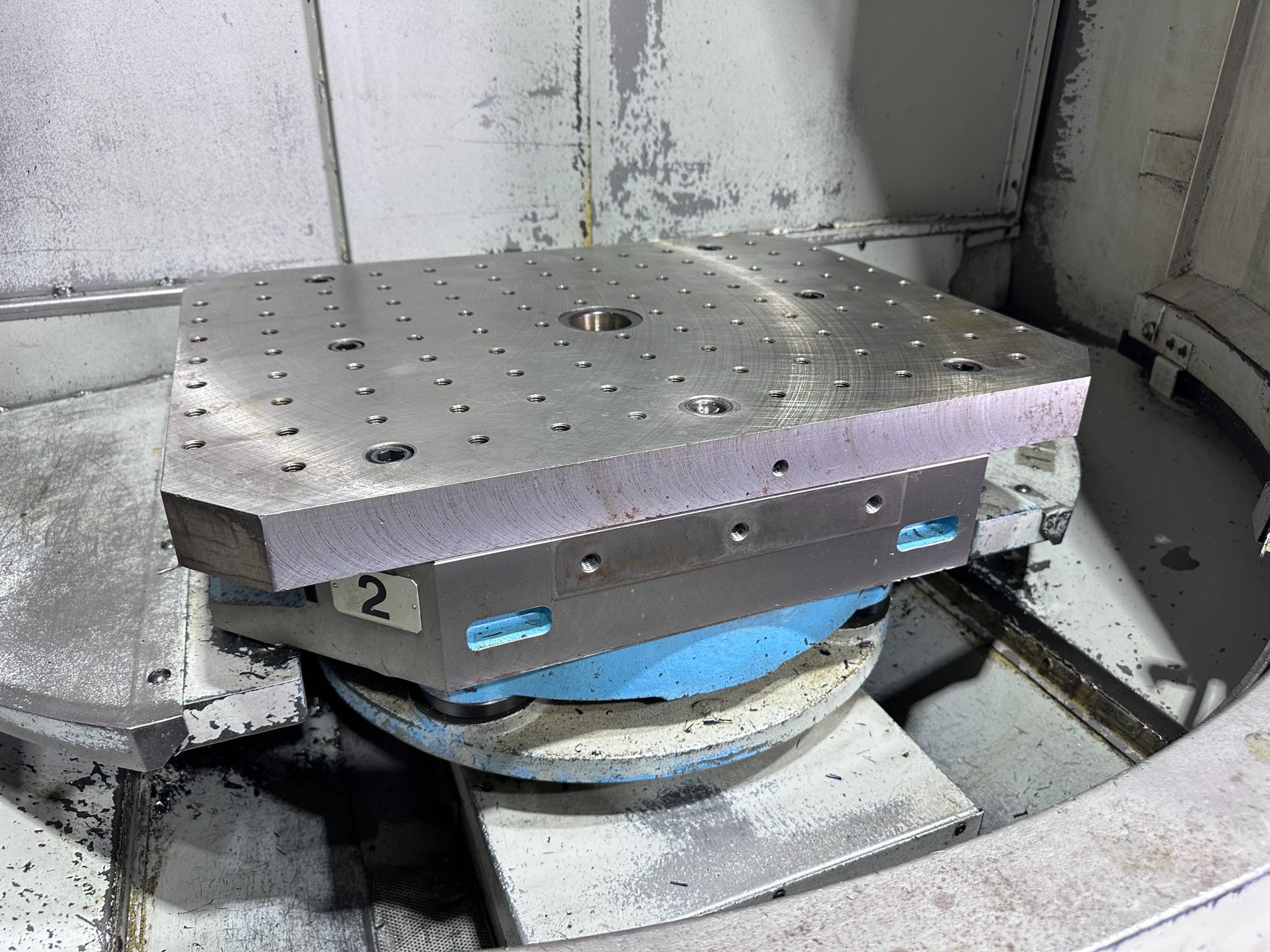

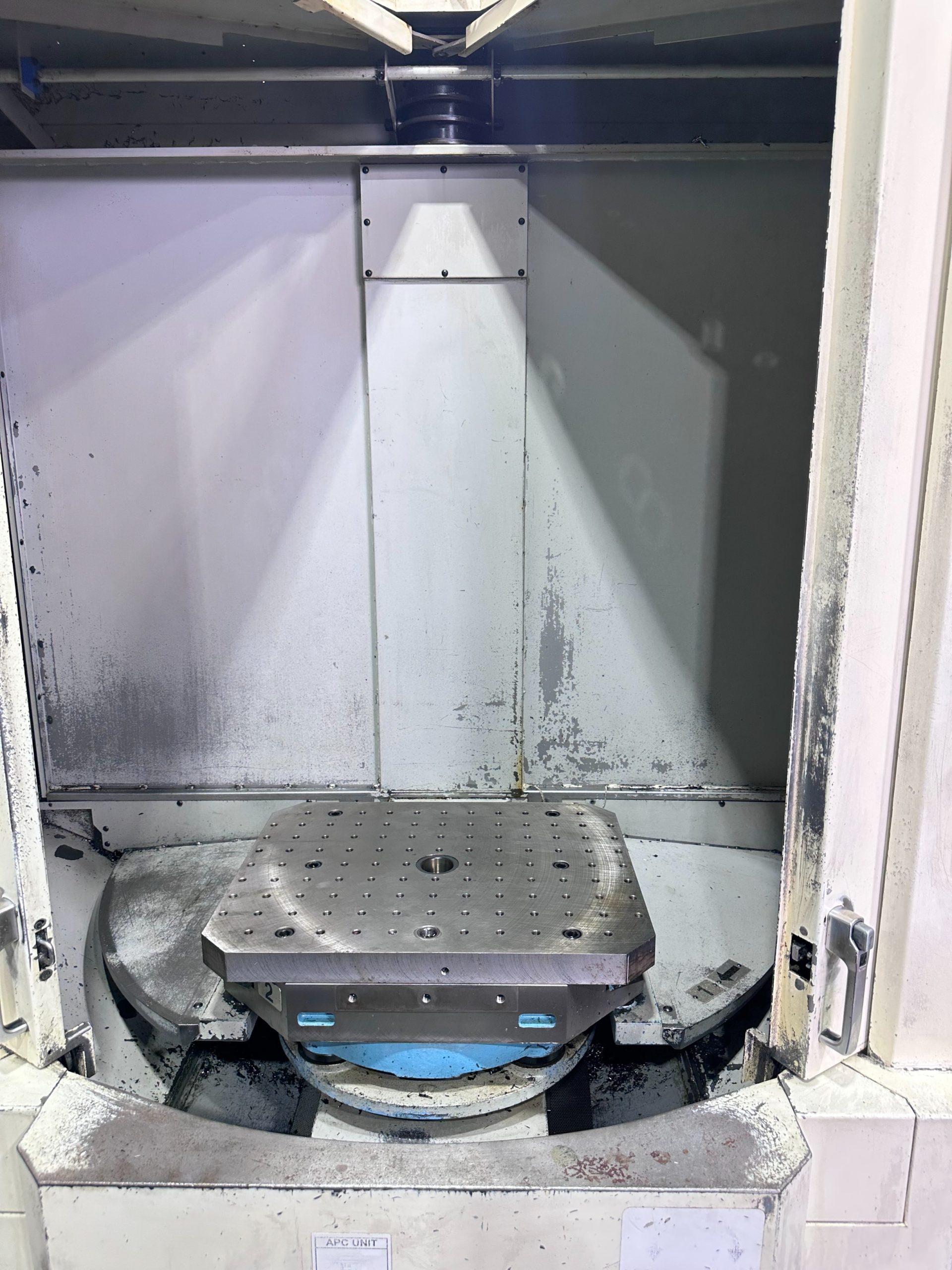

PALLET SYSTEM

• Number of Pallets: 2

• Pallet Size: 500 mm

• B-Axis Rotary Pallet System

• Maximum Pallet Load: 1,000 kg

WORK CAPACITY

• Maximum Workpiece Dimensions: 900 mm × 1000 mm

AXIS TRAVELS

• X-Axis Travel: 730 mm

• Y-Axis Travel: 730 mm

• Z-Axis Travel: 800 mm

FEEDRATES

• Rapid Travel (X & Y): 50 m/min

• Rapid Travel (Z): 60 m/min

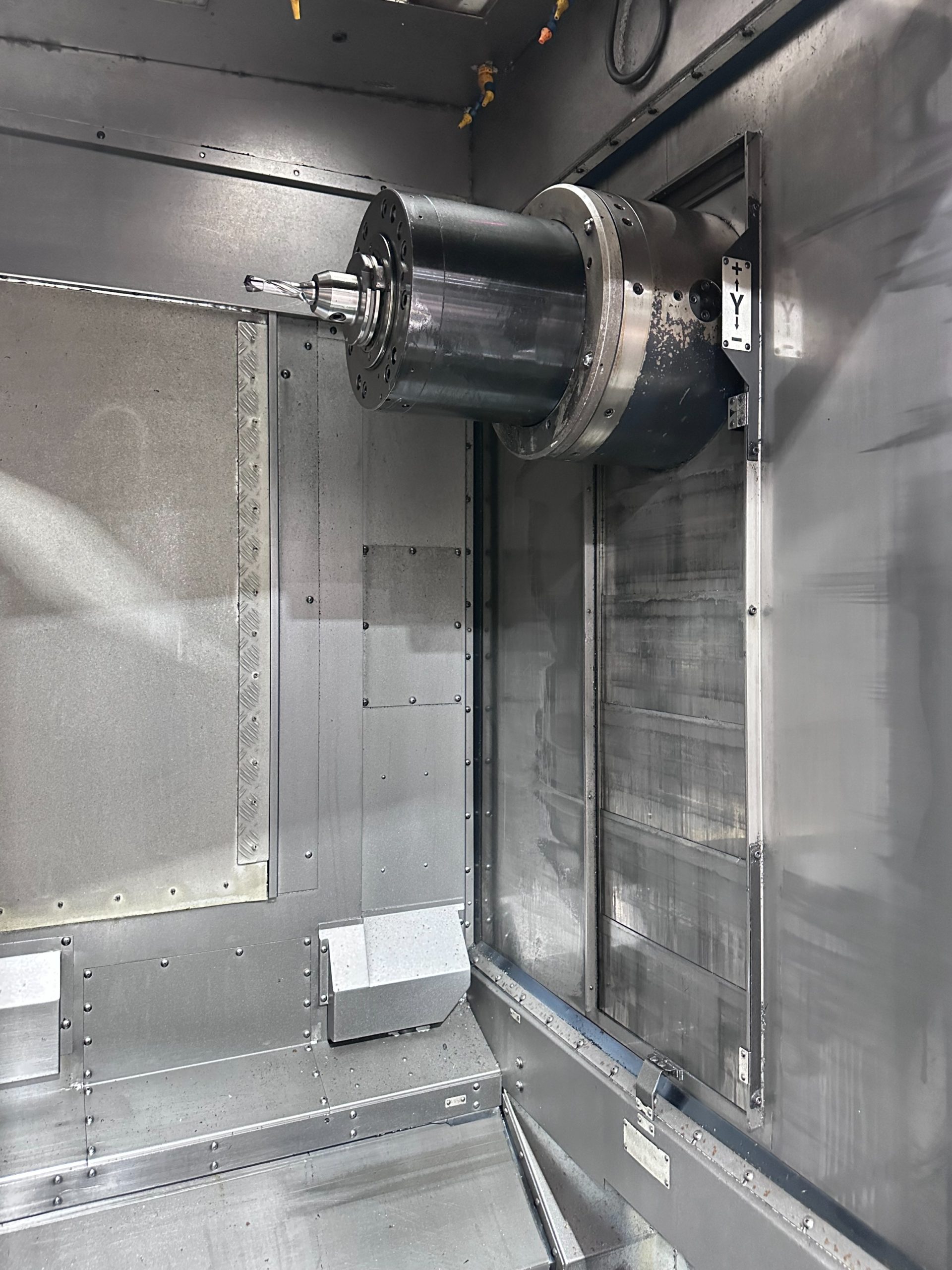

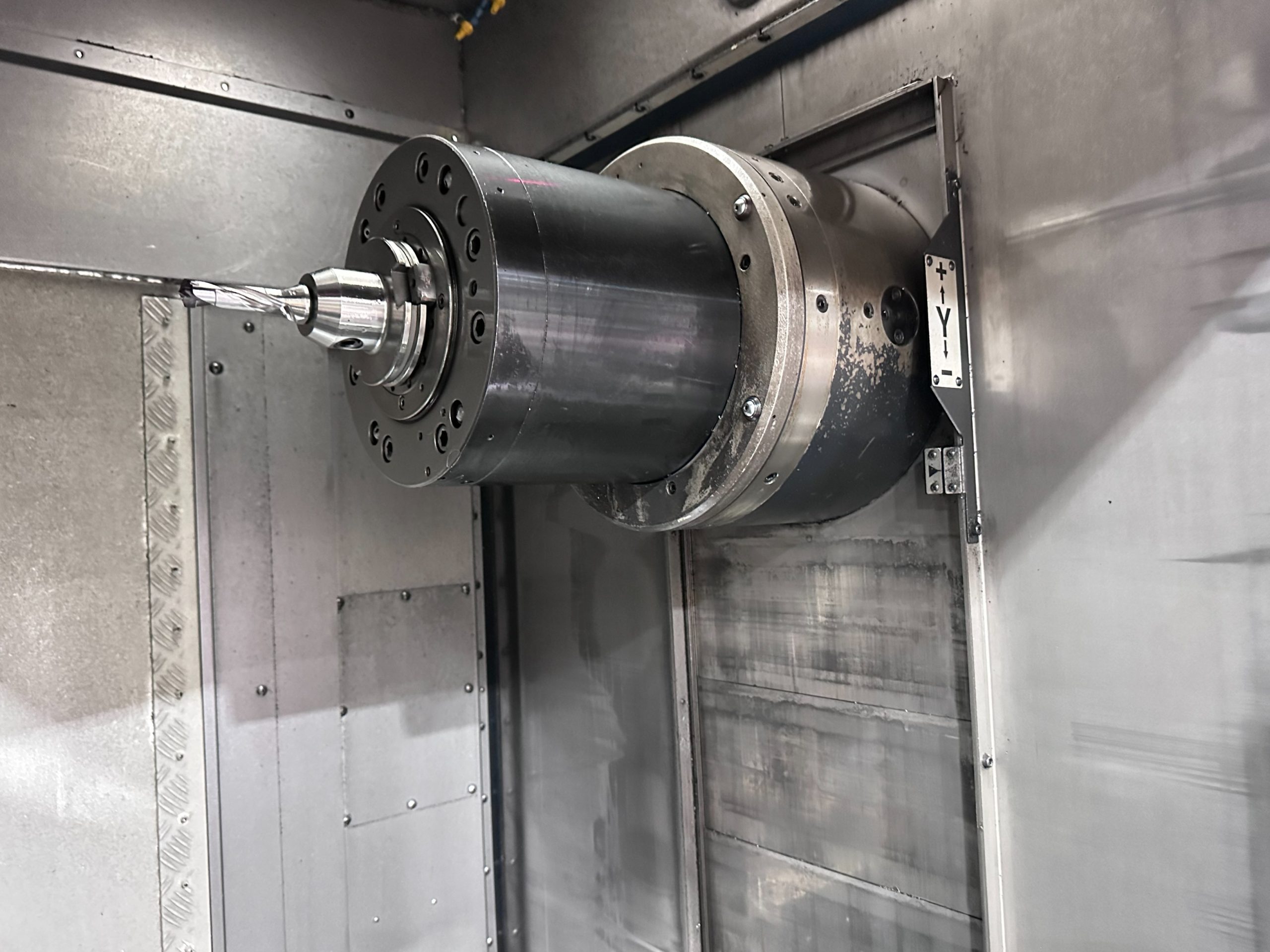

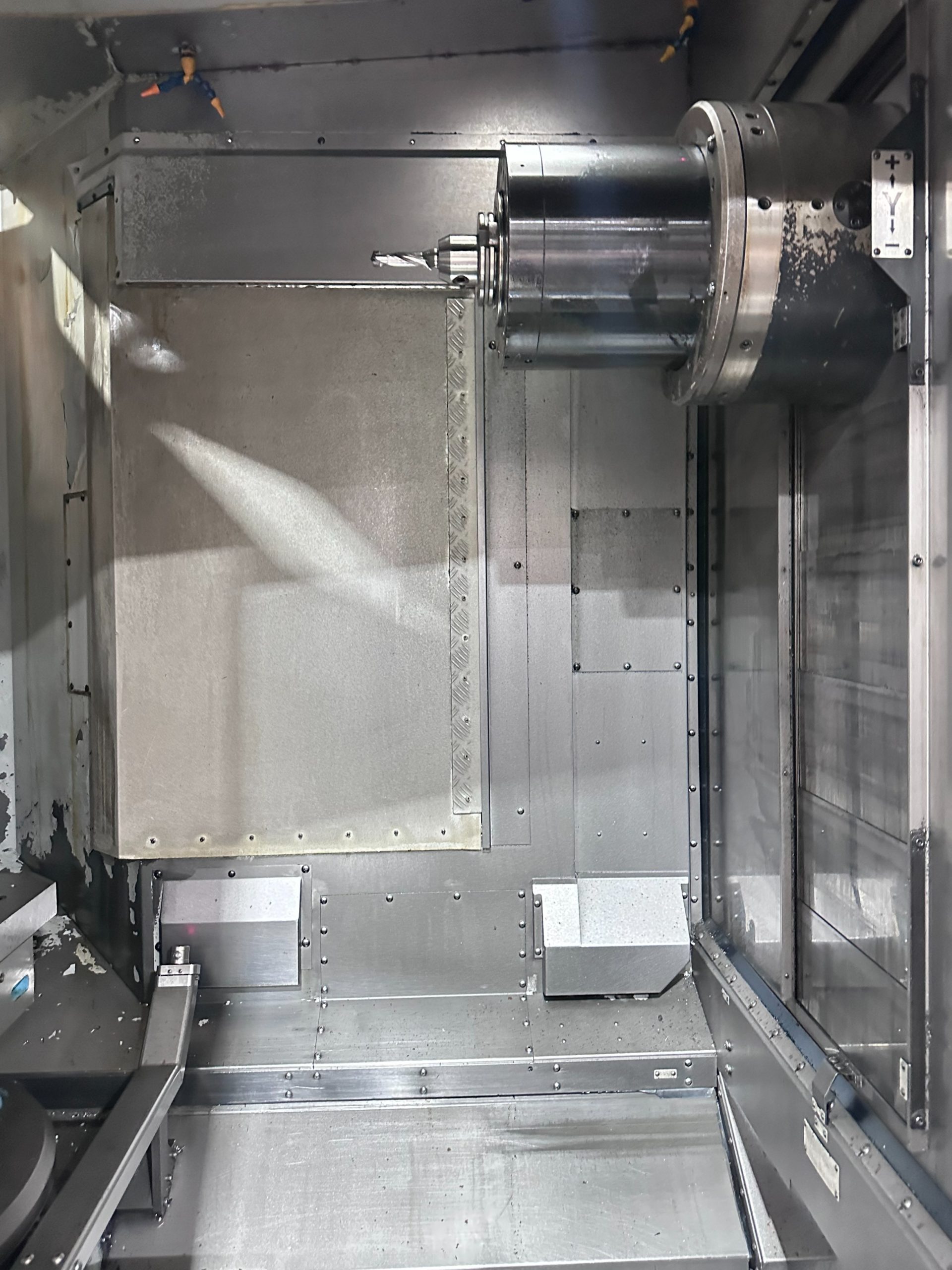

SPINDLE

• Spindle Motor Power: 37 kW (50 HP)

• Maximum Torque: 512 Nm

• Maximum Spindle Speed: 10,000 RPM

• Spindle Taper: BT (Taper to be confirmed)

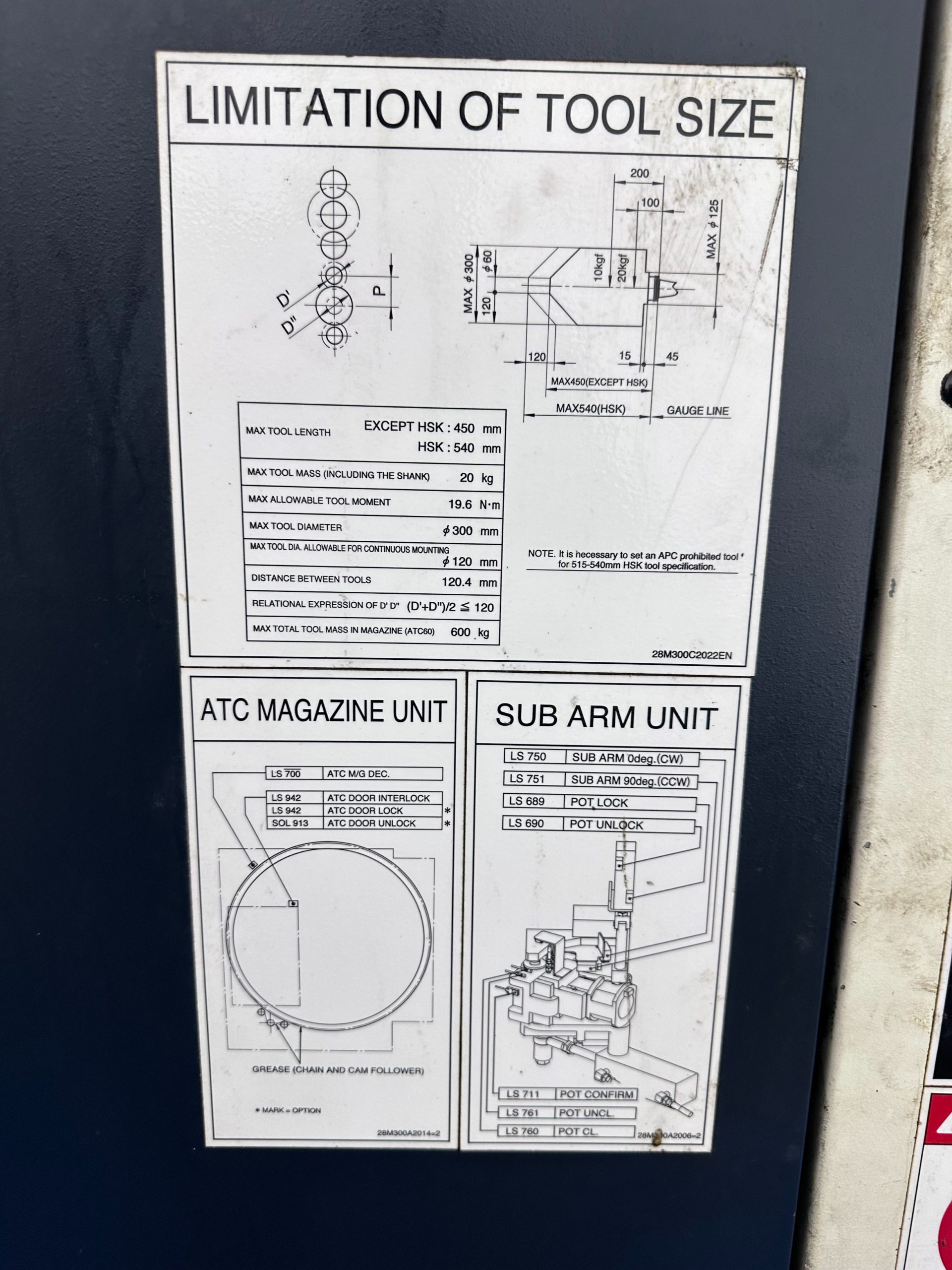

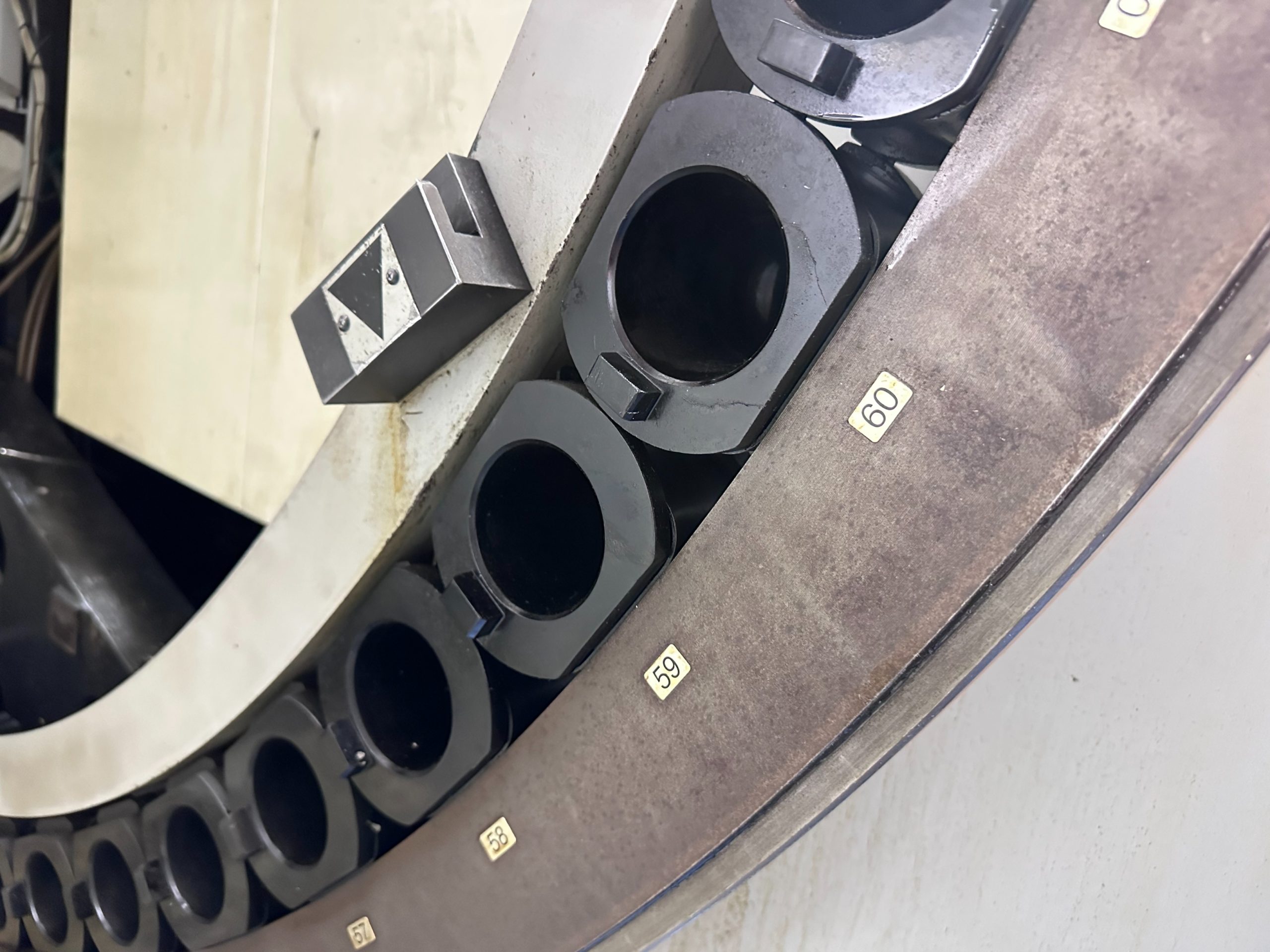

TOOL CHANGER

• Automatic Tool Changer Capacity: 60 Tools

• Tool-to-Tool Change Time: 1.7 seconds

• Maximum Tool Length: 300 mm

EQUIPPED WITH

✓ Through-Spindle High-Pressure Coolant System

✓ Optional Additional Coolant Pumps

✓ Tool Measuring Probes

✓ Mayfran Swarf / Chip Conveyor

✓ Transformer

✓ Air Dryer

DIMENSIONS & WEIGHT

• Machine Weight: Approx. 18,000 kg

APPLICATIONS

• High-precision CNC milling

• Automotive and aerospace components

• Mold and die manufacturing

• Production machining of medium-to-large components
