2001 Komo Mach 1 VR510 CNC Router
a 5×10 Komo with Drill Block in nice shape

Category: CNC Router (3-axis)
Manufacturer: Komo
Model: Mach 1 VR 510
Year of Manufacture: 2001
Condition: Good
Electric: 460 Voltage 60 Cycle 3 Phase

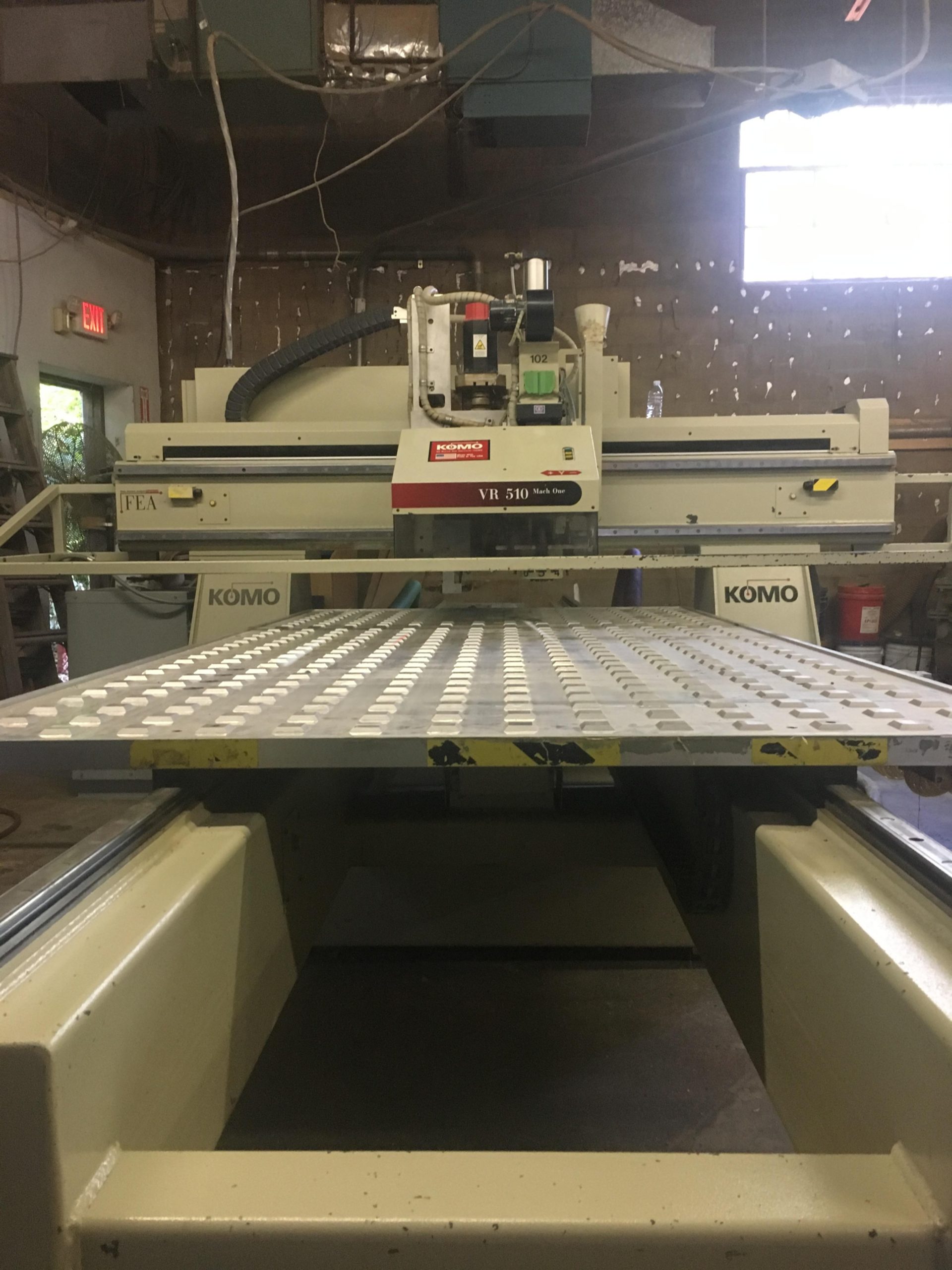

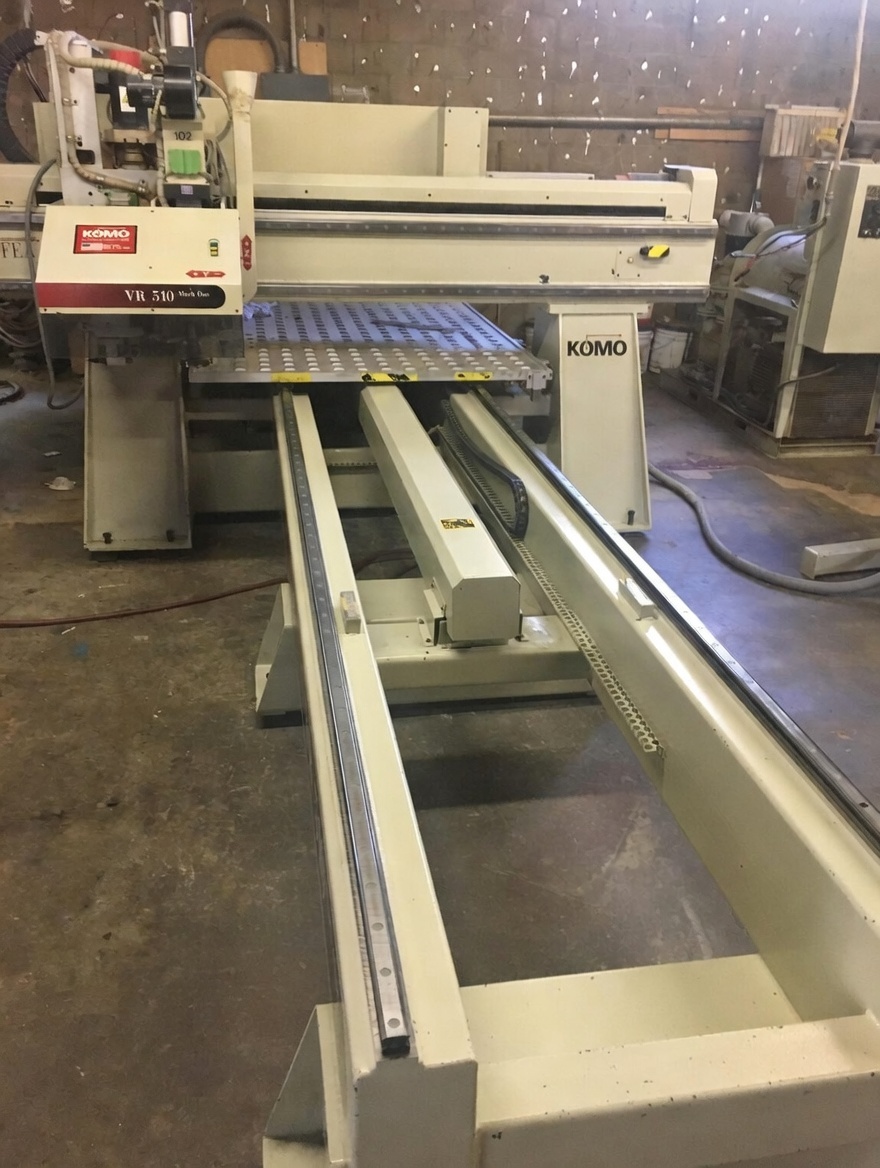

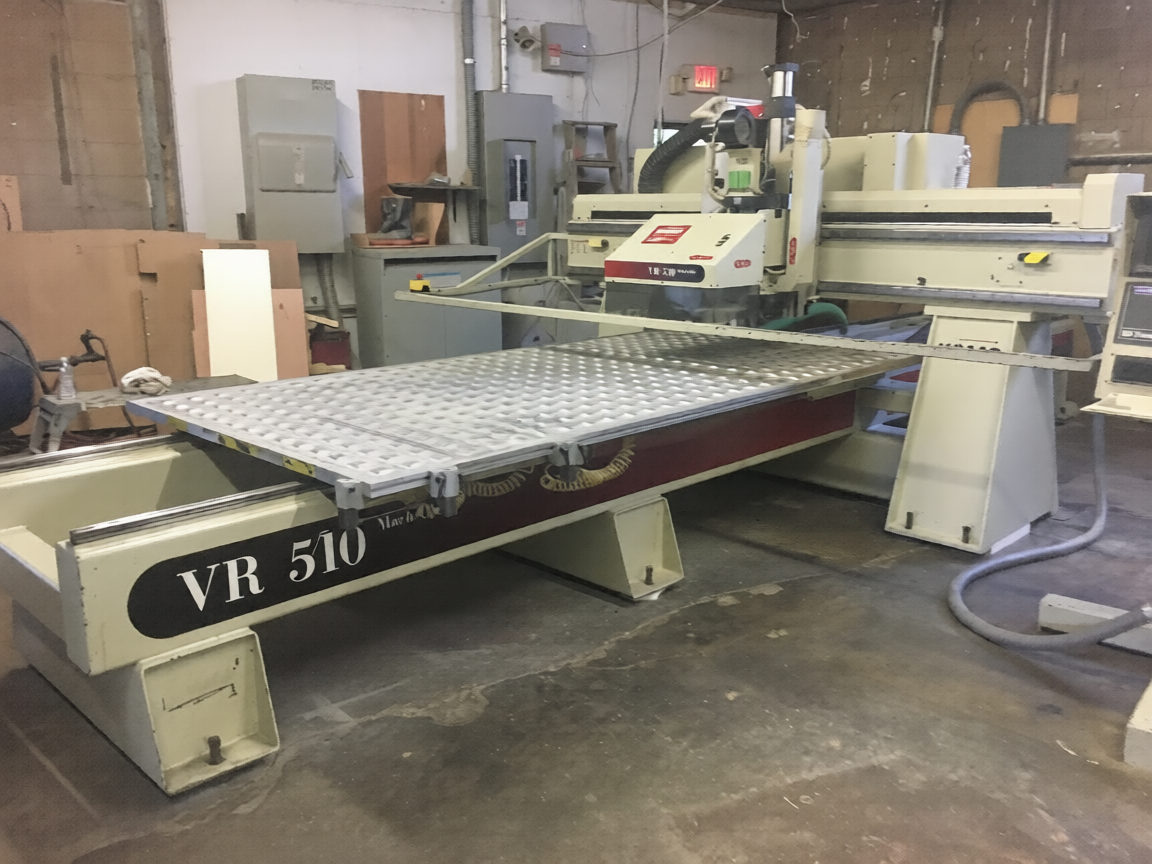

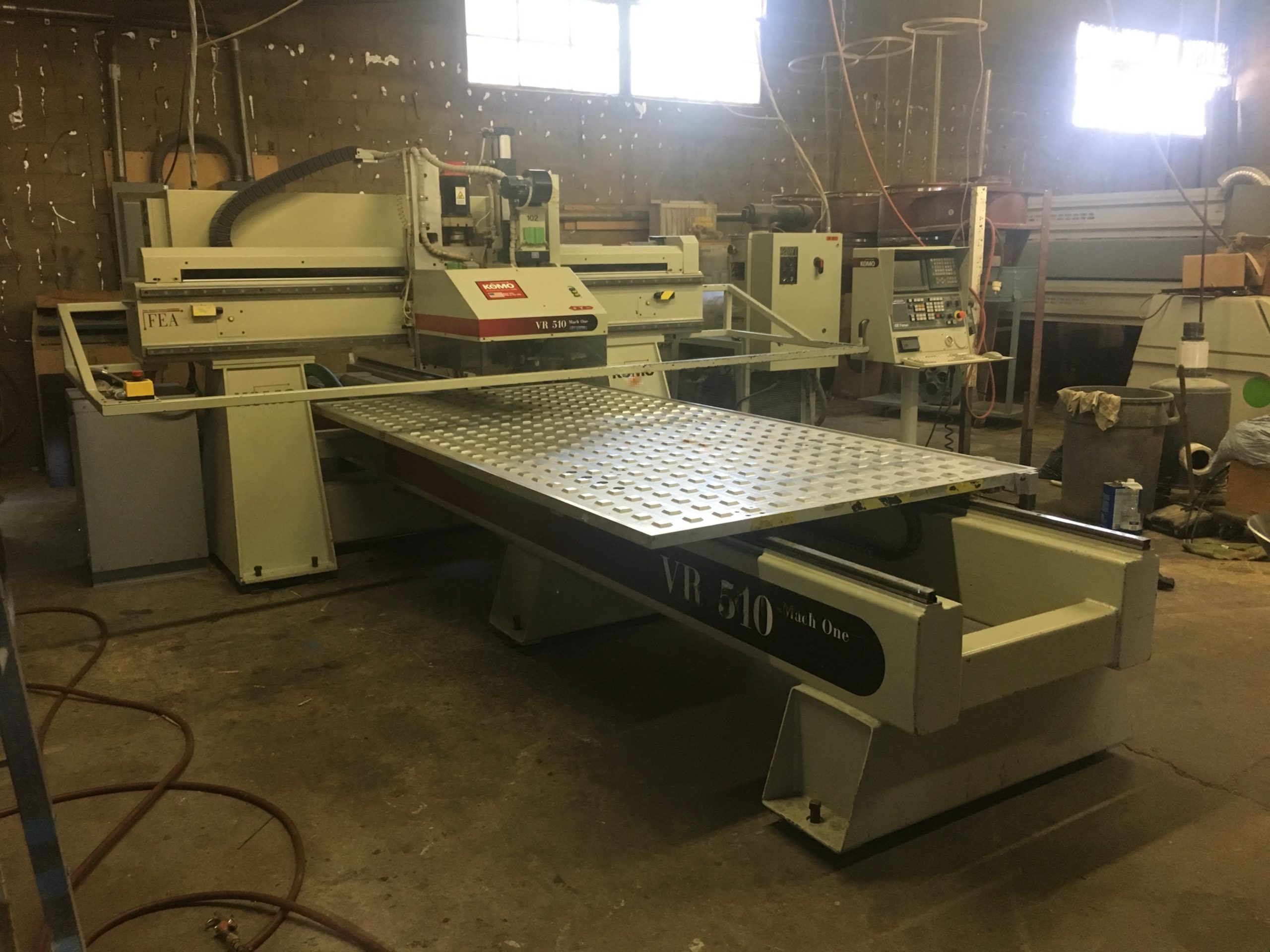

Komo Mach 1 VR 510 5×10 CNC Router

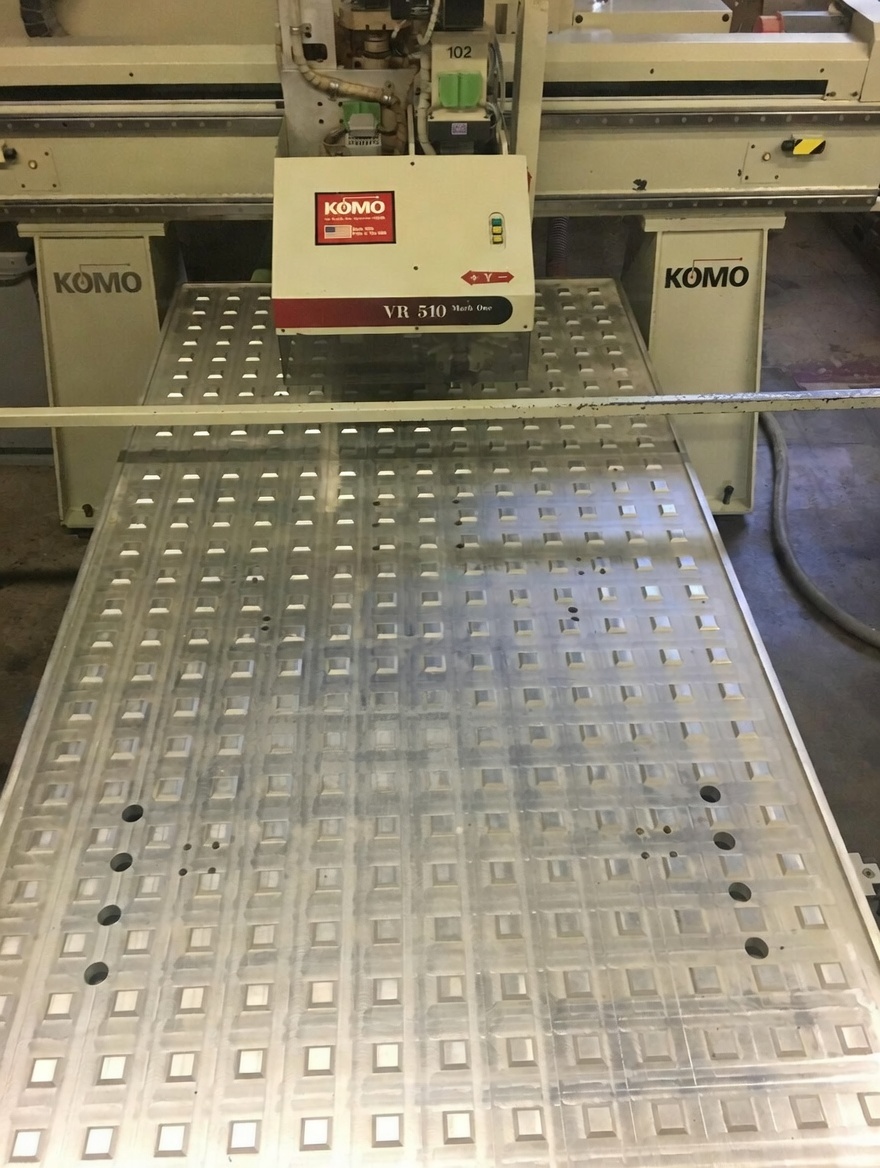

60″ x 120″ Moving table, Heavy Duty fixed bridge machine, front-to-back configuration, 1 1/2″” thick solid cast aluminum table machined with a single vacuum zone, (3) pop-up pins for material location.

(1) 12 HP “ISO30″ Type ATC spindle, variable spindle speed from 6,000 – 18,000 RPM, 10-station side mounted tool carousel.

All axes ride on THK linear guide ways, closed-loop AC Servo motors drive, precision preloaded ball screws for positioning tolerances of 0.001” & 2,500 IPM rapid traverse rates. – Automatic lubrication system to service all ball screw & way bearings.

GE/FANUC “210I” Control with: 10.4″ High resolution color CRT, (3) axes simultaneous control, linear & circular interpolation, network compatible, RS-232 port, and hand held controller.
