SPECIFICATIONS

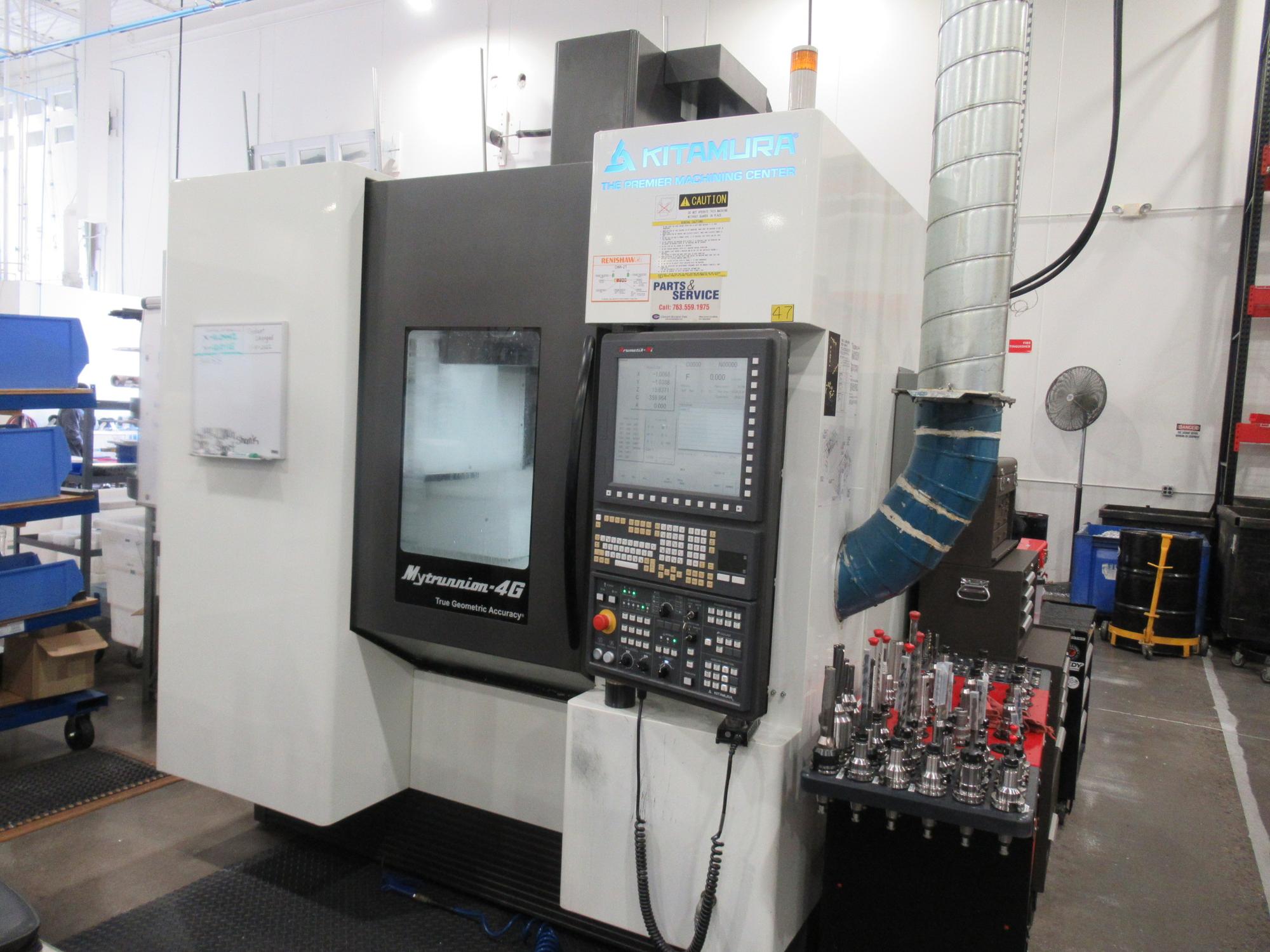

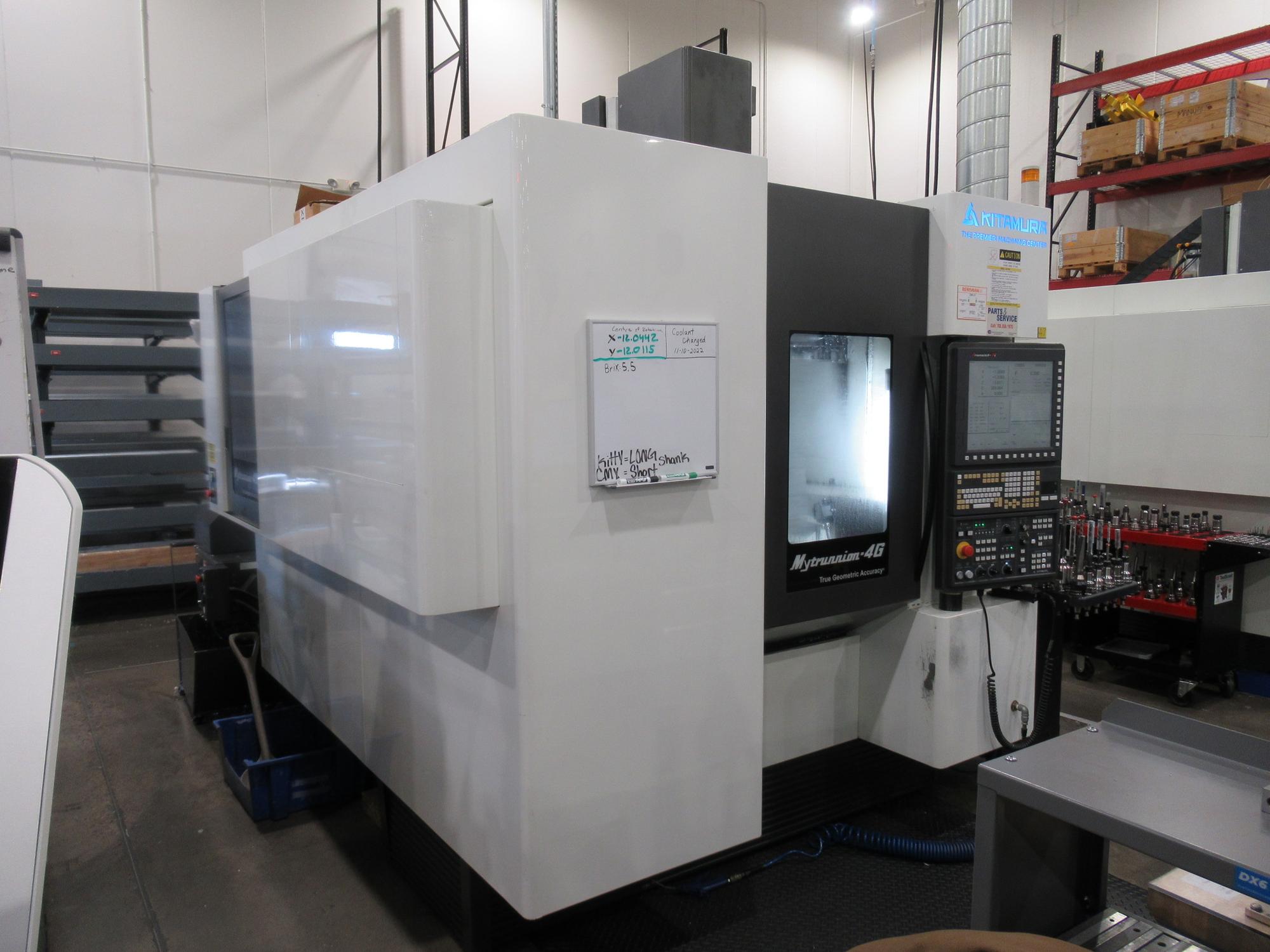

• Manufacturer: Kitamura

• Model: Mytrunnion 4G

• Year: 2016

• Type: 5-Axis Vertical Machining Center

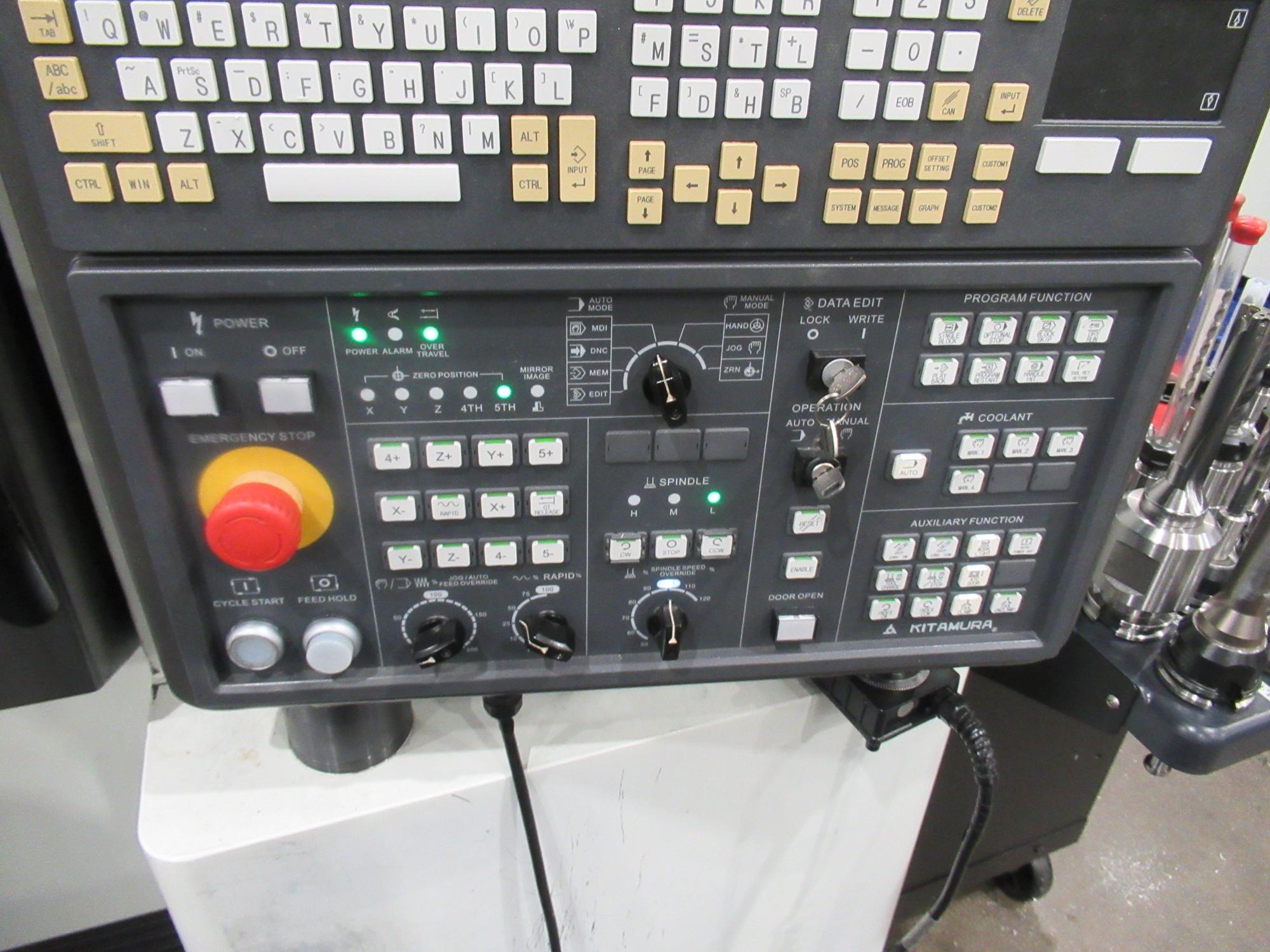

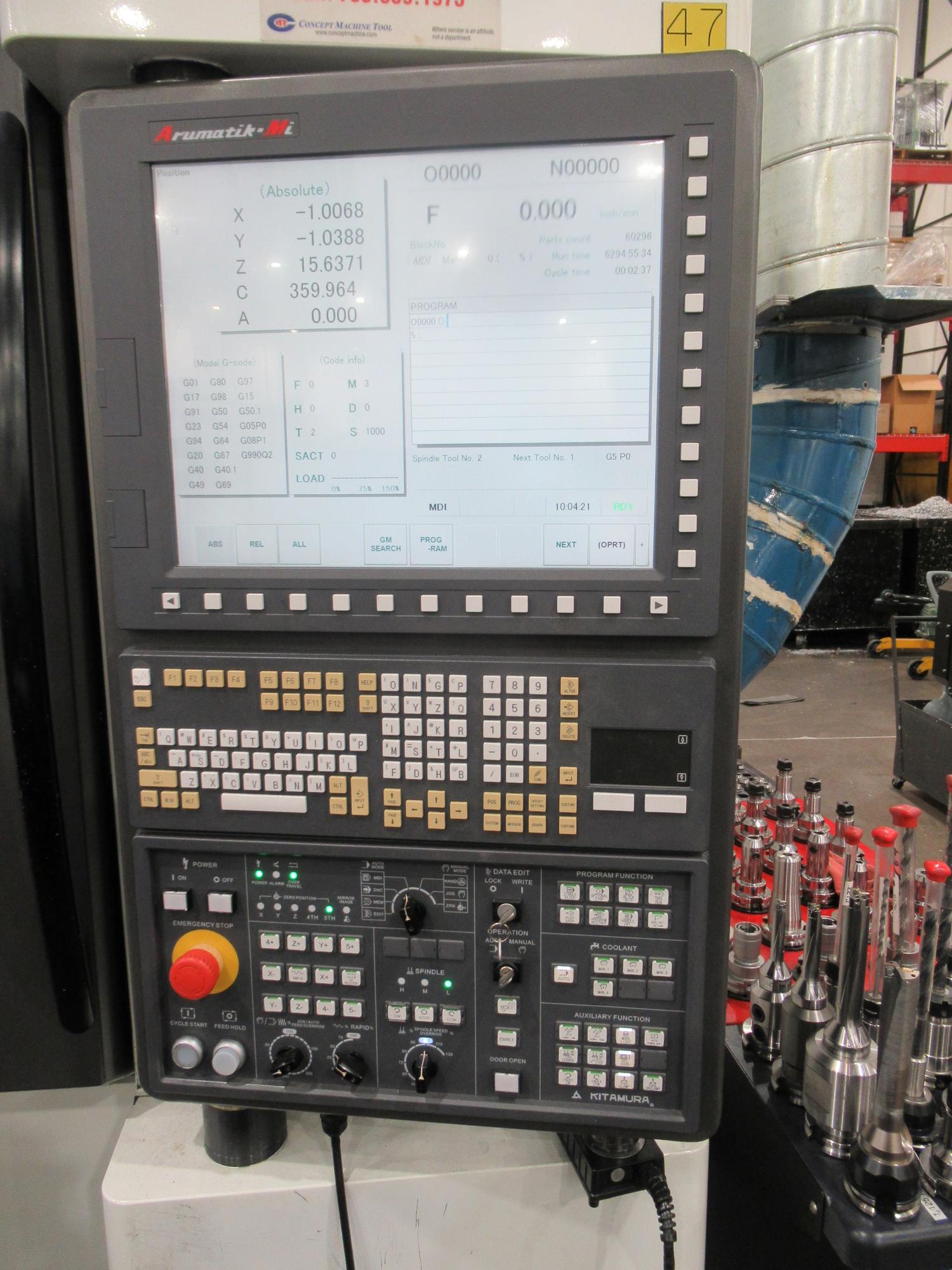

• Control: Arumatik Mi CNC Control

AXIS TRAVEL

• X-Axis Travel: 24.02″

• Y-Axis Travel: 24.02″

• Z-Axis Travel: 19.68″

• A-Axis Travel: 150°

• C-Axis Travel: 360°

TABLE

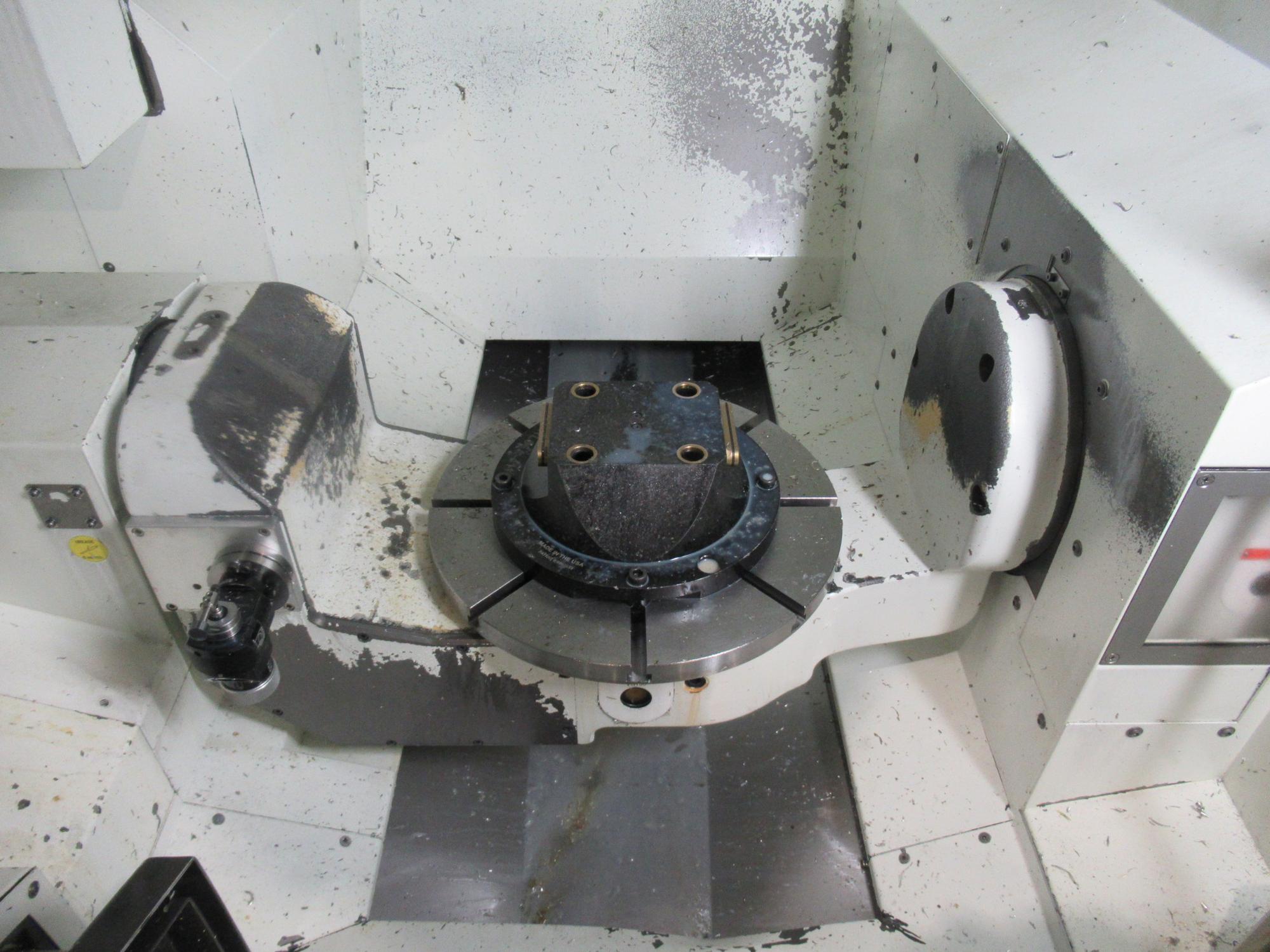

• Table Type: 5-Axis Trunnion

• Table Size: 400 mm

• Maximum Table Load: 441 lbs

• Table Indexing Resolution: 0.001°

SPINDLE

• Spindle Taper: CT40

• Spindle Speed Range: 40 – 15,000 RPM

• Spindle Drive: AC 15 kW

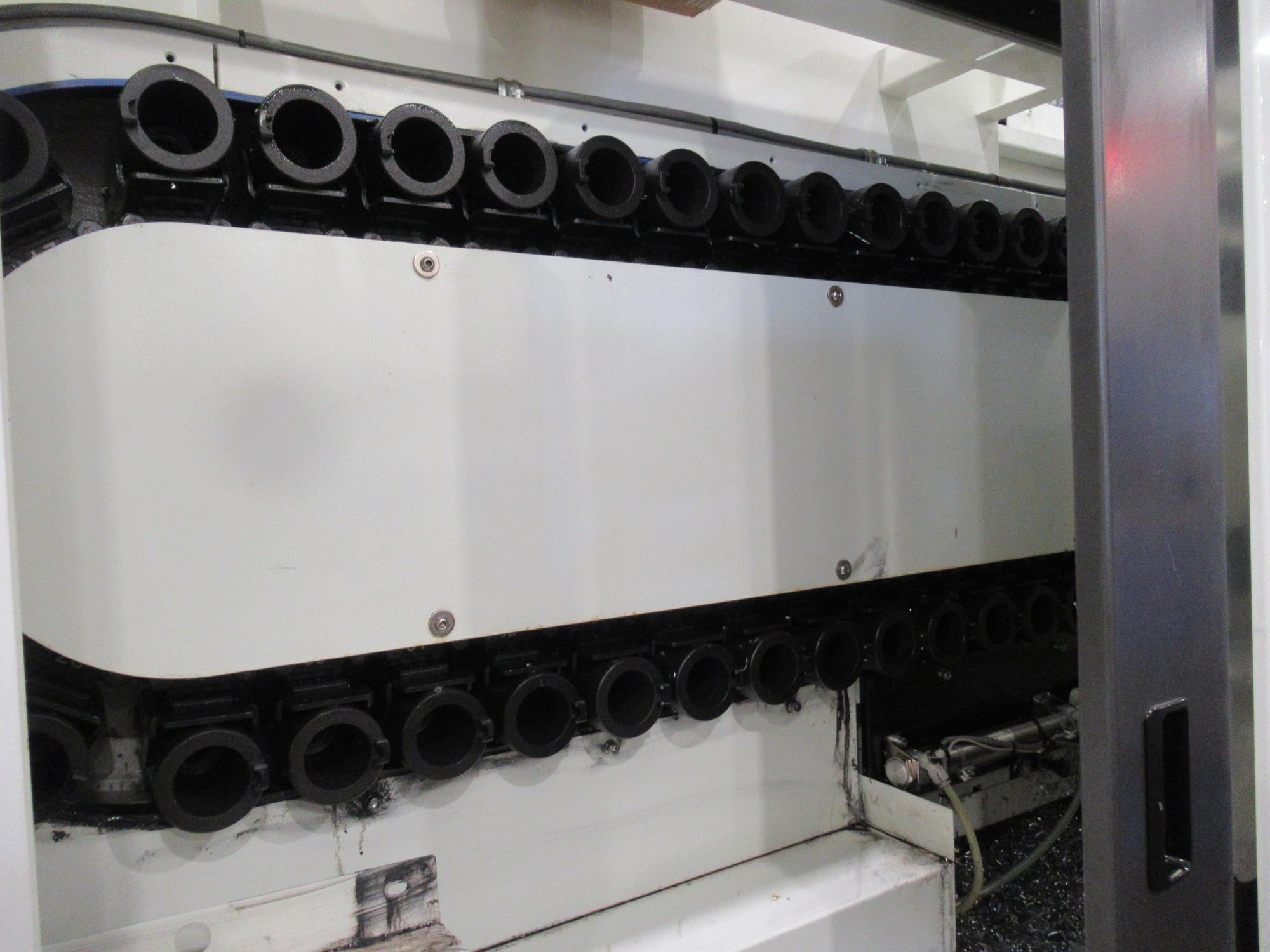

TOOLING SYSTEM

• Tool Changer Capacity: 60 Tools

• Tool Change Time: 2.2 Seconds

FEED RATES

• Rapid Traverse X & Y: 1968 IPM

• Rapid Traverse Z: 984 IPM

• Rapid Traverse A & C: 18,000 Deg/Min

DISTANCE

• Distance from Table Surface to Spindle Nose (A=0°): 5.91″ – 25.6″

ELECTRICAL

• Power Requirement: 220V / 3 Phase

EQUIPMENT INCLUDED

✓ Arumatik Mi CNC Control

✓ 5-Axis Trunnion Table

✓ Through Spindle Coolant

✓ Flood Coolant System

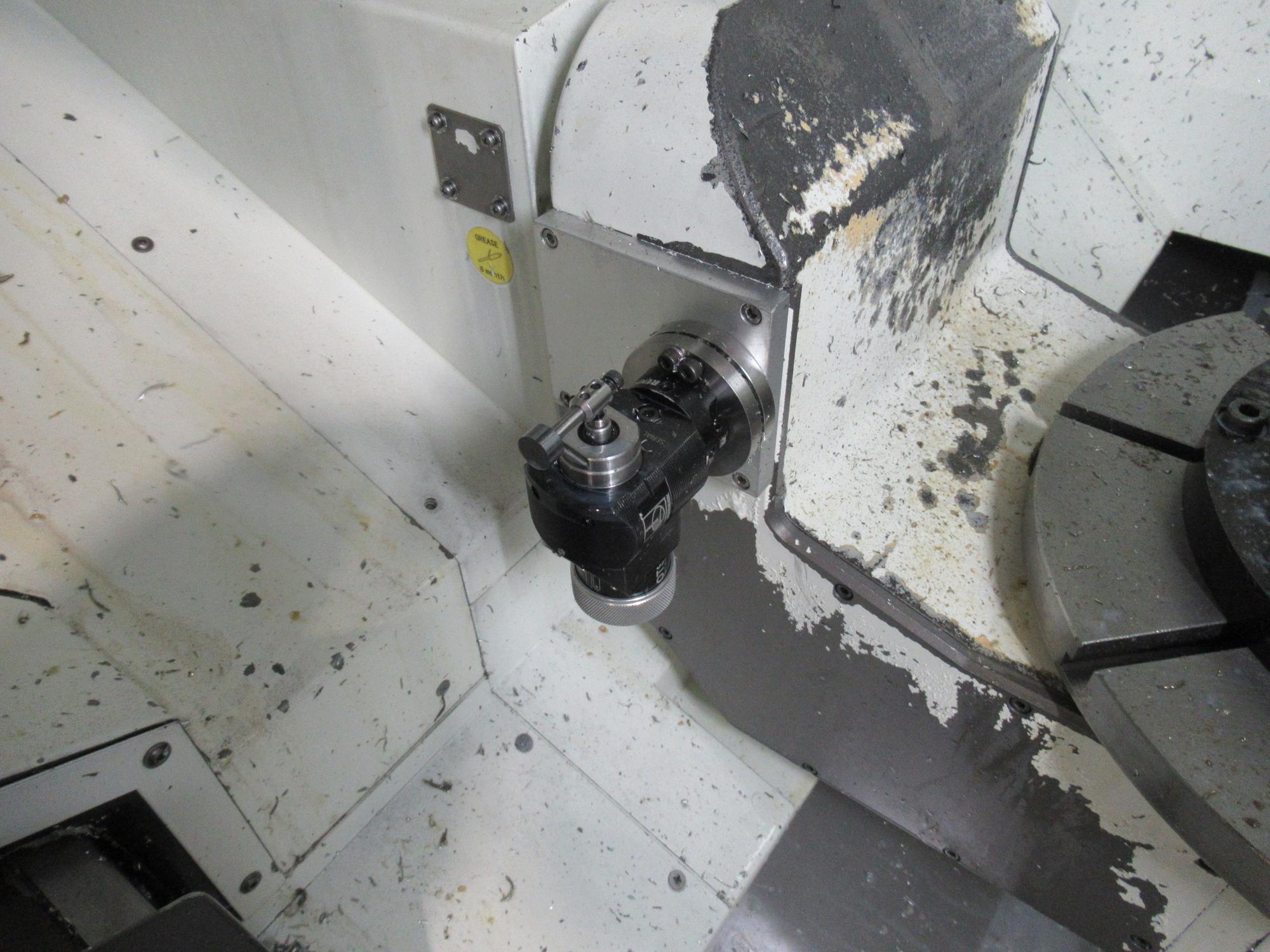

✓ Renishaw Tool and Parts Probing

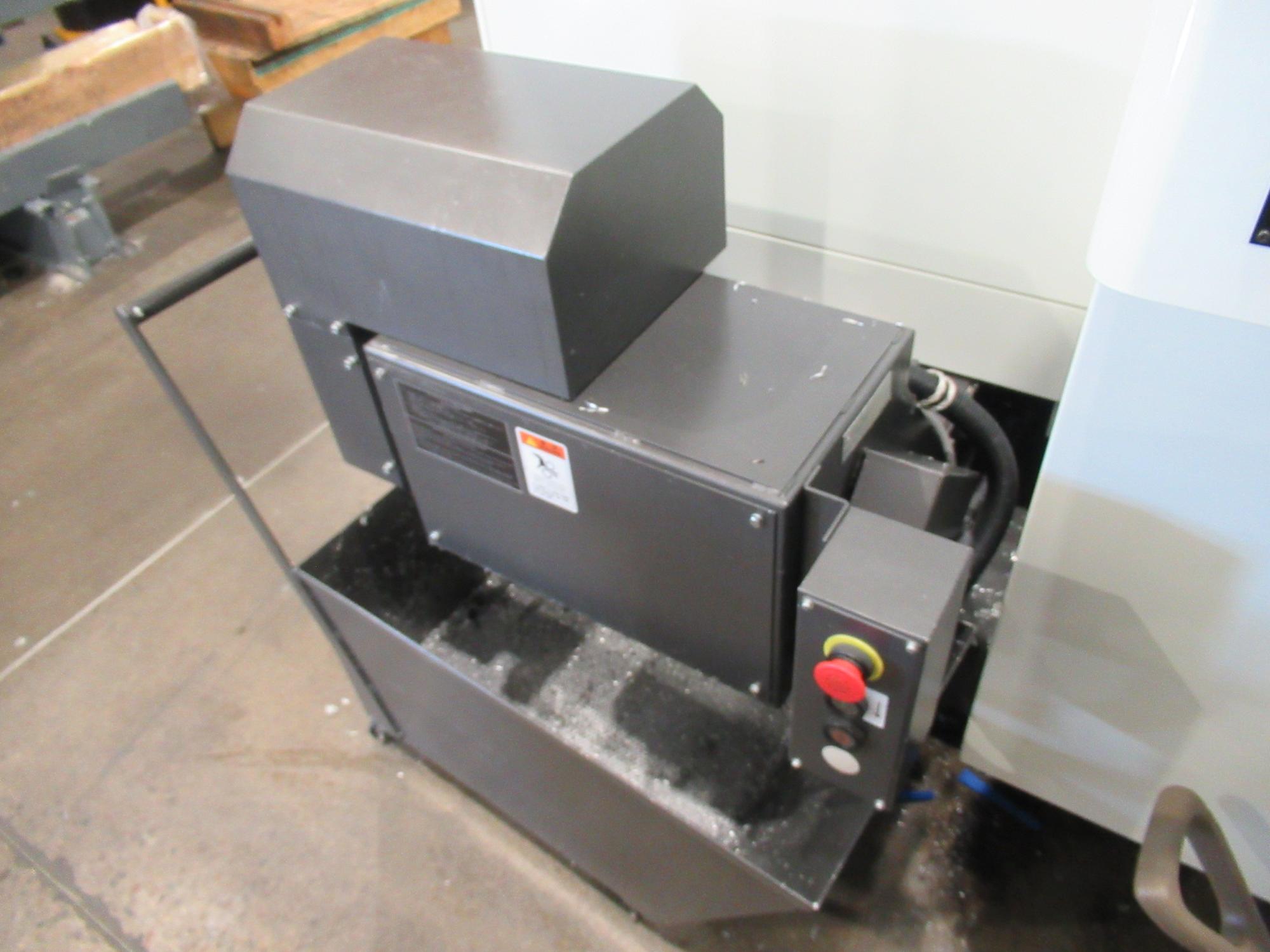

✓ Chip Conveyor

✓ Remote Jog Handle

✓ CD Manuals and Keys

DIMENSIONS & WEIGHT

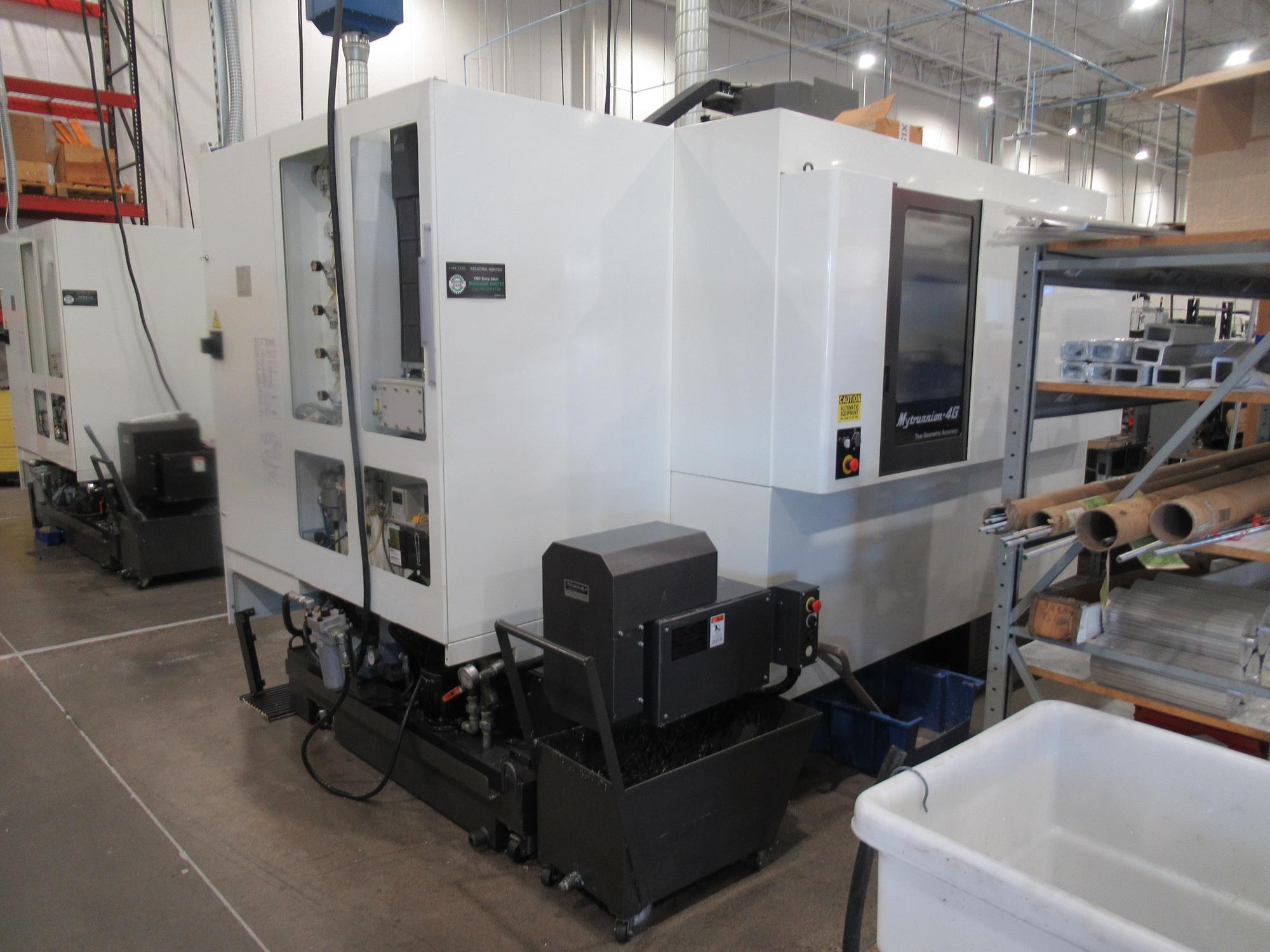

• Machine Dimensions: 98″ L x 148″ W x 108″ H

• Approximate Weight: 19,842 lbs

MACHINE DETAILS

• Capable of maintaining tolerances around 0.003″ – 0.004″ when using A & C axes

• Designed for high-precision multi-axis machining applications
