Specifications
Type: KEL-VARIA RS 175/100
Producer: Kellenberger
Made in: 2004
Characteristic:

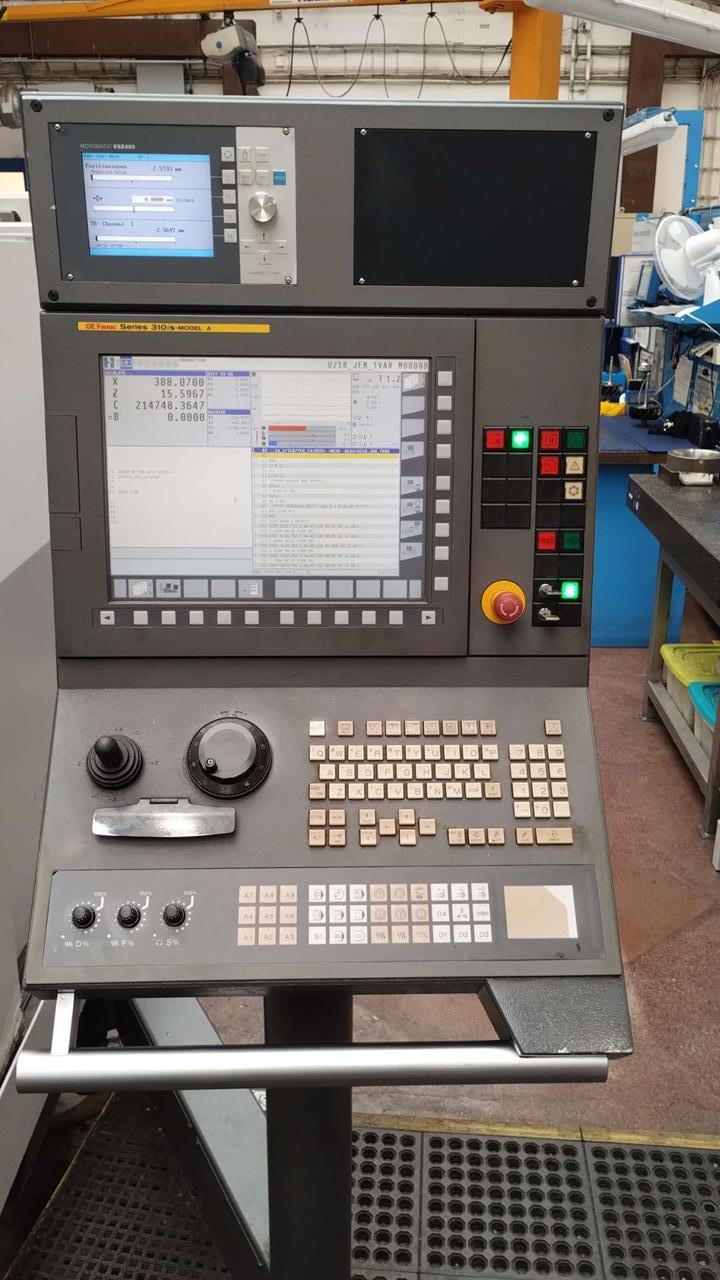

Control system: FANUC Series 310iS-MODEL A
Maximum grinding diameter: 350 mm
Max. diameter of workpiece: 349 mm
Maximum lenght of the workpiece: 1000 mm
Max. workpiece weight: 150 kg
Max. Speed: 2150 1/min
Center height: 175 mm
Weight: 6000 kg
Equipment:
Technical documentation
Spindle taper MK5
Tailstock taper MK4
Paper filtration
Gauges Movomatic DP200. DM200
30 pcs of wheel flanges
Oil mist extraction
Semi-automatic wheel balancing
KEL-TOUCH
B-axis
External grinding 2x disc (max diameter 500 mm)
Automatic indexing of the grinding turret 1°
Spindle speed 1-800 min-1
Micro-adjustment of the tailstock with a range of ± 0.150 mm
Coolant filtration unit (paper filtration)
