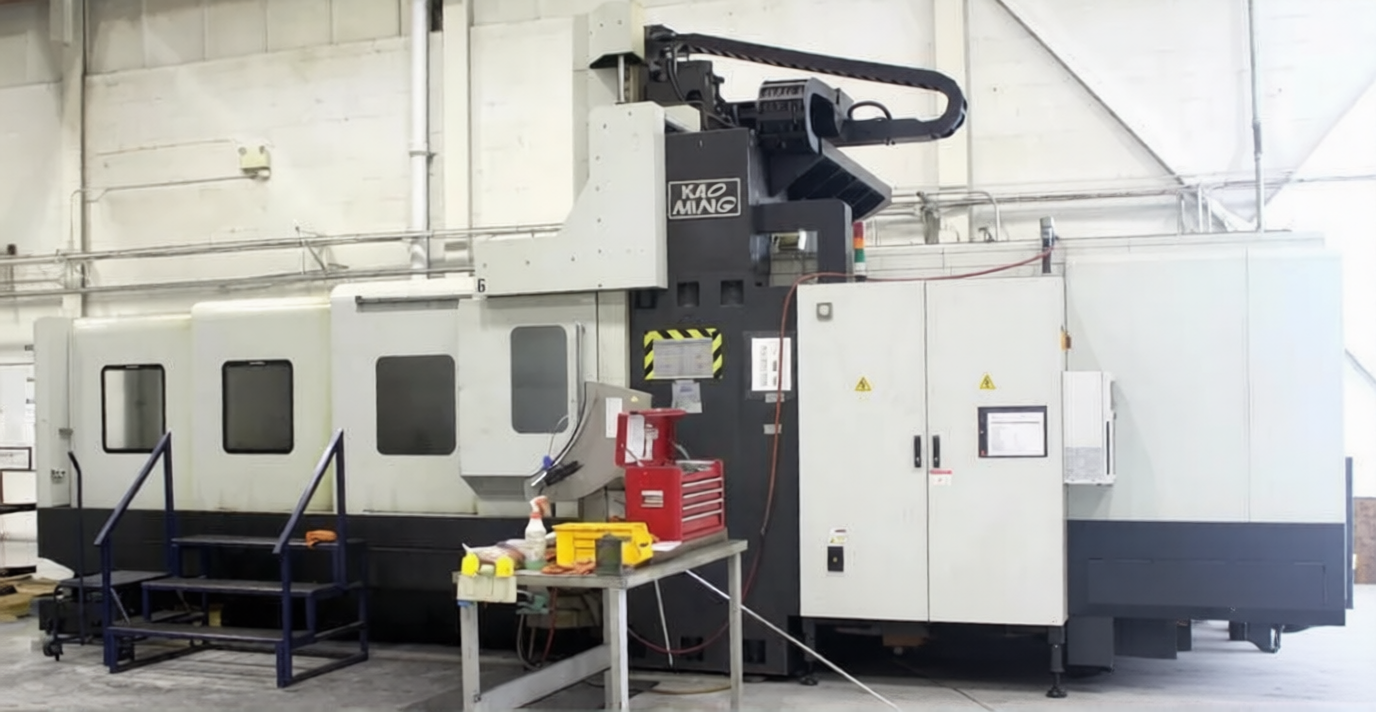

GENERAL INFORMATION

• Manufacturer: Kao Ming

• Model: KMC 318HIS

• Year: 2013

• Type: Gantry / Double Column CNC Machining Center

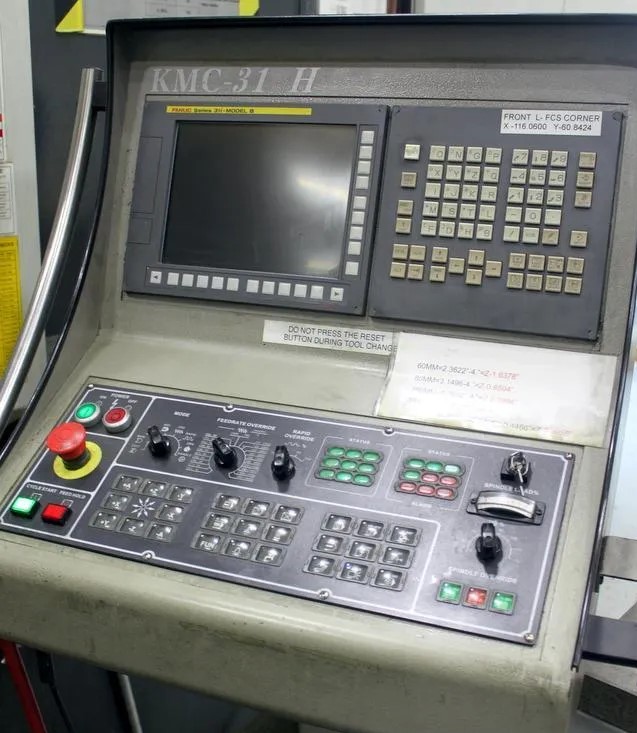

• Control: Fanuc 31iB

• Condition: Used

SPECIFICATIONS

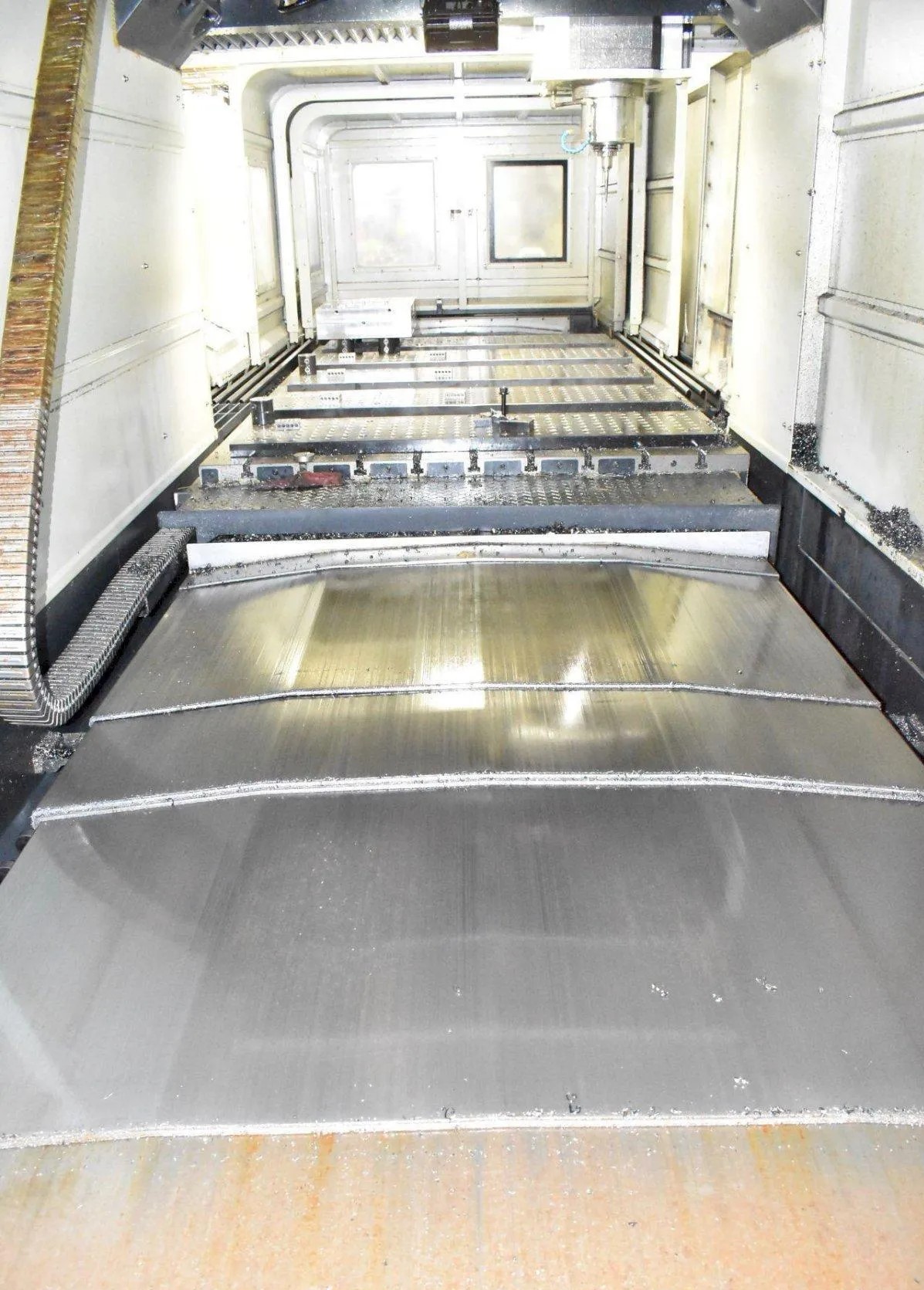

• Table Size: 118″ × 64.96″

• Travels (X / Y / Z): 127″ / 66.92″ / 33.46″

• Max Table Load: 22,000 lbs

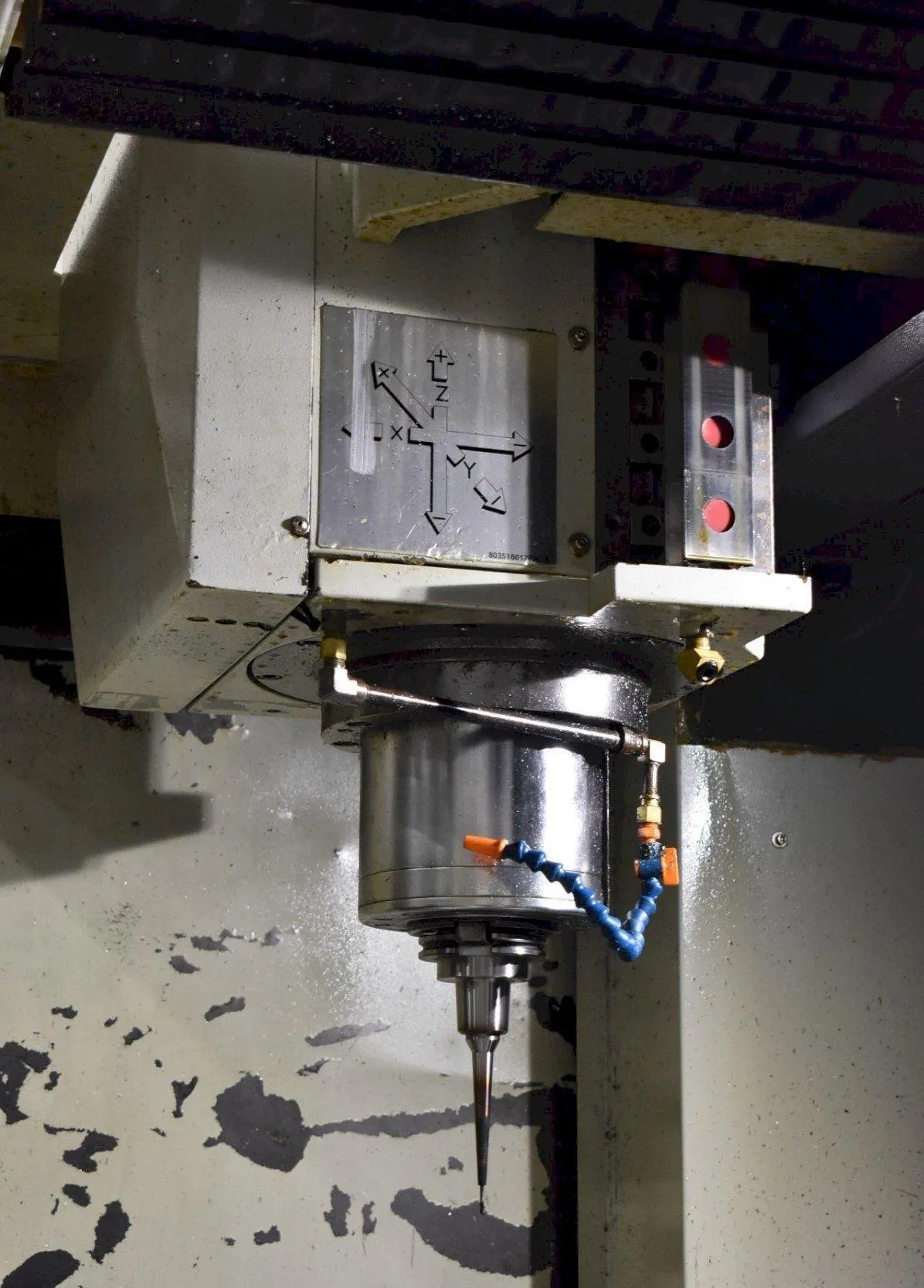

• Spindle Speed: 10,000 RPM

• Spindle Power: 33.52 HP

• Spindle Taper: CAT-50

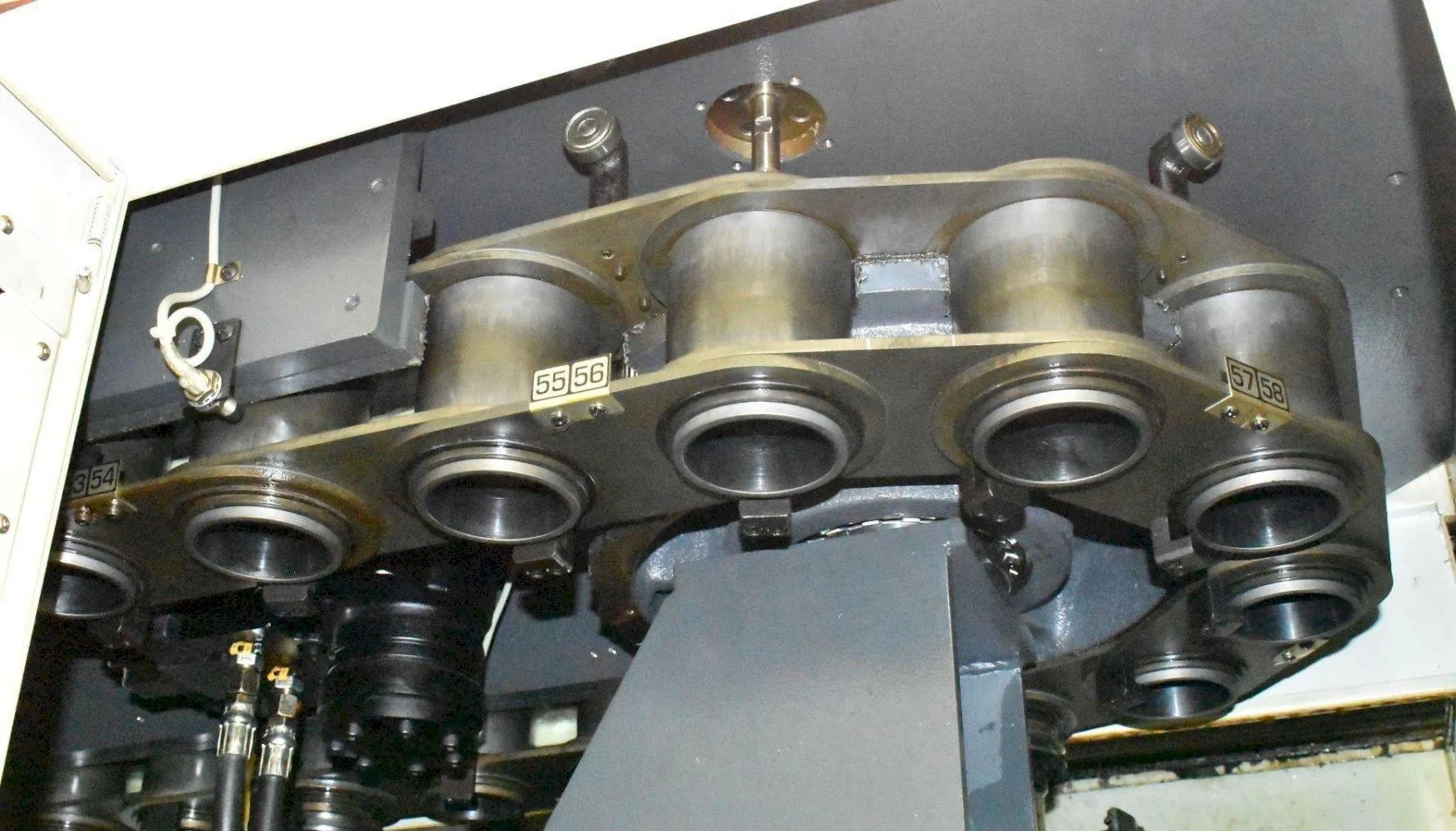

• Tool Changer Capacity: 60 ATC

• Machine Dimensions (L x W x H): 320″ × 191″ × 174″

• Machine Weight: 50,600 lbs

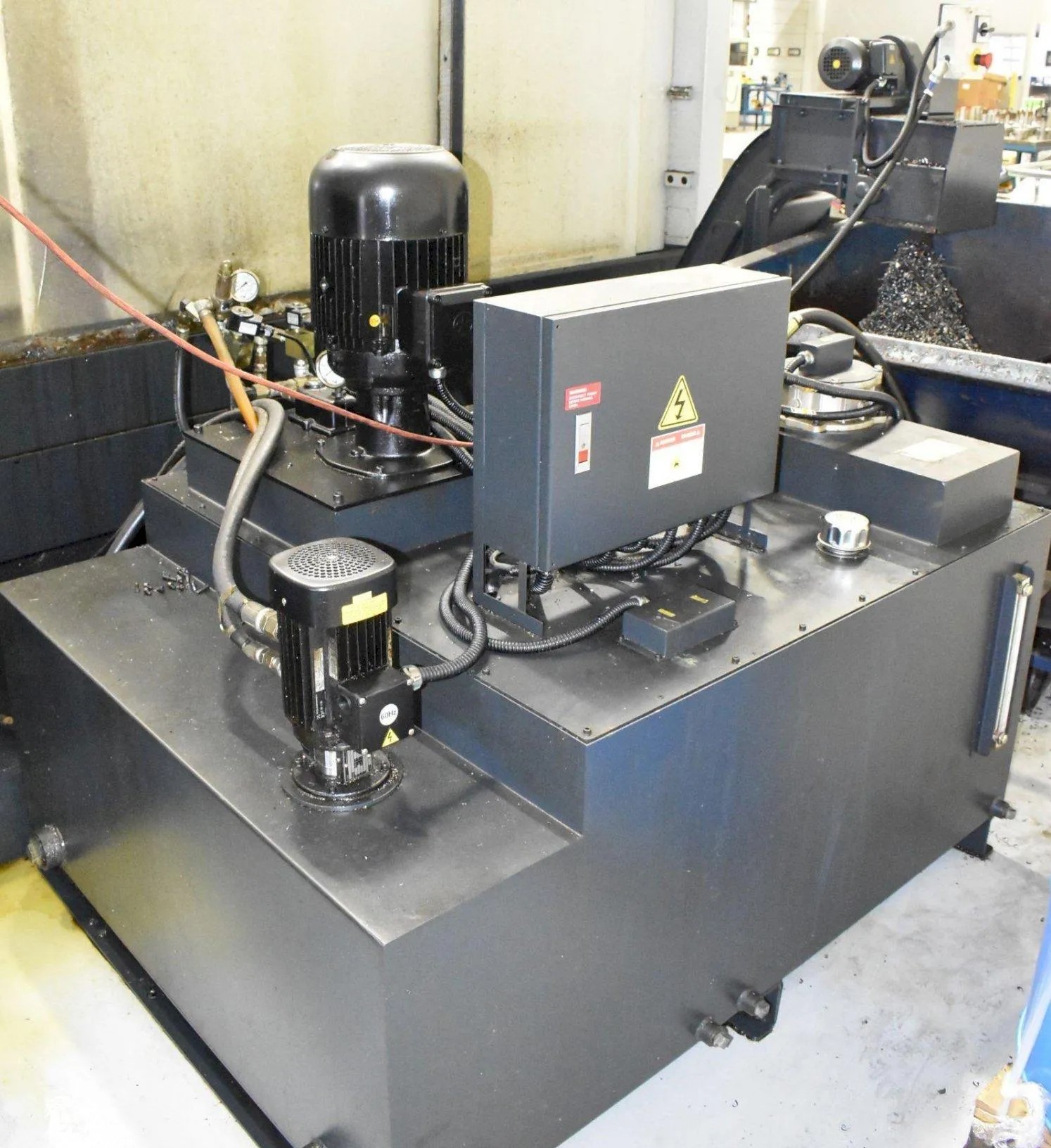

COOLANT & SYSTEMS

• Through-Spindle Coolant: Yes

• Spindle Chiller: Included

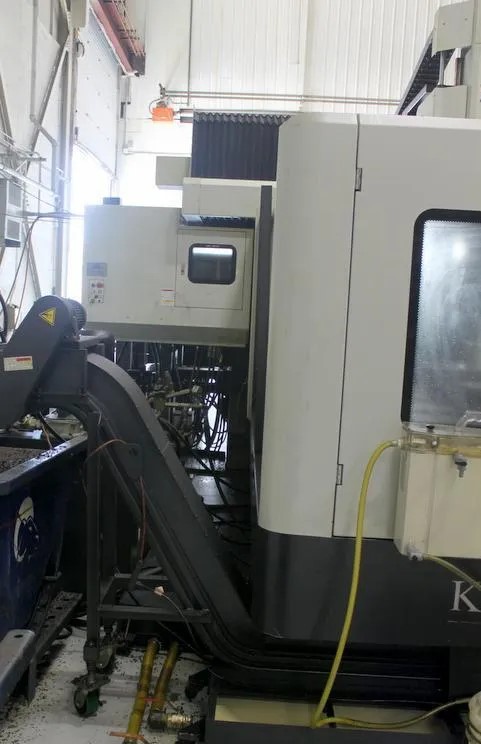

• Chip Conveyor: Included

• Linear Scales: Equipped

FEATURES

✓ Heavy-duty gantry / double column construction

✓ Large work envelope for oversized components

✓ 60-tool automatic tool changer for complex operations

✓ CAT-50 spindle for high rigidity cutting

✓ Fanuc 31iB control for advanced machining capability

✓ Through-spindle coolant for improved cutting performance

✓ High load capacity up to 22,000 lbs

APPLICATIONS

• Large part machining

• Aerospace and heavy industry

• Tool and mold making

• Energy sector components

• Precision machining of oversized parts
