Description
GENERAL INFORMATION
• Manufacturer: Hyundai Wia
• Model: L2100SY
• Year: 2016
• Type: CNC Multi-Tasking Turning Center
• Condition: Used
SPECIFICATIONS
• Swing Over Bed: 24.8″
• Swing Over Carriage: 15.4″
• Max Turning Diameter: 13.2″
• Max Turning Length: 17.8″
• Main Spindle Bore: 3″
• Sub Spindle Bore: 1.8″
AXIS TRAVELS
• X-Axis: 8.3″
• Y-Axis: 8.3″
• Z-Axis: 22.8″
• C-Axis: 360°
SPINDLES
• Main Spindle Speed: Up to 4,500 RPM
• Sub Spindle Speed: Up to 6,000 RPM
• Main Spindle Motor: 20 HP
• Sub Spindle Motor: 10 HP
TOOLING

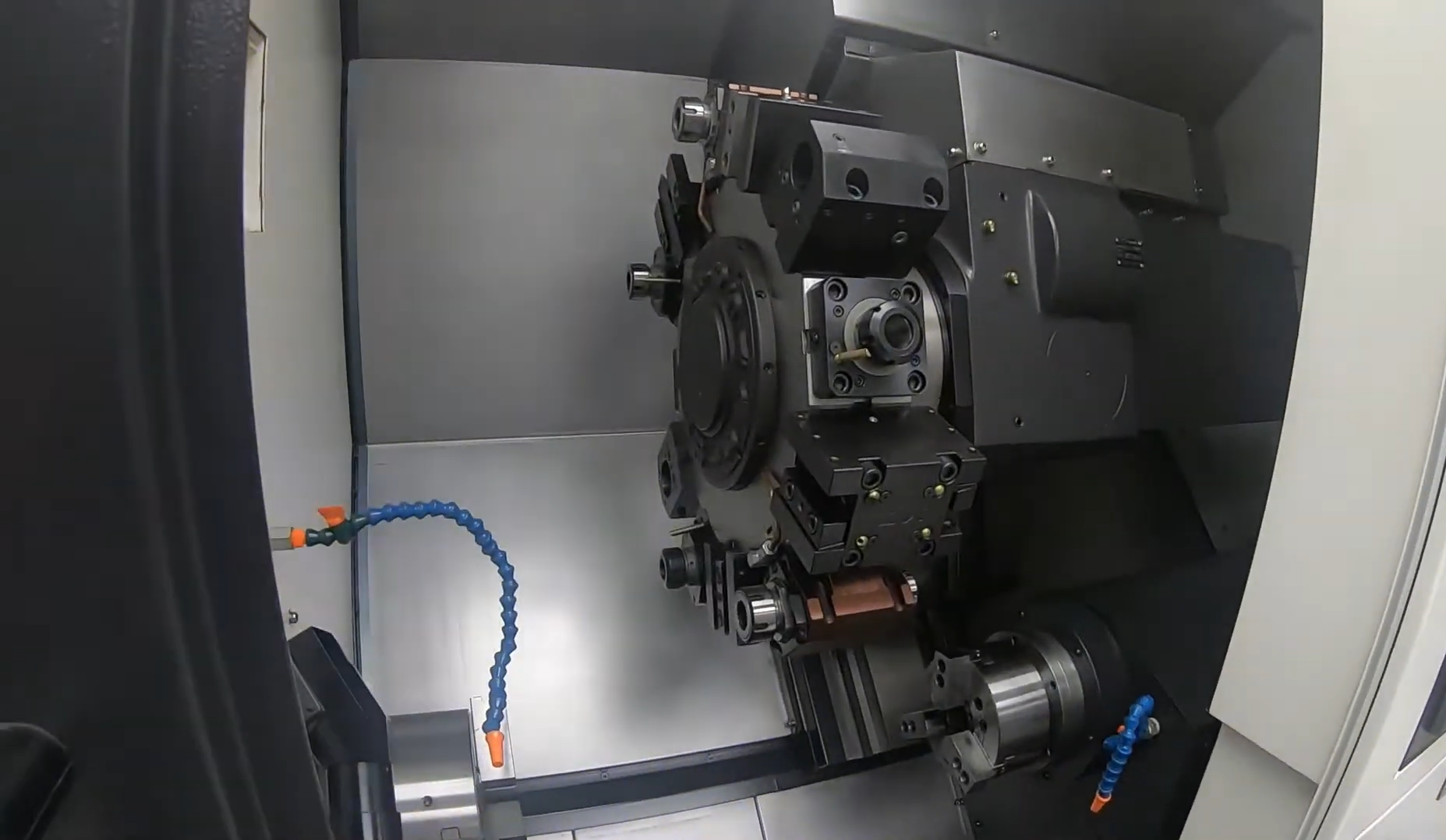

• Turret: 12 Stations
• Live Tooling: Yes
EQUIPPED WITH
• Fanuc i-Series CNC Control

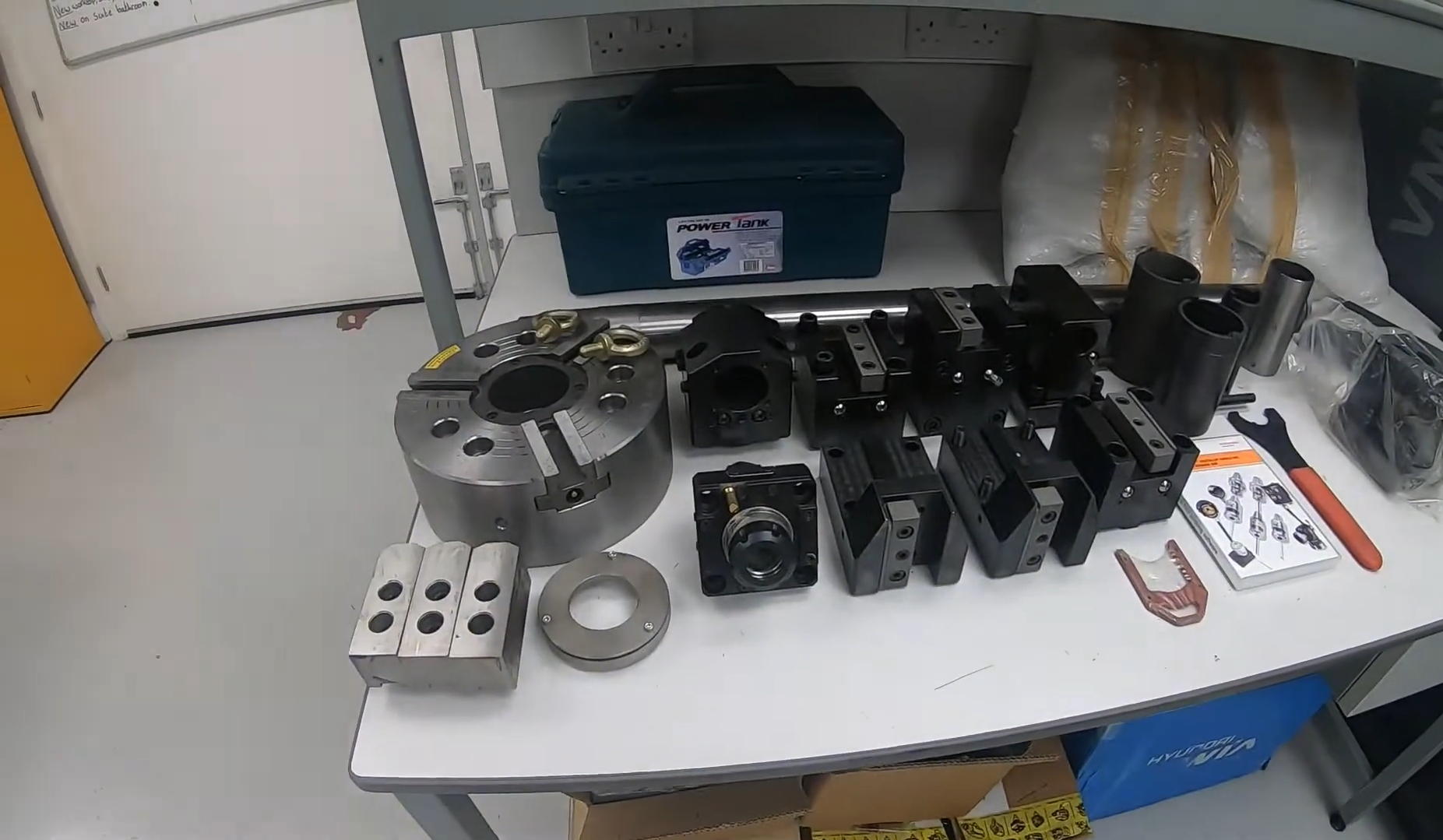

• Royal A2-6 4″ Collet Chuck (Main Spindle)
• Royal A2-5 4″ Collet Chuck (Sub Spindle)
• Y-Axis Capability

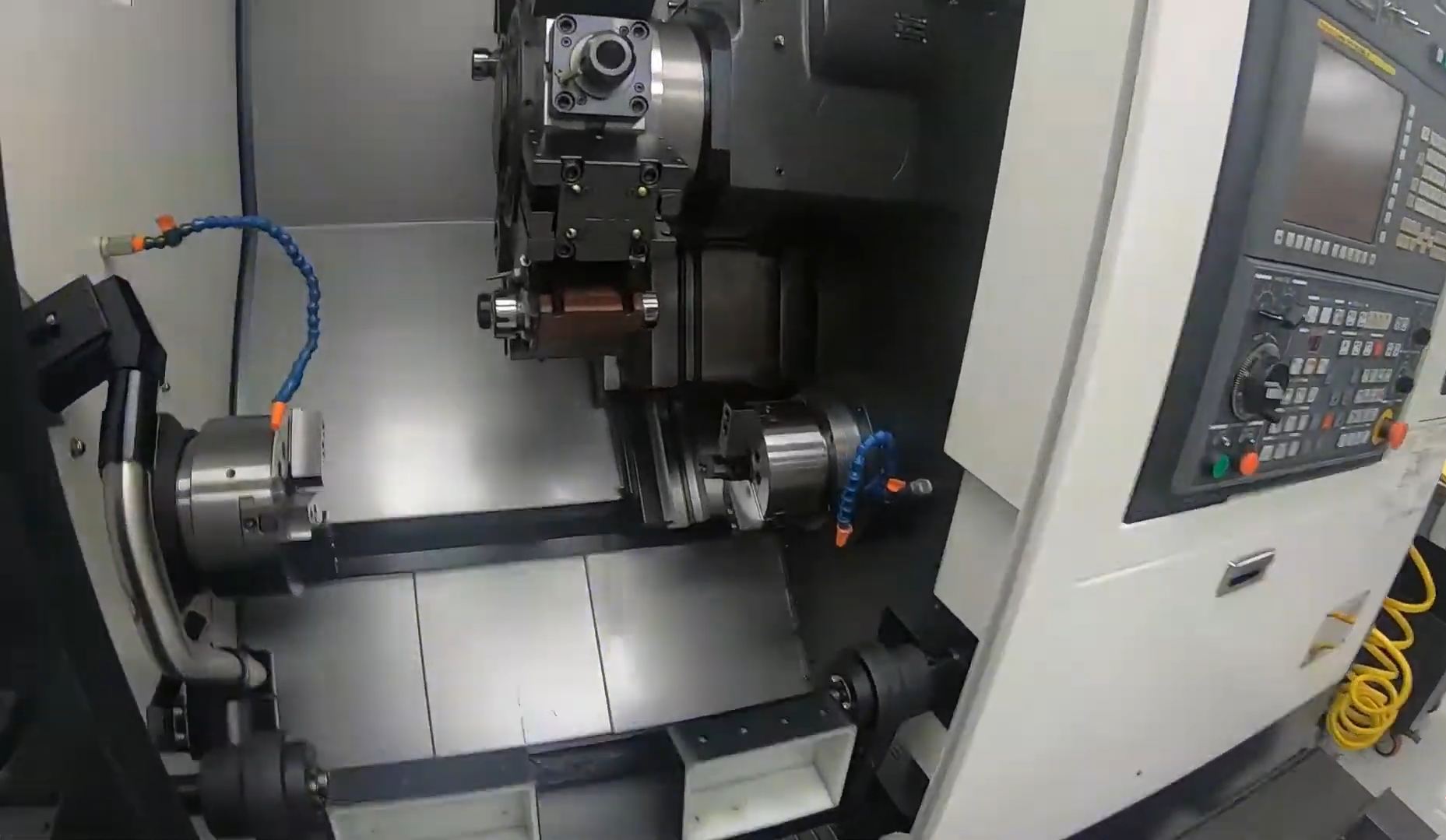

• Sub-Spindle for complete part transfer
• Bar Feed Interface
• Tool Checker Arm
• Parts Catcher
• Chip Conveyor

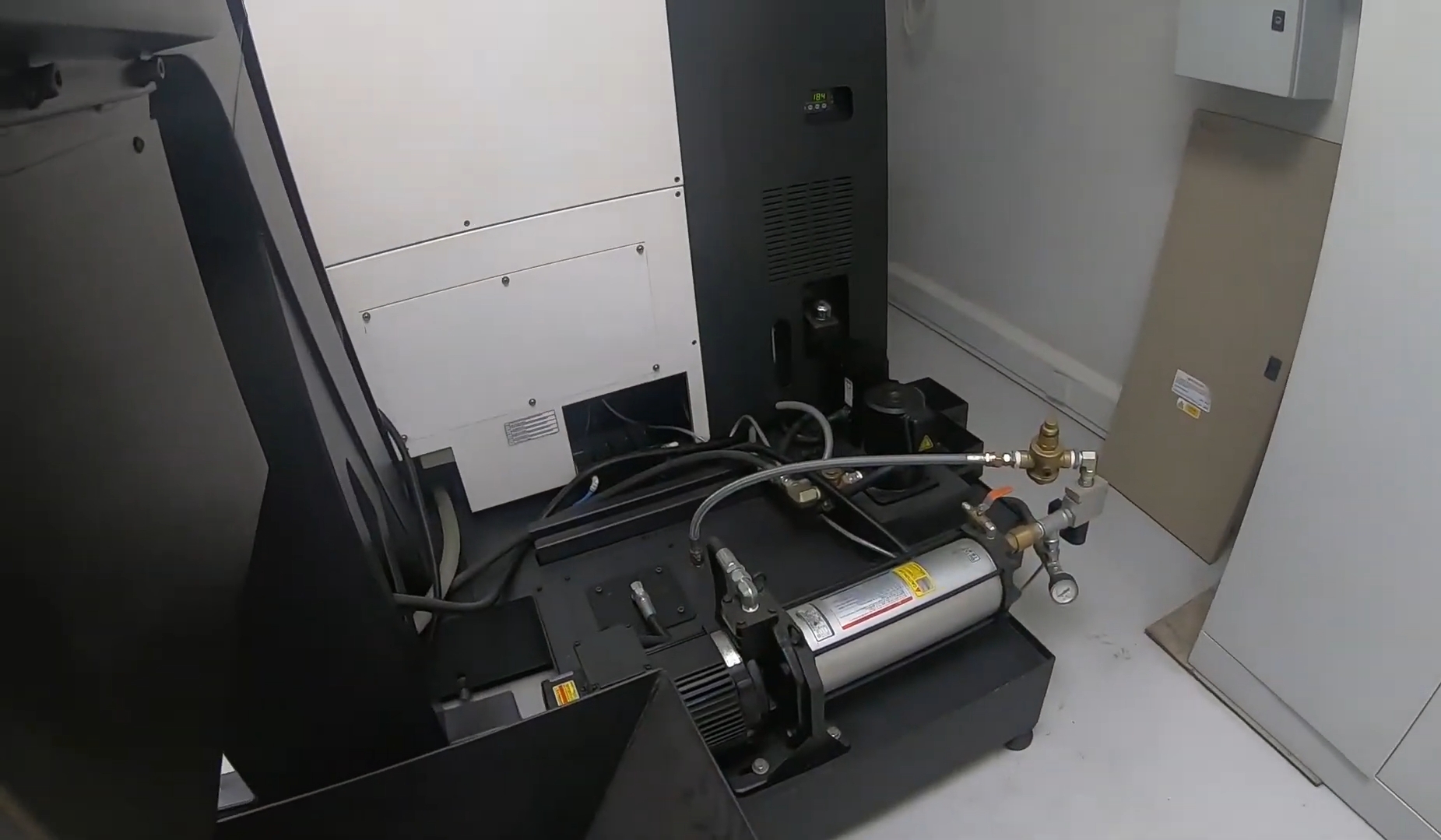

• Coolant System
FEATURES
✓ Multi-tasking turn & mill capability
✓ Opposed spindle design for complete part machining
✓ Y-axis for off-center milling and drilling
✓ Live tooling for secondary operations
✓ Compact footprint with high productivity
✓ Ideal for complex and precision components
APPLICATIONS
• Aerospace and automotive parts
• Medical component machining
• Complex turned parts with milling features
• High-production environments
• Lights-out machining with bar feeder
