Specification Description
DATE OF MANUFACTURE 1998

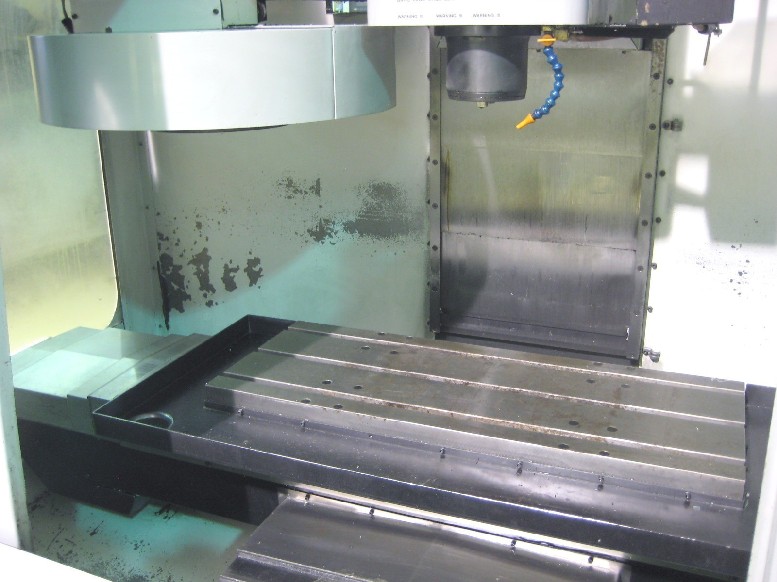

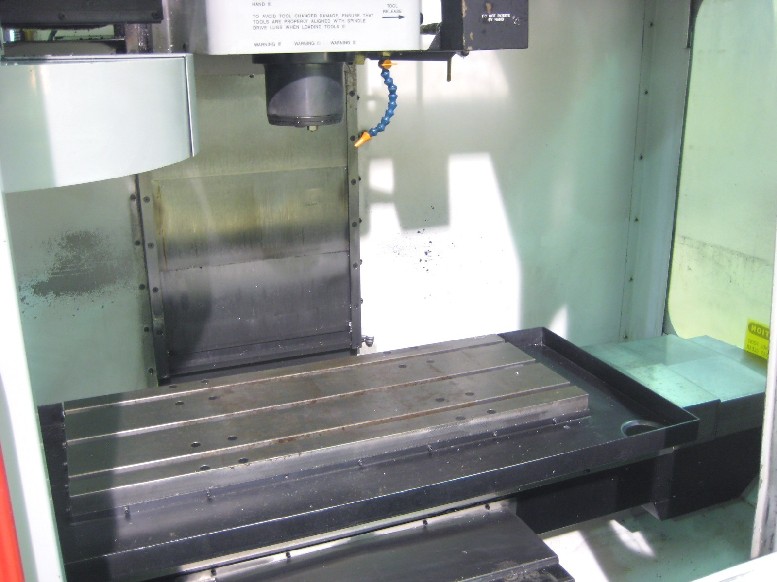

TABLE SIZE 36″ x 14″
MAXIMUM TABLE LOAD 3,000 LBS
SPINDLE NOSE TO TABLE TOP 4″ – 29″
X AXIS TRAVEL 30″
Y AXIS TRAVEL 16″
Z AXIS TRAVEL 20″
RAPID TRAVERSE RATE X, Y & Z AXES 710 IPM
CUTTING FEED RATE 0.1 – 500 IPM
SPINDLE TAPER CAT 40
SPINDLE SPEEDS 0 – 10,000 RPM

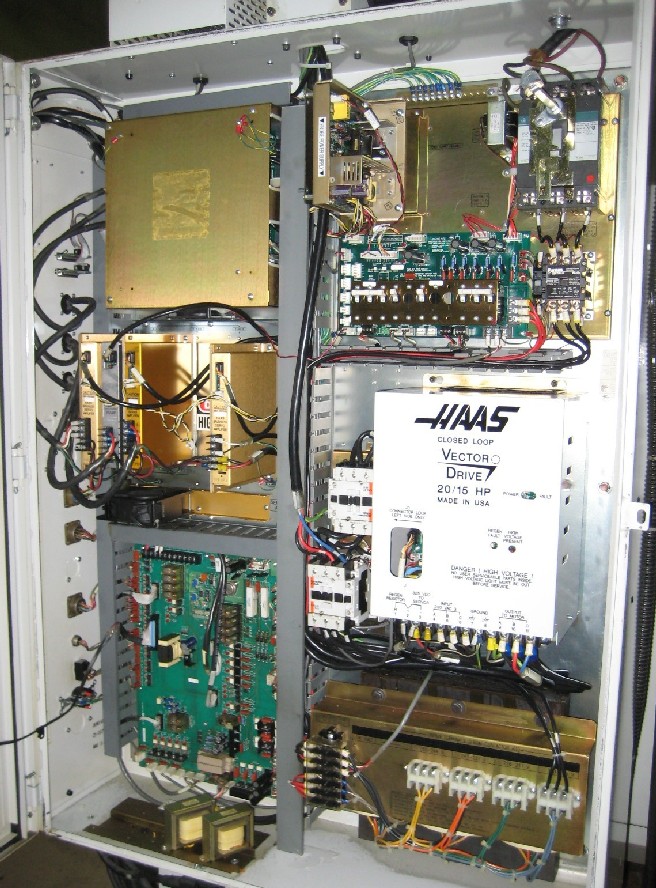

SPINDLE MOTOR (VECTOR DUAL DRIVE) 20 HP
TOOL CHANGER CAPACITY 20 STATIONS
MAXIMUM TOOL WEIGHT 12 LBS
WEIGHT, APPROX. 8,500 LBS
DIMENSIONS, APPROX. 110″ x 93″ x 101″

Equipped With:

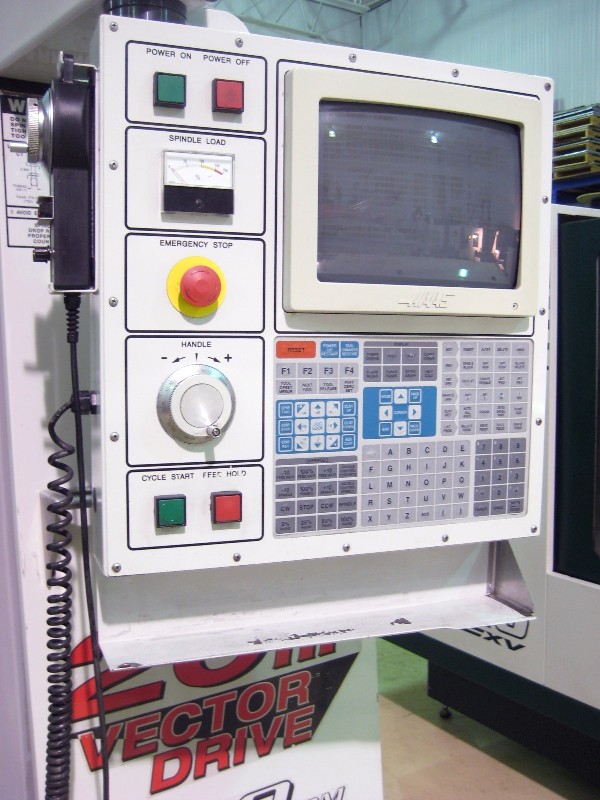

HAAS DUAL PROCESSOR CNC CTRL & RS-232C PORT INTERFACE,
FANUC & YASNAC COMPATIBILITY, EXTENDED 1MB MEMORY,
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),
PRE-WIRED FOR 4TH AXIS w/DRIVE (NO ROTARY TABLE INCLUDED),
CHIP AUGER, FLOPPY DRIVE, QUIKCODE PROGRAMMING
10,000 RPM SPINDLE (LIQUID COOLED), REMOTE JOG HANDLE,
PROGRAMMABLE COOLANT, DELTA WYE SPINDLE MOTOR,
COOLANT SYSTEM WITH TANK & PUMP, BRUSHLESS SERVOS,

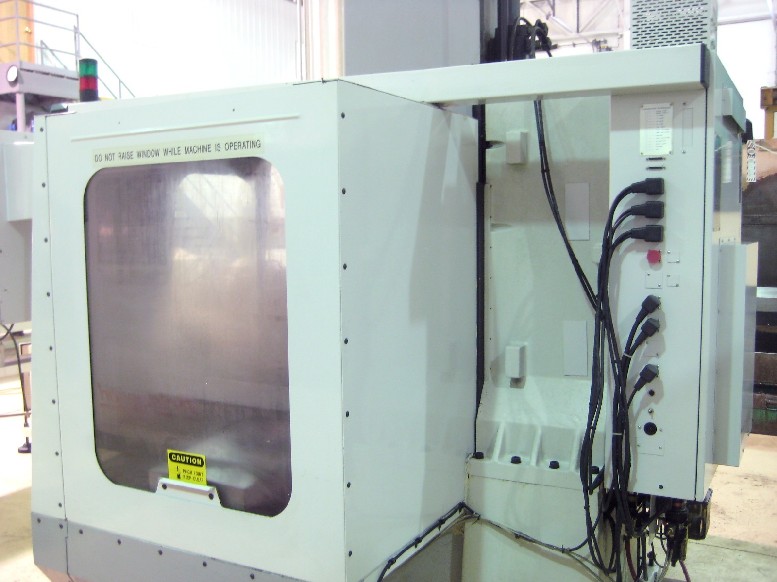

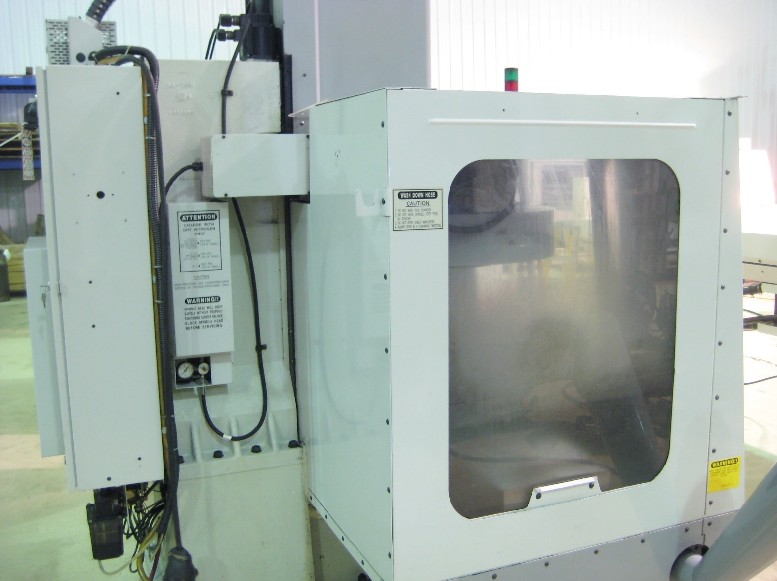

FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
