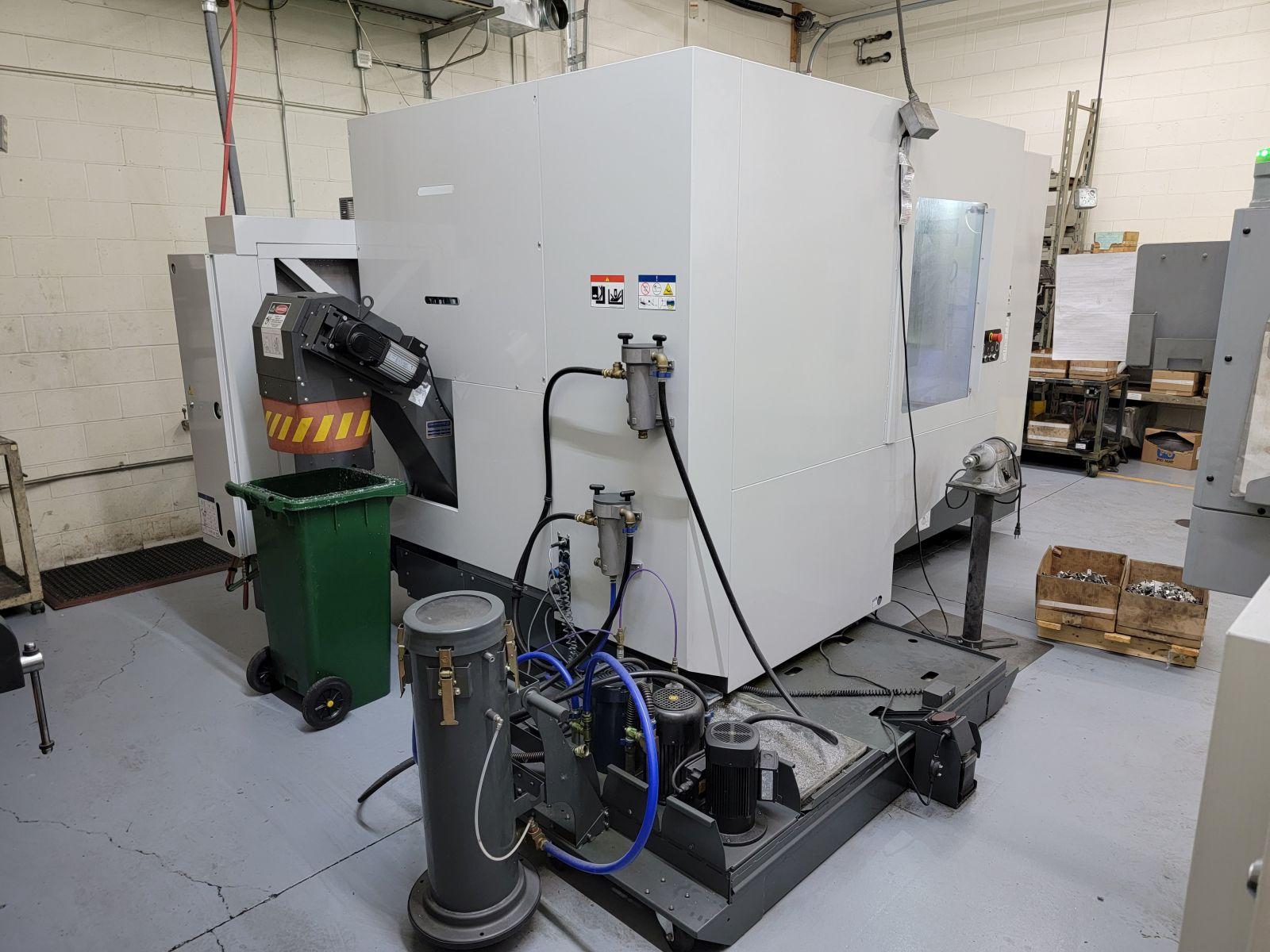

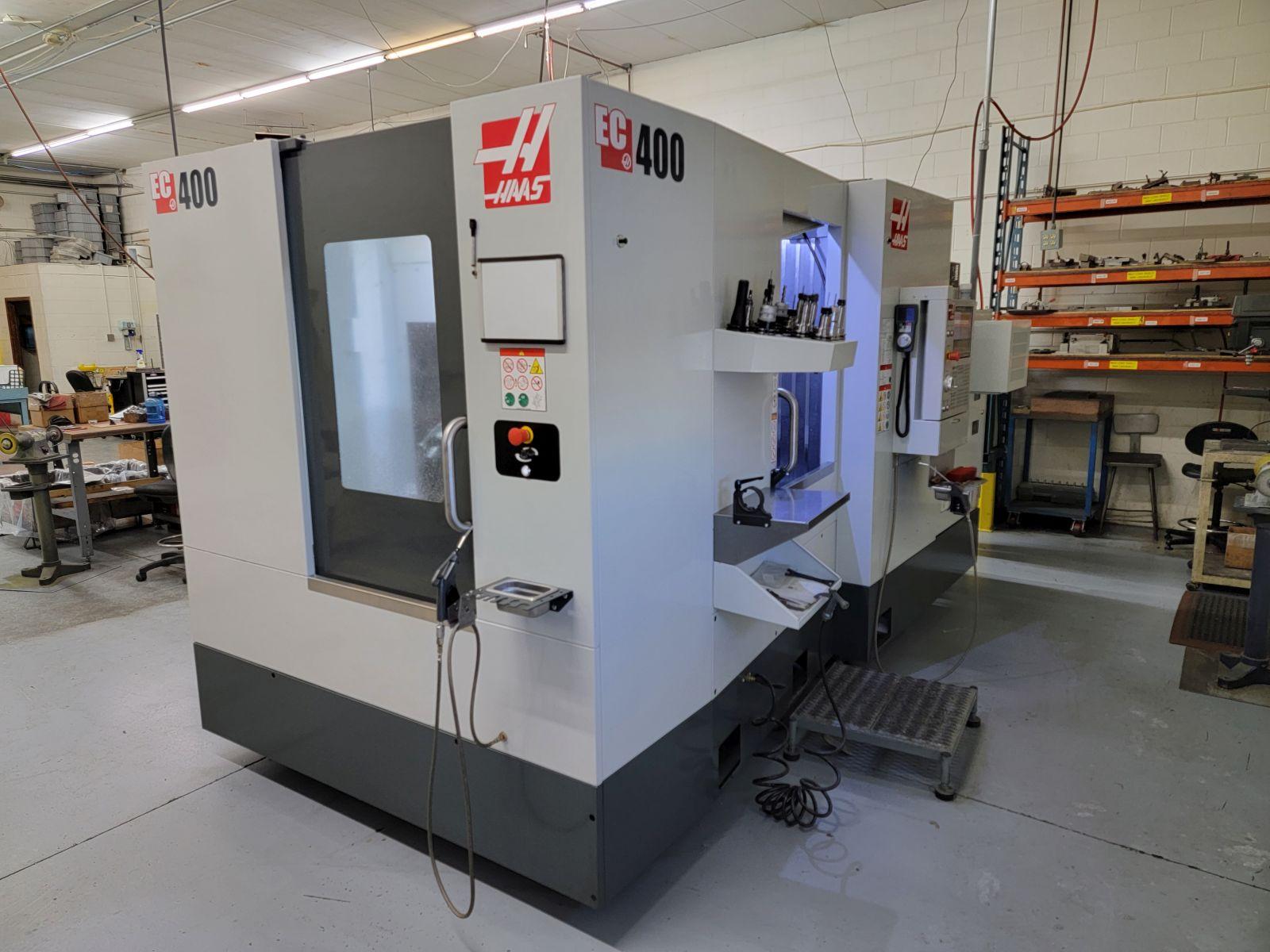

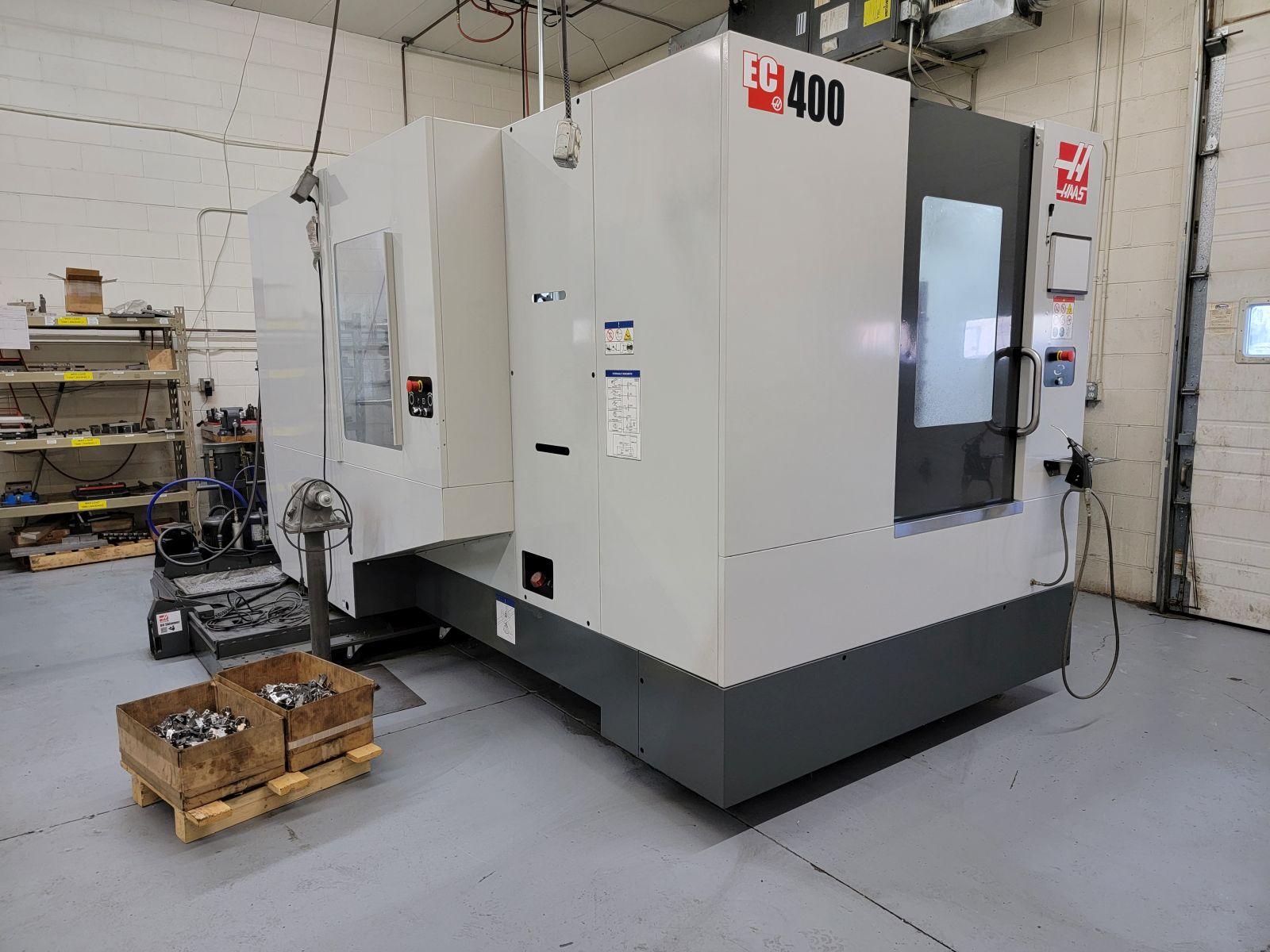

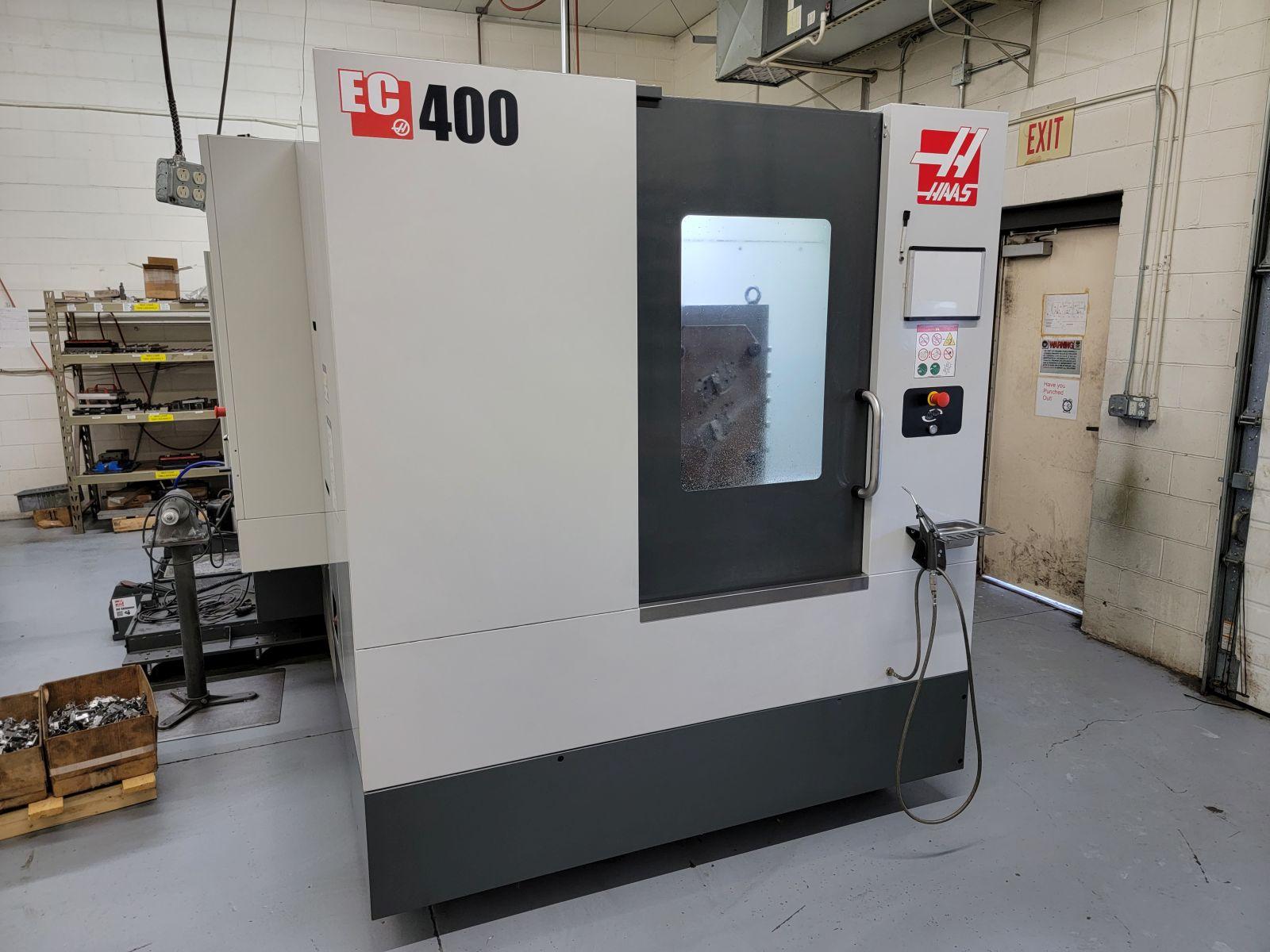

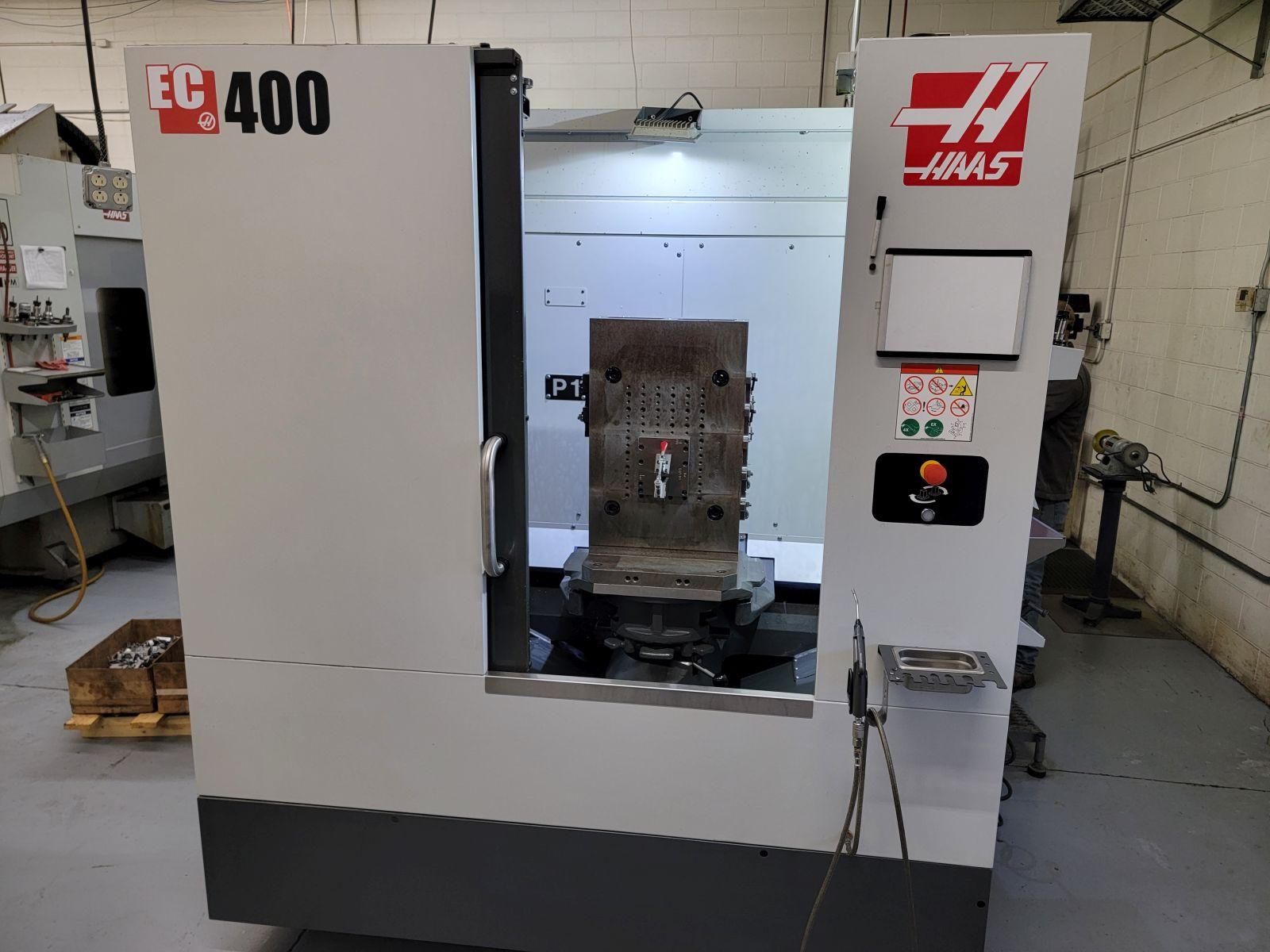

HAAS EC-400 4-AXIS HORIZONTAL MACHINING CENTER
Description
GENERAL INFORMATION
• Manufacturer: Haas Automation
• Model: EC-400
• Year: 2020
• Type: 4-Axis Horizontal Machining Center
• Control: Haas Next Gen CNC Control
• Condition: Used
SPECIFICATIONS
• Pallet Size: 15.75″ x 15.75″
• Number of Pallets: 2

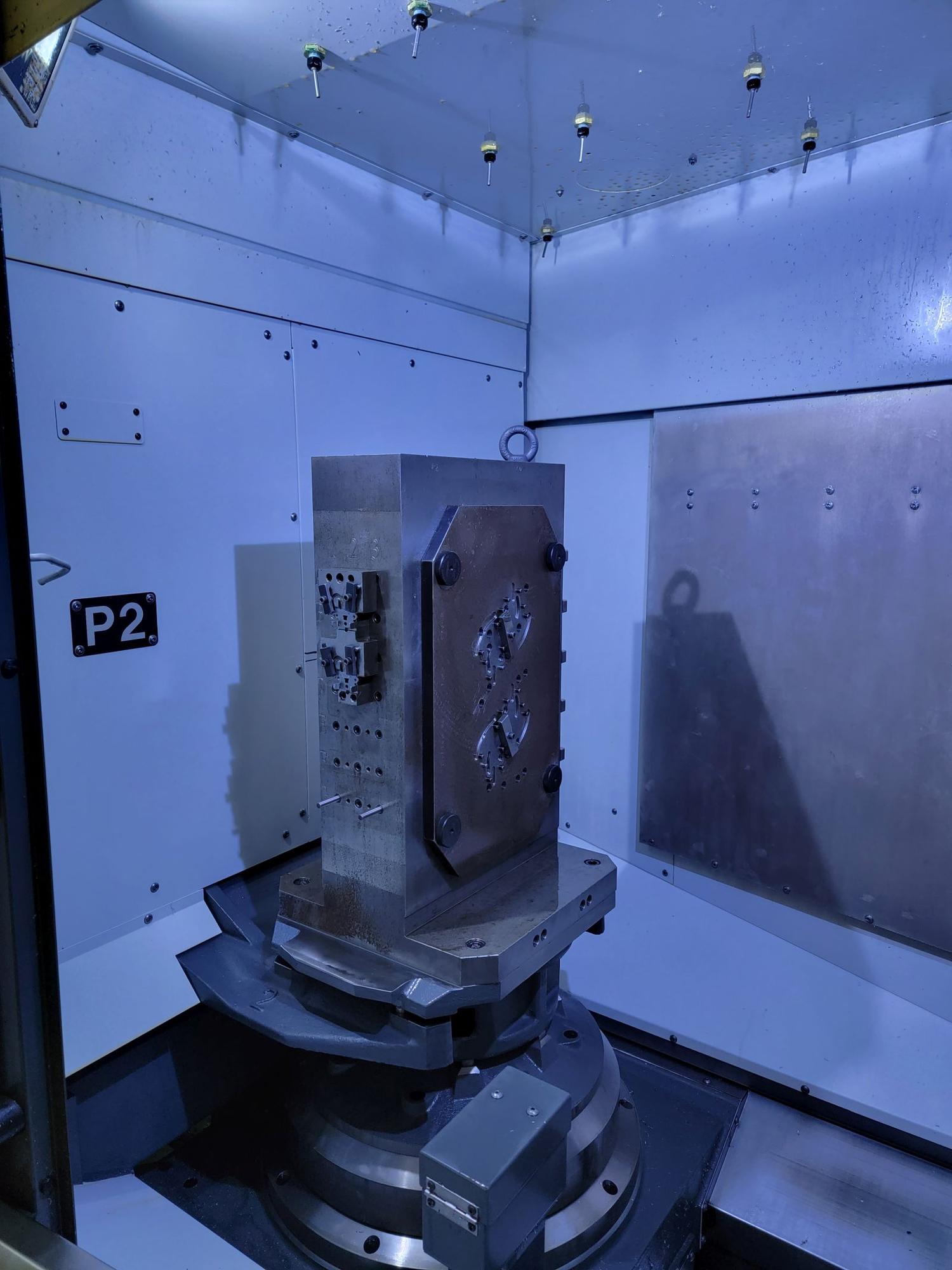

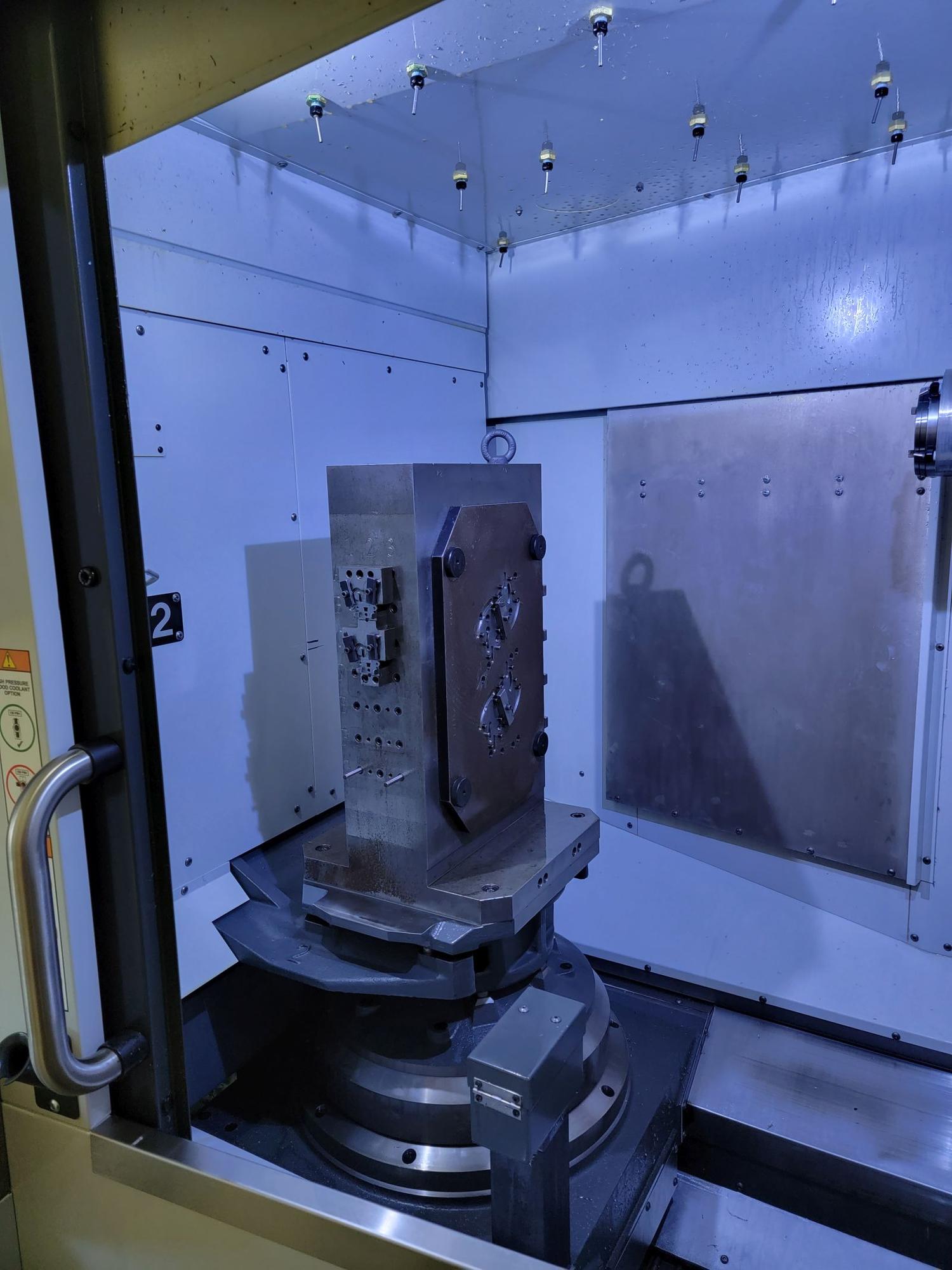

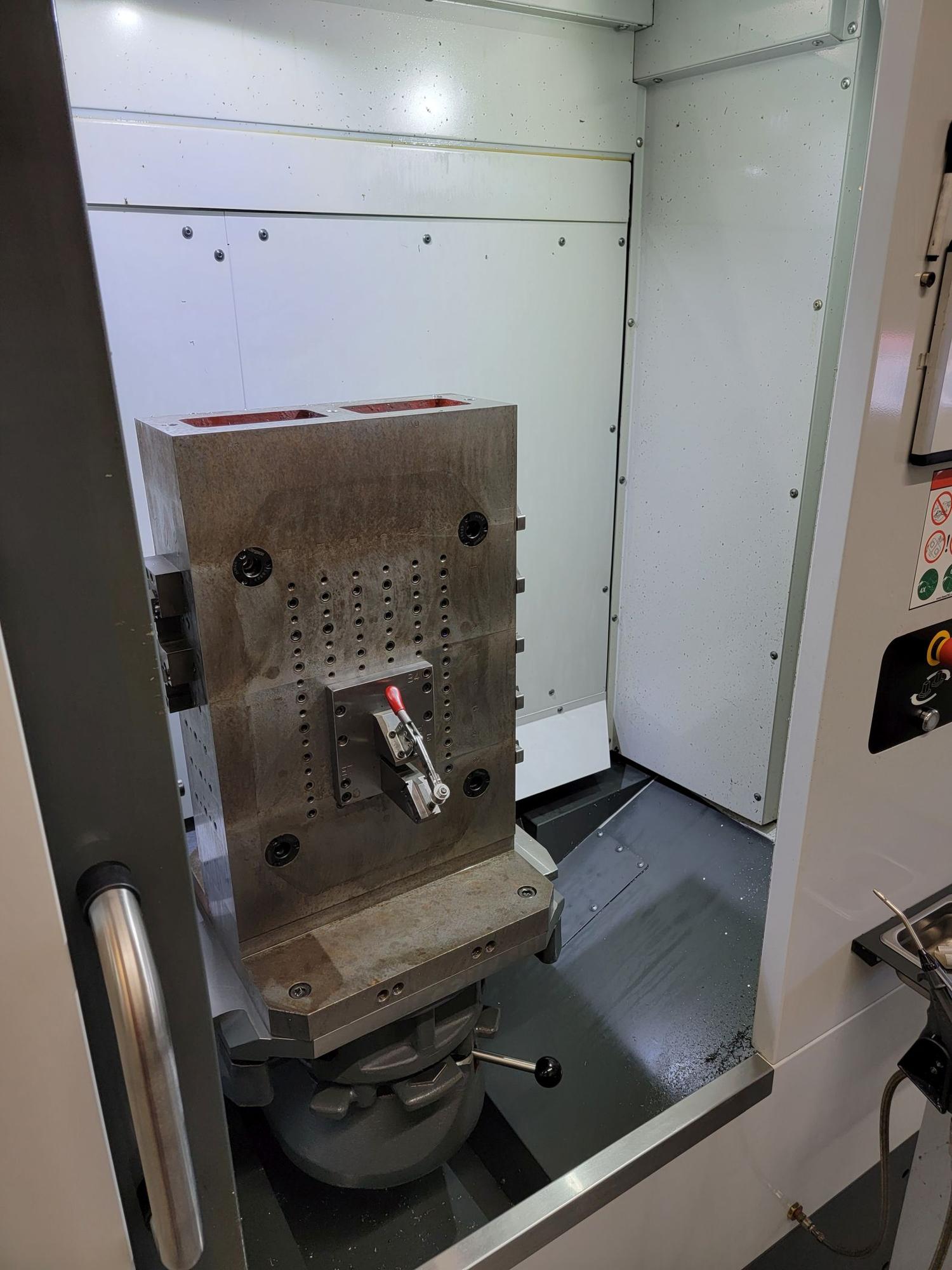

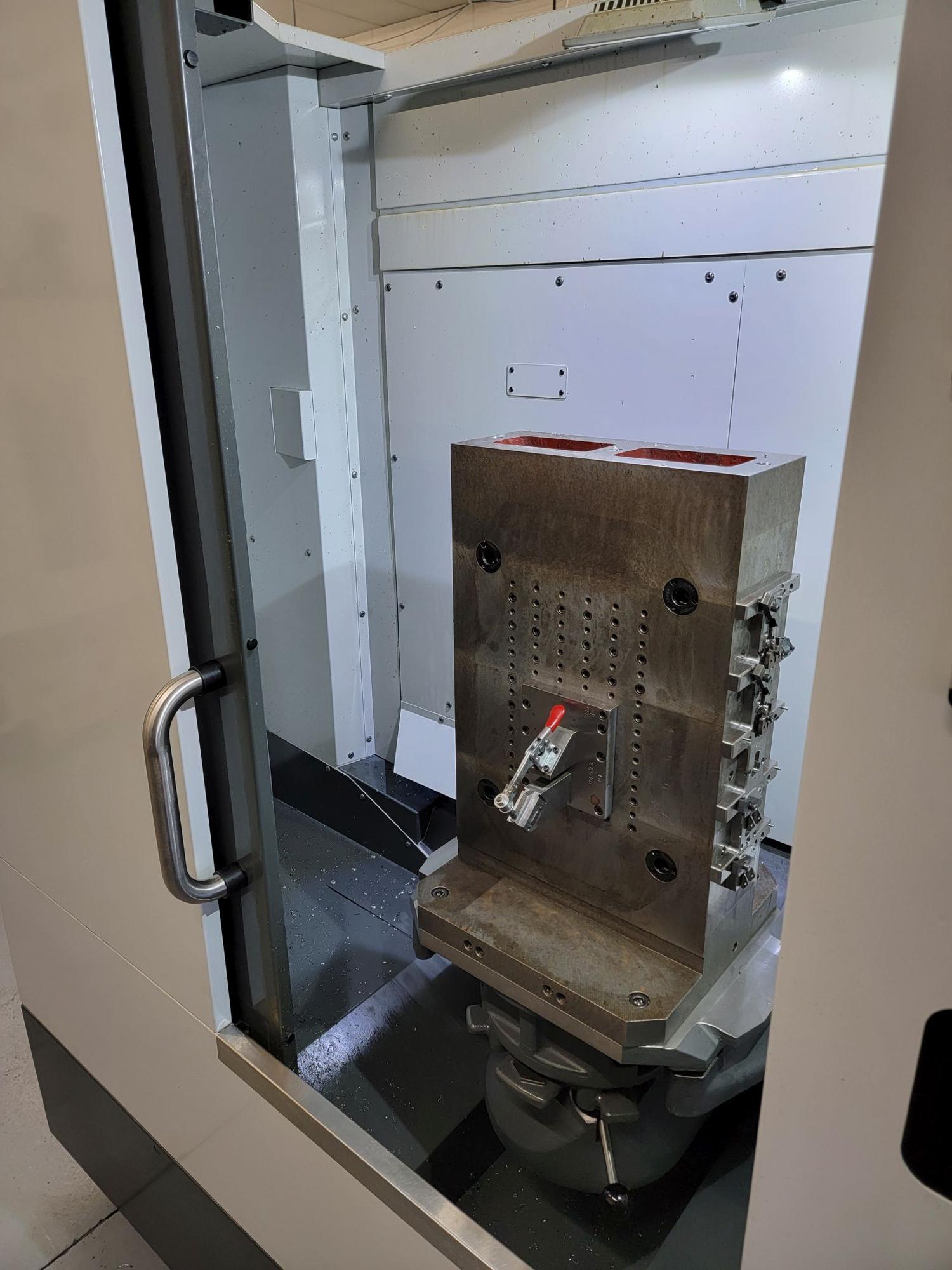

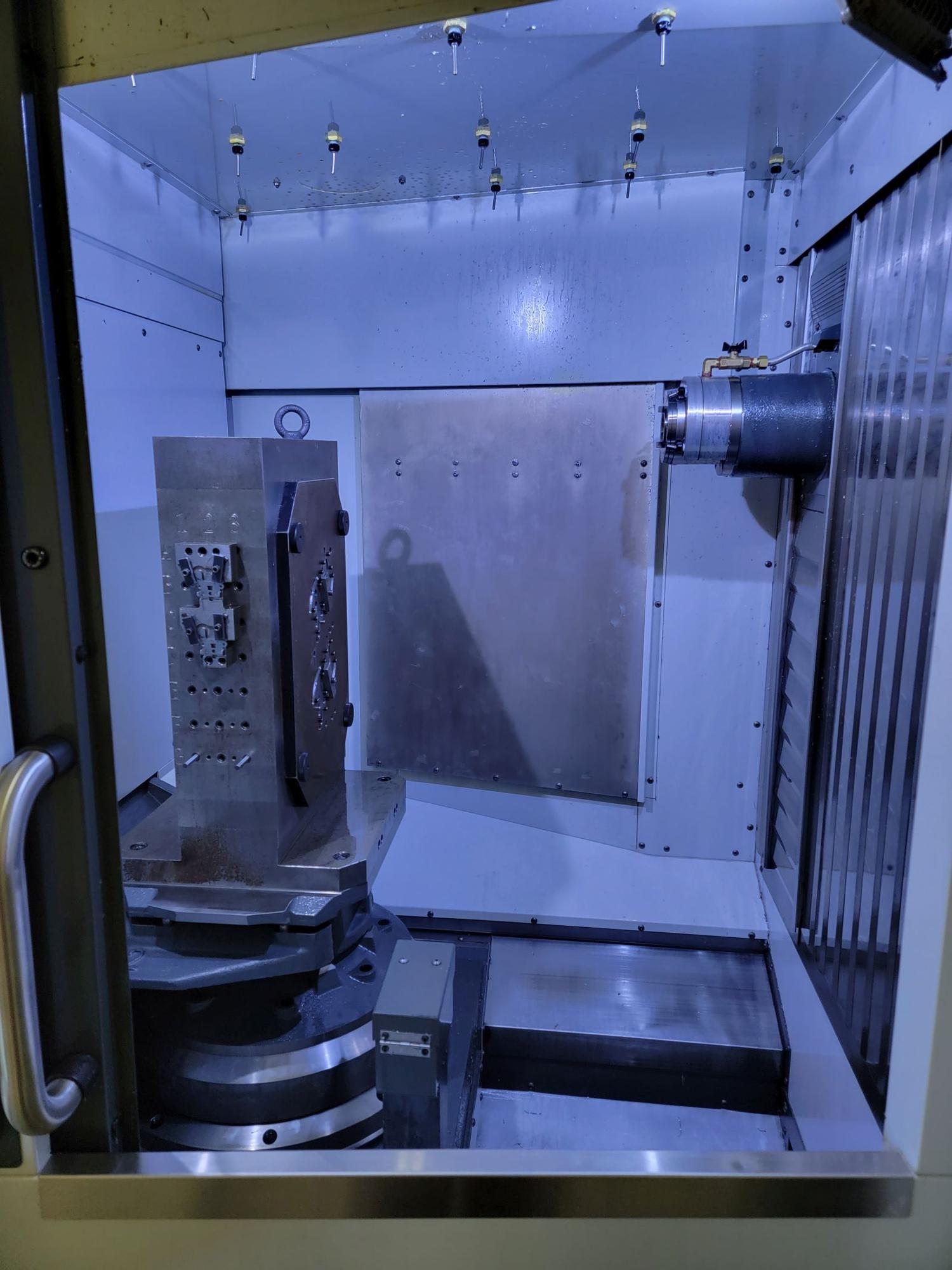

• Pallet Indexing: Full 4th Axis (0.001° resolution)
• Max Pallet Load: 880 lbs
• Pallet Change Time: 15 seconds
• Travels (X / Y / Z): 22″ x 25″ x 22″
• Rapid Traverse Rate (X/Y/Z): 1400 IPM
• Max Cutting Feed Rate: 833 IPM
• Tabletop to Spindle Center: 2.1″ – 22.1″
• Spindle Gauge Line to Table Center: 3.9″ – 23.9″

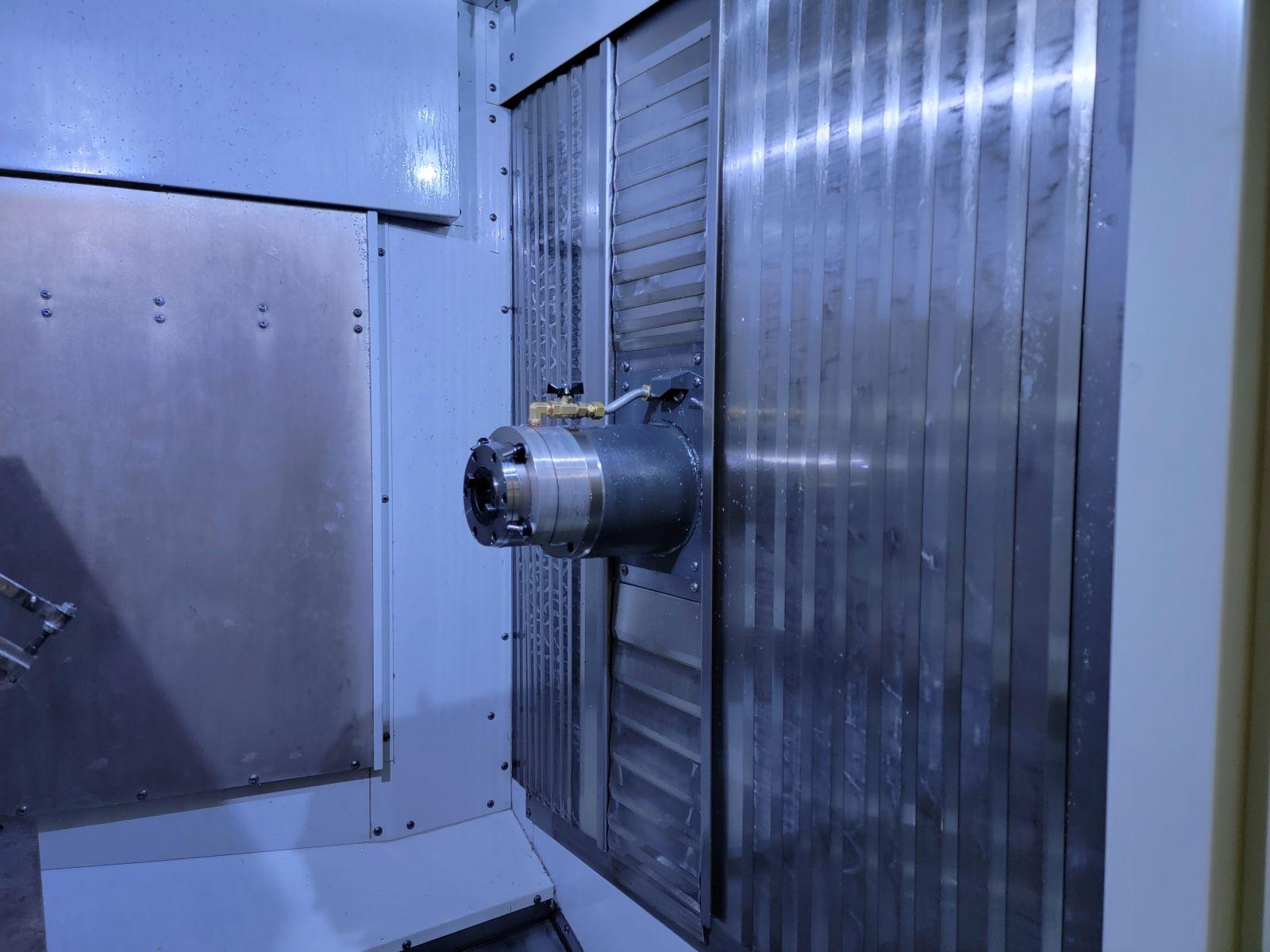

SPINDLE
• Spindle Taper: CAT 40
• Spindle Speed: 0 – 15,000 RPM
• Spindle Type: Inline Direct Drive
• Spindle Motor: 30 HP
TOOLING

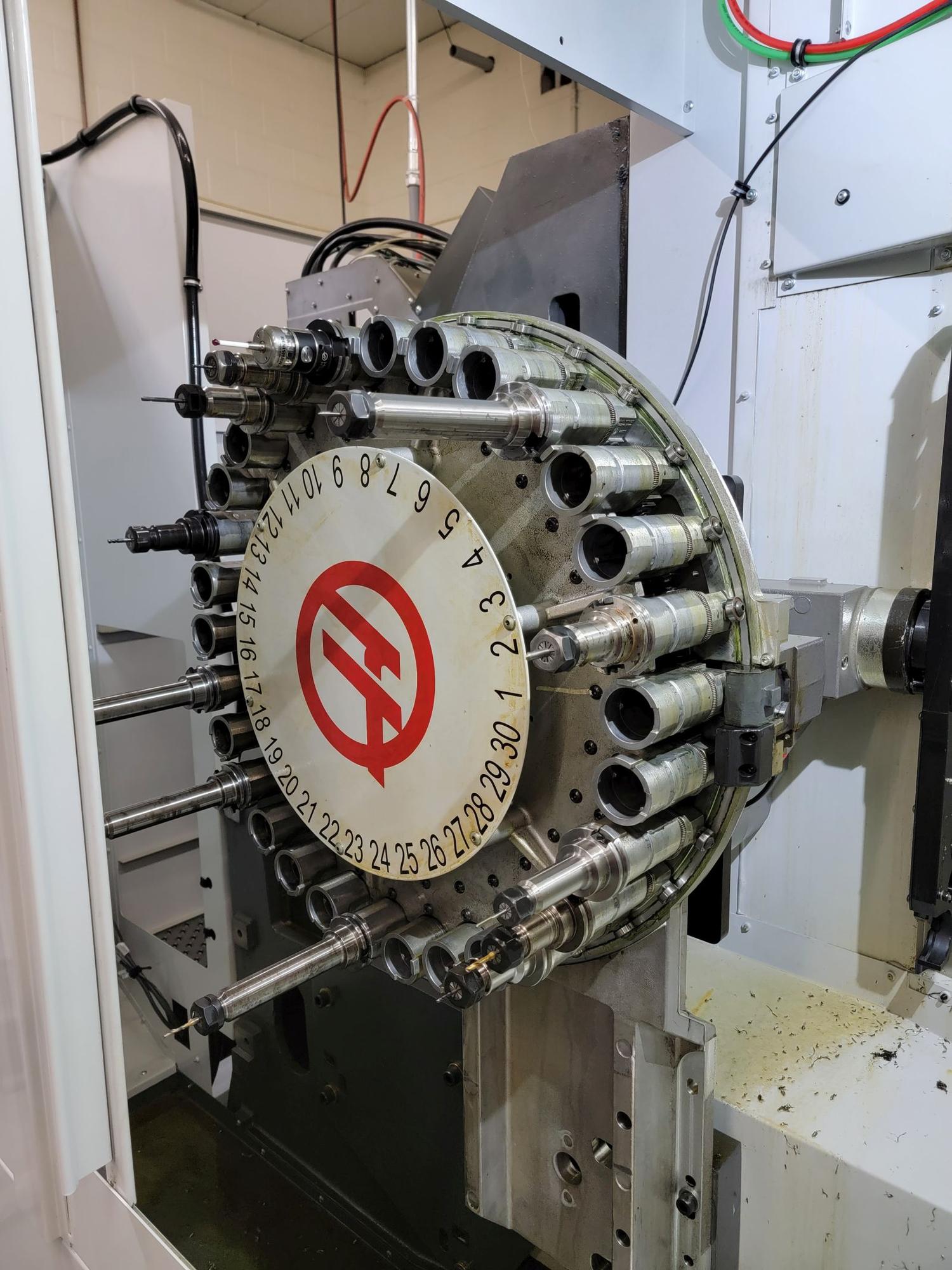

• Tool Changer Capacity: 30 Station Twin-Arm ATC
• Tool-to-Tool Time: 2.8 seconds (avg.)
• Max Tool Weight: 12 lbs
• Max Tool Size: 12″ length / 5″ diameter
COOLANT & SYSTEMS

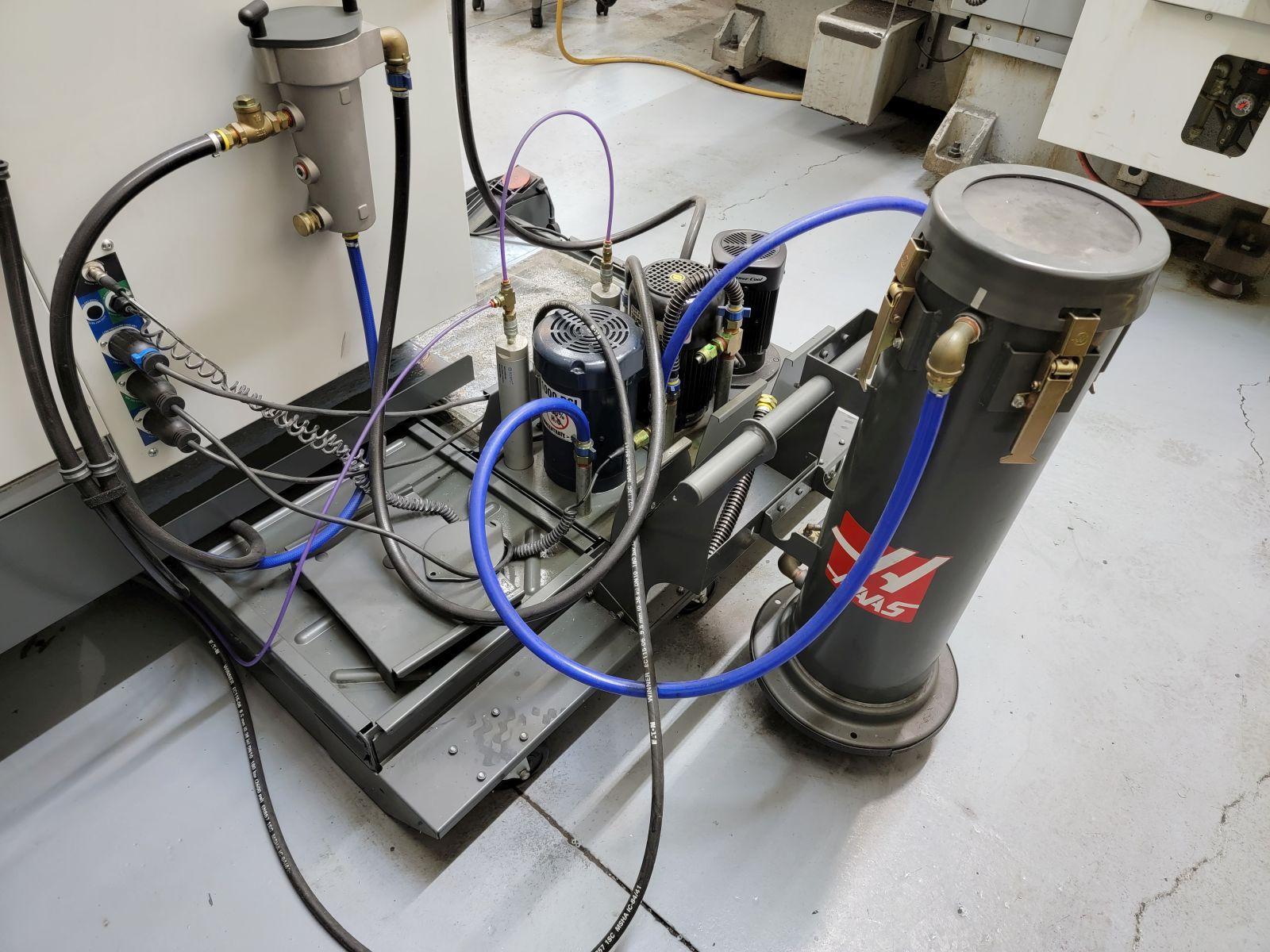

• Through-Spindle Coolant: 1000 PSI
• High-Pressure Flood Coolant: Yes
• Auxiliary Coolant Filter: Yes
• Complete Coolant System: Included
ELECTRICAL
• Power Requirements: 220V, 3 Phase
FEATURES
✓ Full 4th axis pallet system with dual pallets
✓ High-speed machining capability
✓ 15,000 RPM direct drive spindle
✓ 30-tool twin-arm automatic tool changer
✓ Advanced probing system (Renishaw tool & part probe)
✓ Through-spindle coolant (1000 PSI) for deep cutting
✓ Ethernet, USB, and WiFi connectivity

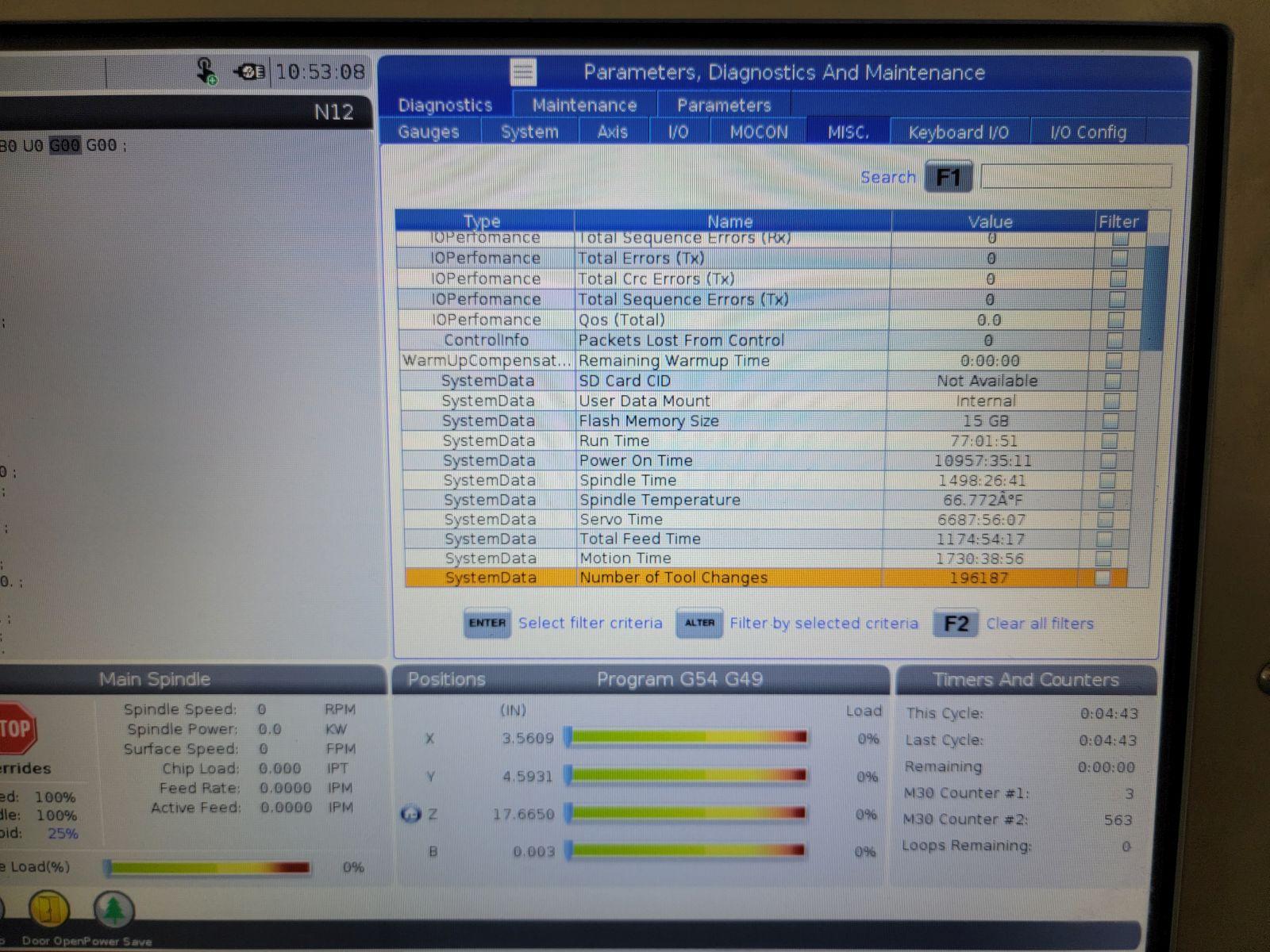

✓ User-friendly Haas Next Gen CNC control
EQUIPPED WITH
• (2) Station pallet changer with pallets

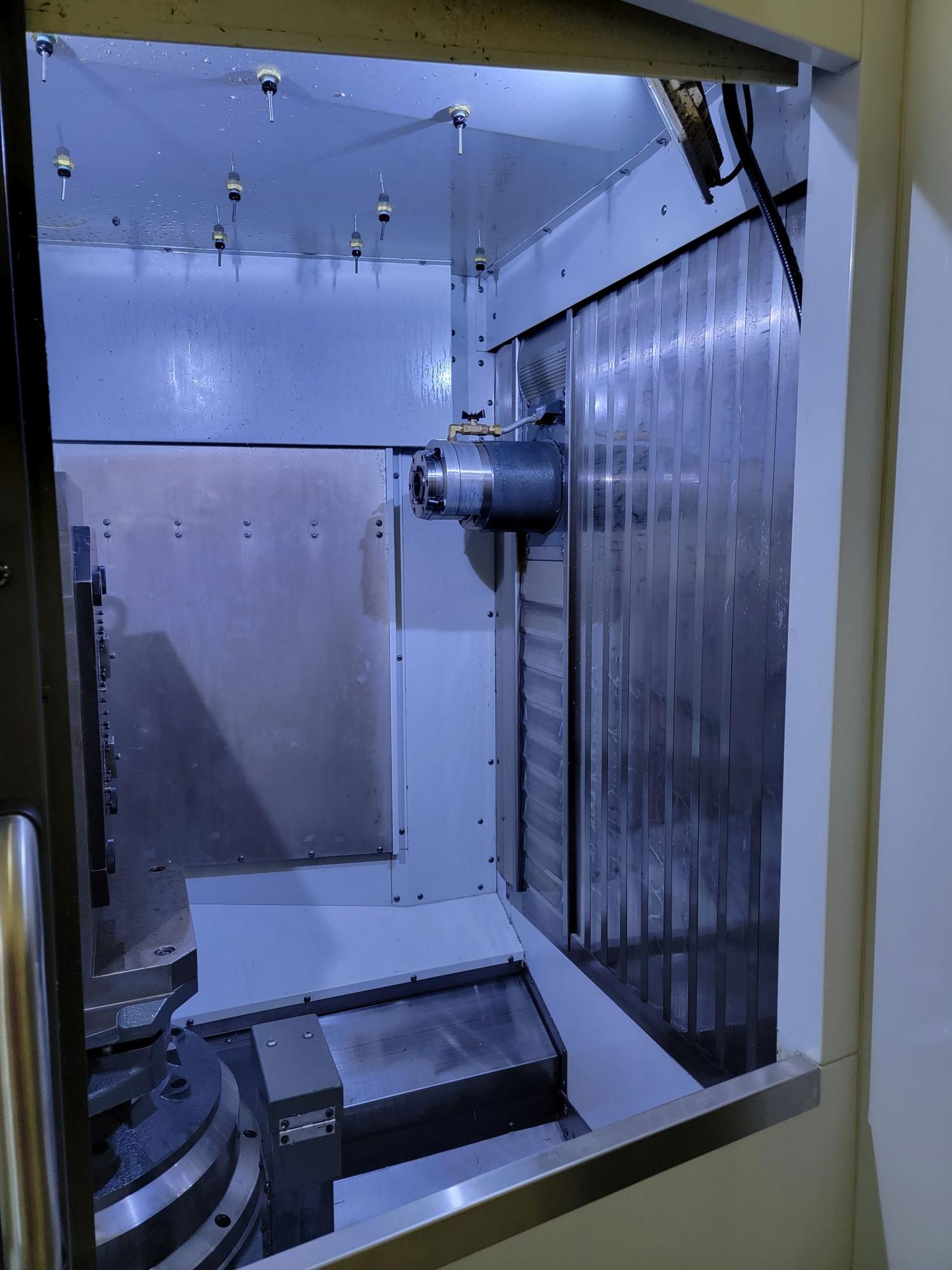

• CAT-40 spindle (15,000 RPM, 30 HP)

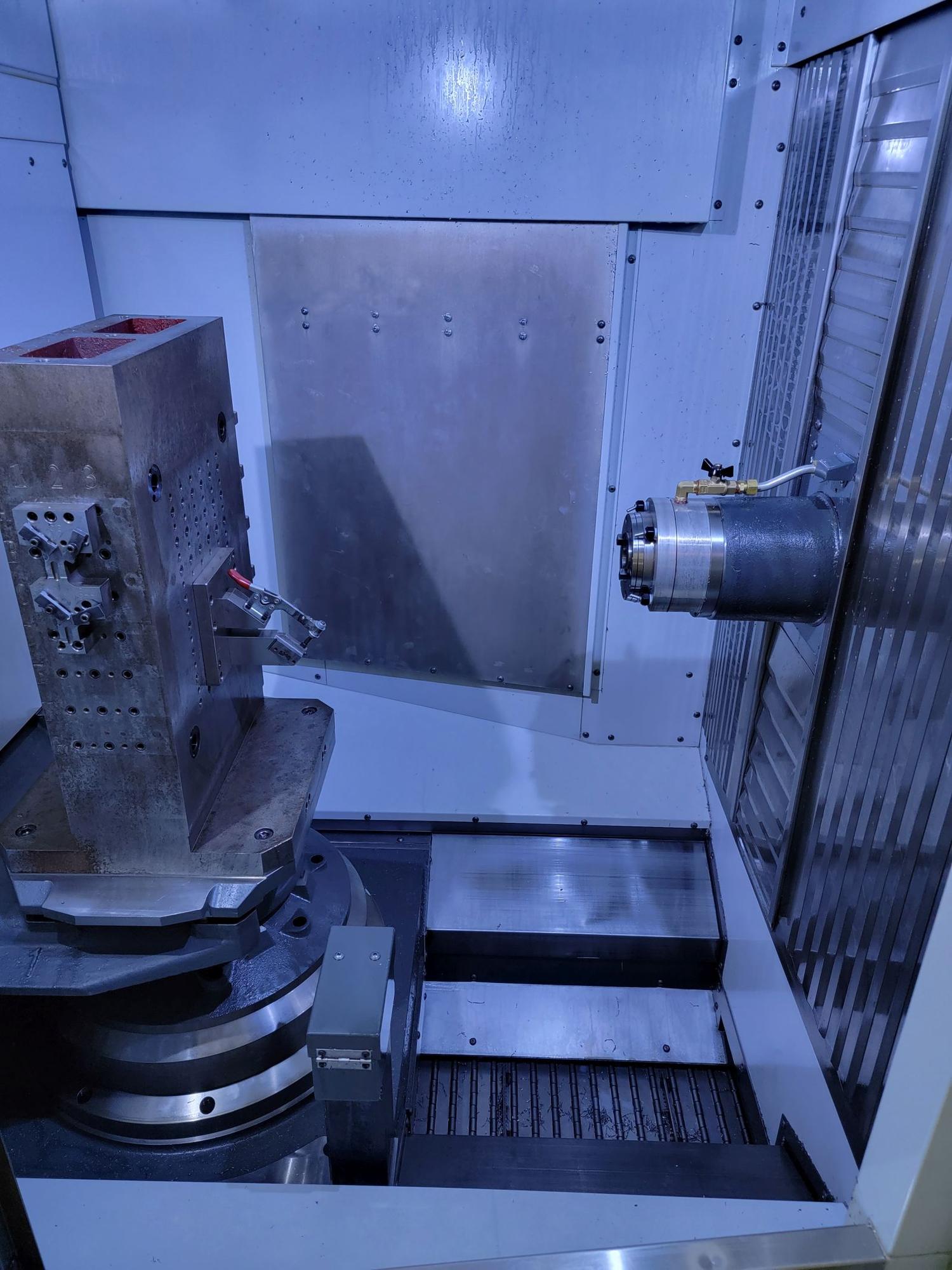

• Full 4th axis on pallet
• 30 station twin-arm tool changer

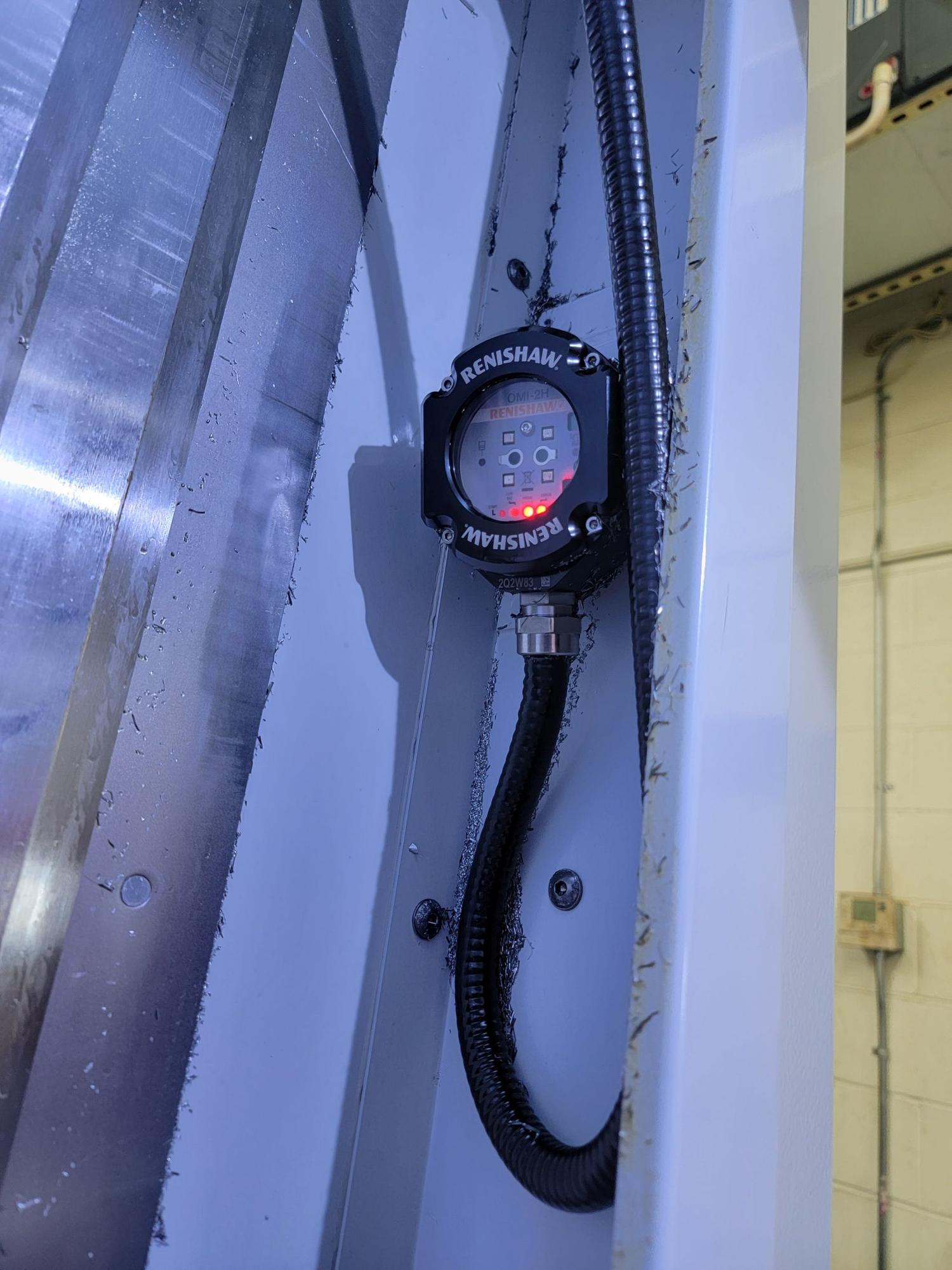

• Renishaw tool and part probing system

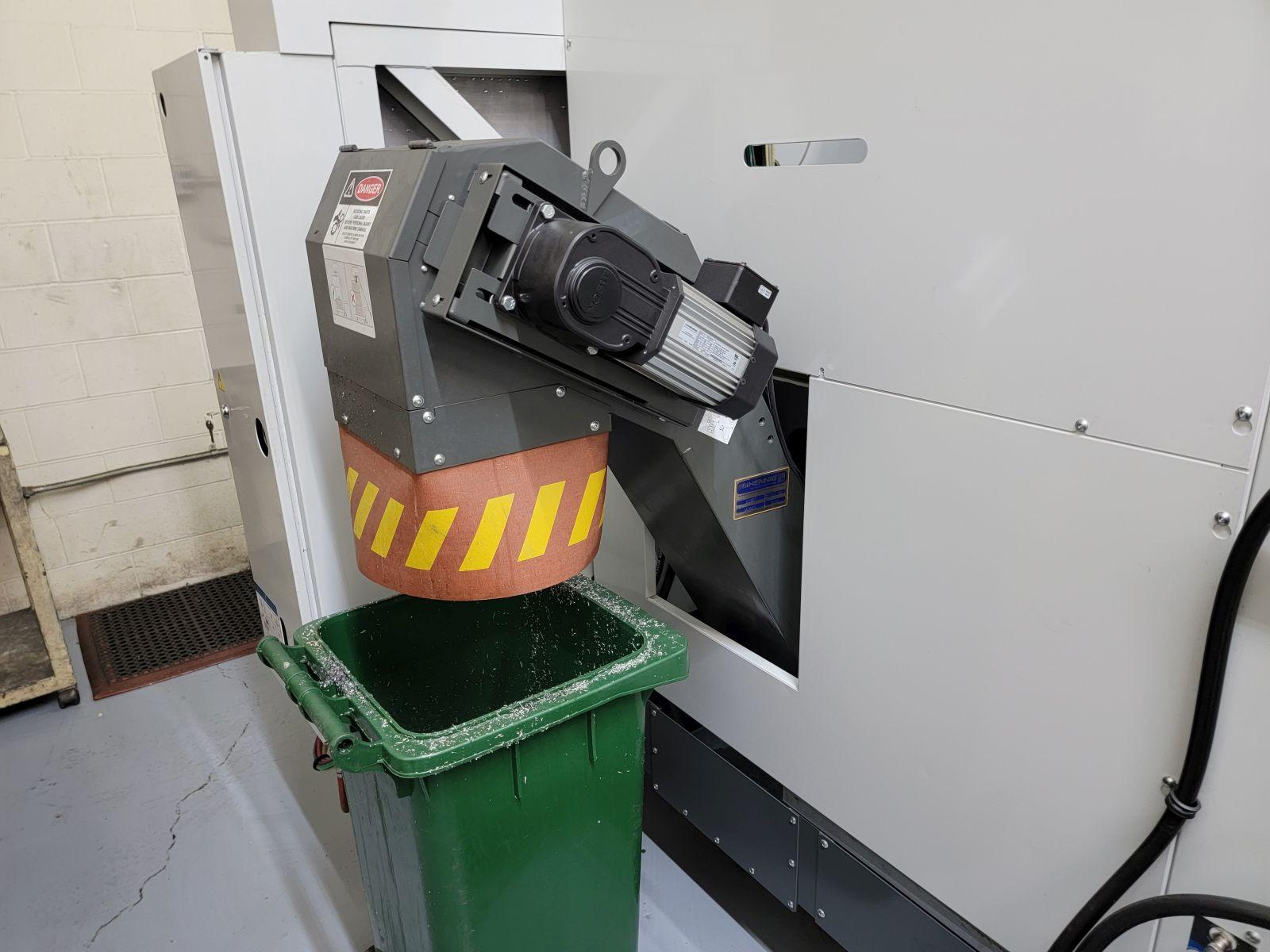

• Chip conveyor

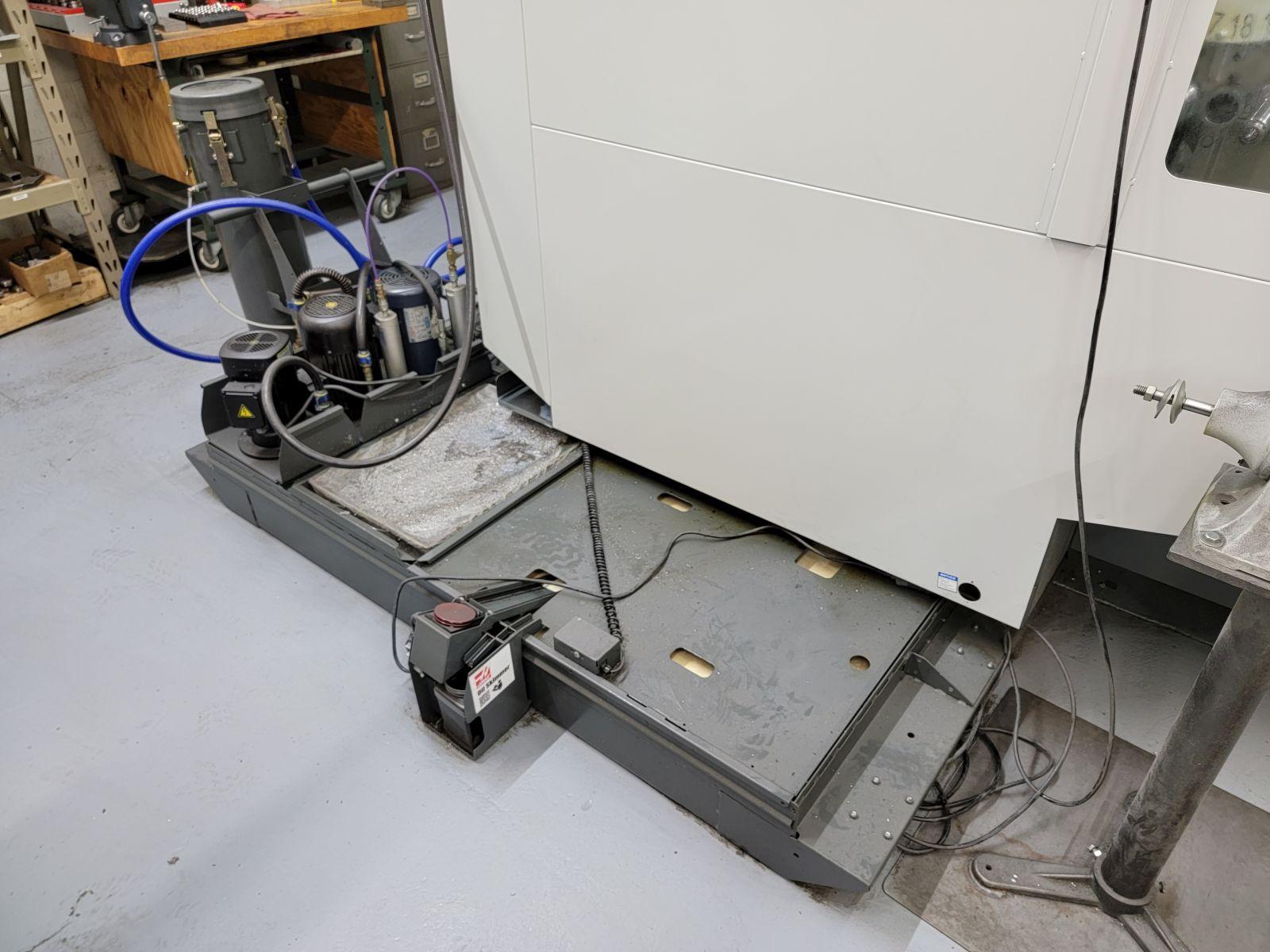

• High-pressure coolant system
• Auxiliary coolant filtration

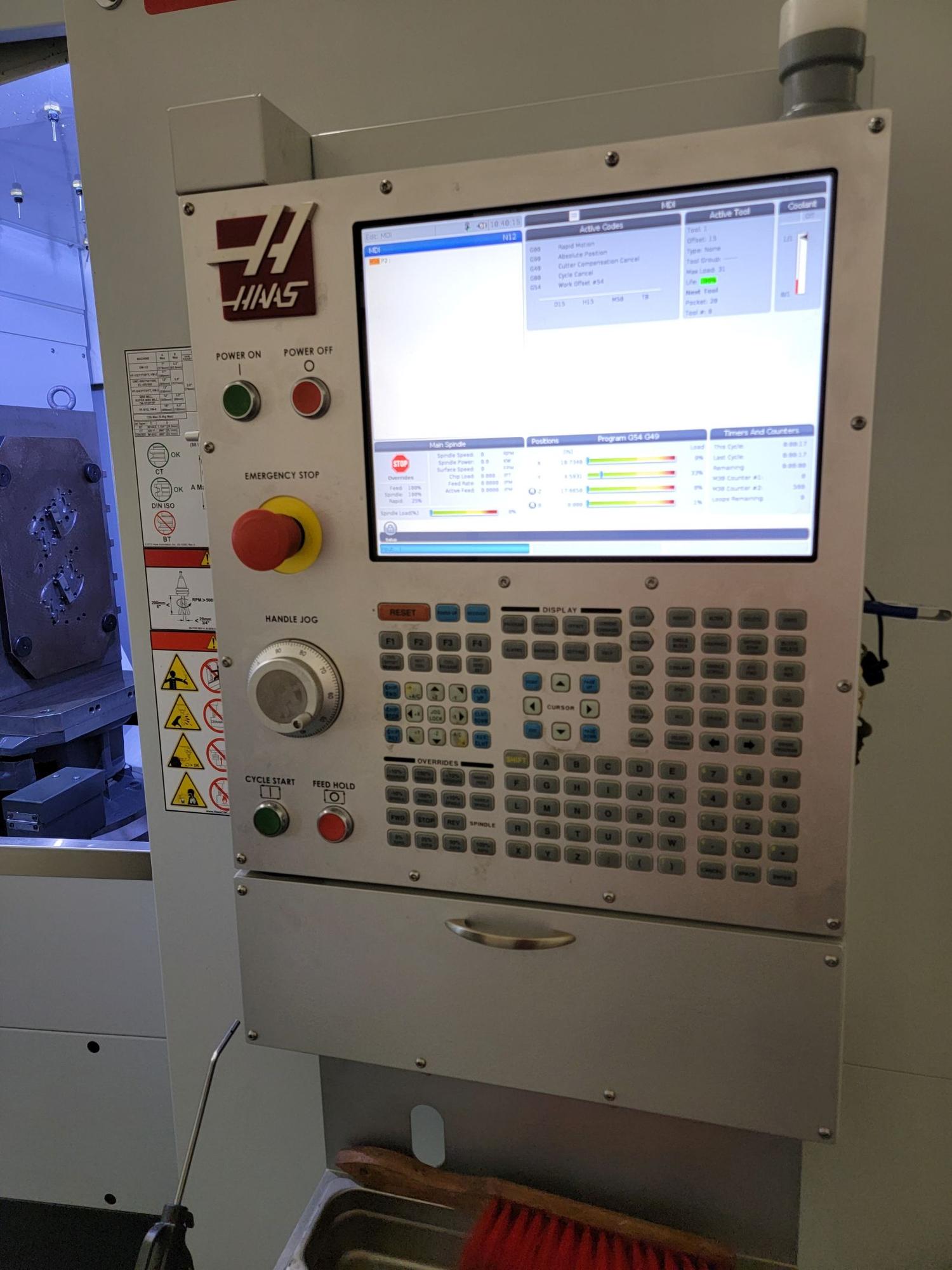

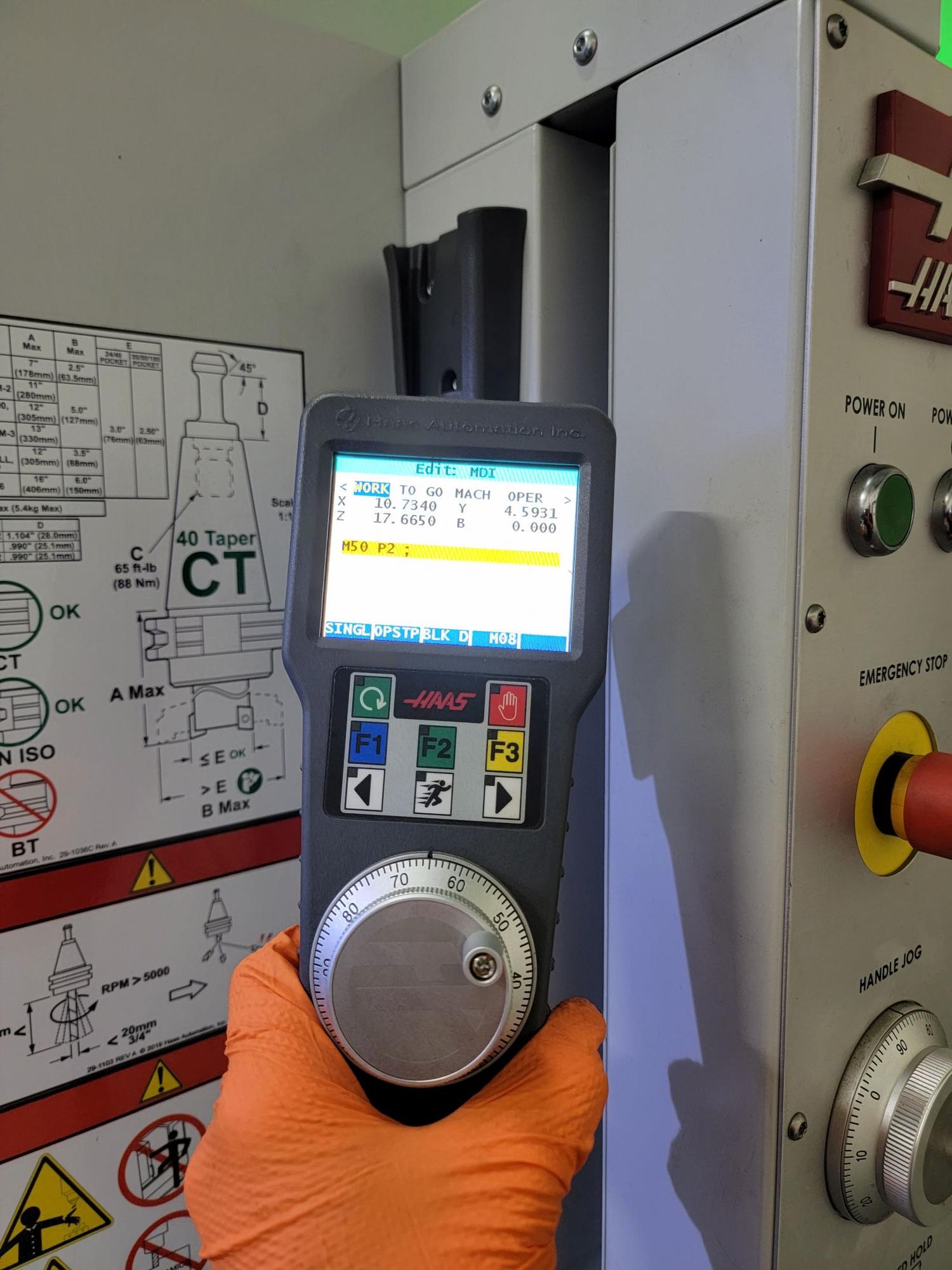

• Remote jog handwheel with touchscreen
• Ethernet port & USB connectivity
• Haas WiFi Connect
• Media display M-code
• Rigid tapping
• Through-tool air blast
• Rotary scales
• CNC cabinet cooler
• Work light
• Chip tray filter kit
• Complete coolant system
APPLICATIONS
• Precision CNC machining
• Aerospace and automotive components
• High-volume production machining
• Complex multi-axis machining
• Fixture-based pallet production
