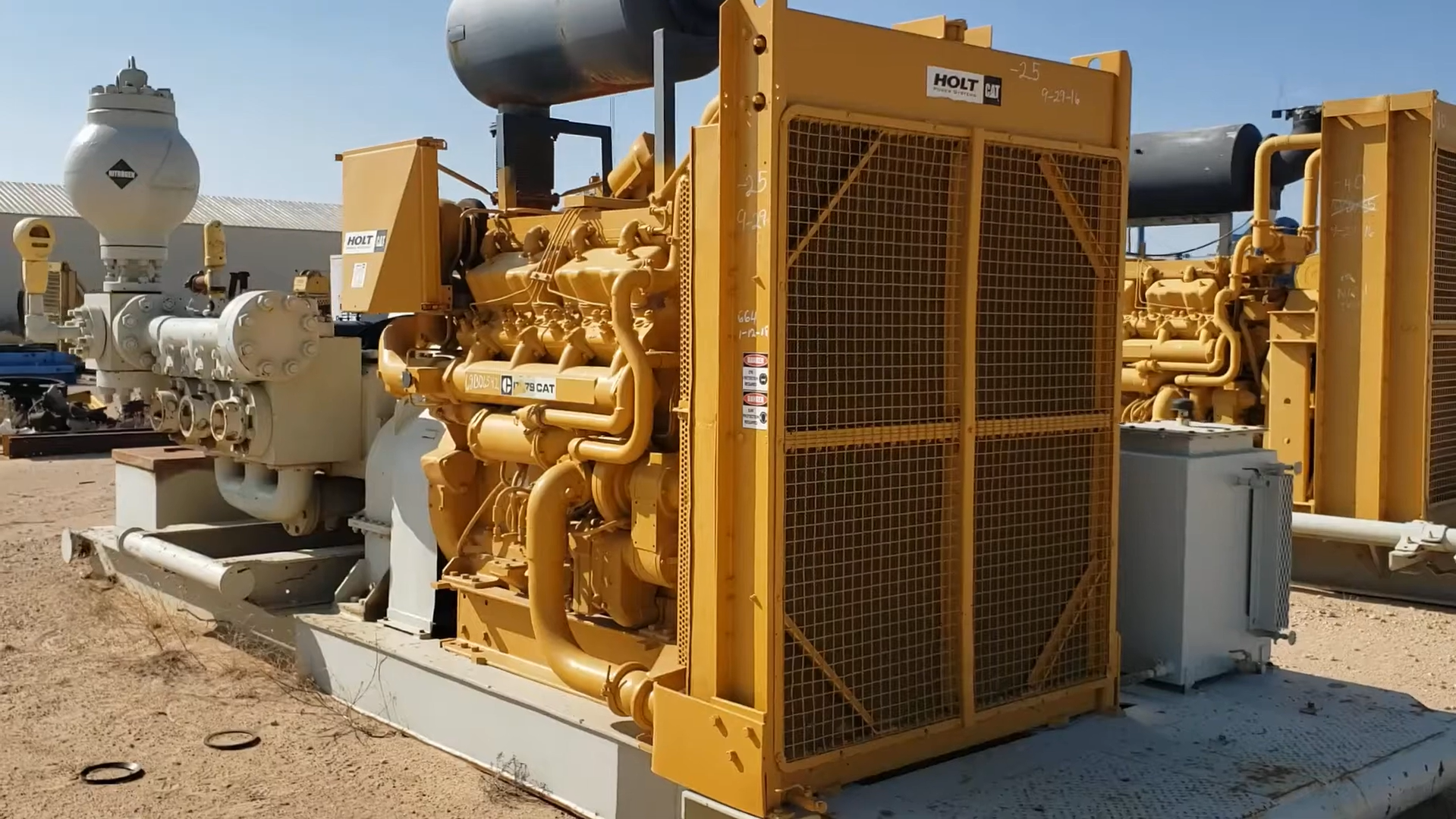

• Manufacturer: Gardner Denver

• Model: PZ-7

• Driver: Caterpillar Inc. D-379 Diesel Engine

• Type: Triplex Mud Pump Package

• Condition: Used – Fully Operational

• Stroke: 7″ (178 mm)

• Plunger Size Range: 4″–7″ (102–178 mm)

• Discharge Pressure Components: Rated up to 5,000 PSI (345 bar)

• Dimensions (L x W x H): 28′ x 13′ x 10′ (8,534 x 3,962 x 3,048 mm)

• Weight: Approx. 55,000 lbs (24,948 kg)

✓ Chain Drive Assembly (complete with clutch, sprockets, bearings, seals, oil-tight case)

✓ 5,000 PSI Discharge Strainer Cross

✓ 5,000 PSI Pulsation Dampener

✓ 3″ 5,000 PSI Shear Relief Valve

✓ 2″ Mud Pressure Gauge (0–6,000 PSI)

✓ Pinion Driven 250 Series 5×6 Charge Pump

✓ Liner Wash System with Pump

✓ Air Volume Tank

✓ Diesel Day Tank

✓ New Fluid End Expendables (Plungers, Valves, Seats, Springs, Liners)

✓ Mounted on Oilfield Skid (Three Runner Type)

• Engine Full Service (Oil Change & Inspection)

• Pump End Service (New Liners, Plungers, Valves, Seats, Springs Installed)

• Gear End Service (Inspection & Oil Change)

• 24-Hour Operational Run Test

• Pressure Tested to 2,000–3,000 PSI

✓ Heavy-duty oilfield-ready mud pump package

✓ Fully serviced and tested prior to shipment

✓ Skid-mounted for easy transport and deployment

✓ Rebuild option available for engine and pump (additional cost)

• Oil & gas drilling operations

• Mud circulation systems

• Industrial high-pressure pumping

• Field service and drilling support
