GENERAL INFORMATION

• Manufacturer: DMG MORI
• Model: NMV 8000 DCG
• Year: 2017
• Type: 5-Axis Machining Center
• Category: Machining Centres
• Condition: Used
• Operating Hours: 500 hrs

SPECIFICATIONS

• Number of Axes: 5
• B-Axis Travel: +160° to -180°
• C-Axis Rotation: 360°

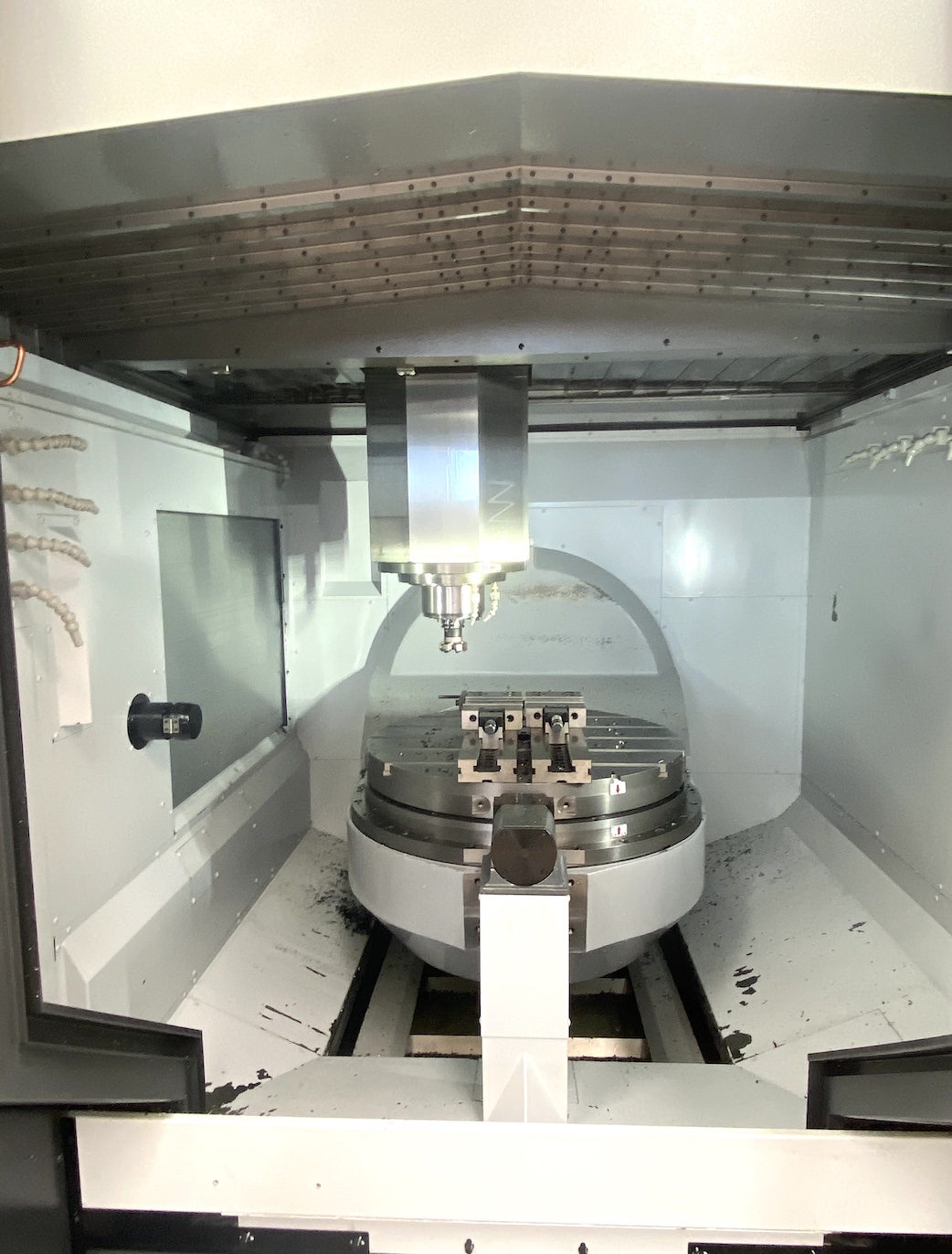

• Working Area (X × Y × Z): 47.24″ × 36.22″ × 24.02″

(1,200 × 920 × 610 mm)

• Tool Magazine Capacity: 61 positions
• Automatic Tool Changer: Chain type (Cadena)
• Max. Tool Diameter (adjacent positions empty): 5.71″ (145 mm)
• Max. Tool Diameter (standard): 3.54″ (90 mm)
• Max. Tool Weight: 17.6 lbs (8 kg)
• Max. Workpiece Weight: Not specified
• Machine Weight: 44,092 lbs (20,000 kg)
• Coolant Tank Capacity: 248 gallons (940 L)
• High-Pressure Pump: 725 psi (50 bar)
• Internal Cooling: Yes

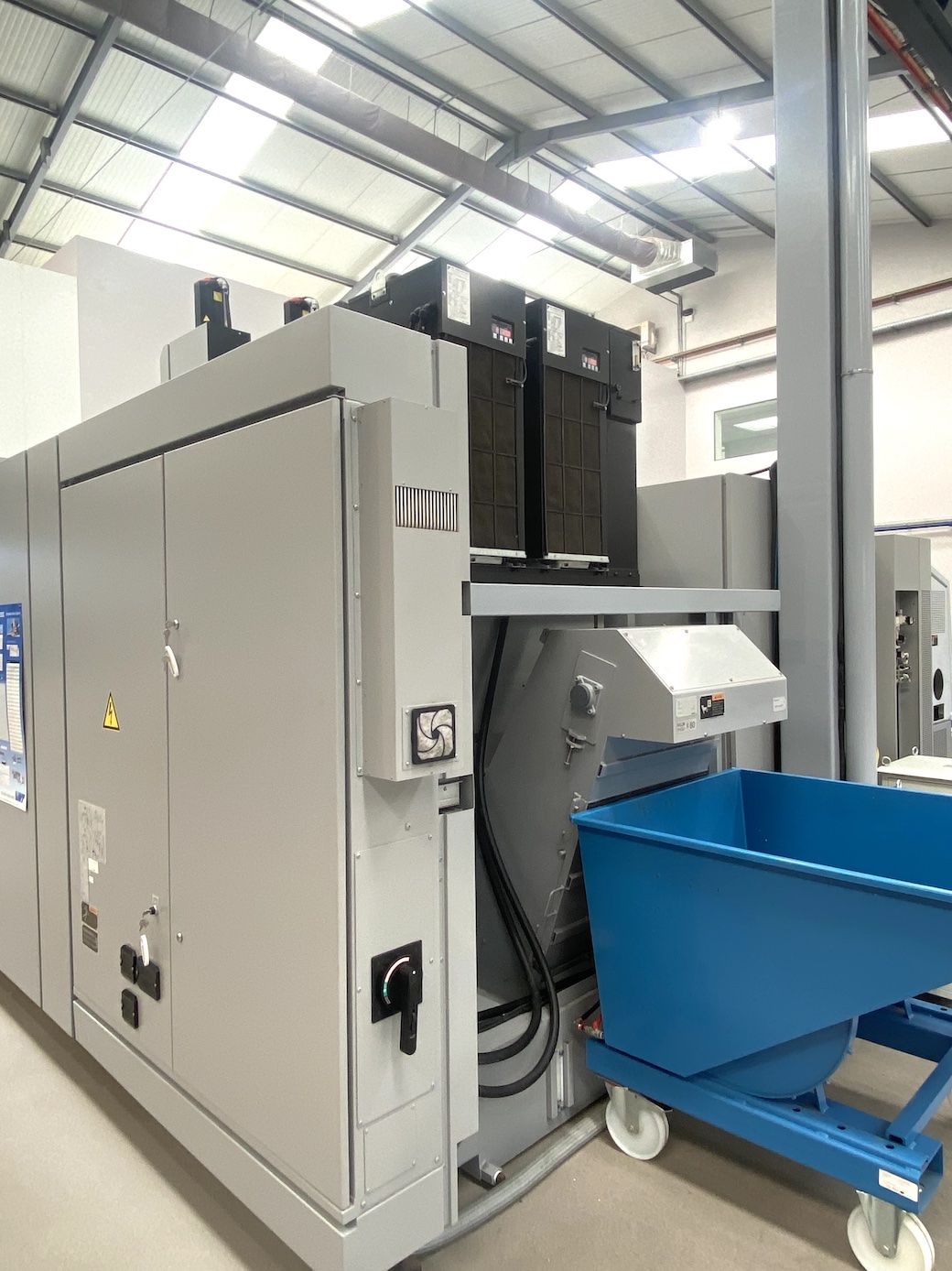

• Chip Extractor: Yes

SPINDLE

• Spindle Type: HSK-63
• Max. Spindle Speed: 20,000 rpm

PERFORMANCE

• Max. Rapid Traverse (X, Y, Z): 1,575 in/min (40,000 mm/min)

CONTROL SYSTEM

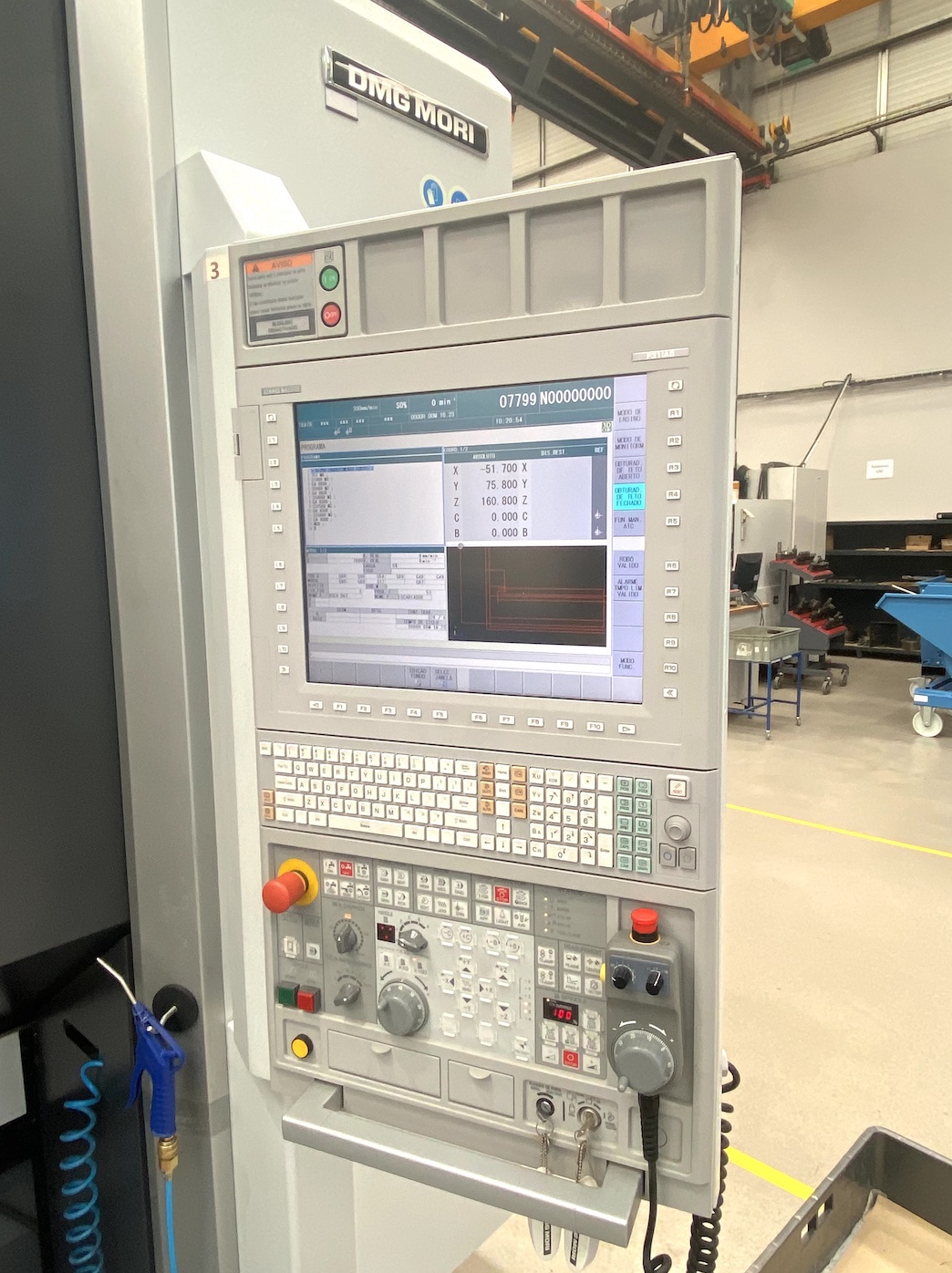

• Control: F31iA5

FEATURES

✓ High-speed 5-axis simultaneous machining

✓ Large tool magazine with 61 positions

✓ High-pressure coolant system for deep cutting

✓ Internal cooling for improved tool life

✓ Robust DCG (Direct Drive Technology) for stability and precision

✓ Chip extraction system for efficient operation

✓ Advanced CNC control for complex geometries

APPLICATIONS

• Aerospace components
• Automotive manufacturing
• Mold and die production
• Precision engineering
• Complex 5-axis contour machining
• High-speed milling operations
