300 Ton Dake #23-140, 30″ between side frames

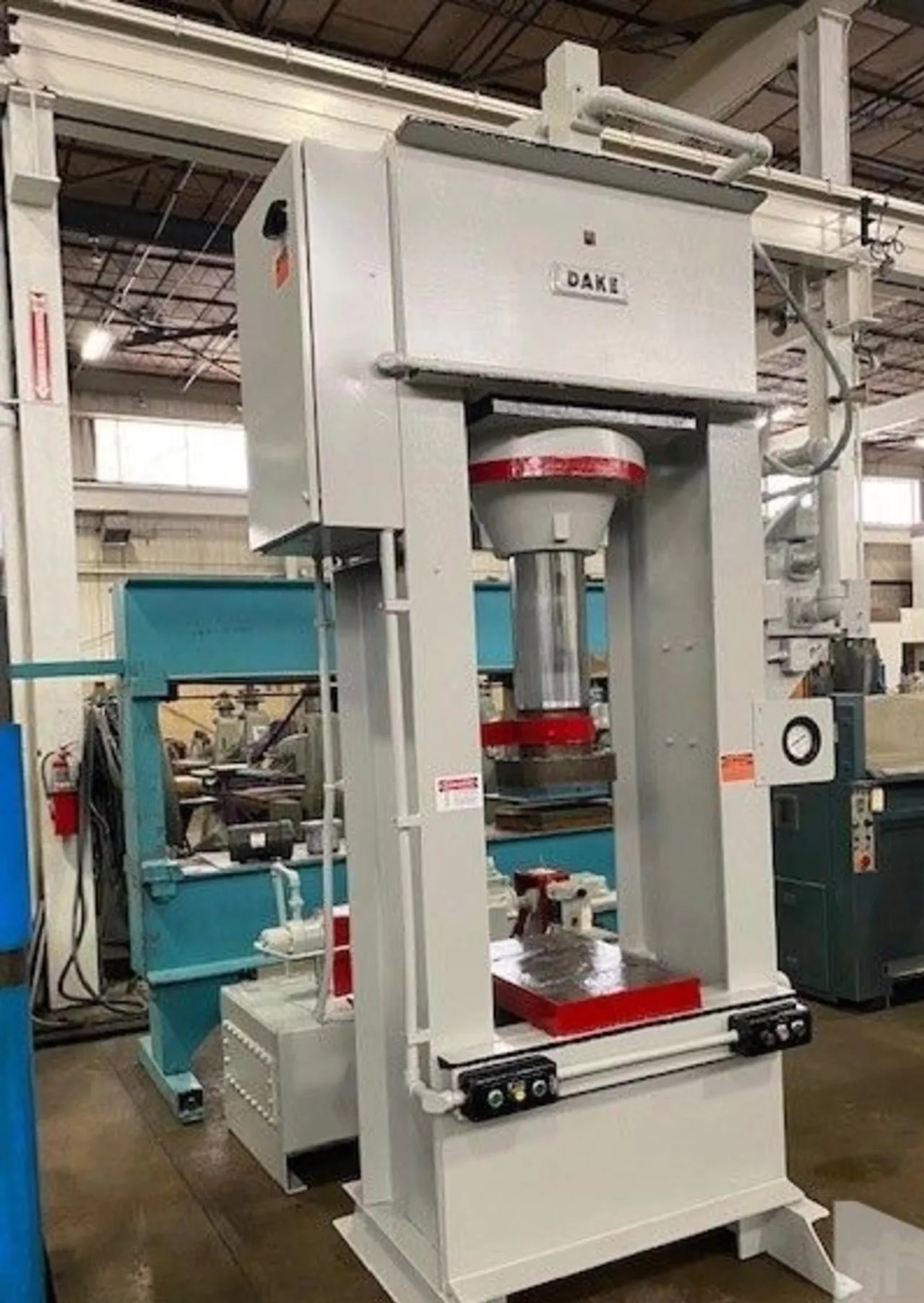

300 TON DAKE #23-140 HYDRAULIC H-FRAME PRESS
Floor standing
Distance between side frames: 30″ L-R
Distance between bed channels: 30″ L-R x 16.5″ F-B
Distance over bed channels: 32″ F-B
Area of bed: 18″ L-R x 30″ F-B
Stroke of ram: 0 – 16″ maximum
Daylight opening: 42″ maximum (38″ maximum over plate)
Main ram diameter: 11.5″/9″ @ 5776 PSI – 300 tons
Power unit: Vickers hydraulic pump &
Dynex hydraulic pump, both driven by
25 HP 1800 RPM 220/440/3/60 motor
Speeds approx.: 115″/minute closing
8″/minute pressing to 300 tons
265″/minute return
Controls: Pushbutton operation with stroke &
pressure control
Dual palm buttons
Pressure gauge
Weight approx. 8500 lbs. – press
1000 lbs. – power unit
Overall dimensions approx. 80″ L-R x 36″ F-B x 135″ H – press
72″ L-R x 32″ F-B x 42″ H – power unit
