CMS ARES-4818-PX5-Z1200
5 AXIS CNC ROUTER
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

SPECIFICATIONS
• Manufacturer: CMS
• Model: ARES-4818-PX5-Z1200
• Year: 2022
• Type: 5 Axis CNC Router

AXIS CONFIGURATION
• Number of Axes: 5
• Number of Spindles: 1

TABLE CAPACITY
• Table Width: 53.35″
• Table Length: 191.34″

SPINDLE DETAILS
• Spindle Motor: 29.9 HP
• Spindle Speed: Up to 24,000 RPM

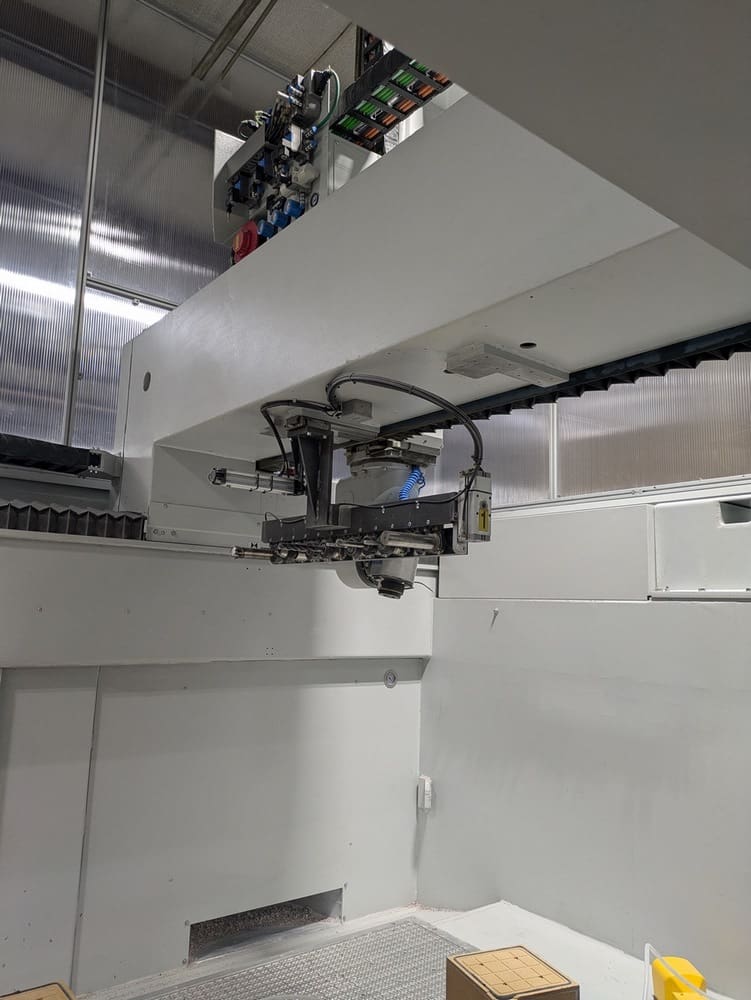

• Spindle Type: PX5 Spindle
• Cooling: Liquid Cooled Closed Loop Spindle

AXIS TRAVEL
• Z-Axis Travel: 47.24″

TOOLING SYSTEM
• Tool Changer: 12-Station Rack Tool Magazine
• Tool Holder: HSK 63/A

CONTROL SYSTEM

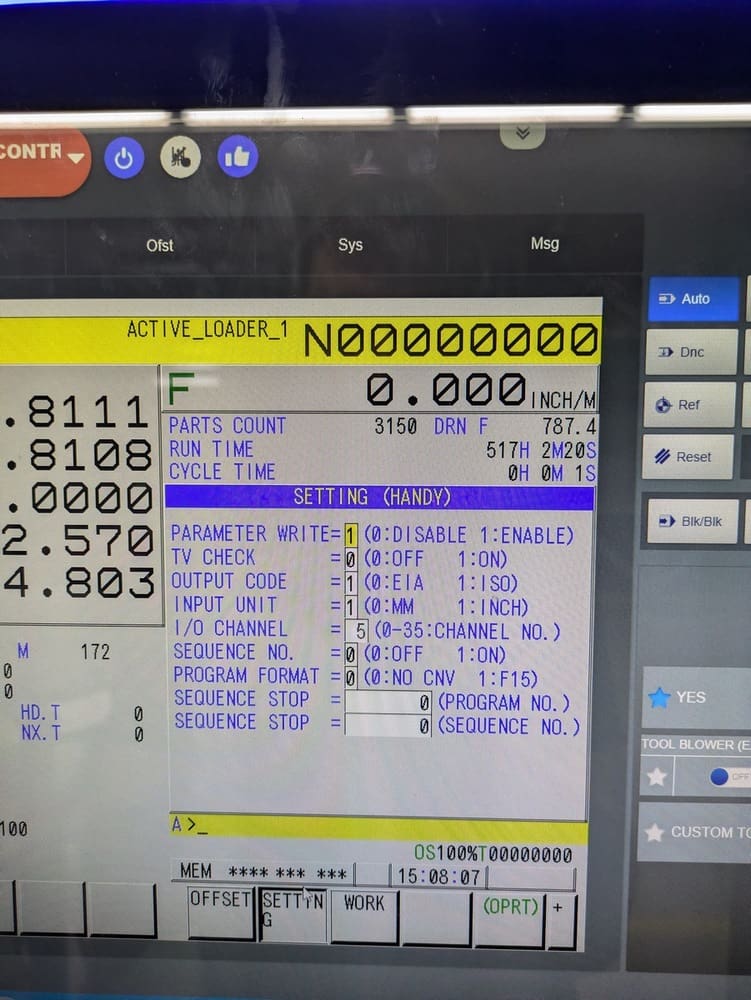

• CNC Control: Fanuc 31i-B5

POWER REQUIREMENTS
• 480V – 3 Phase – 60Hz

FEATURES

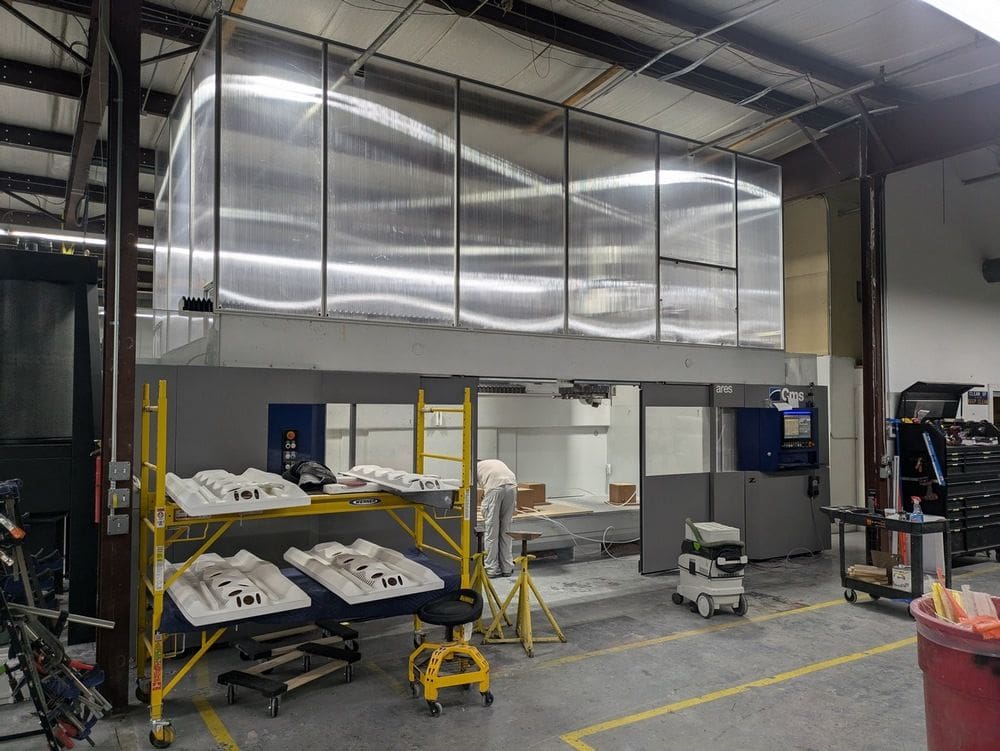

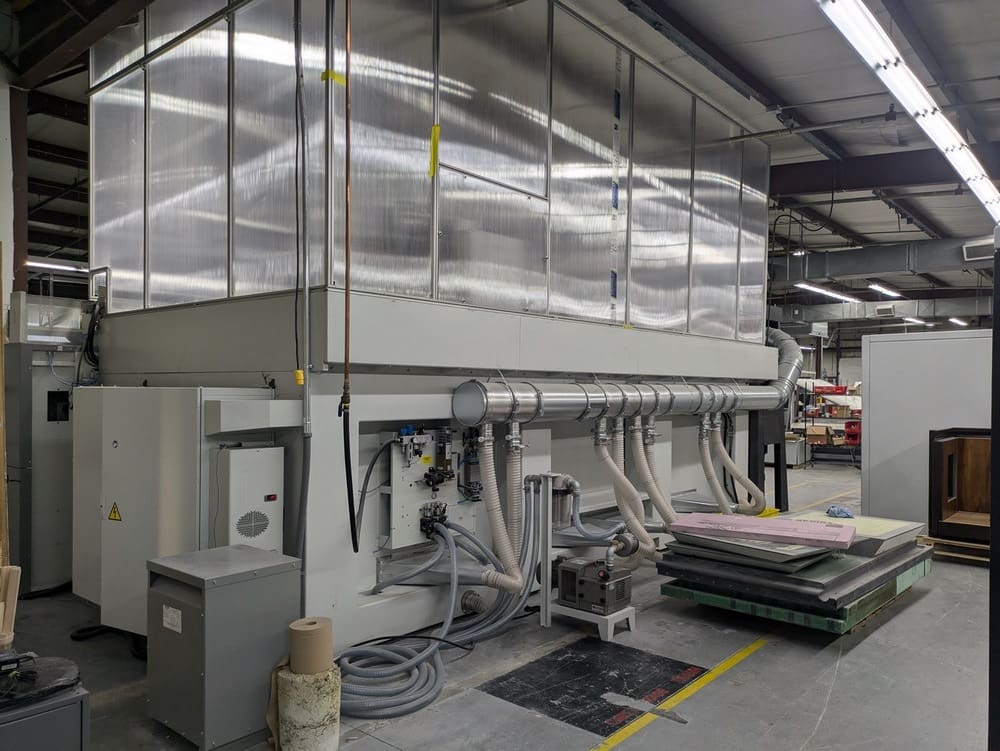

• 80/20 and Polycarbonate Enclosure
• Additional Protection Against Carbon Fiber Dust
• Aluminum Vacuum Table
• Direct Encoders on Rotary Axes
• Scales on Linear Axes
• Removable Central Shield

EQUIPMENT INCLUDED

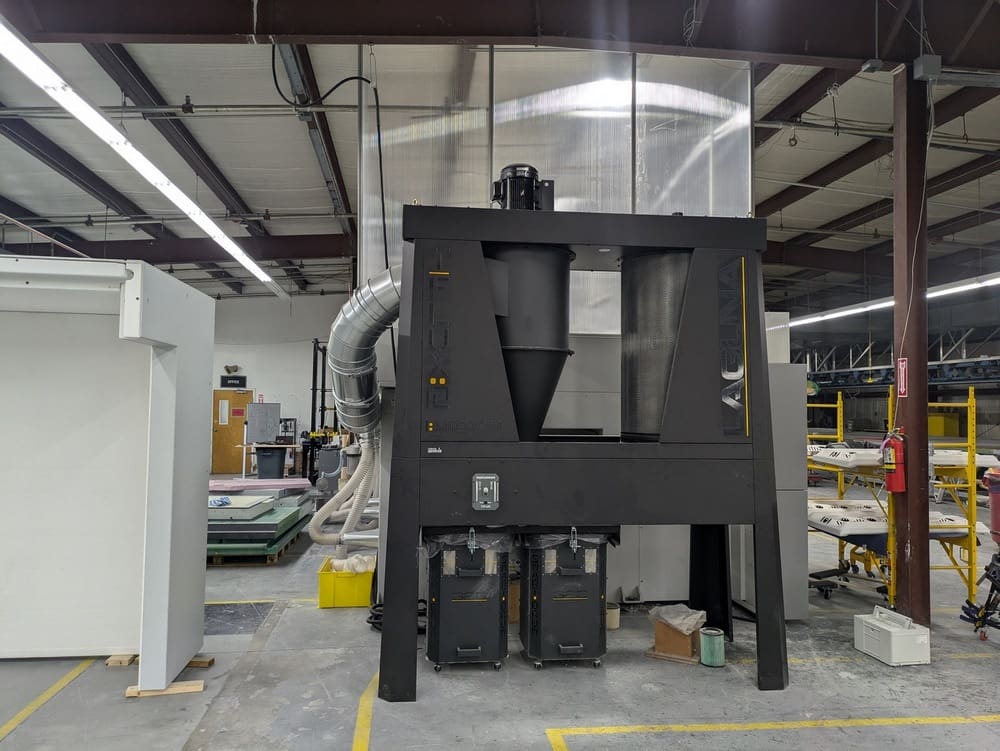

✓ Laguna Tflux10 Dust Collection System
✓ Becker Vacuum Pump
✓ Renishaw TS27R Tool Setter
✓ Handheld Controller
✓ Machine 3D File – Parasolid Format
