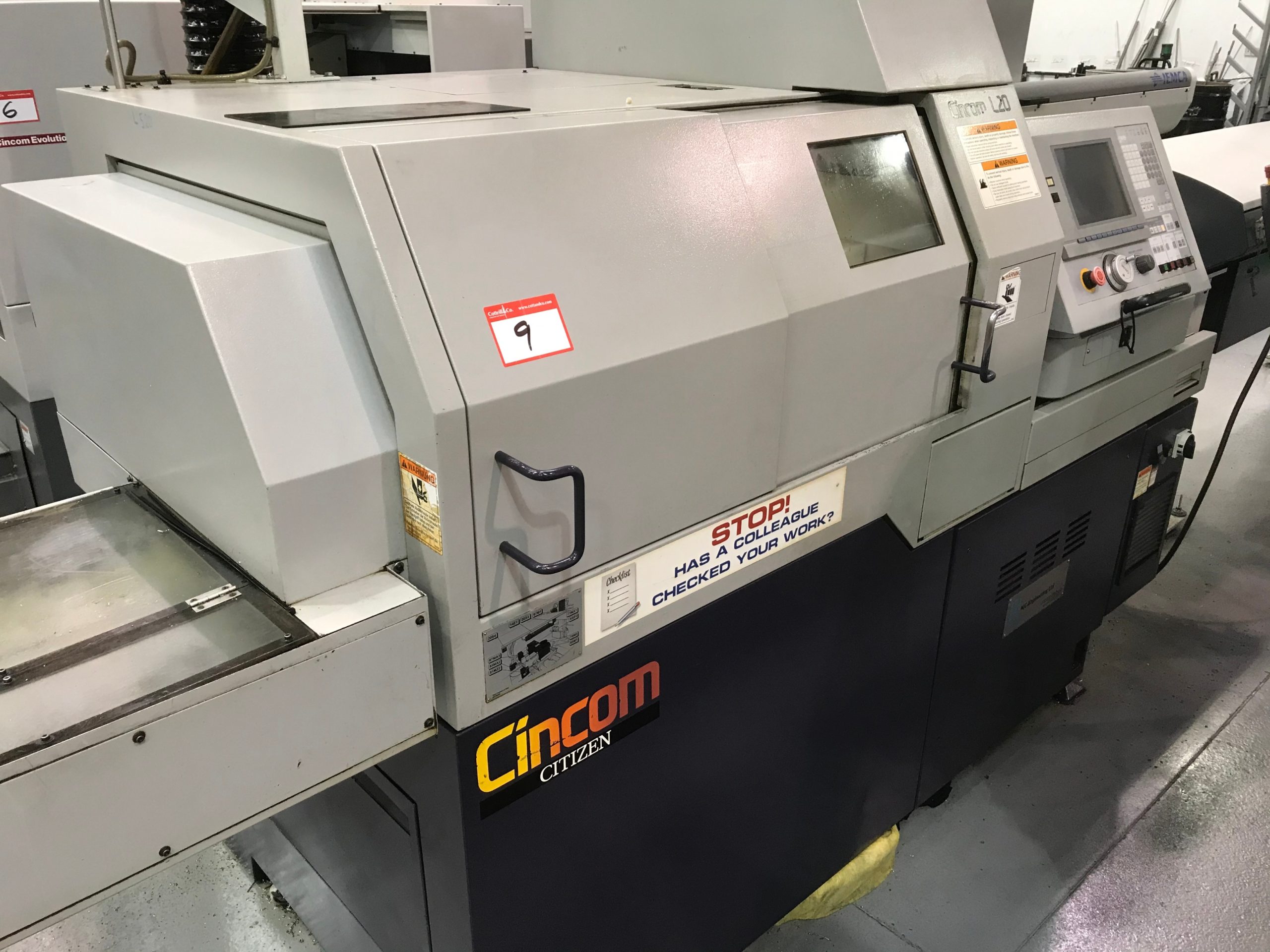

GENERAL INFORMATION

• Manufacturer: Citizen

• Model: L20-VIII (L5-20)

• Year: 2004

• Type: Sliding Headstock CNC Lathe

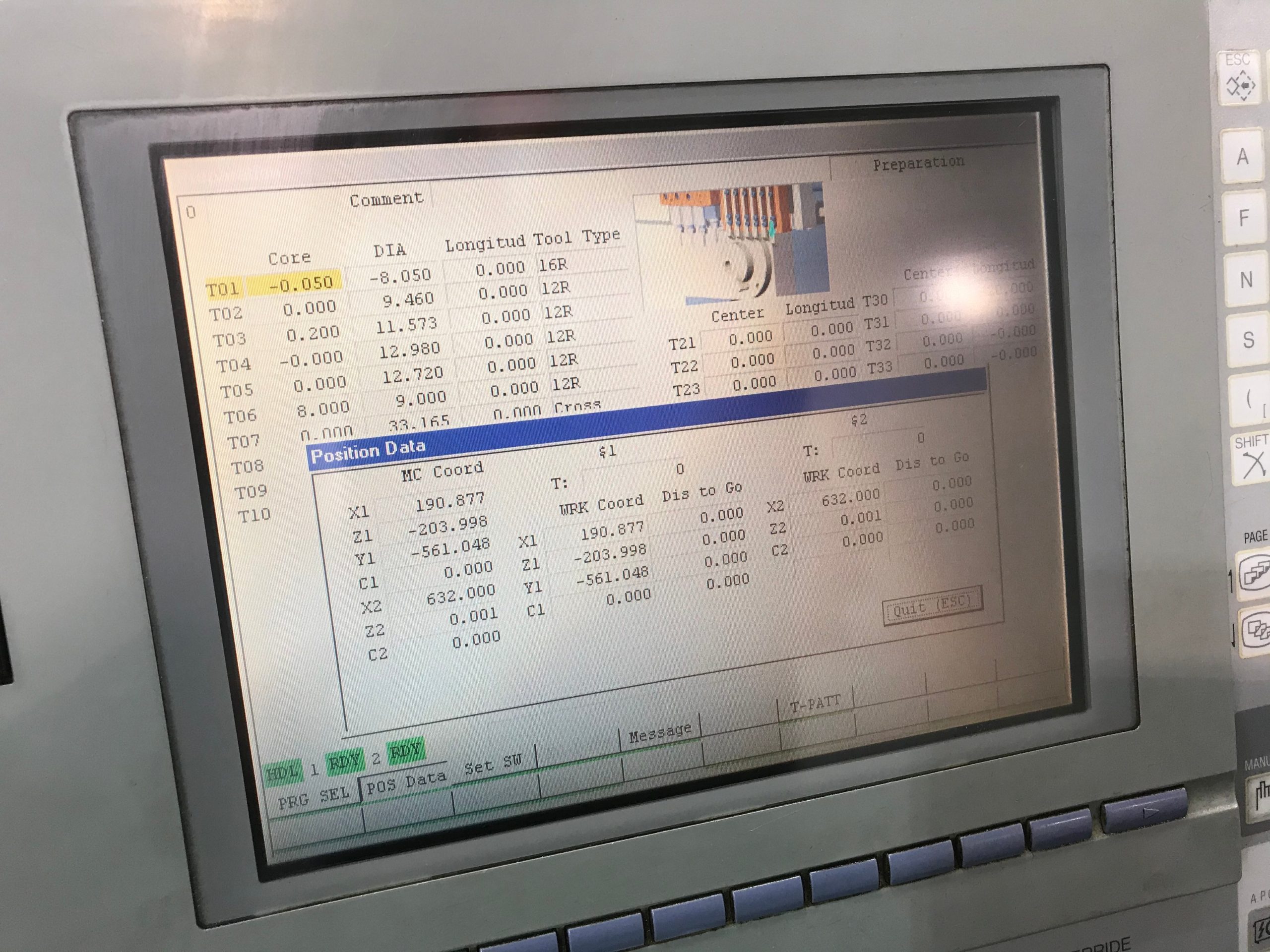

• Control: CINCOM

• Condition: Used

SPECIFICATIONS

• Number of Axes: 8

• Bar Capacity: 20 mm

• Max Machining Length: 200 mm

• Main Spindle Speed: Up to 10,000 RPM

• Main Spindle Motor: 2.2 / 3.7 kW

• Sub Spindle Speed: Up to 8,000 RPM

• Sub Spindle Motor: 0.75 / 2.2 kW

EQUIPPED WITH

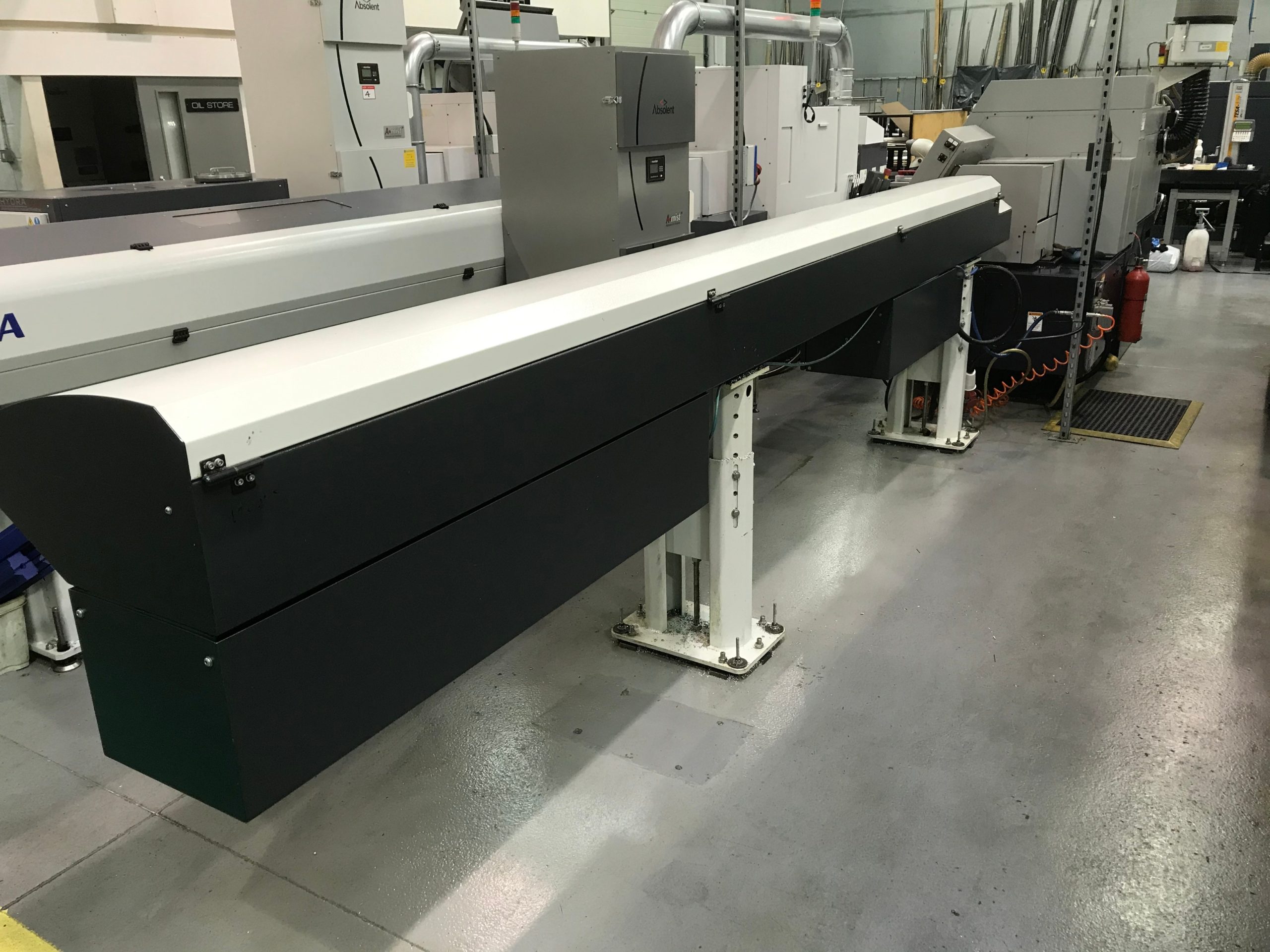

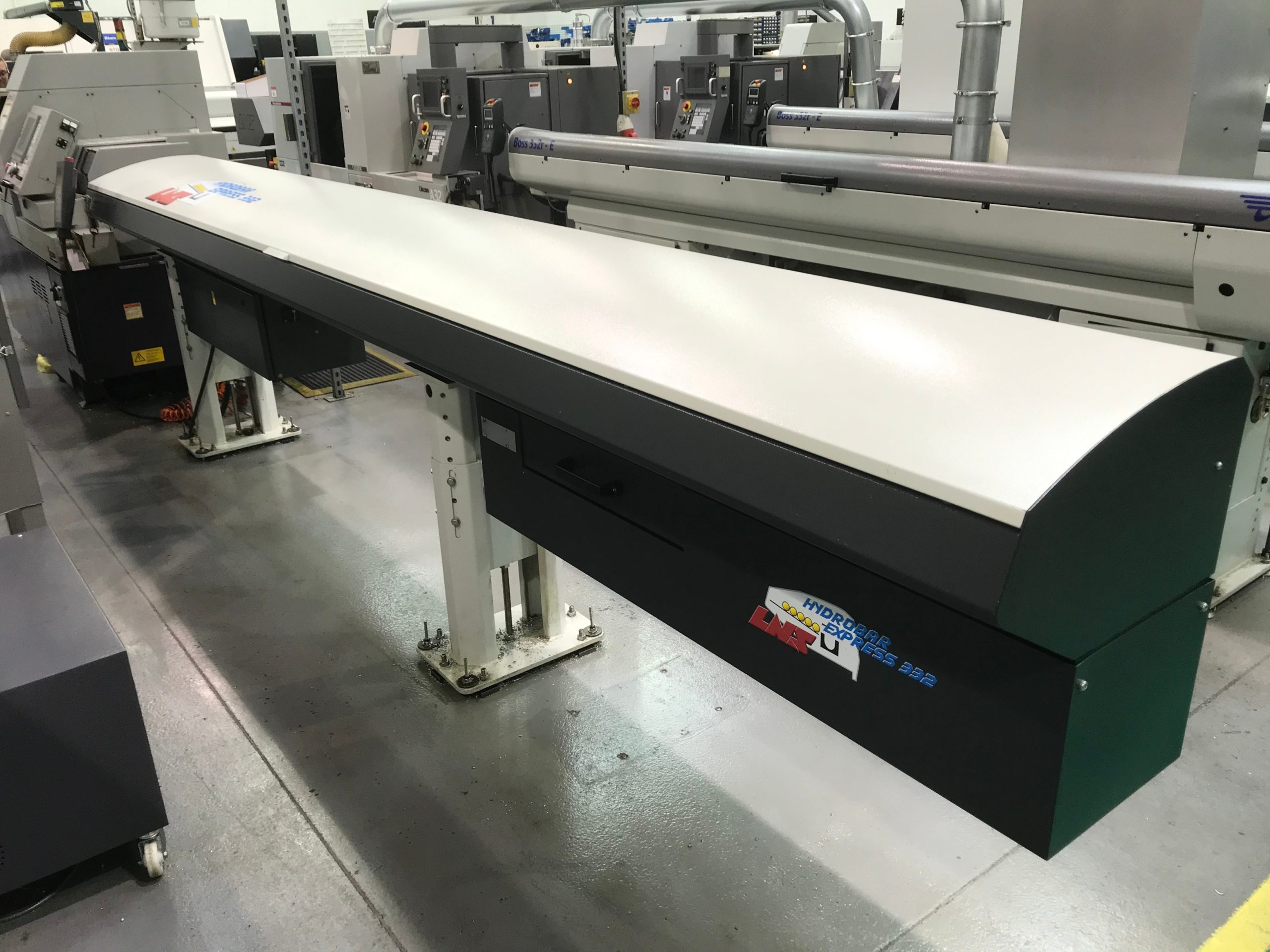

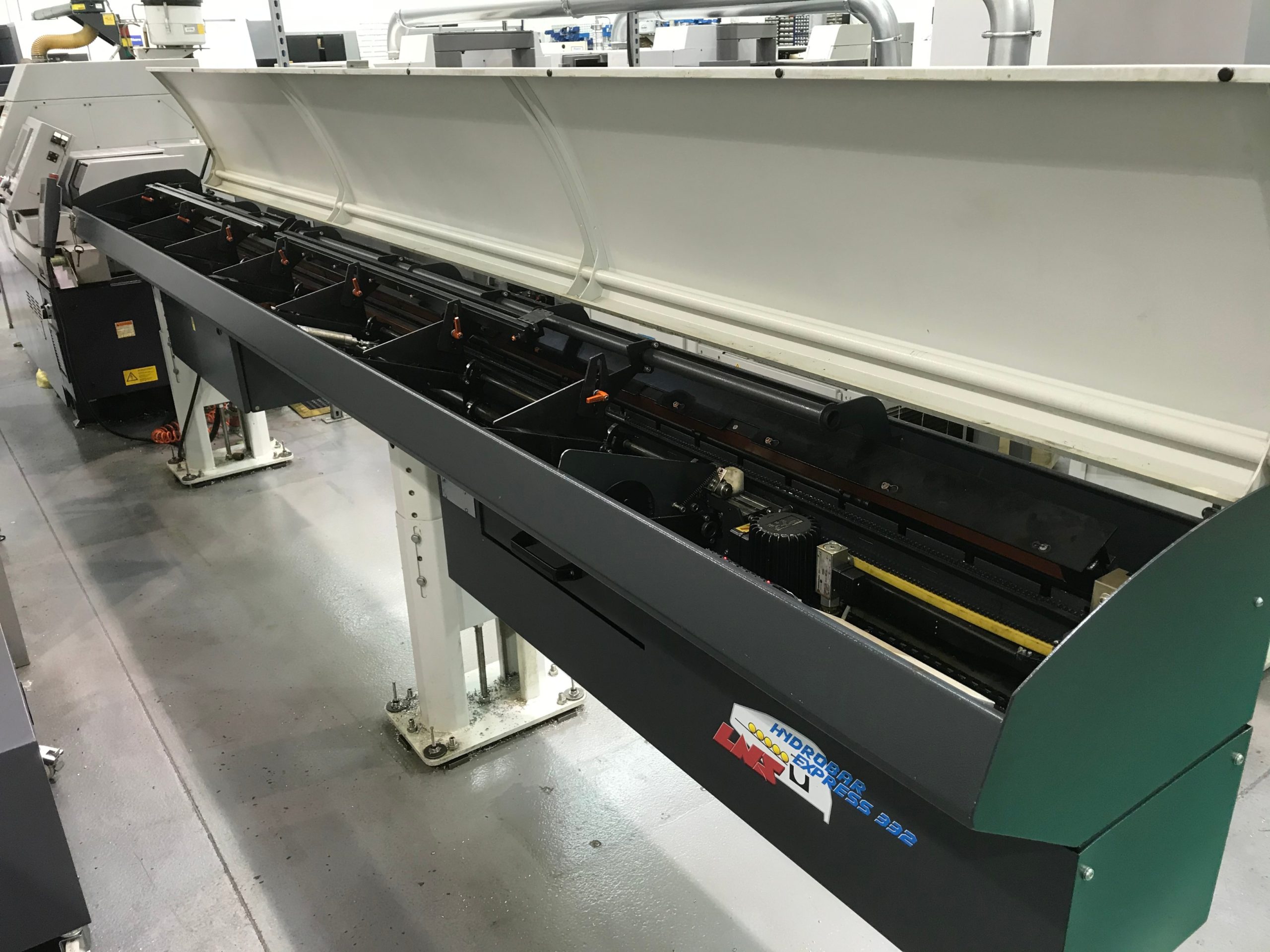

• LNS Hydrobar Express 332 automatic bar feeder

• Parts conveyor

• Long parts adaptor

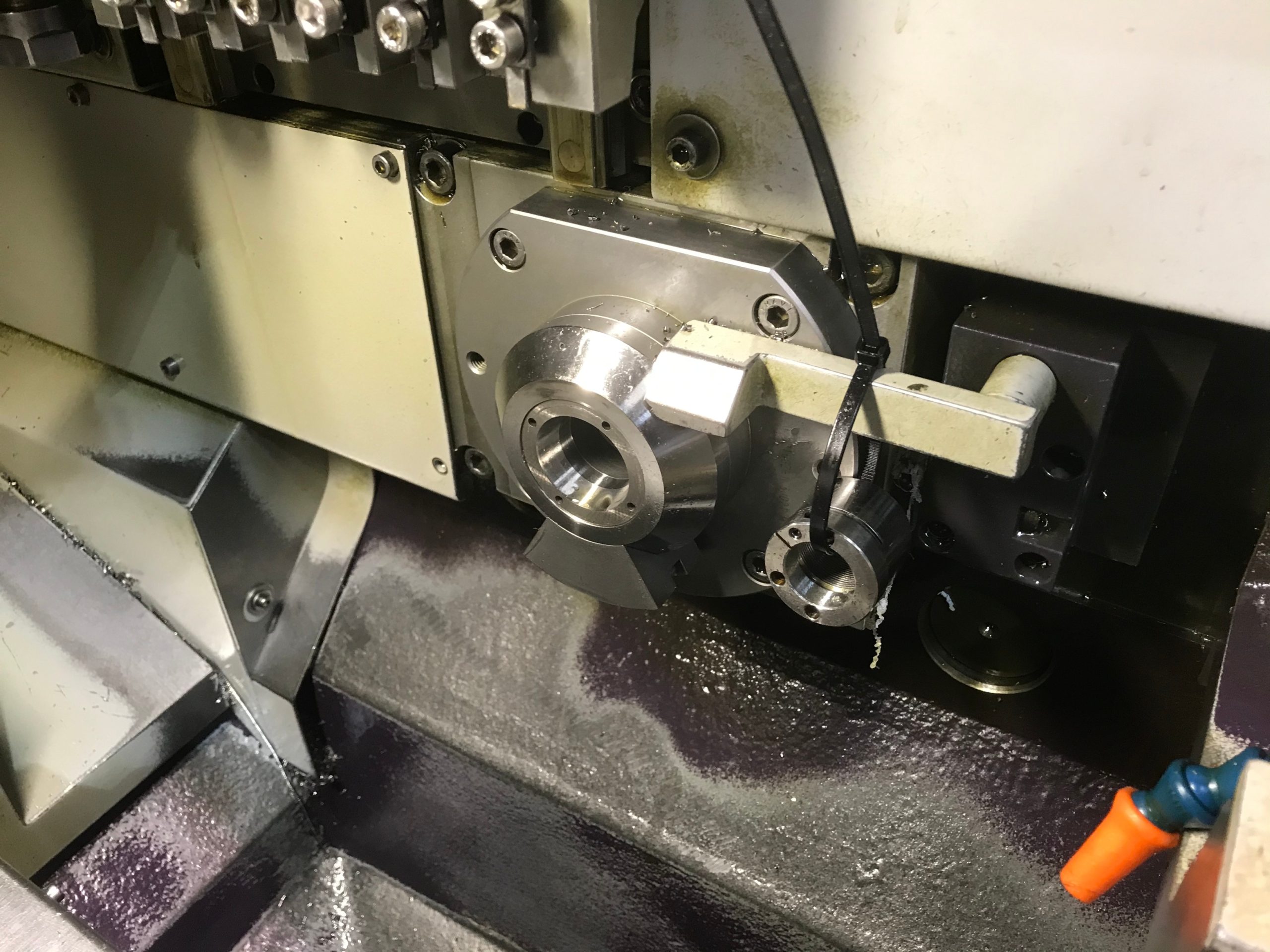

• Ejecting jig for through-hole workpieces

• Part-off tool breakage detection (probe type)

• Cutting oil level detection system

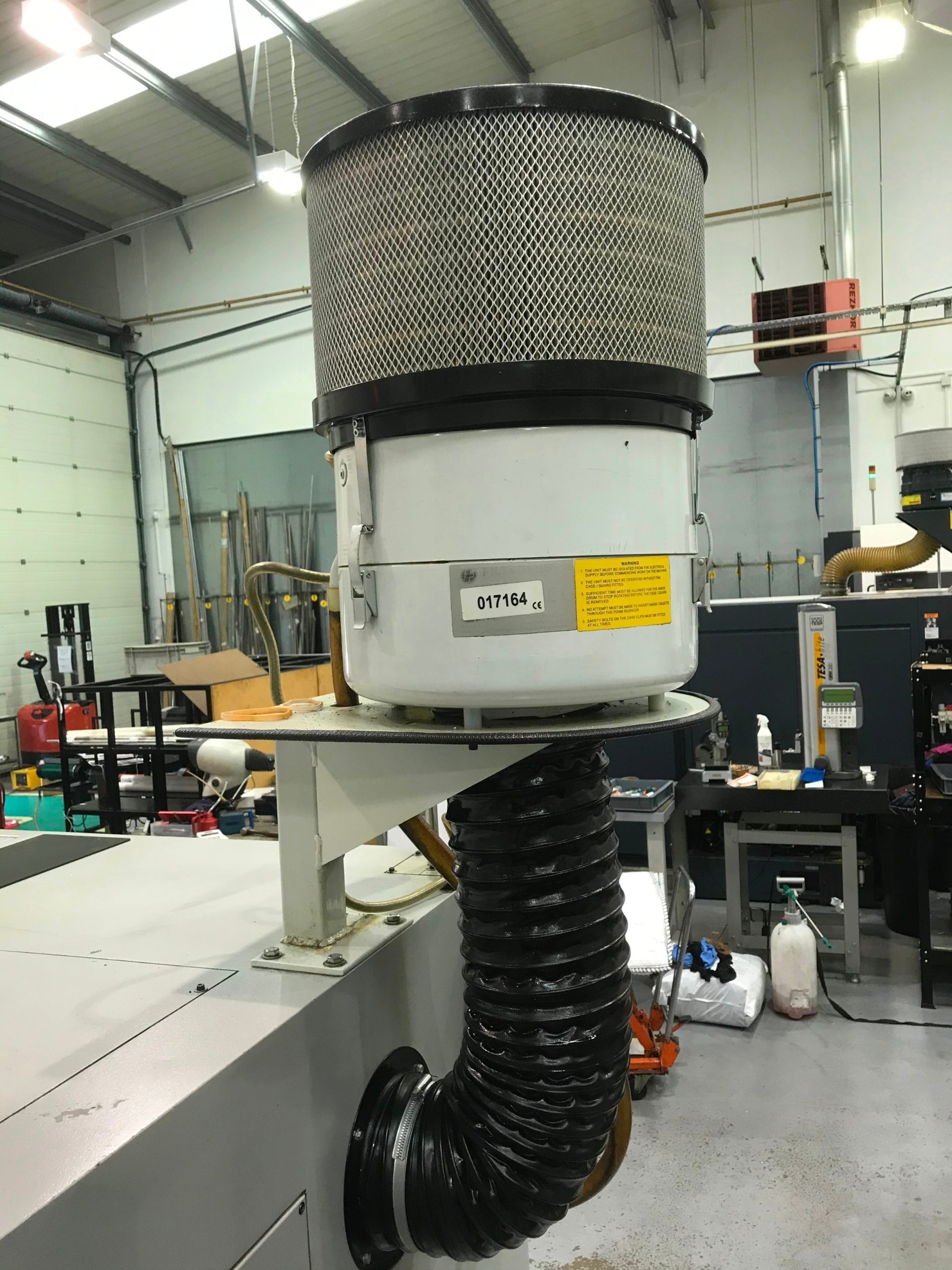

• Filtermist extractor

• Automatic fire extinguisher system (Dupont 134 gas)

SPECIAL FUNCTIONS

• User macro capability

• Main & sub spindle synchronized rotation

• Canned drilling cycles

• Single-point threading (sub spindle)

• Sub spindle 1° indexing

• Main spindle C-axis control

• Sub spindle C-axis control

FEATURES

✓ Advanced 8-axis sliding headstock machining

✓ High-speed main and sub spindle operation

✓ Integrated bar feeder for continuous production

✓ Multi-process capability with synchronized spindles

✓ Safety systems including fire suppression and tool monitoring

✓ Ideal for high-precision, high-volume small part production

APPLICATIONS

• Swiss-type precision machining

• Medical components

• Aerospace small parts

• Automotive components

• Electronics and connectors

• High-volume production of complex turned parts
