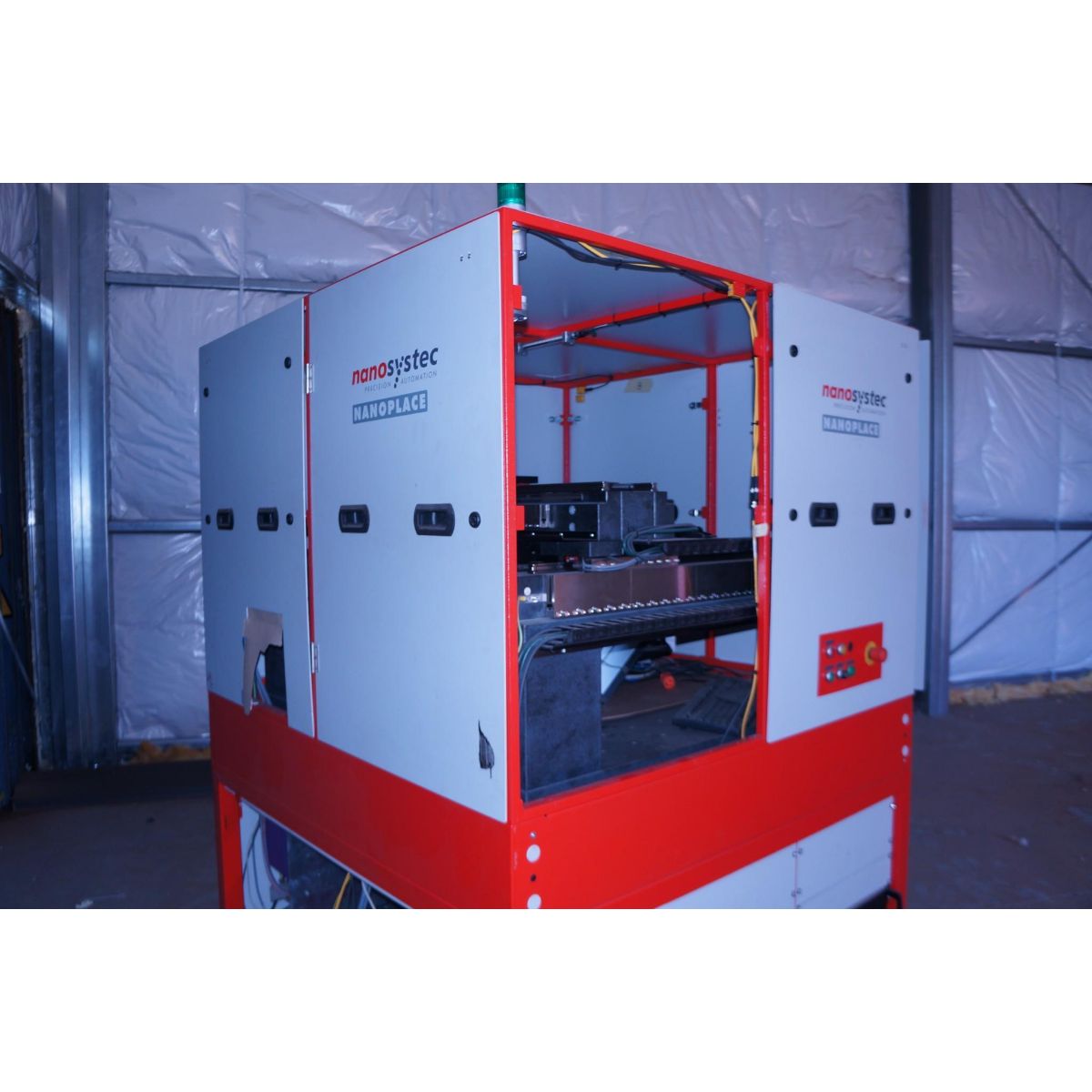

The 2020 NanoSysTec NanoPlace 3-Axis CNC Platform delivers exceptional precision for critical micro-assembly and manufacturing applications. This advanced industrial system combines cutting-edge technology with robust engineering to meet the demanding requirements of semiconductor, electronics, and precision manufacturing industries.

Key Features & Specifications:

• Ultra-high precision with 20nm resolution linear encoders and <100nm repeatability deviation

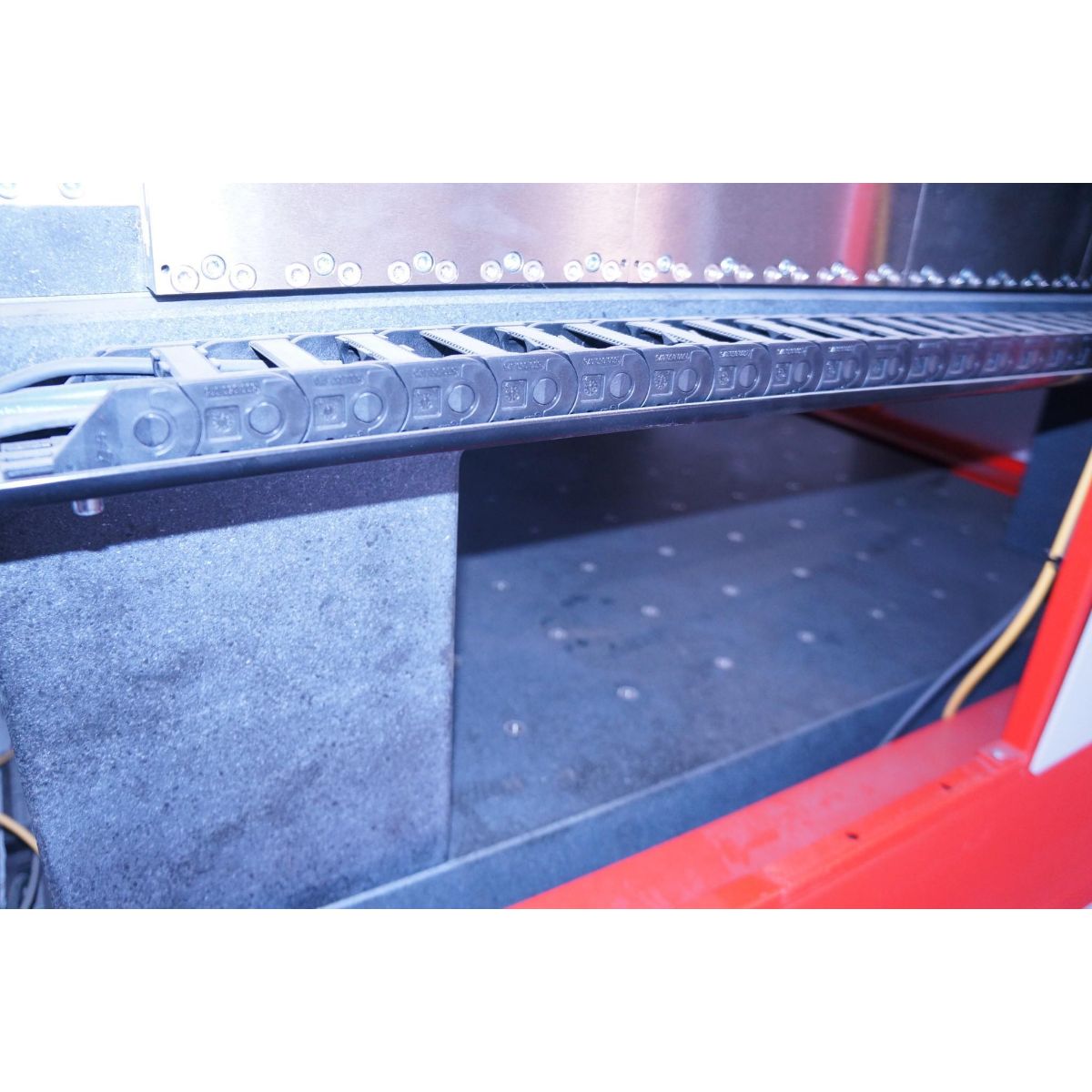

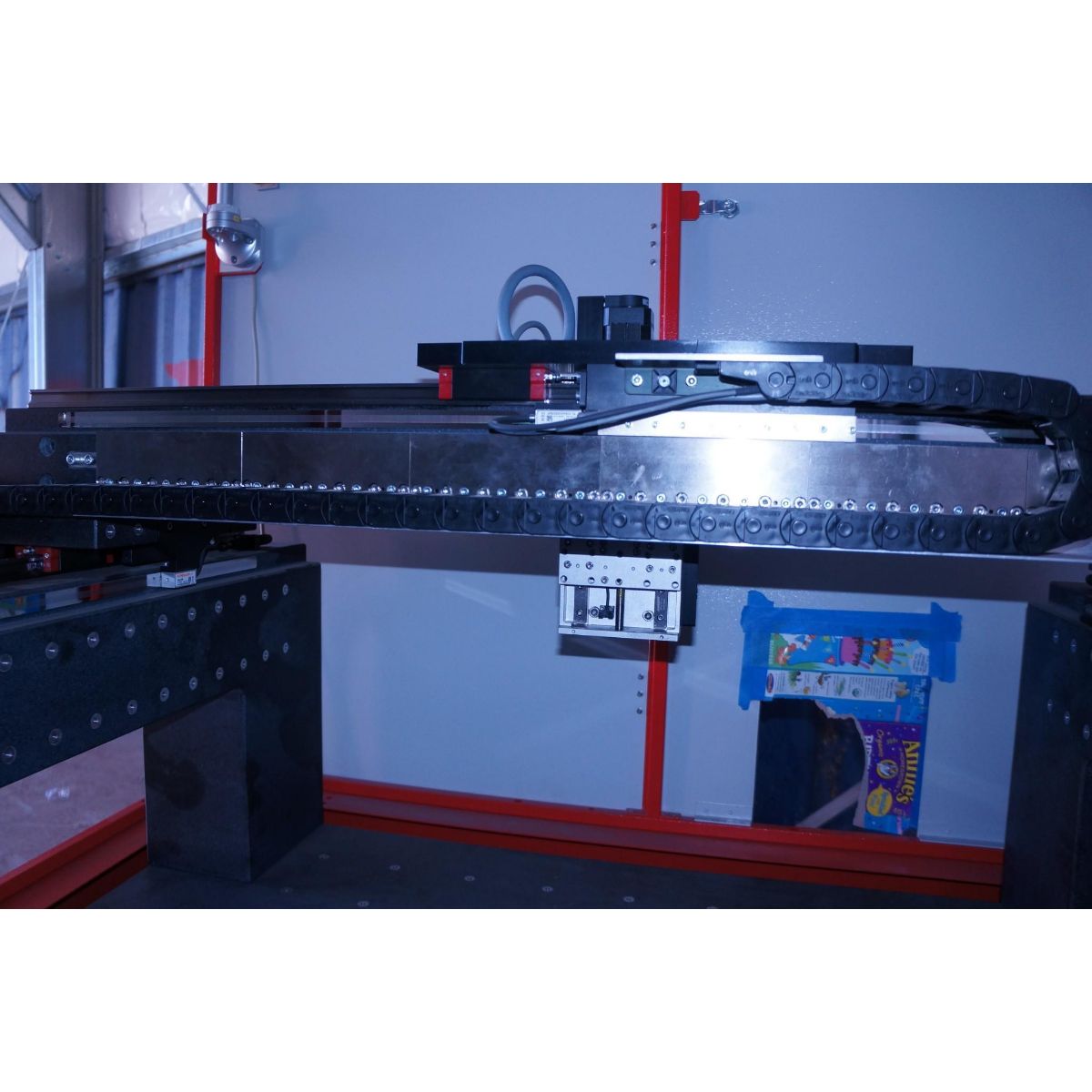

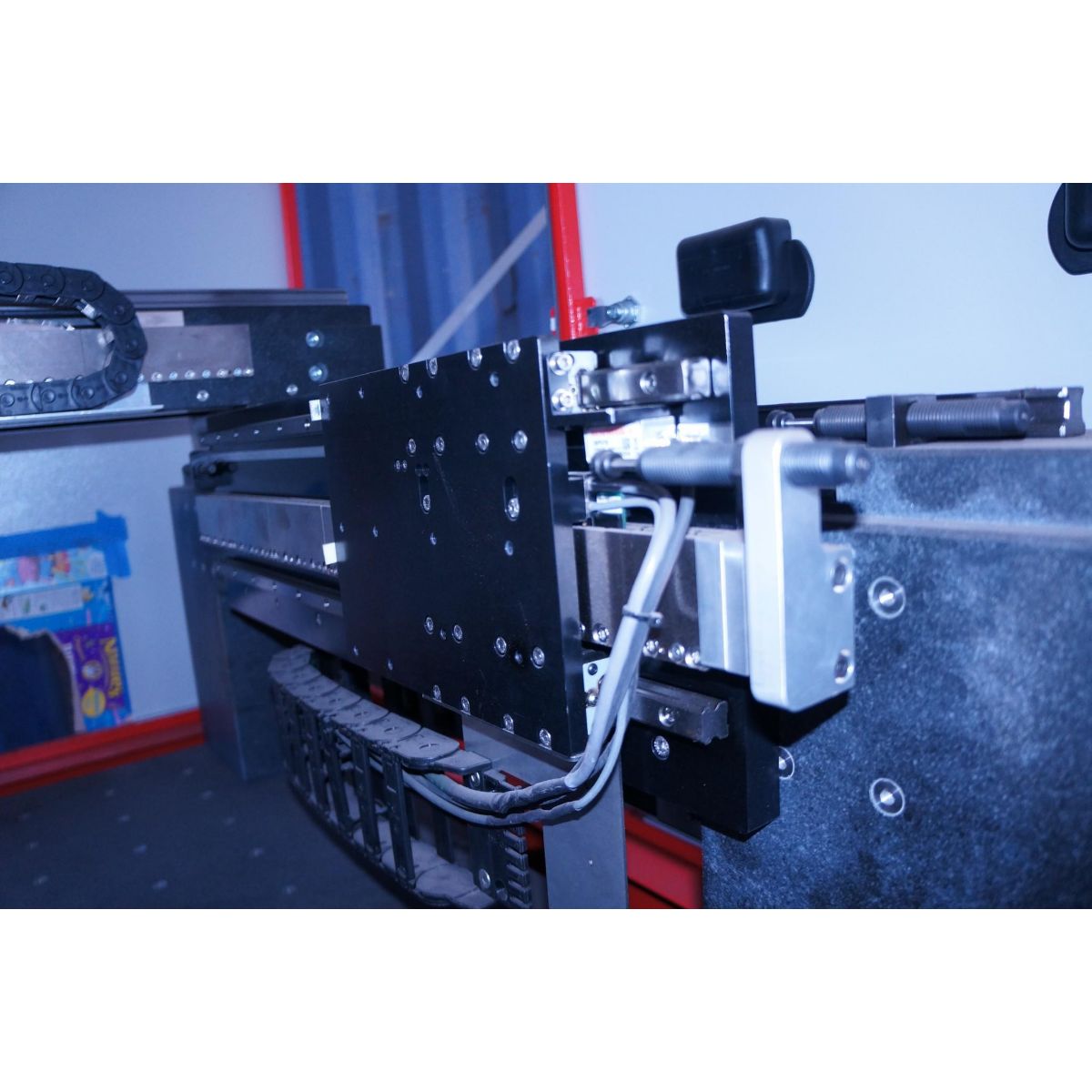

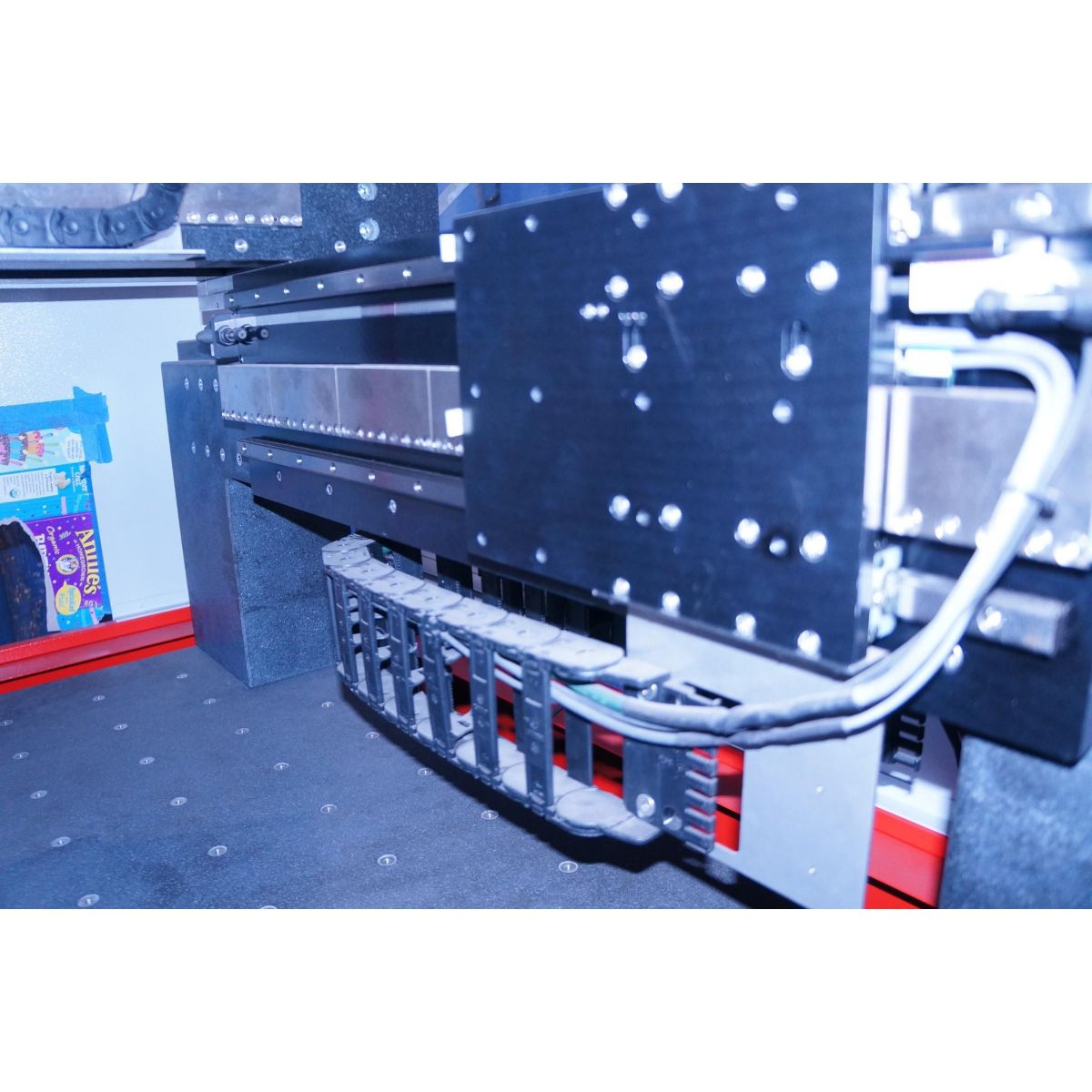

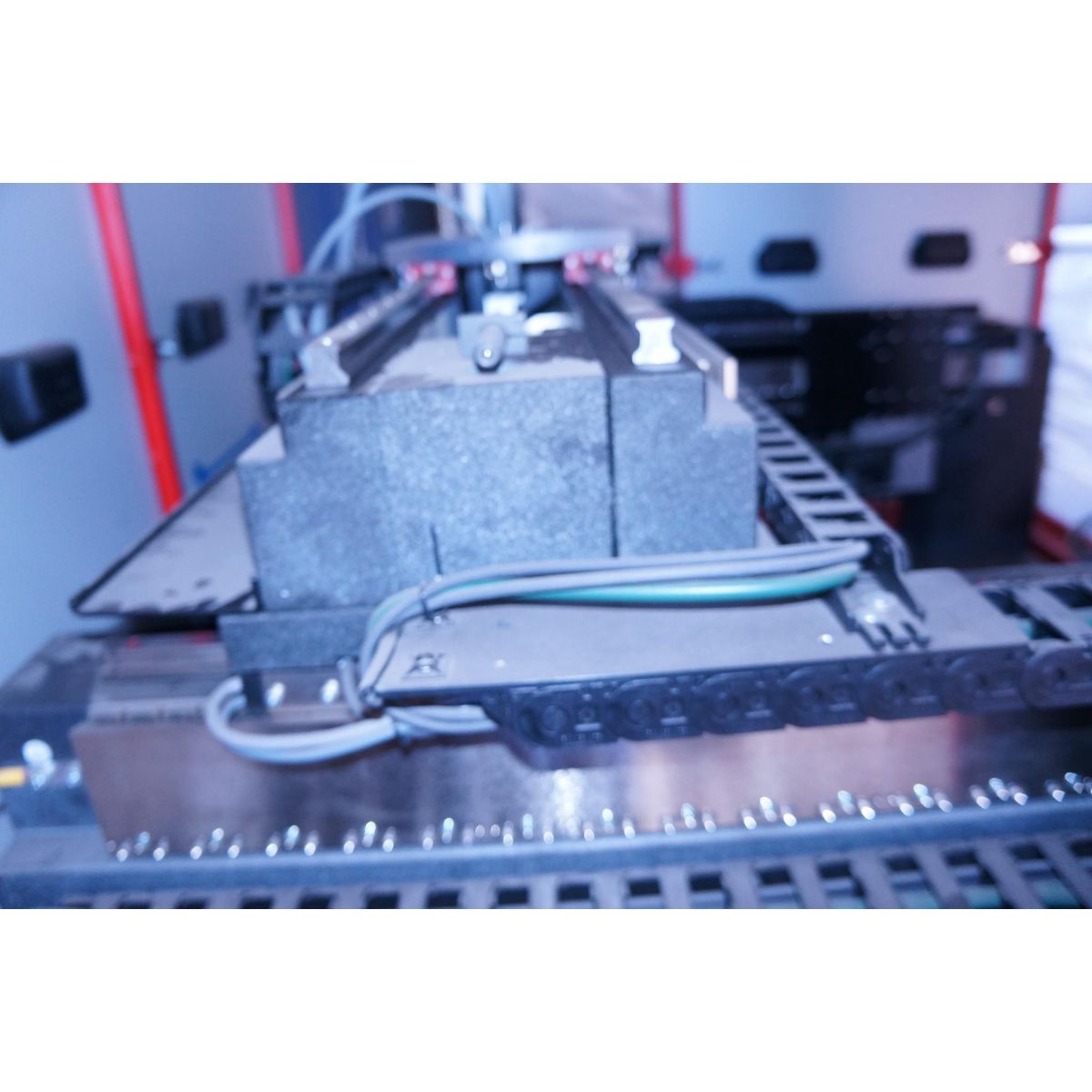

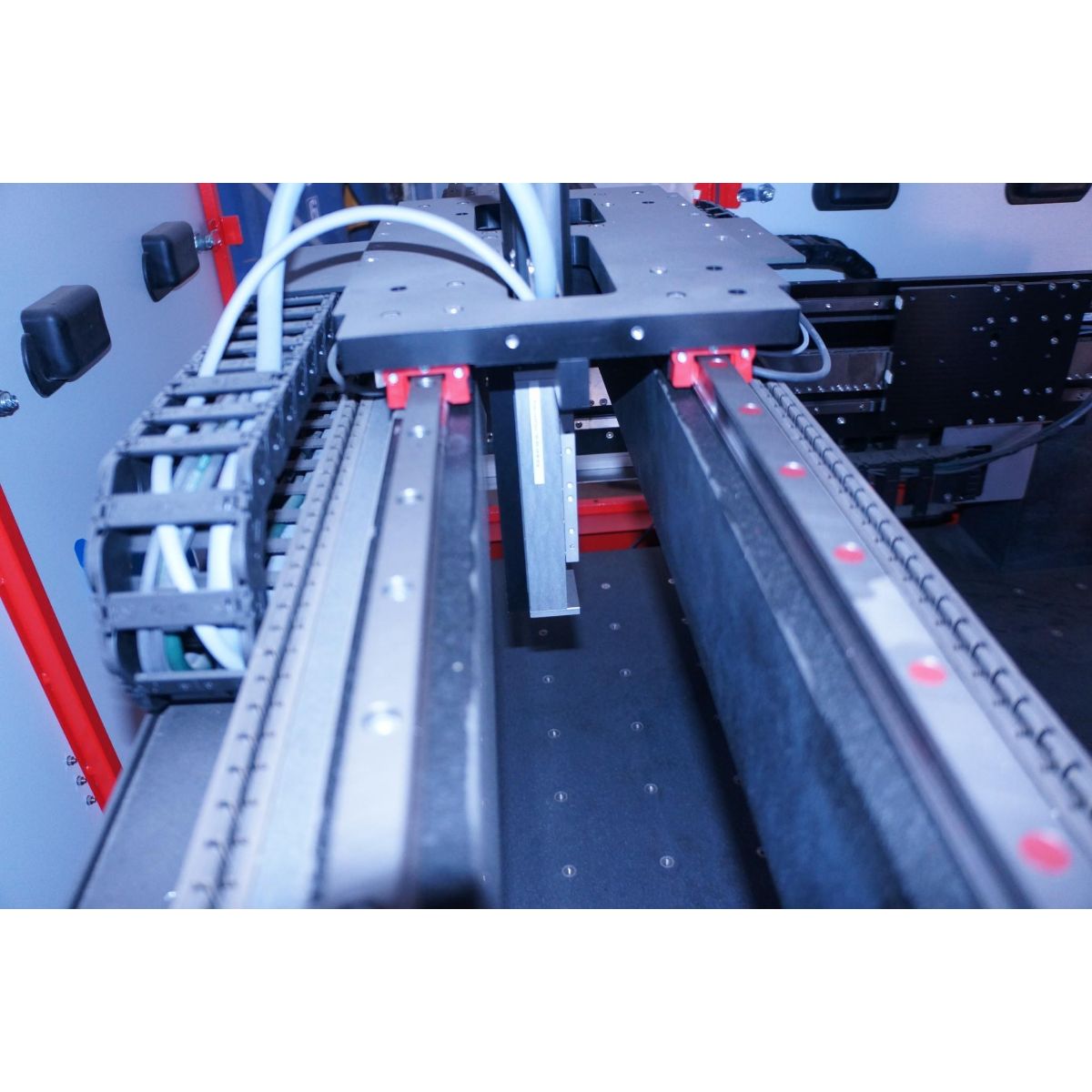

• Crossed-roller bearing stages for superior stability and high-speed operation
• Configurable work areas up to 1000mm x 1000mm for wafer and tray handling
• Choice of stepper or brushless DC motor options for optimal performance
• Integrated machine vision system with edge detection and pattern recognition
• Optical encoders with robust stage control for enhanced stability

Applications & Capabilities:

• High-precision micro-assembly and active component alignment
• Laser balancing and micro-cutting operations
• Advanced bonding techniques including UV/thermal epoxy cure, laser soldering, and eutectic bonding
• Automated part feeding via conveyor belts and collection systems

This turnkey solution offers manufacturers the precision control and automation needed for complex micro-manufacturing processes, ensuring consistent quality and improved production efficiency.
