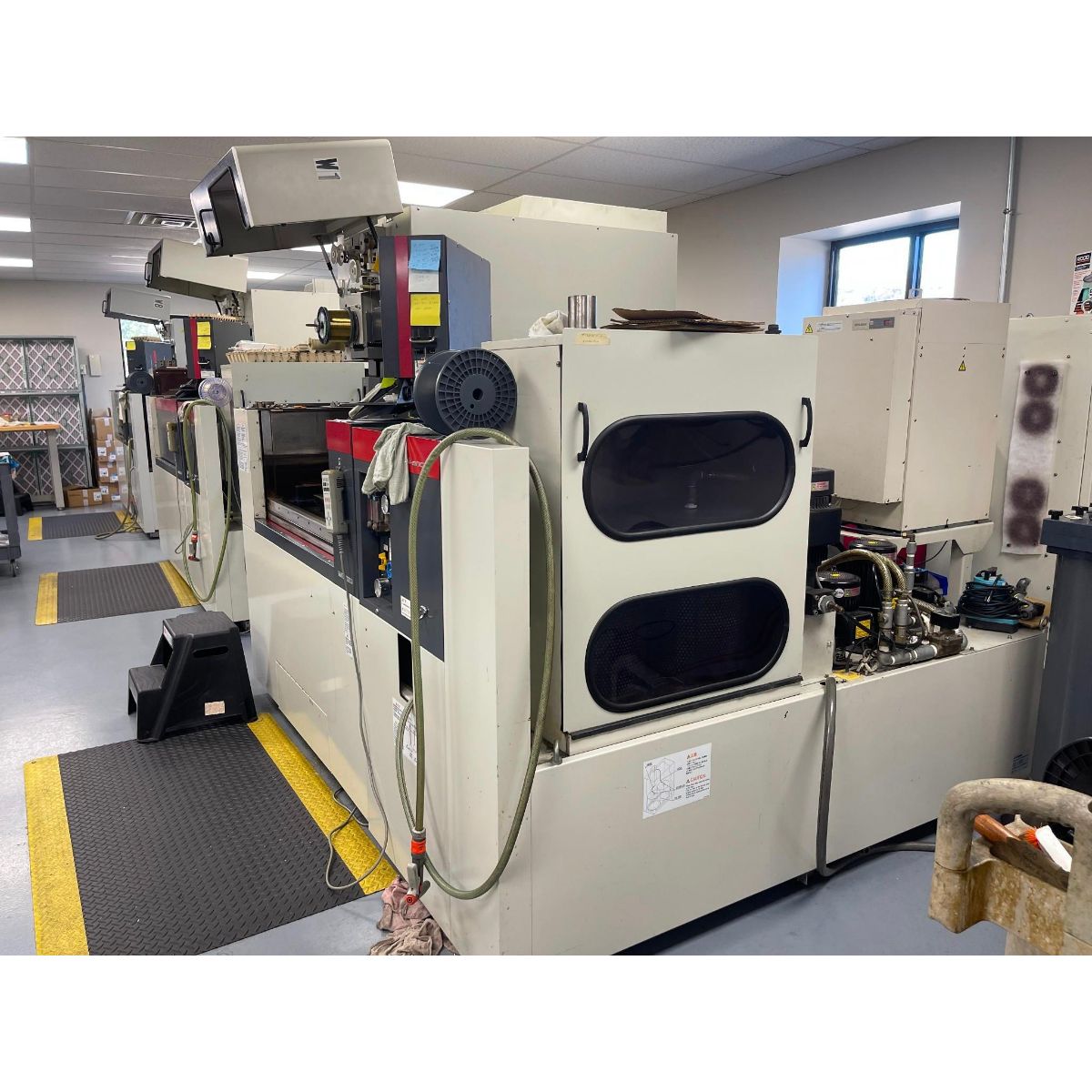

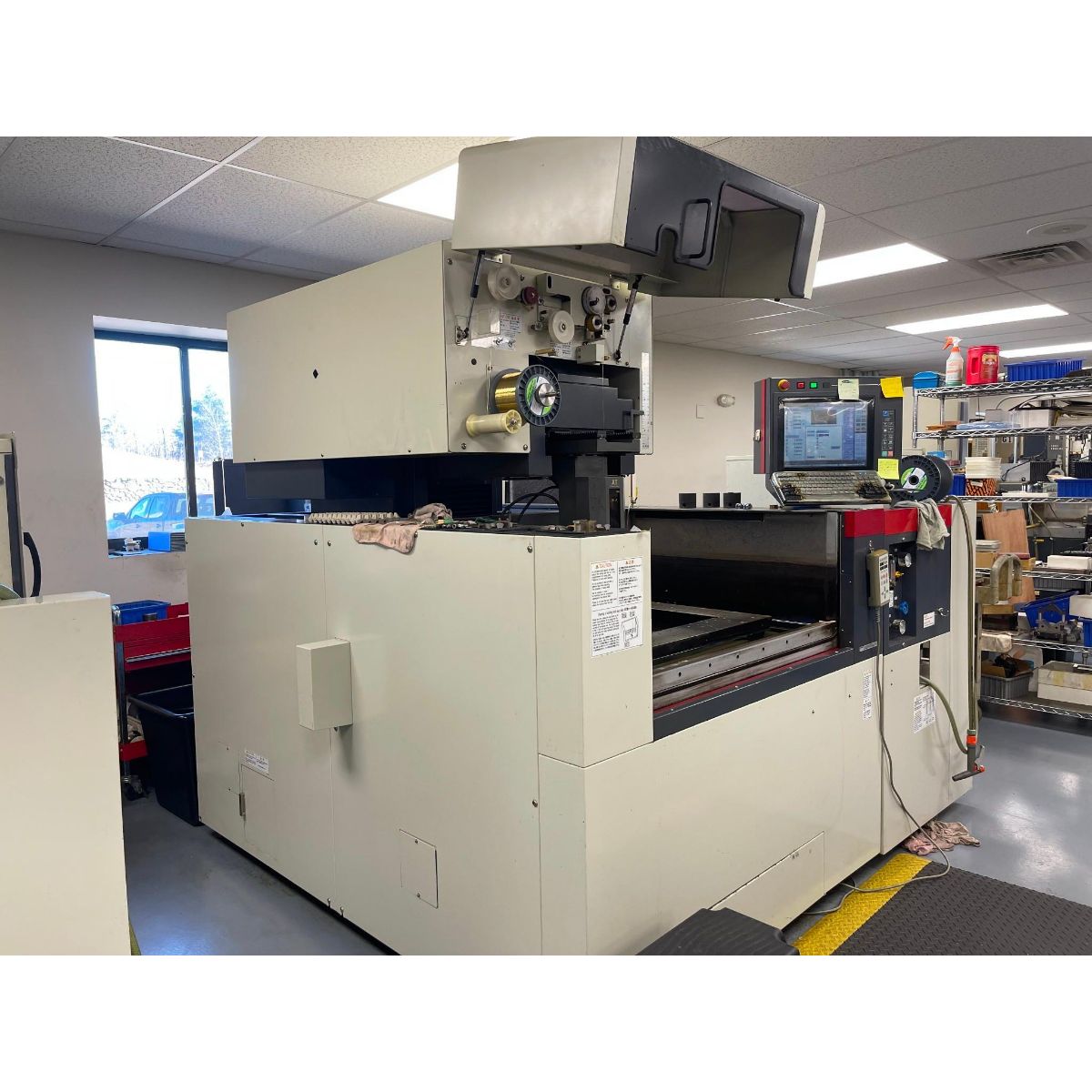

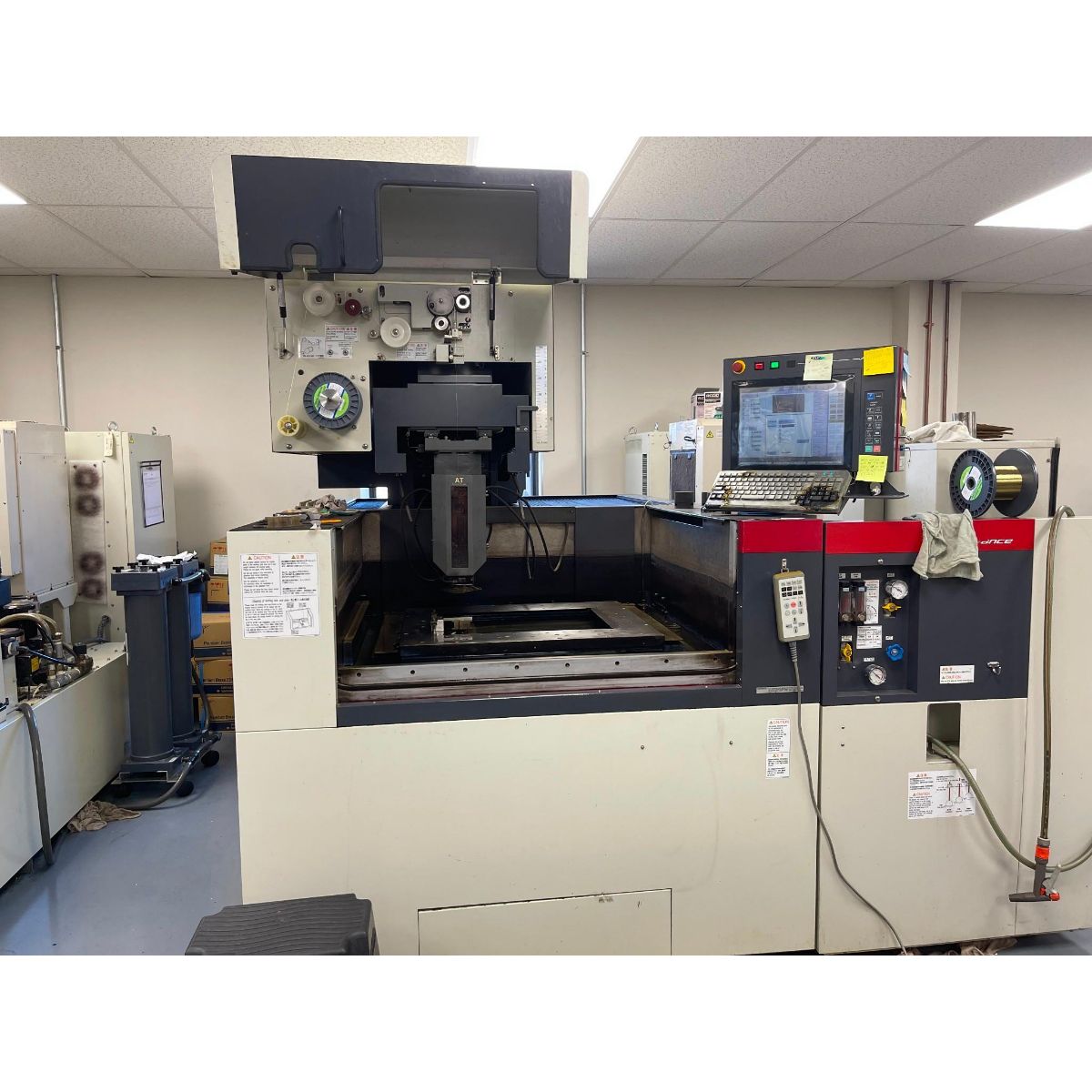

The 2009 Mitsubishi FA20S Advance CNC Wire EDM delivers precision electrical discharge machining capabilities for demanding industrial applications. This advanced wire EDM system features generous work envelope dimensions of 19.6″ x 13.7″ x 11.8″ with U/V axis travel of 3″ x 3″, enabling complex multi-axis machining operations.

Key Features & Specifications:

• 15-degree taper cutting capability at 10.25′ for angled cuts and complex geometries
• Maximum workpiece capacity: 41.34″ x 31.5″ x 11.61″ supporting up to 3,300 lbs
• Wire diameter range: 0.004″ – 0.012″ for versatile cutting applications
• 187-gallon filter tank capacity with precision filtration (7/3 micron)
• Auto wire threading system reduces setup time and operator intervention
• Adaptive control technology prevents wire breaks and maintains accuracy

Complete Package Includes:

• One-piece 4-sided table for maximum stability
• Integrated chiller and fast fill pump system
• 10 kg wire spool capacity with auto oiler
• Anti-electrolysis power supply and glass feedback scale

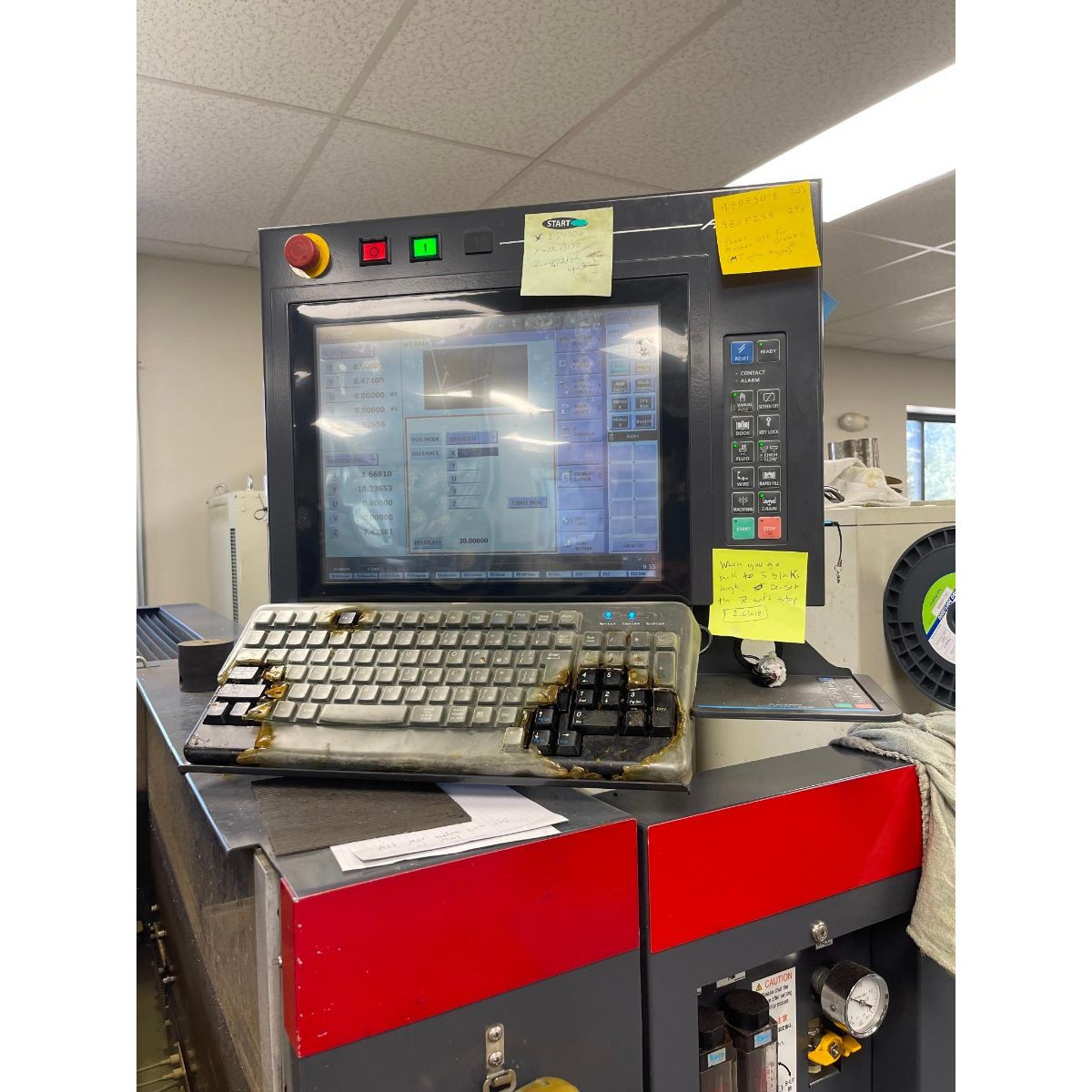

• Hand pendant controller for operator convenience

Ideal for tool and die shops, aerospace manufacturing, medical device production, and precision machining operations requiring tight tolerances and complex geometries.
